Buy Eurolite LED pin spot LED THA-20PC TRC Warm white 22 W

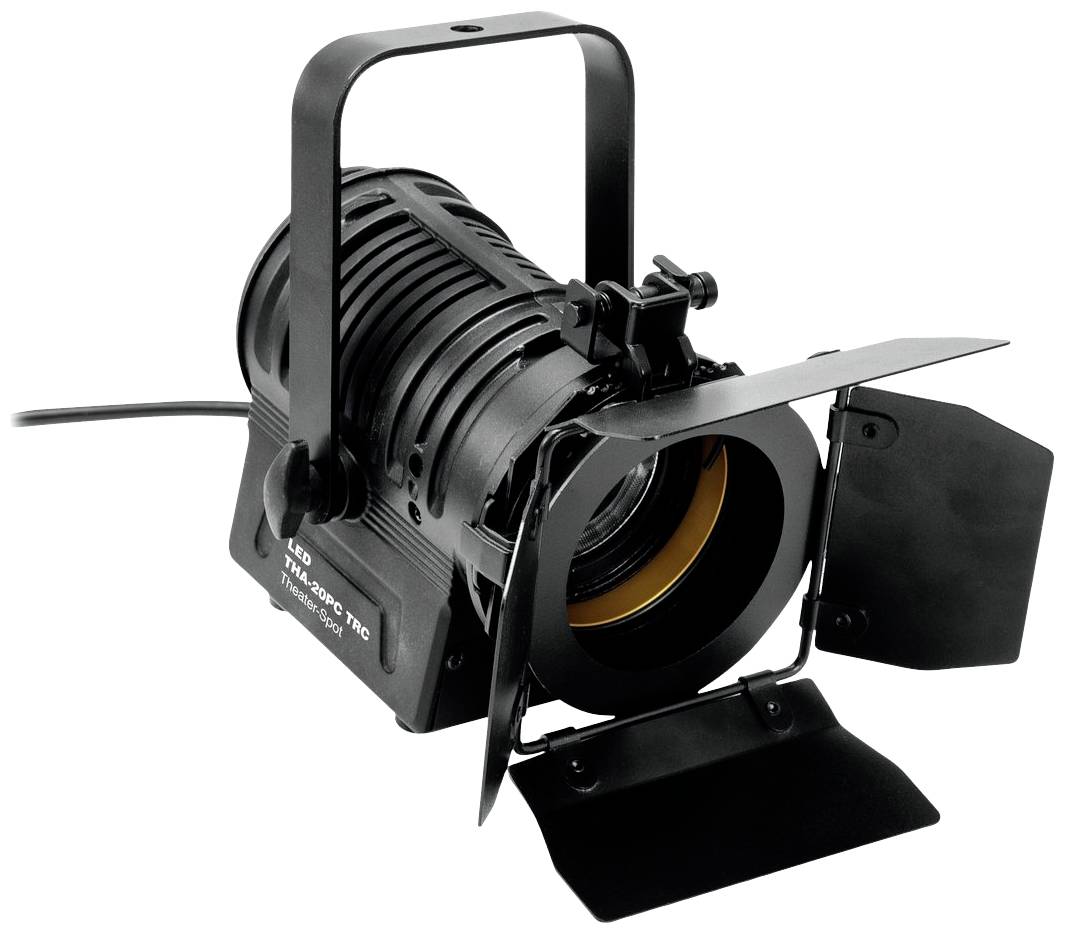

A black LED theatre light with adjustable shutters and handle, suitable for stage effects and lighting in performances.

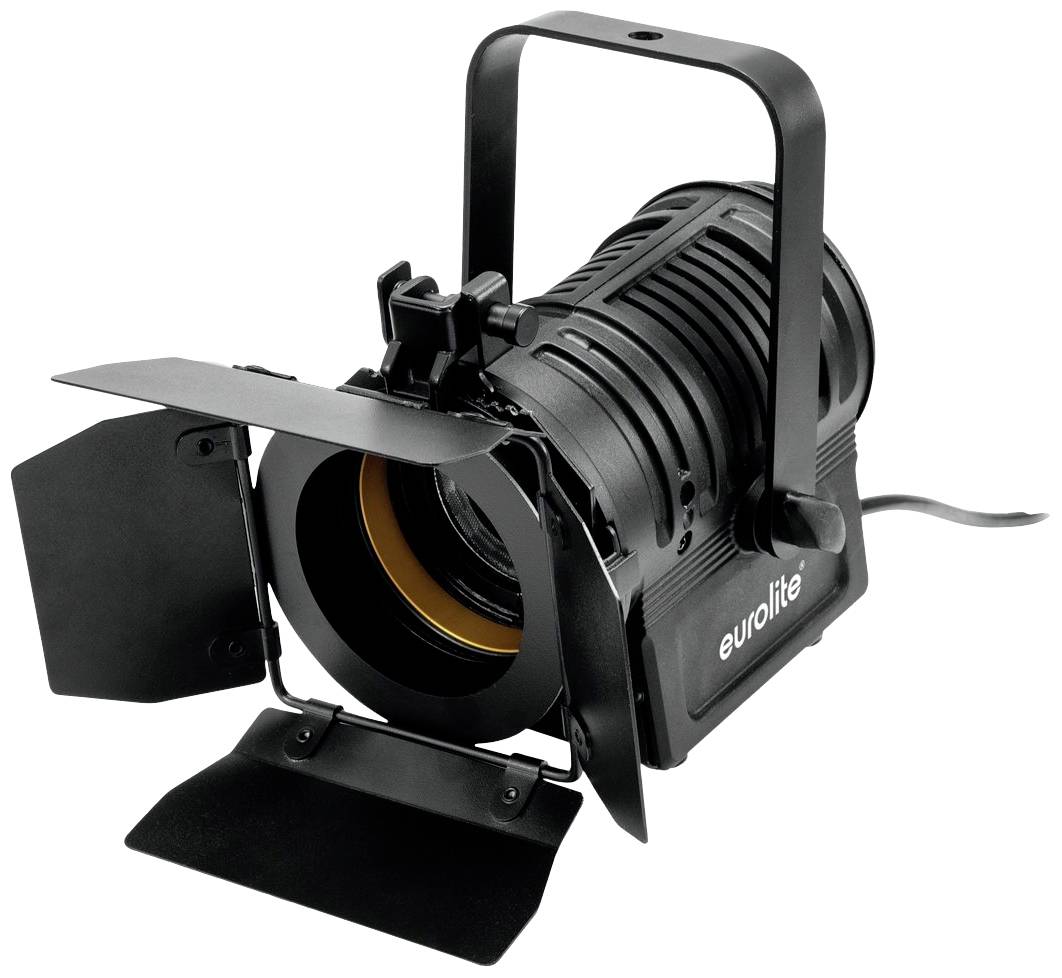

A black stage spotlight with barn doors, suitable for theatre lighting. Side is labelled with 'eurolite'.

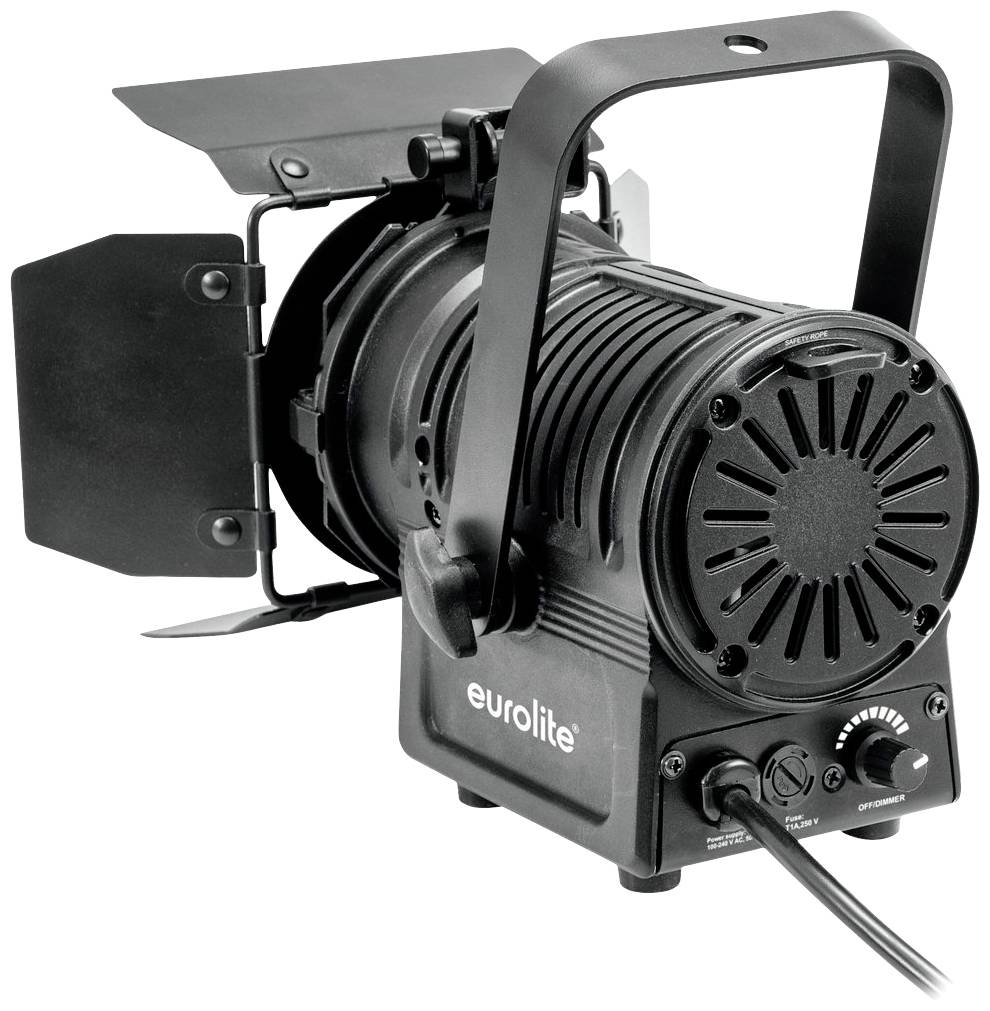

A black stage light with barn doors by Eurolite, suitable for stage lighting.

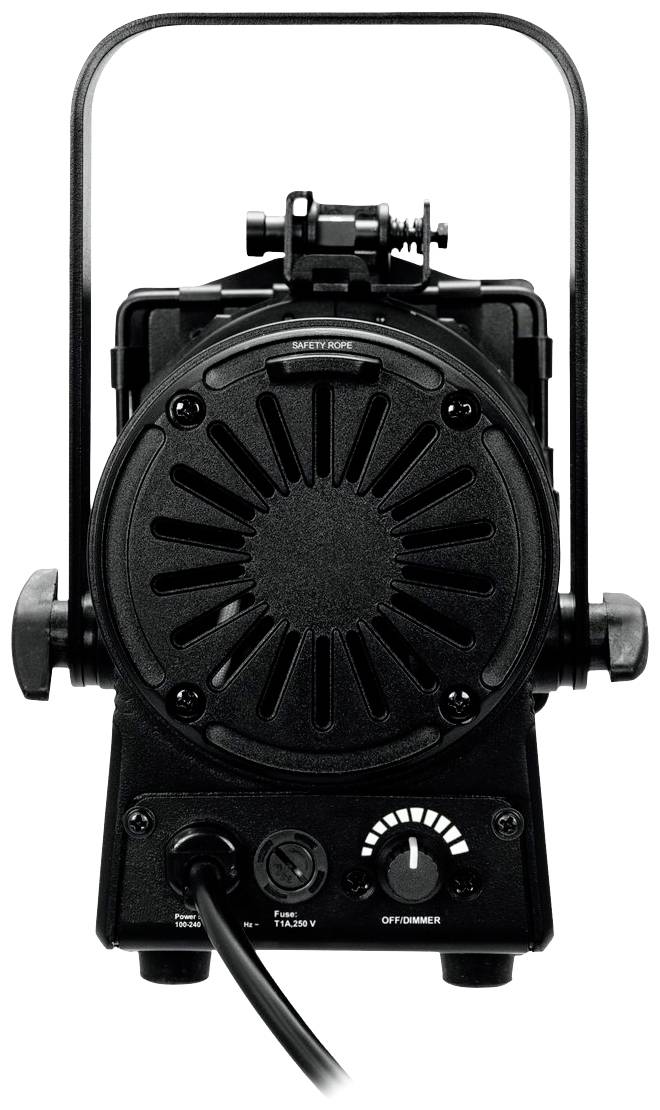

A black, rectangular device with a speaker front, rotary knobs, and a cable at the bottom. Most likely a technical audio device.

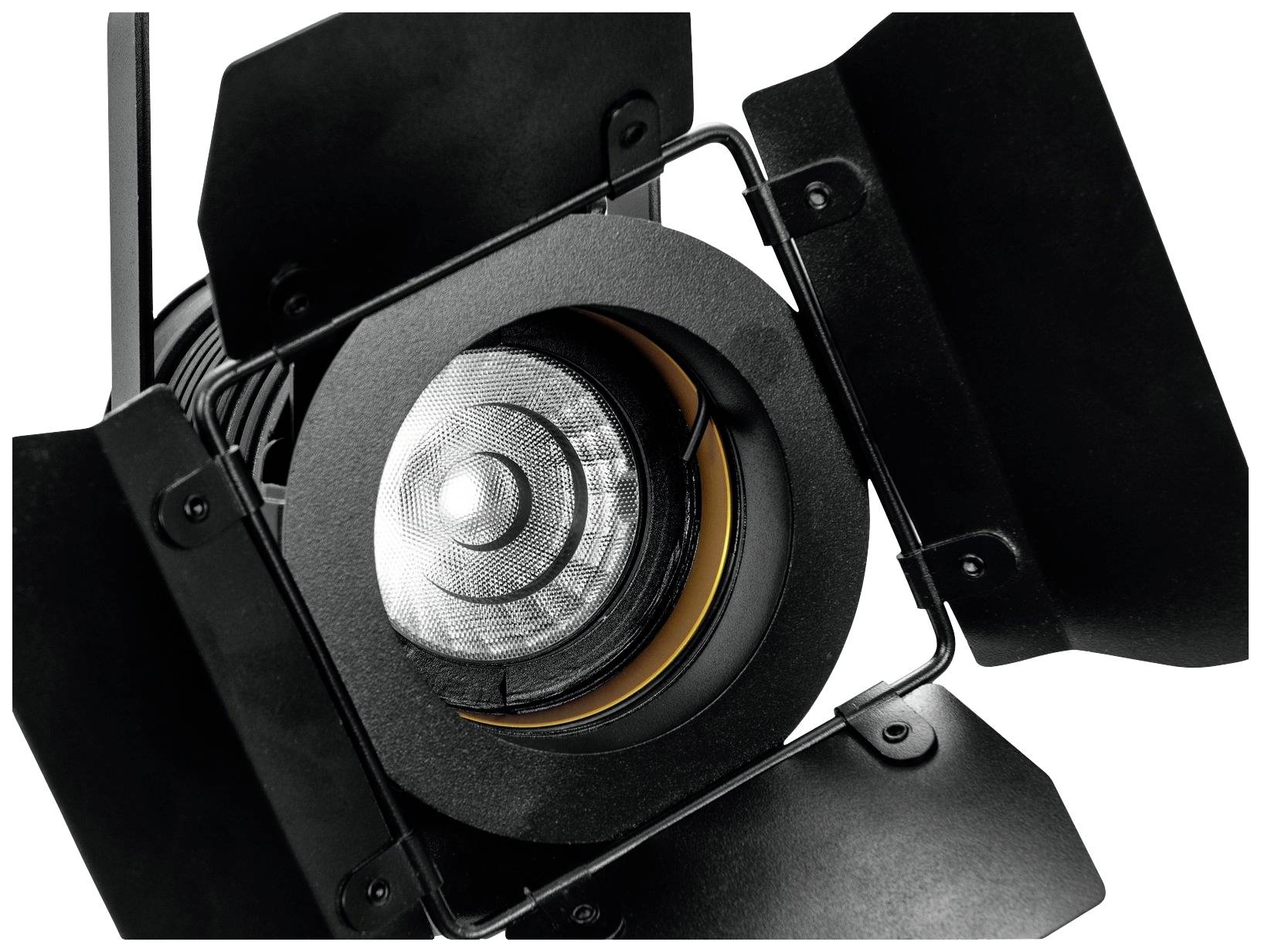

A black studio spotlight with open aperture reveals the lens and internal components. Suitable for film or photography studio applications.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED THA-20PC TRC theater-spot SW

1 powerful LED 17 W COB (Chip-on-board) Dim to warm (homogeneous color mixing)
The device is cooled by passive convection cooling
With an angle of radiation of 17°

Technical specifications

Product type: LED pin spot

Case colour: Black

: 22 W

Dim: (L x W x H) 145 x 215 x 99 mm

Weight: 2.23 kg

: n.rel.

Colour: Warm white

: 3000 K

Width: 215 mm

Height: 99 mm

Length: 145 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3132743 Eurolite LED pin spot LED THA-20PC TRC Warm white 22 W

Description

Fan-less PC spotlight with 17 W white light LED, color reproduction (CRI) 90
Innovative LED technology, which simulates the color temperature curve of a halogen lamp while dimming
Two additional frost filters for a homogeneous and soft light

This text is machine translated.

Features

Can be controlled via stand-alone
Flicker-free
Very high color rendering index (CRI)
With mounting bracket
Noiseless operation
Electronic dimmer
Rubber feet
Possible application: On-the-fly; on a tripod
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 22 W
Power connection: Fixed power connection cable with protective contact plug
Protection class SK I
Cooling: Passive convection cooling
Housing colour black.
Protection class: IP20
Supporting system: Mounting bracket
Material: Metal, 2 mm
Control: Stand-alone
Transport aid: Rubber feet
Width: 14.5 cm
Cable configuration 3 x 0.75 mm² H05VV-F
LED:1 x 17 W COB (Chip-on-board) Dim to warm (homogeneous color mixing)
Colour temperature: 3000K
Beam angle: 17°
Beam angle (1/2 peak) 17°
Beam angle (1/10 peak) 36°
Colour rendering index (CRI): 92 Ra
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
5 x 20 mm, T 1 A fuse can be replaced
Diameter of mounting holes 1 x Ø4mm
Illuminance (lx): 188 lx
Mounting at headlight: 10 cm x 10 cm
Ring diameter 99 mm
Frost filter 19°
Frost filter 26°
Frost filter 40°
Frost filter 53°
Metal
For application areas such as: Trade fair construction and shop fitting; wedding/gala/events; video and photography; mobile application.

Scope of delivery

Headlamps
Barn Doors
Filter frame
Coil
2 x diffuser disk
2 x Lamp terminal ring
User manual
