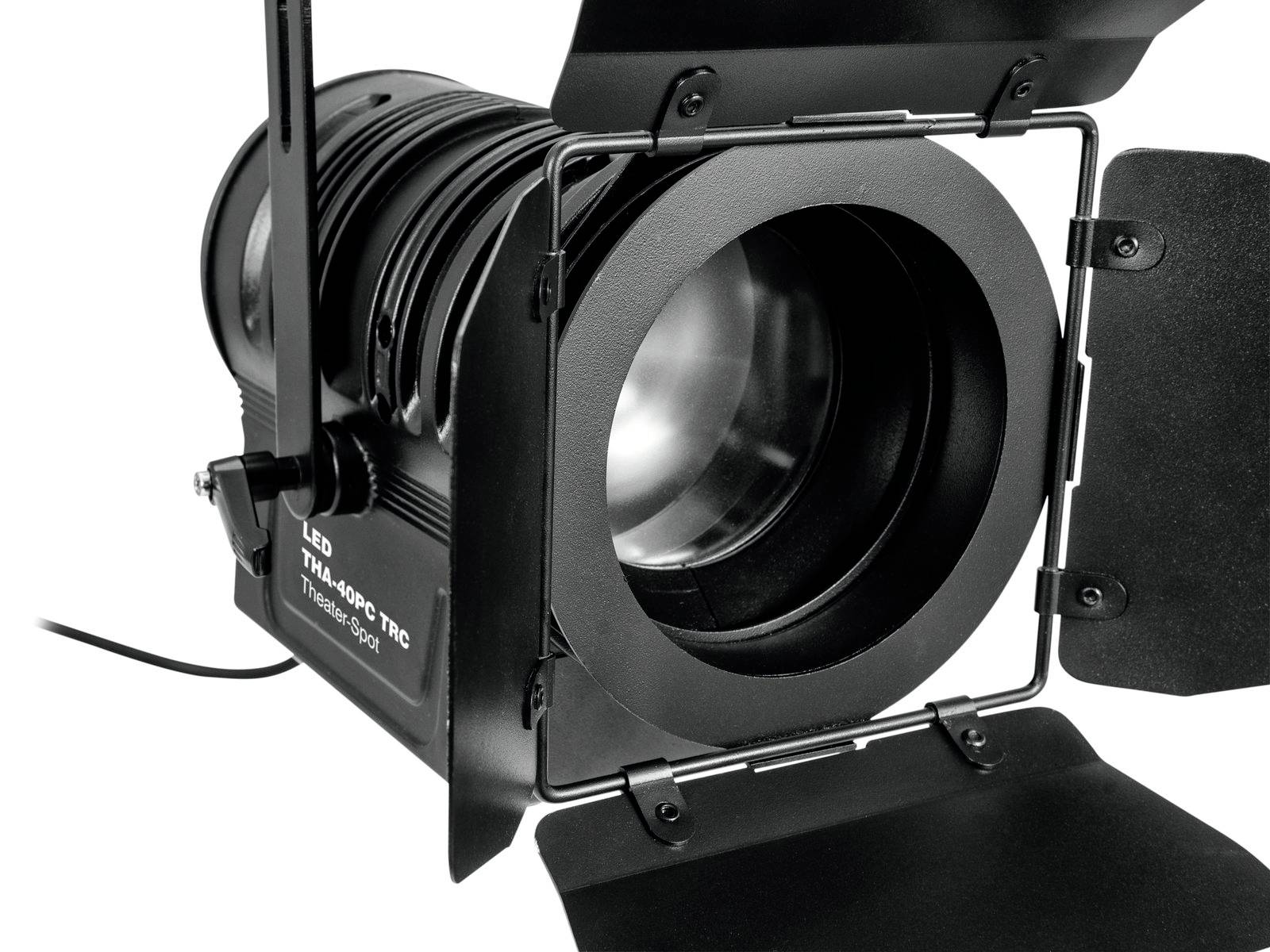

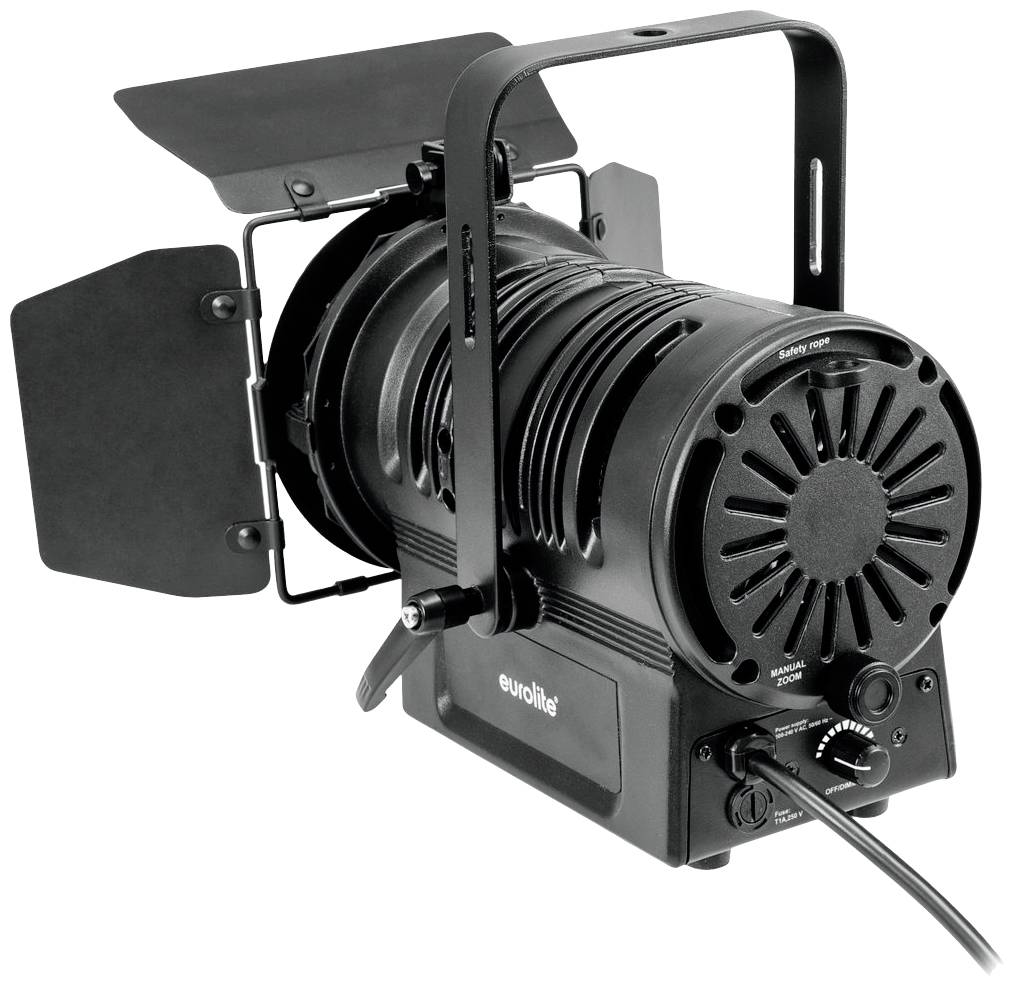

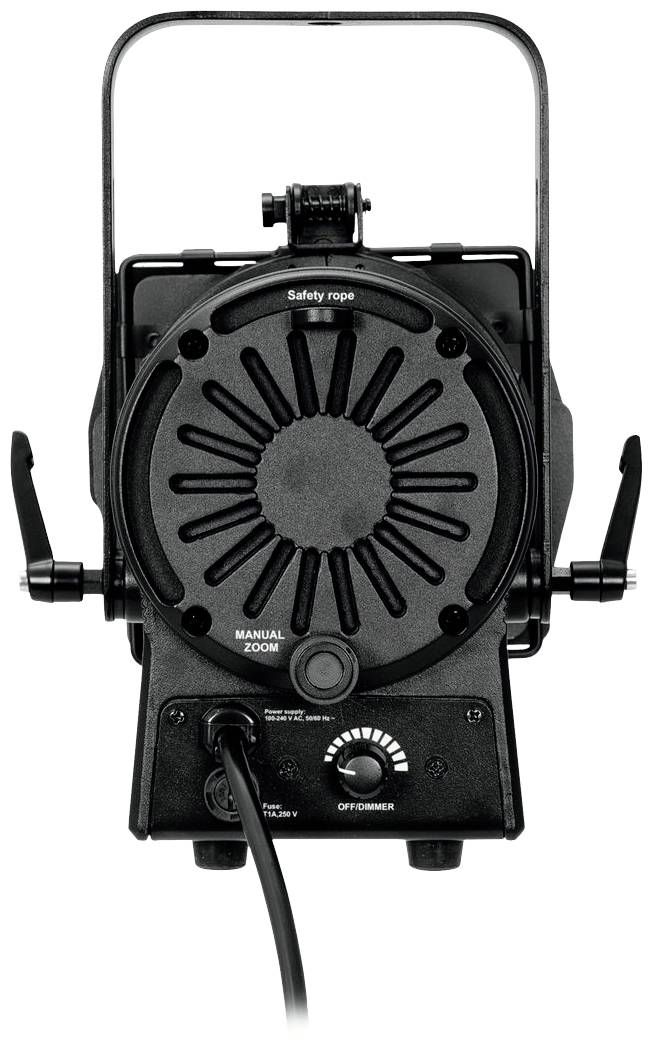

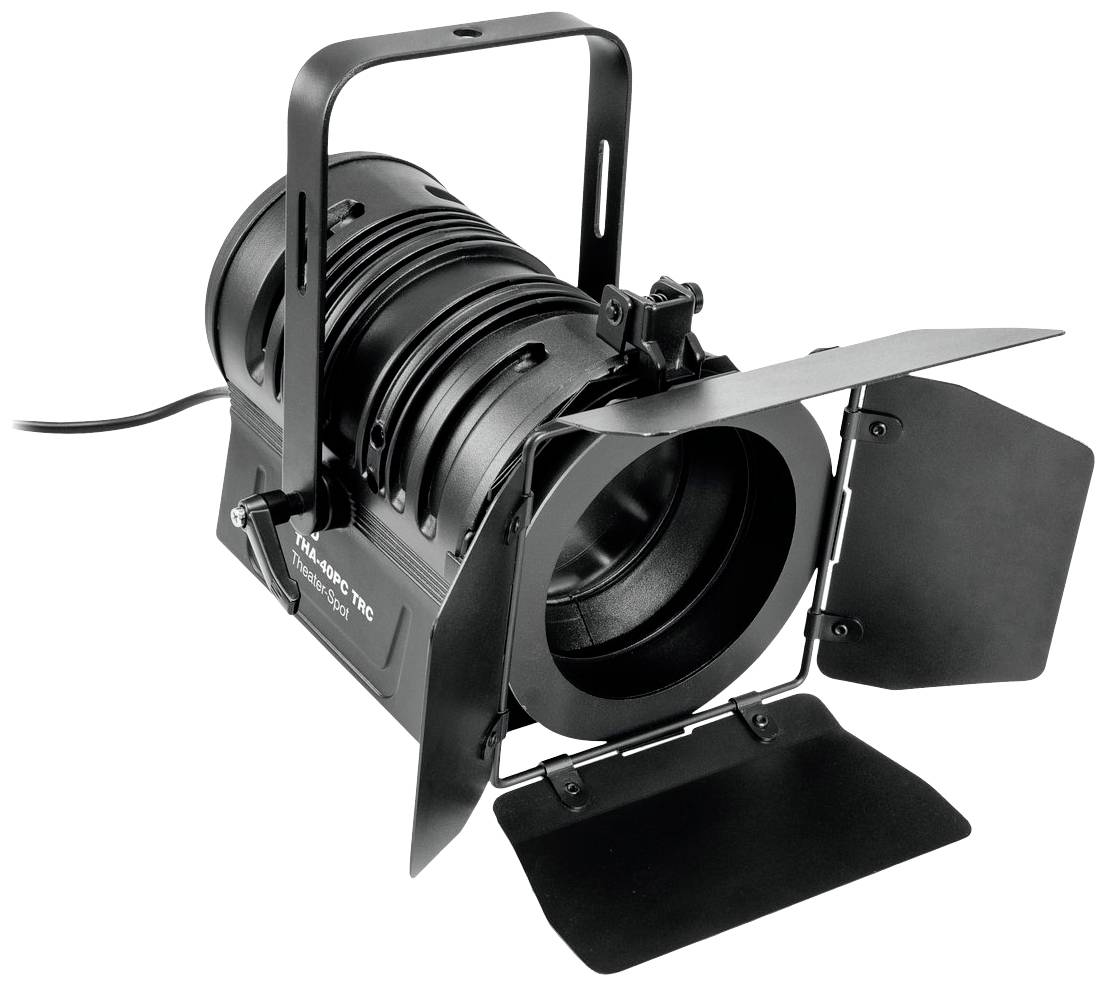

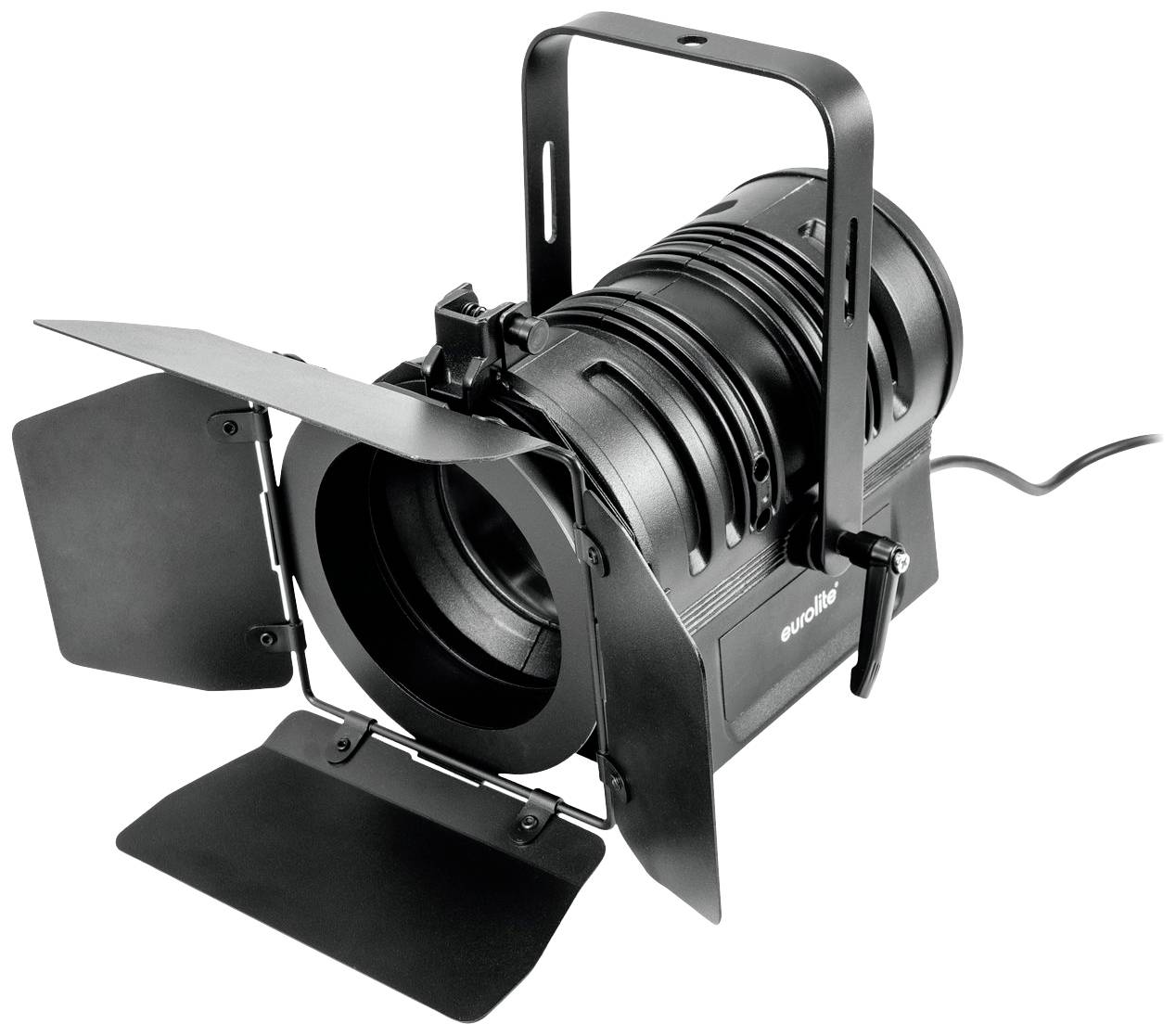

Eurolite LED pin spot LED THA-40PC TRC Warm white 40 W
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED THA-40PC TRC theater-spot SW
- 1 powerful LED 57 W COB (chip-on-board) warm white (WW)
- Electronic dimmer
- With a beam angle of 12° - 47°
Technical specifications
- Product type
LED pin spot
- Case colour
Black
40 W
- Dim
(L x W) 260 mm x 200 mm
- Weight
3.82 kg
n.rel.
- Colour
Warm white
3100 K
- Width
200 mm
- Depth
250 mm
- Length
260 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3132744 Eurolite LED pin spot LED THA-40PC TRC Warm white 40 W
Description
Fan-less PC spotlight with 57 W white light LED, color reproduction (CRI) 90
Sturdy metal housing
For application areas like: Trade fair construction and shop building; wedding/gala/events; restaurants, bars and hotels; video and photography
This text is machine translated.
Sturdy metal housing
For application areas like: Trade fair construction and shop building; wedding/gala/events; restaurants, bars and hotels; video and photography
This text is machine translated.
Features
- The device is cooled by passive convection cooling
- Can be controlled via stand-alone; dial for brightness; dimmer
- Flicker-free
- Very high color rendering index (CRI)
- With mounting bracket
- Rubber feet
- Noiseless operation
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 40 W
- Power connection: Fixed power connection cable with protective contact plug
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Material: Aluminium, 0.8 mm
- Control: Stand-alone
- Transport aid: Rubber feet
- Width: 20 cm
- Cable configuration 3 x 0.75 mm² H05VV-F
- LED:1 x 57 W COB (chip-on-board) warm white (WW)
- Colour temperature: 3100K
- Angle of radiation 12° - 47°
- Max. Beam angle: 1/2 peak, 12 - 36°
- Max. Beam angle: 1/10 peak, 18 - 47°
- Colour rendering index (CRI): 92 Ra
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 1 A fuse can be replaced
- Diameter of mounting holes 1 x Ø4mm
- Illuminance (lx): 514 lx
- Mounting at headlight: 13.1 cm x 13.1 cm
- Ring diameter 12.9 mm
- Metal: Metal
- Rotating control for brightness: Dial for brightness
- Dimmer
- Wide 3M 141 lx
- 2 x Ø6mm 2 x Ø6mm
- Shape: Octagonal
Scope of delivery
- Headlamps
- Barn Doors
- Filter frame
- User manual
