Eurolite LVH-1 S-Video splitter Steel casing
EAN:
Part number:
Item no:
Highlights & Details

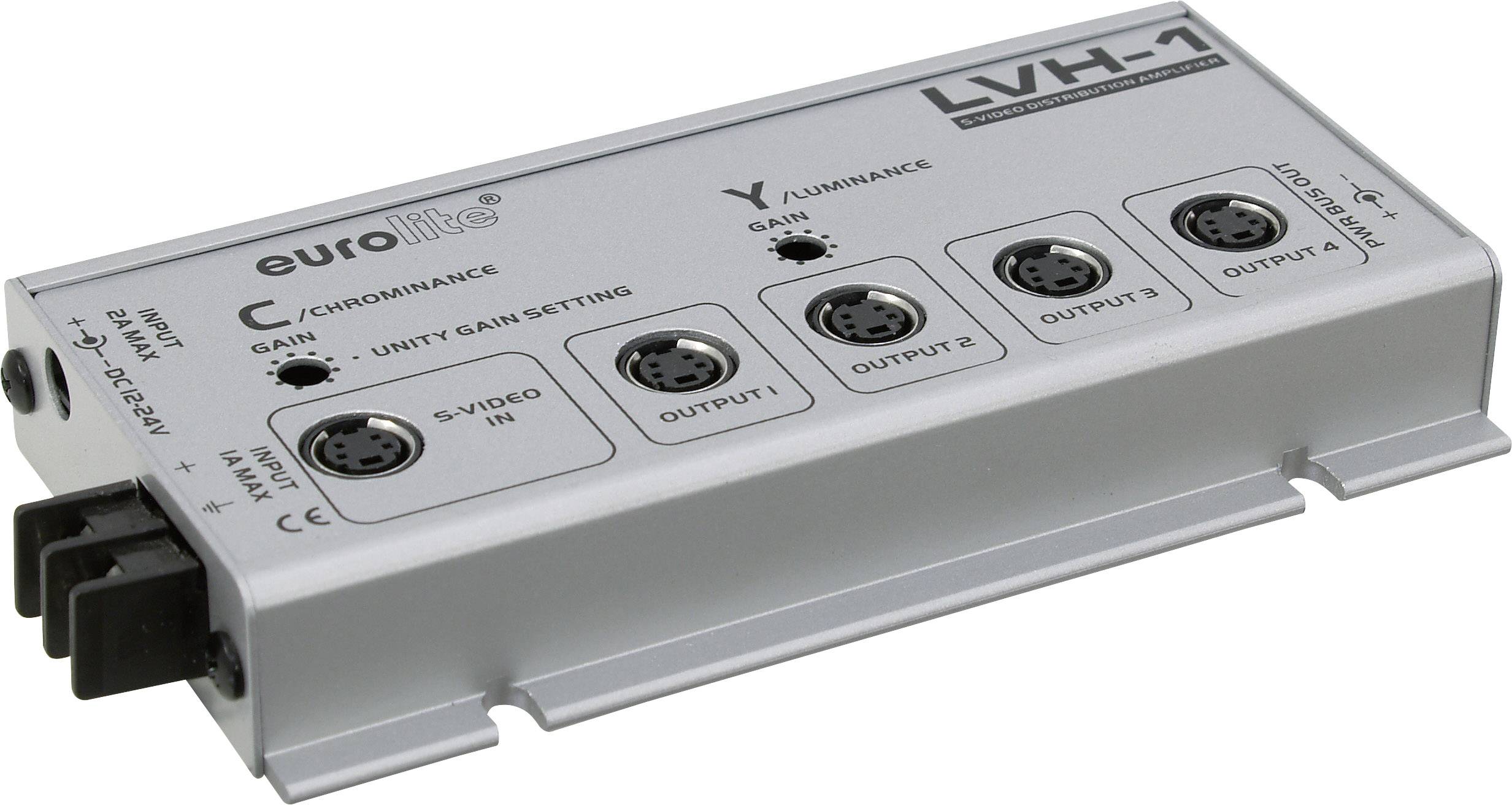

Eurolite LVH-1 S-Video distribution amplifier
- Distributes S-video signals
- Four independant outputs
- Amplification of both components can be set separately
- 75 ohm input and output via mini DIN 4 plug
- Wide frequency response - flat up to 10 MHz
- Super compact metal casing
- Suitable for wall mounting
- 12-24 V DC power supply via screw terminals or socket (power supply not included)
- Loop-through output for power supply of another LVH-1
- Wiring in series connection principle possible
Technical specifications
- Product type
S-Video splitter
- Supported monitors
4
- Interfaces (input)
S-Video (Hosiden)
- Interfaces (output)
S-Video (Hosiden)
- No. of inputs
1 x
- No. of outputs
4 x
- Switch function
Automatic
- Distributor/switch features
Steel casing
- Factory colour
Silver
- Width
164 mm
- Height
23 mm
- Depth
83 mm
- Weight
320 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1899945 Eurolite LVH-1 S-Video splitter Steel casing
Description
When the pictures learned to run!
When the images move, this usually increases our attention. Television and video just appeal to us. In our information and entertainment society they serve different purposes. If you also want to use the pictures and consider how to distribute a video signal as video jockey, or in conferences, to several screens, then we can recommend our EUROLITE LVH-1. This distribution amplifier for S-Video signals amplifies and distributes a high-quality S-Video signal to four outputs. The power supply is controlled either via screw terminals or a socket. In addition, the LVH-1 offers the possibility to set the color type and brilliance and to connect several distributors in series via an additional socket. With the LVH-1 you determine what and where it is sent.
This text is machine translated.
When the images move, this usually increases our attention. Television and video just appeal to us. In our information and entertainment society they serve different purposes. If you also want to use the pictures and consider how to distribute a video signal as video jockey, or in conferences, to several screens, then we can recommend our EUROLITE LVH-1. This distribution amplifier for S-Video signals amplifies and distributes a high-quality S-Video signal to four outputs. The power supply is controlled either via screw terminals or a socket. In addition, the LVH-1 offers the possibility to set the color type and brilliance and to connect several distributors in series via an additional socket. With the LVH-1 you determine what and where it is sent.
This text is machine translated.
