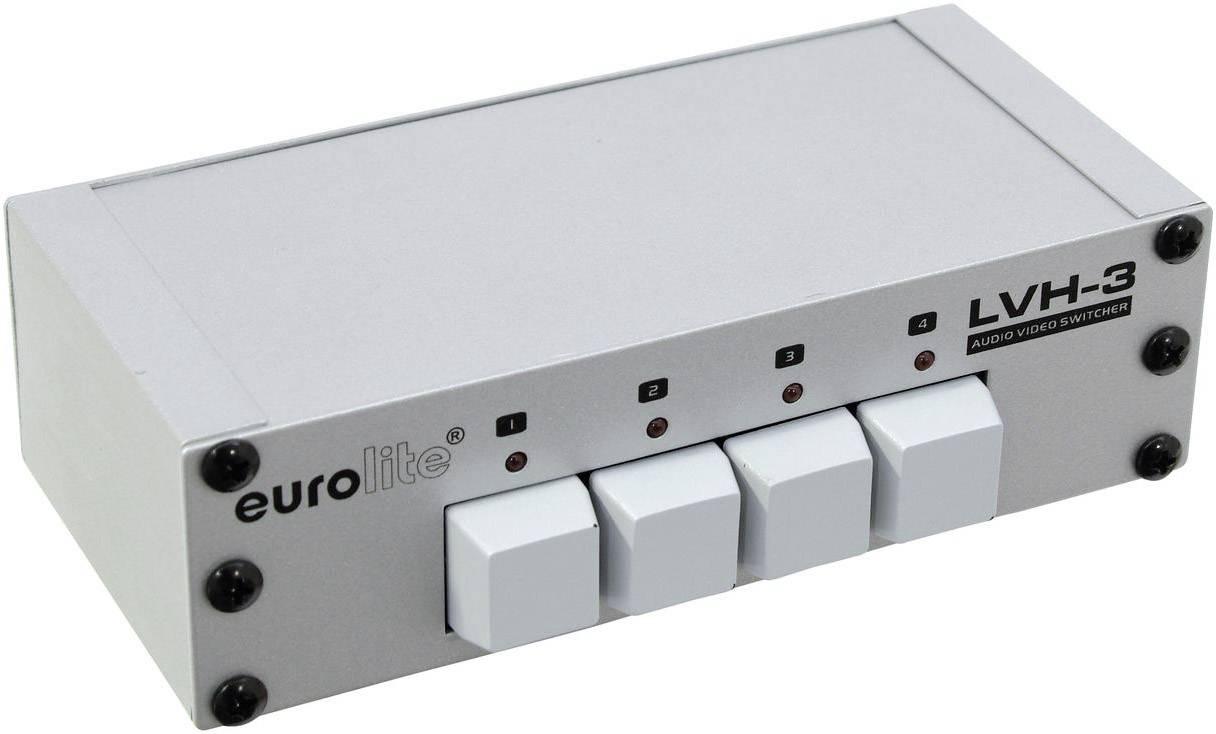

Eurolite LVH-3 Composite switch LED display, Steel casing
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LVH-3 AV-switch
- Video and stereo audio signal switching from four sources to one output
- 4 inputs (cinch)
- 1 output (Cinch)
- Switch over via long-life keyboard keys
- LED control display of the active channel
- Screw connections for remote control
- NTSC and PAL compatible
- High-quality gold-plated phono connectors
- Super compact metal casing
- 12-24 V DC power supply via screw terminals or socket (power supply not included)
Technical specifications
- Product type
Composite switch
- Supported monitors
1
- Interfaces (input)
RCA (VHS)
- Interfaces (output)
RCA (VHS)
- No. of inputs
4 x
- No. of outputs
1 x
- Switch function
Key
- Distributor/switch features
LED display
Steel casing
- Factory colour
Silver
- Power supply (LOV)
via terminal
- Width
146 mm
- Height
42 mm
- Depth
90 mm
- Weight
440 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1899963 Eurolite LVH-3 Composite switch LED display, Steel casing
Description
Manual AV switch 4:1

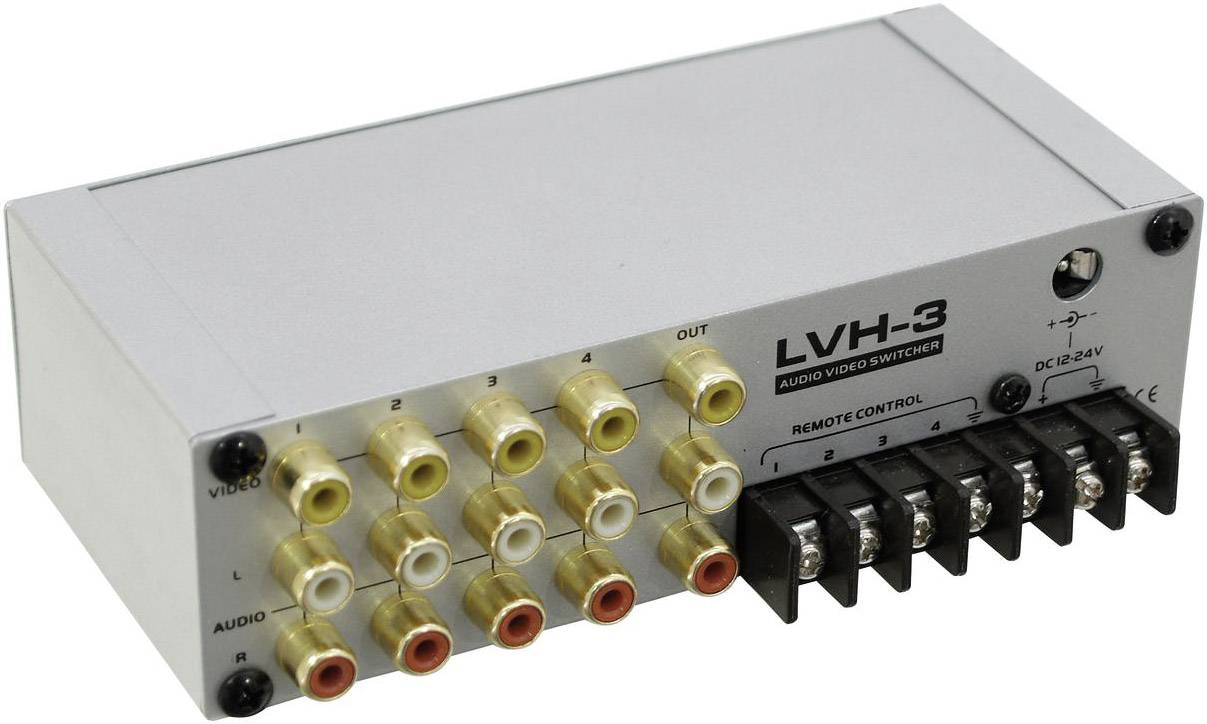

The LVH-3 is used to switch audio and video signals from up to four different sources to one output. The switching can be done manually via selection keys or via an external remote control. A control LED indicates the selected channel. The inputs and outputs of the AV signal run via cinch sockets on the front panel. Power is supplied either via screw terminals or a socket on the back. The device is compatible with NTSC and PAL systems.
This text is machine translated.
The LVH-3 is used to switch audio and video signals from up to four different sources to one output. The switching can be done manually via selection keys or via an external remote control. A control LED indicates the selected channel. The inputs and outputs of the AV signal run via cinch sockets on the front panel. Power is supplied either via screw terminals or a socket on the back. The device is compatible with NTSC and PAL systems.
