Eurolite LVH-5 BNC changeover LED display, Steel casing
EAN:
Part number:
Item no:
Highlights & Details

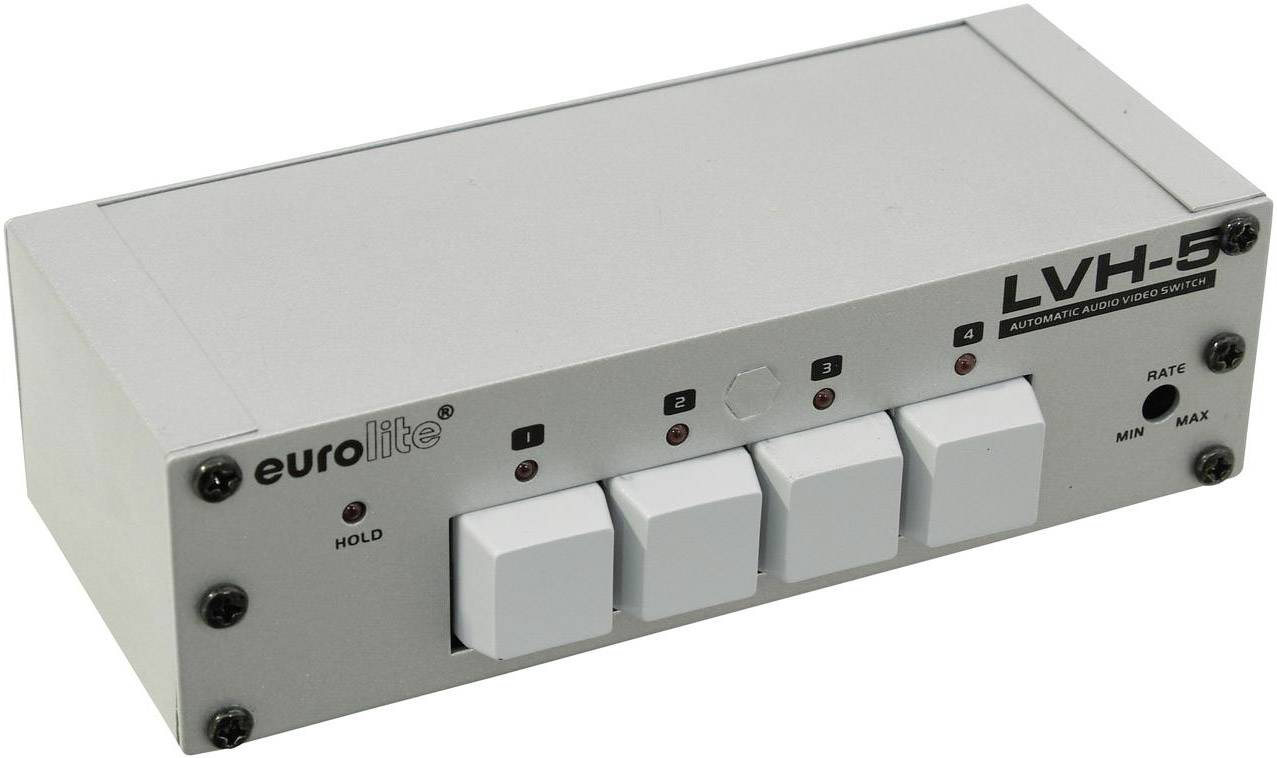

Eurolite LVH-5 automatic video switch
- Automatic switching of video signals
- Adjustable switching time

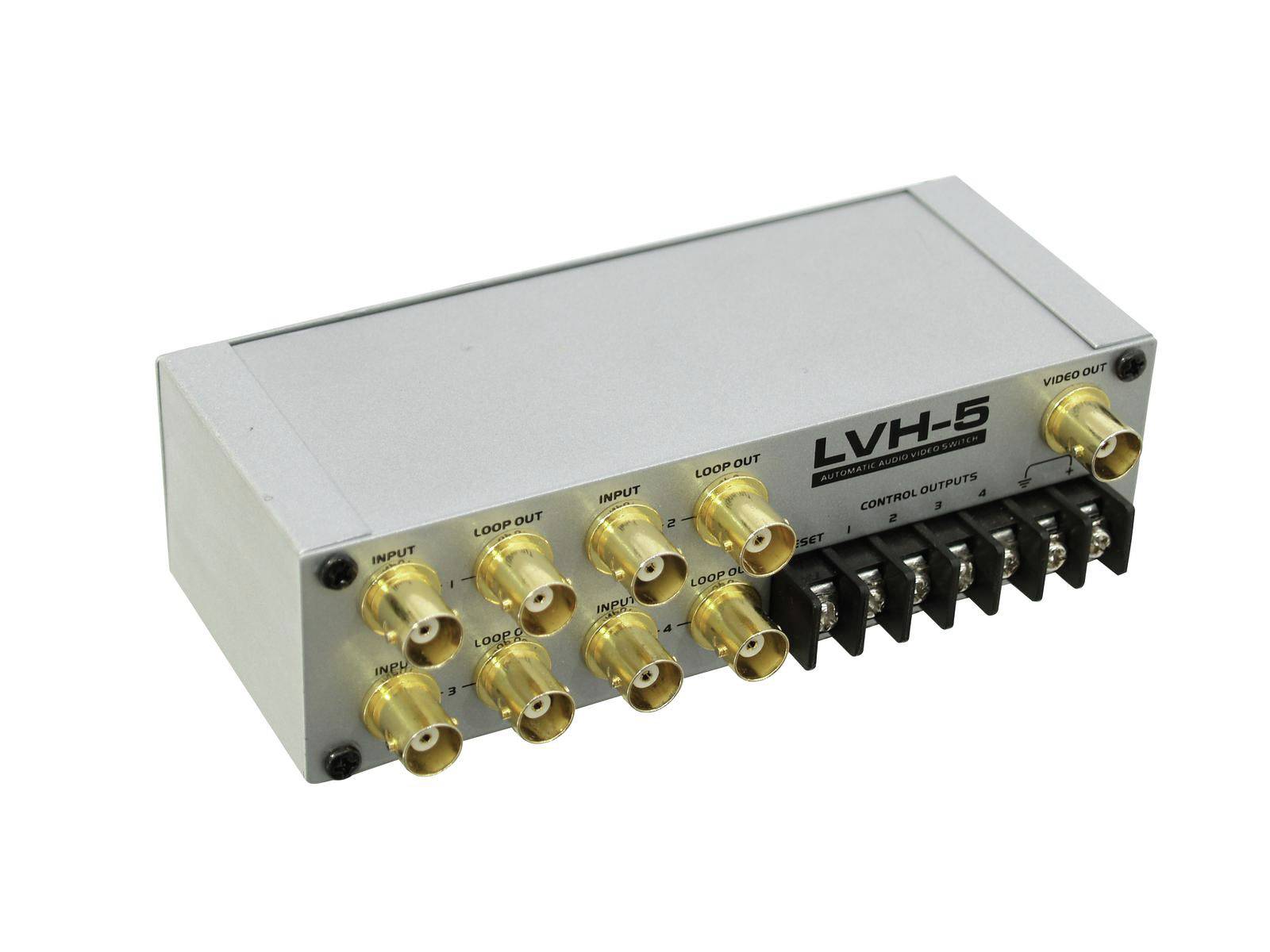

- 4 inputs with loop-through output via BNC connector
- 1 output via BNC connector
- Each channel with priority button and LED indicator
- Open-collector outputs for controlling other devices
- NTSC and PAL compatible
- Super compact metal casing
- 12-24 V DC power supply via screw terminals (power supply not included)
Technical specifications
- Product type
BNC changeover
- Interfaces (input)
BNC
- Interfaces (output)
BNC
- No. of inputs
4 x
- No. of outputs
5 x
- Switch function
Automatic
- Distributor/switch features
LED display
Steel casing
- Factory colour
Silver
- Power supply (LOV)
via terminal
- Width
146 mm
- Height
42 mm
- Depth
78 mm
- Weight
400 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1899965 Eurolite LVH-5 BNC changeover LED display, Steel casing
Description
Automatic video switch 4:1
The LVH-5 is used to switch video signals from up to four different sources to one output. The switching takes place automatically and is indicated by control LEDs. The time interval can be adjusted. Each channel has a priority button to stop sequential operation. Each input has a parallel output for looping through the input signal. Other devices can be controlled via the open collector outputs. Power is supplied via screw terminals. The device is compatible with NTSC and PAL systems.
This text is machine translated.
The LVH-5 is used to switch video signals from up to four different sources to one output. The switching takes place automatically and is indicated by control LEDs. The time interval can be adjusted. Each channel has a priority button to stop sequential operation. Each input has a parallel output for looping through the input signal. Other devices can be controlled via the open collector outputs. Power is supplied via screw terminals. The device is compatible with NTSC and PAL systems.
