Eurolite LVH-6 BNC changeover Steel casing
EAN:
Part number:
Item no:
Highlights & Details

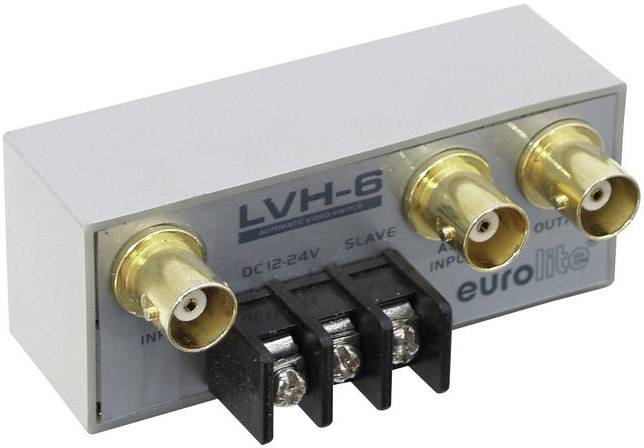

Eurolite LVH-6 automatic video switch
- 2 inputs and 1 output via BNC connector
- Switches automatically to the second signal source when the signal is lost
- Detection of NTSC and PAL signals
- Slave output for controlling other devices
- 12-24 V DC power supply via screw terminals (power supply not included)
- Extremely compact
Technical specifications
- Product type
BNC changeover
- Supported monitors
2
- Interfaces (input)
BNC
- Interfaces (output)
BNC
- No. of inputs
2 x
- No. of outputs
1 x
- Switch function
Automatic
- Distributor/switch features
Steel casing
- Factory colour
Silver
- Power supply (LOV)
via terminal
- Width
76 mm
- Height
31 mm
- Depth
41 mm
- Weight
70 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1899980 Eurolite LVH-6 BNC changeover Steel casing
Description
Automatic video switch 2:1
The LVH-6 is used to switch video signals from two different sources to one output. If the original signal source fails, a switchover to the second source takes place automatically. The LVH-6 uses a high-quality HF relay for the circuit. Other devices can be controlled via a slave output. Power is supplied via screw terminals. The unit detects NTSC and PAL signals.
This text is machine translated.
The LVH-6 is used to switch video signals from two different sources to one output. If the original signal source fails, a switchover to the second source takes place automatically. The LVH-6 uses a high-quality HF relay for the circuit. Other devices can be controlled via a slave output. Power is supplied via screw terminals. The unit detects NTSC and PAL signals.
