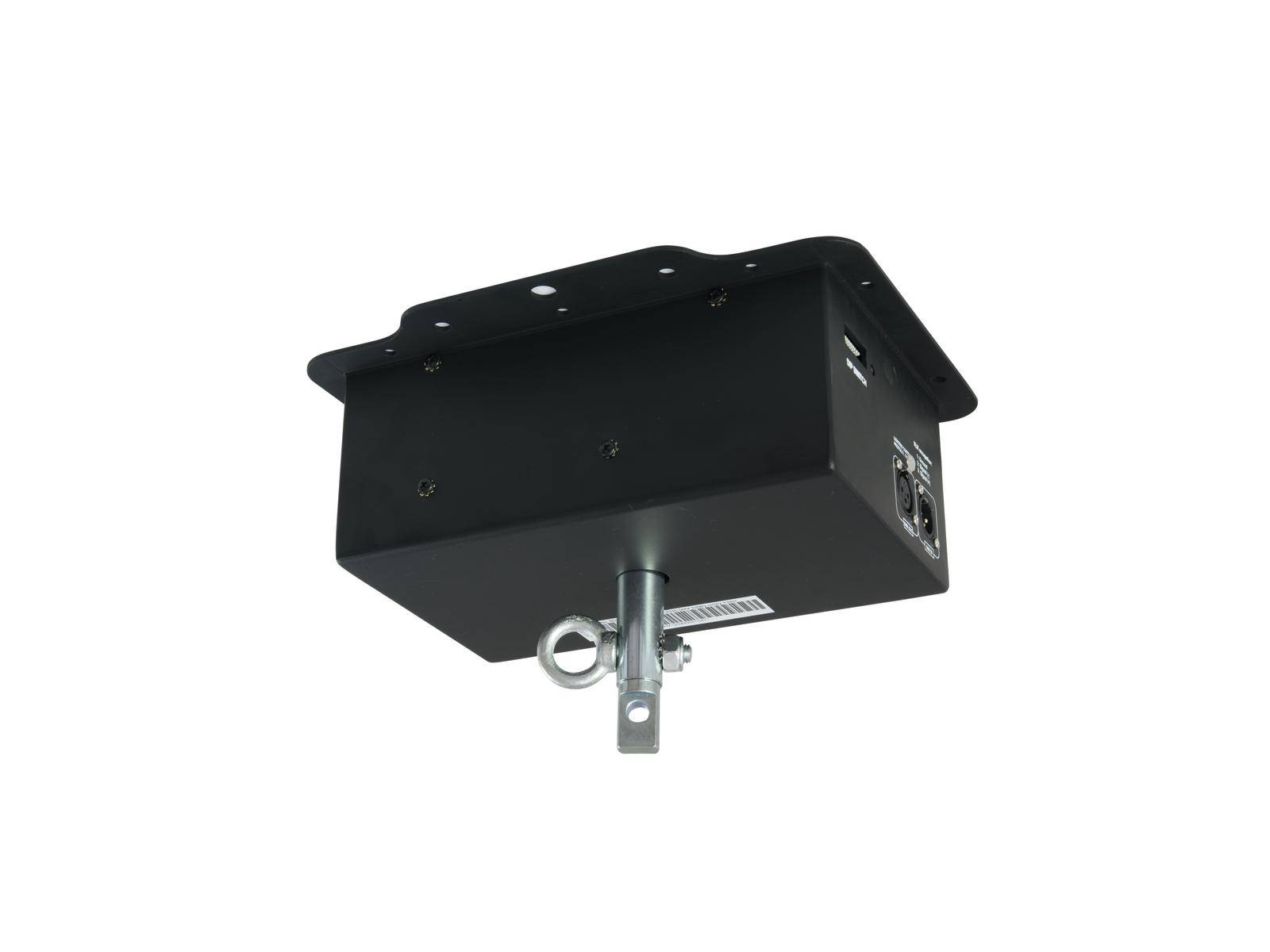

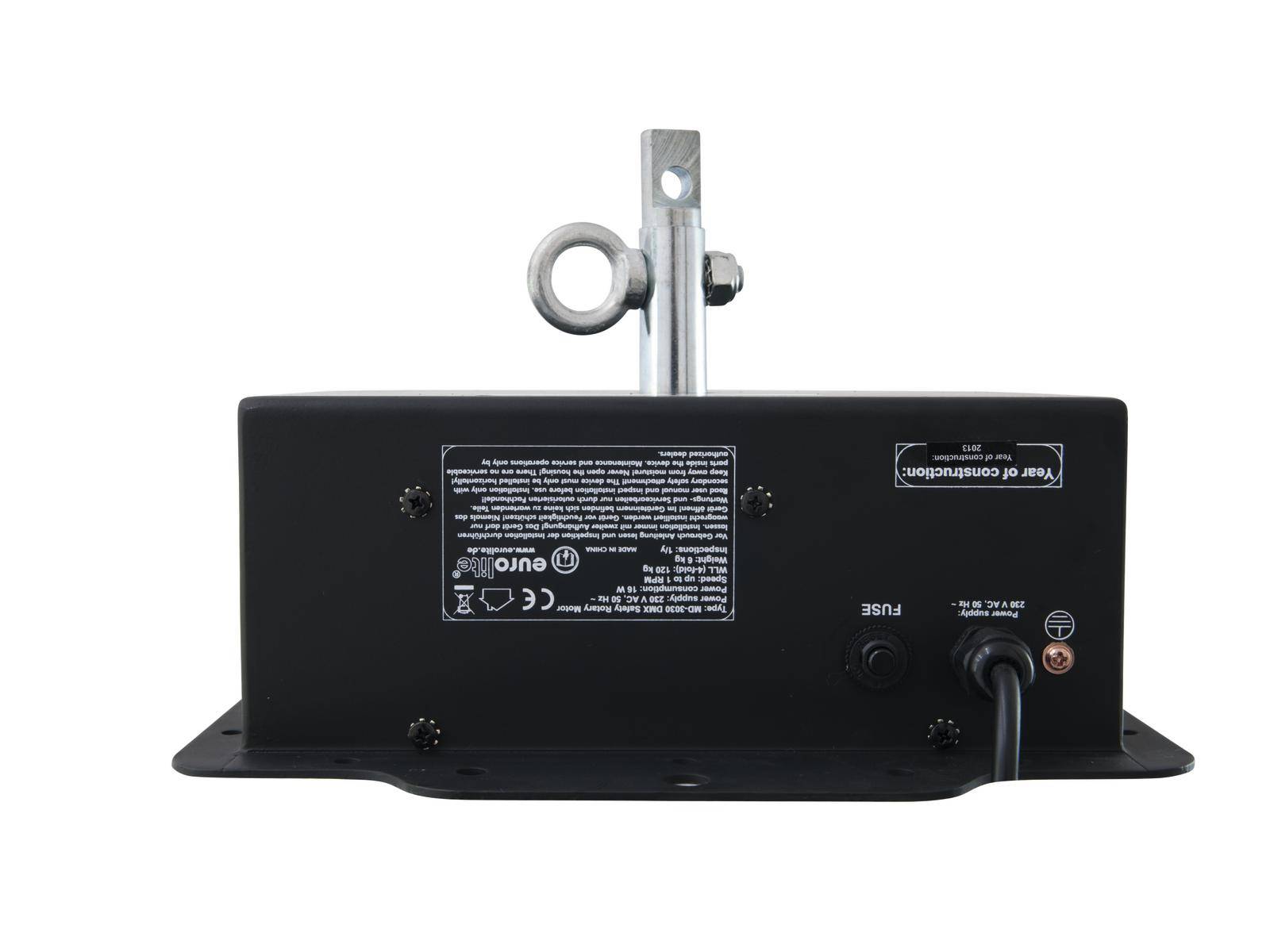

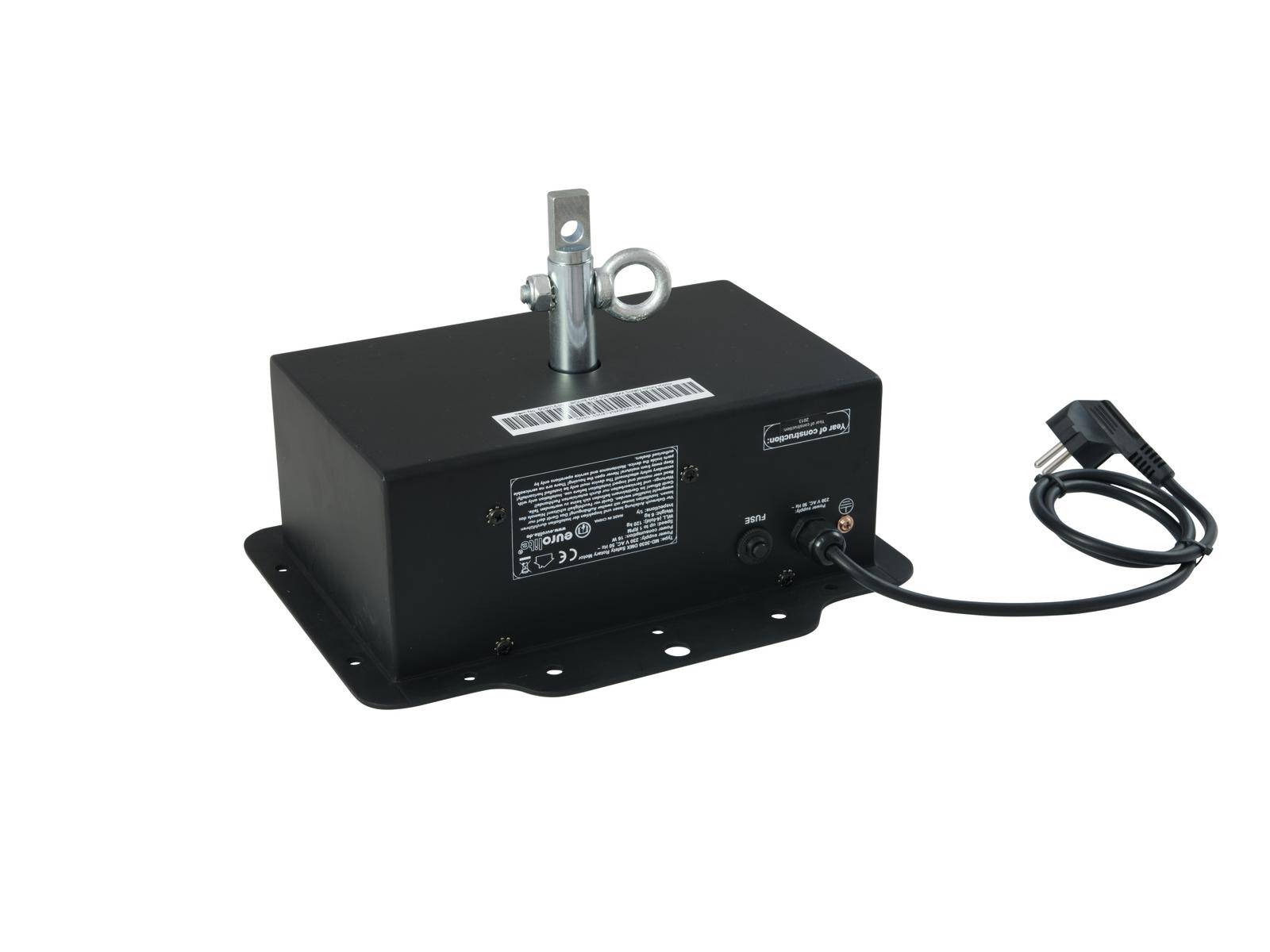

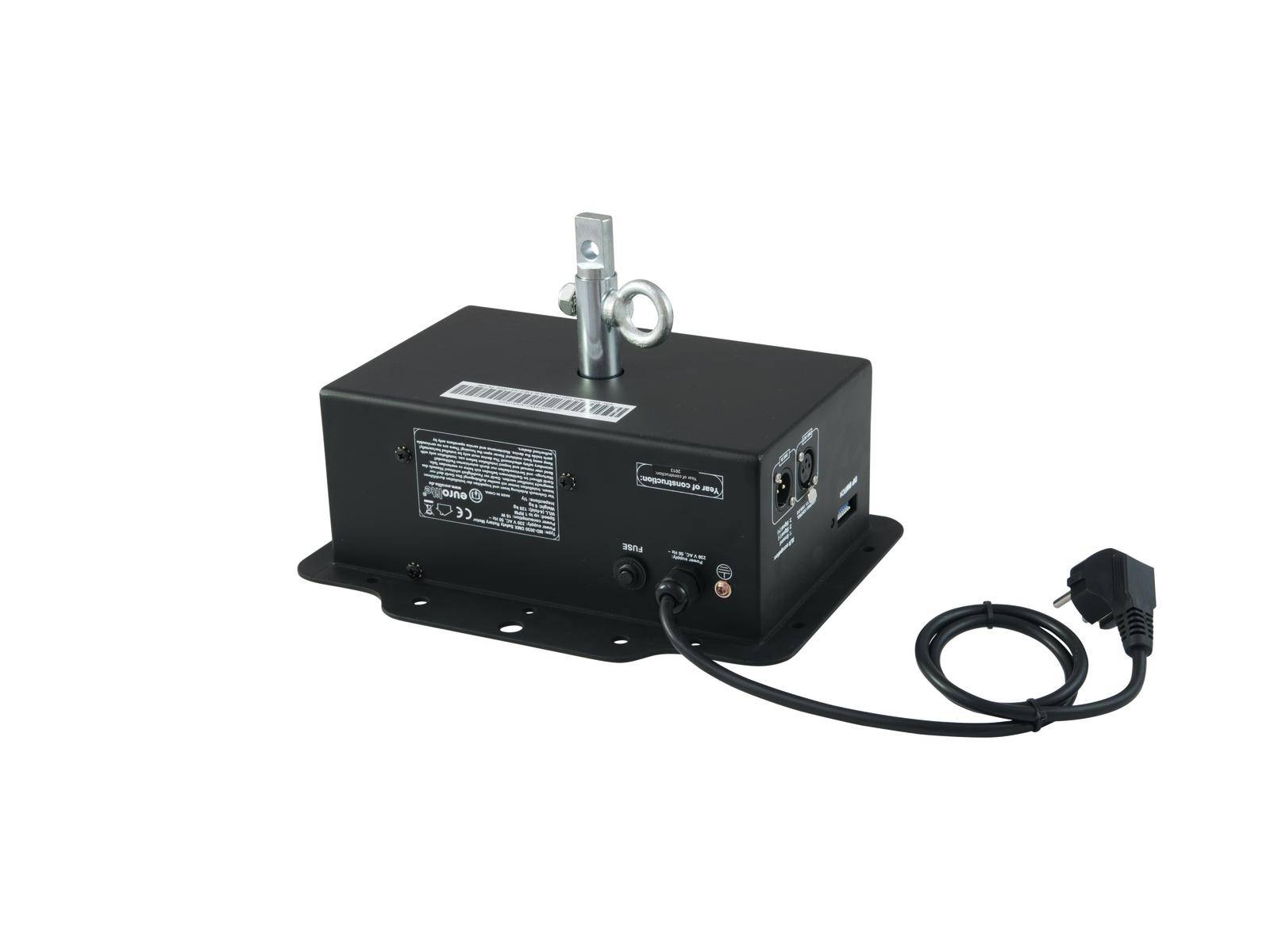

Eurolite MD-3030 Mirror ball motor DMX-controlled
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 230 V AC, 50 Hz ~
- Total connected load 16 W
- Max. Load WLL (4-fold): 120 kg
- Max. Load BGV C1 (8-fold): 60 kg
- Max. Load BGV C1 (10-fold): 50 kg
- Max. Load BGV C1 (12-fold): 40 kg
- Max. Mirror ball diameter 100 cm (EUROLITE)
- Rotation speed: Up to 5 rpm.
- Dimensions (LxWxH) 285 x 235 x 190 mm
- Weight: 6 kg.
- Shipping weight: 6,400 kg
- Product type
Mirror ball motor
- Features
DMX-controlled
n.rel.
- Rotational speed
5 U/min
- Weight
6 kg
- Operating voltage
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375780 Eurolite MD-3030 Mirror ball motor DMX-controlled
Description
DMX-controlled globe mirror motor.
This text is machine translated.
This text is machine translated.
Features
- For driving mirror balls up to a max. total weight of 40 kg
- This corresponds to a diameter of 100 cm for EUROLITE mirror balls
- The maximum load capacity always refers to the actual weight of the mirror ball including mirror ball chain, safety chain and fixing material
- Can be operated in standalone mode or DMX interface

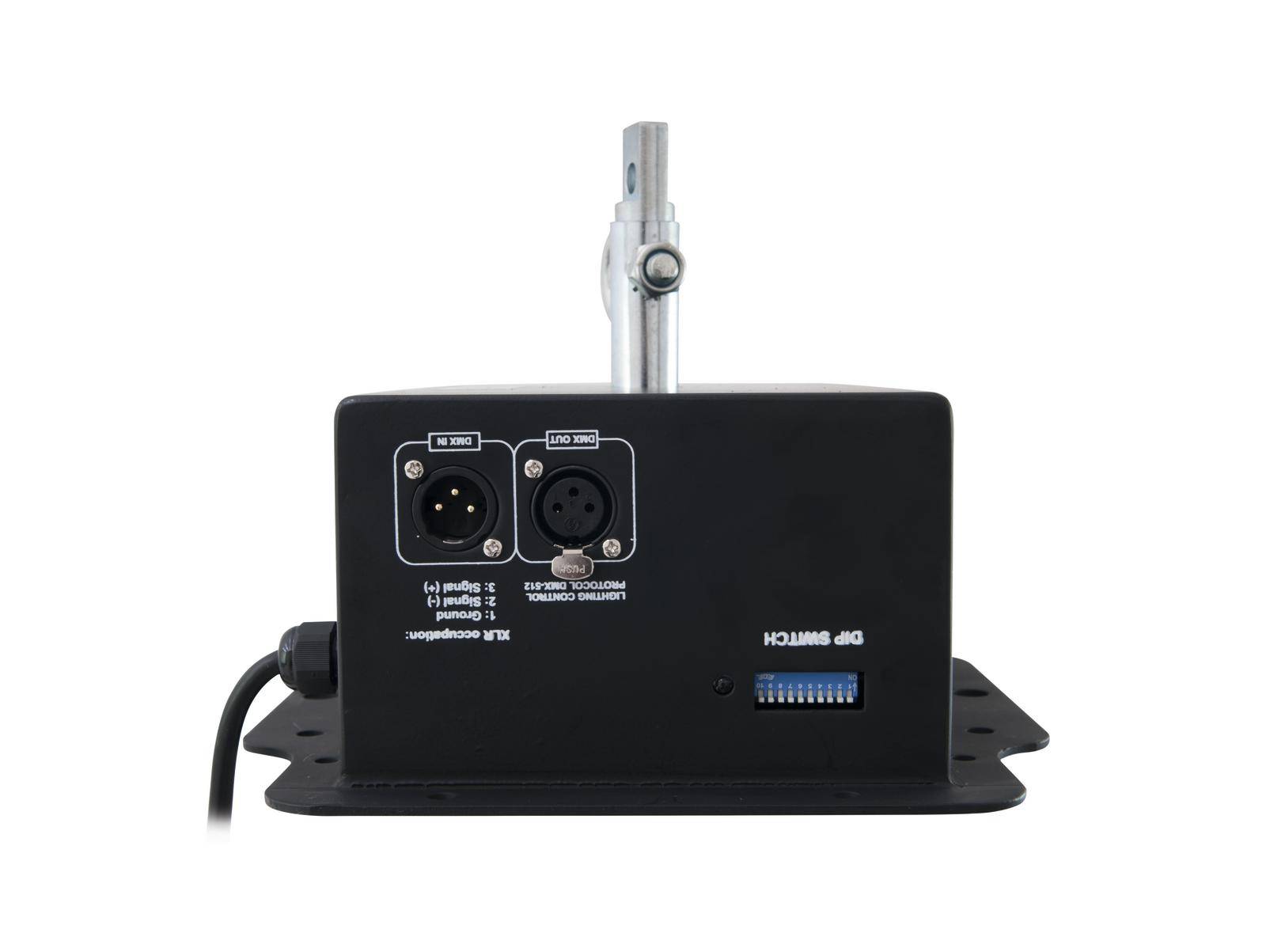

- DMX512 control possible via any standard DMX controller (occupies 1 channel)
- Functions: Rotation direction, rotation speed, master/slave
- Adjustable via DIP-switch
- 2 chains and 4 quick connectors must be ordered separately

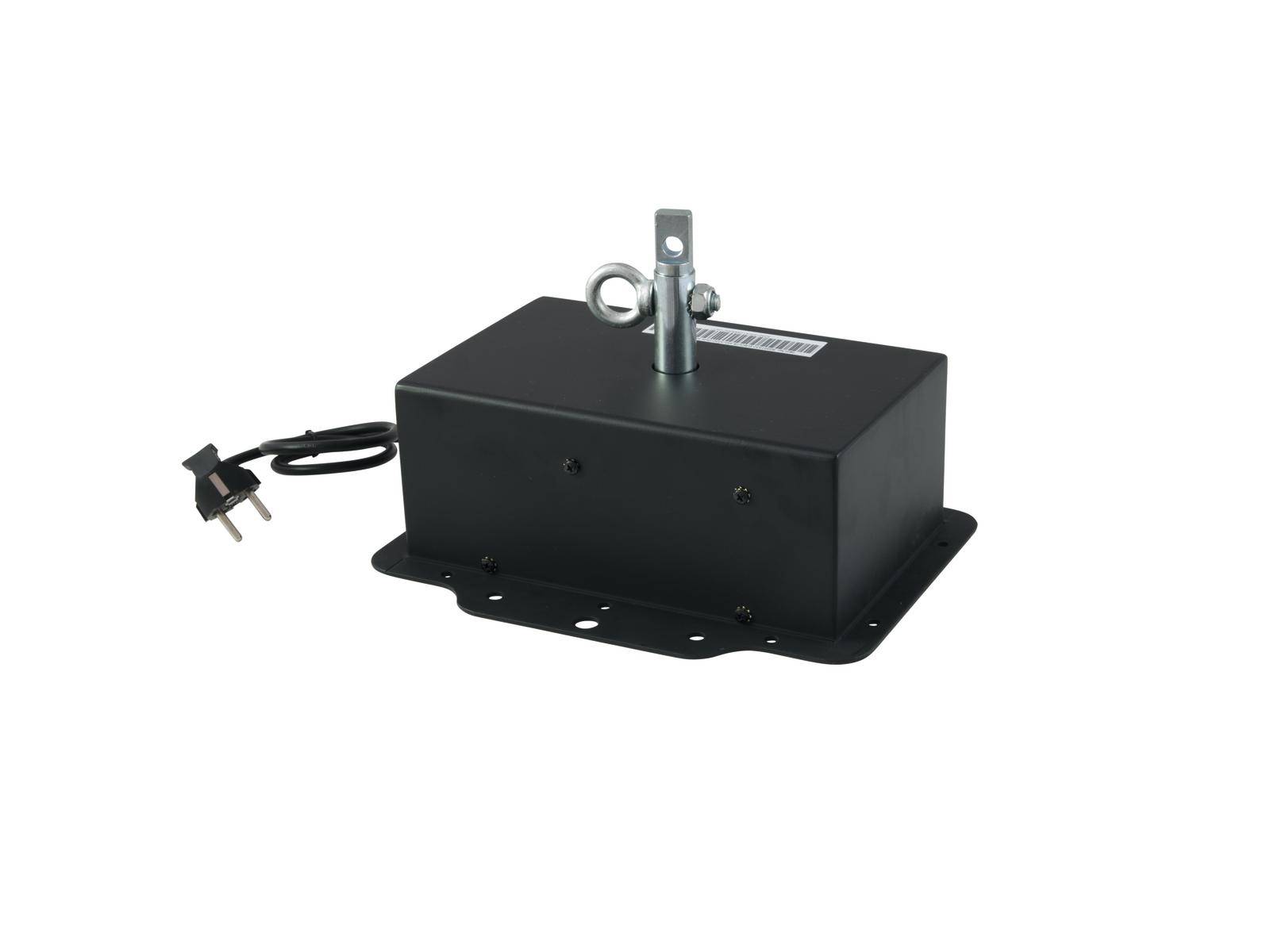

- Ready to connect via mains cable with earthing contact plug
- For professional use, e.g. in discotheques and meeting places, the regulations of the BGV C1 (formerly VBG 70) must be observed
- The engine must always be installed with a second independant suspension
- The device must be checked by an expert before it is put into operation for the first time
