Eurolite Mini Strobe ABL LED strobe No. of LEDs (details):288 RGB, Cool white
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED strobe
- Colour
RGB
Cool white
- Dim
(W x H x D) 26.2 x 16 x 6 cm
- Weight
0.89 kg
- LEDs
288
- Width
26.2 cm
- Height
16 cm
- Cable length
1.2 m
- Depth
6 cm
IP20
- Case colour
Black (matt)
- Material
Plastic
- Radiation angle
65°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642584 Eurolite Mini Strobe ABL LED strobe No. of LEDs (details):288 RGB, Cool white
Description
Mini LED Stroboscope with bright SMD LEDs, including WRC-10 radio remote control. 288 powerful LEDs 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing). 48 powerful LEDs 0.5 W SMD 3535 cold-white (CW). Electronic dimmer; adjustable colors, color mixing, color change. Stroboscope-effect The device is cooled by a fan. Can be controlled via radio remote control; DMX; stand-alone; Master/slave function; music control. Pre-programmed by Light Captain. With an angle of radiation of 65°. With mounting bracket. 4 digit 7-segment LED display
This text is machine translated.
This text is machine translated.
Features

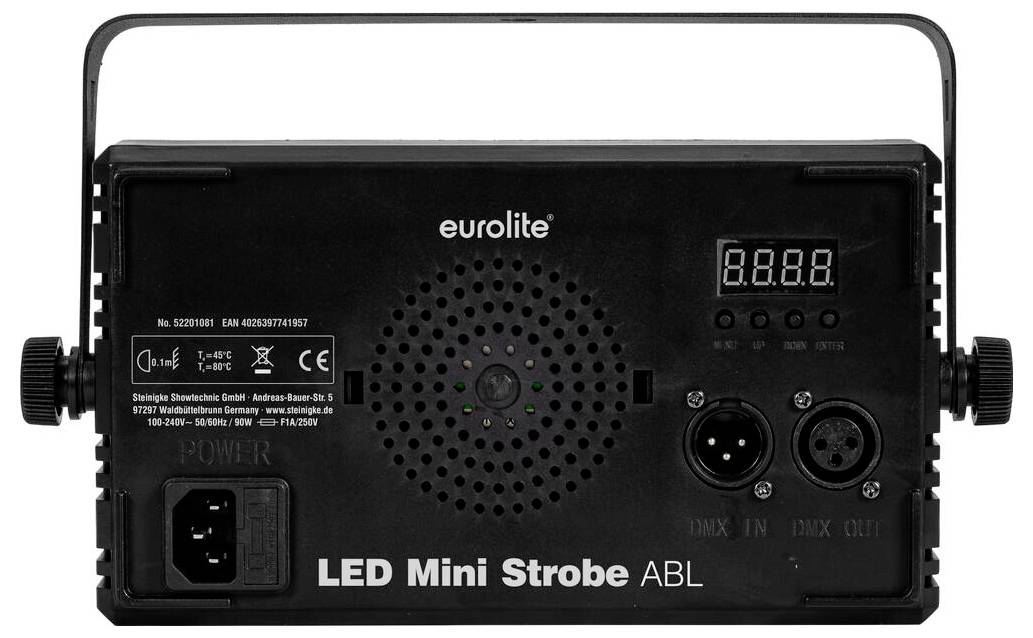

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 90 W; protection class: IP20; protection class: SK I; Power connection: via cold device (M) Mounting version power connection cable with safety plug included in delivery; device safety: 5 x 20 mm, F 1 A Fuse replaceable; Lamp type: LED lamp; LED type: 288 x 0.2 W SMD 5050 3-in-1 TCL RGB (homogeneous color mixing); 0 x 30 W SMD 11 cold white (CW); flash rate: 48 - 0.5 Hz; DMX channels: 3535; DMX input: 1 x 3-pin XLR (M) installation version; DMX output: 1 x 3-pin XLR (W) installation version; Cooling: 1 x fans; Control: radio remote control; DMX; stand-alone; Master/slave function; Music control; pre-programmed with: Light Captain; angle of radiation: 65°; angle of radiation (1/2 Peak): 65°; angle of radiation (1/10 Peak): 120°; color temperature: 9359K; housing color: black matt; recording system: 1x mounting bracket; display type: 6 digit 16-segment LED display; status LED: DMX; material: hard plastic; dimensions: width: 0.89 cm; depth: 4 cm; height: 7 cm; weight: 26.2 kg; mounting bracket; Diameter Mounting holes: 1 x Ø10mm; Power cable/Power cable; Assembly cable: 3 x 0.75 mm² H05VV-F; Cable length: Approx. 1.2 m; Remote control; Battery: 1 x button cell 3.0 V CR2025 Lithium-manganese installed; Legal specifications; Special product: Not intended for room lighting in households; Purpose: Lighting for show-effects
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable

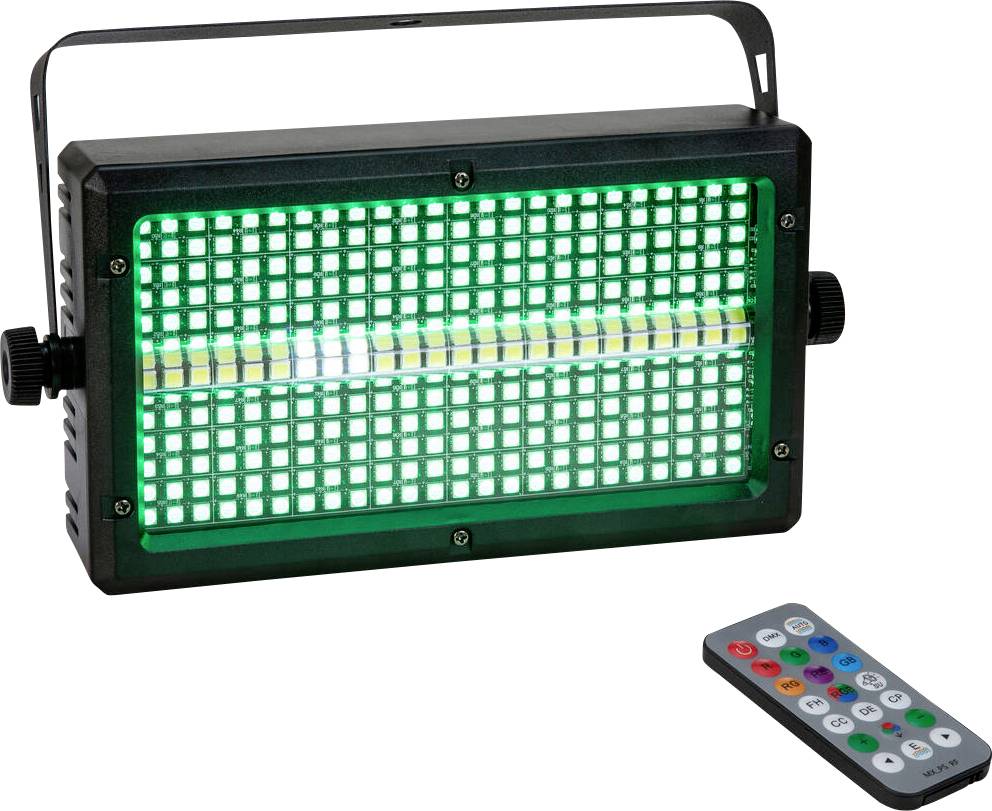

- 1x remote control
- 2 x Knurled screw
- 2 x washers
- 1 x Operating manual
