Eurolite NH-20 Smoke machine
EAN:
Part number:
Item no:
Highlights & Details
Eurolite NH-20 Smoke machine
- Ideal for the production of light and laser beams
- Auto temperature control
- Rapid warm-up time
- Discharge width: Approx. 2 m
Technical specifications
- Product type
Smoke machine
- DMX-enabled
Yes
- Tank volume
1.7 l
- Ejection distance
2 m
- Preheating time
1.5 min
- Factory colour
Black
- Length
390 mm
- Width
270 mm
- Height
265 mm
- Dim
(L x W x H) 390 x 270 x 265 mm
- Weight
7.4 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131220 Eurolite NH-20 Smoke machine
Description
Compact DMX fog machine with QuickDMX port in flight case

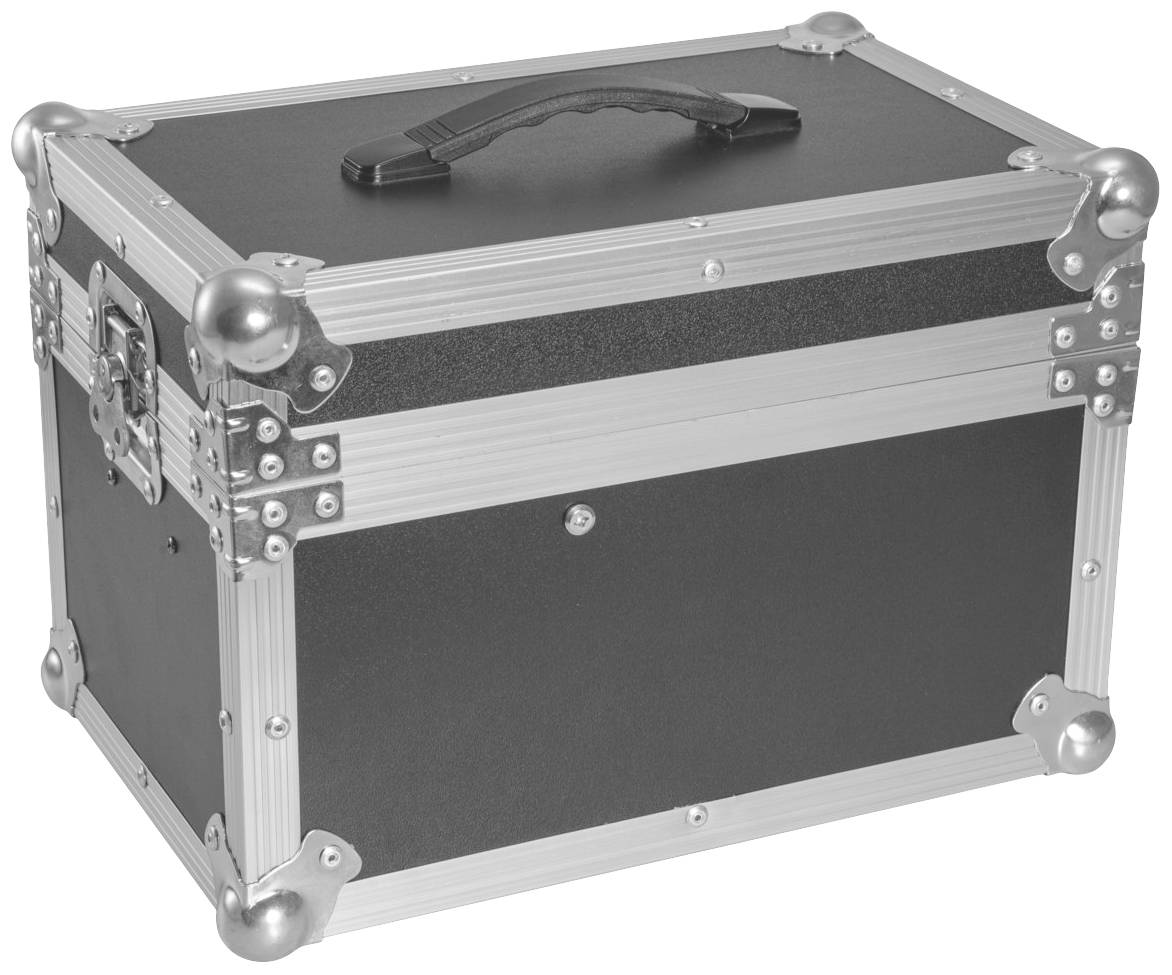

Integrated in stackable flight case for high resistance and durability and easy transportation
Produces fine, transparent mist without nebulising the room at the same time
This text is machine translated.
Integrated in stackable flight case for high resistance and durability and easy transportation
Produces fine, transparent mist without nebulising the room at the same time
This text is machine translated.
Features
- Can be controlled via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); wired remote control (optional)
- 4 digit 7-segment LED display
- Operation with water-based fog liquid
- Removable tank
- For applications such as: Clubs/dance schools; small rental; stage; mobile DJ's/solo entertainer
- Possible application: Standing
- Power supply 230 V AC 50 Hz
- Total connected wattage 350 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: 4 digit 7-segment LED display
- Housing colour black.
- Protection class: IP20
- DMX control
- Width: 27 cm
- DMX channels: 1
- DMX input 1 x 3-pin XLR (M) installation version
- Noise classification: Class 2 (slight noise)
- DMX output 1 x 3-pin XLR (W) built-in version
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Stand-alone: Stand-alone
- Warm-up time: Approx. 1.5 min
- Discharge width: Approx. 2 m
- Tank capacity: 1.7 l Fog fluid on water-based removable tank
- Fluid consumption: Approx. 2.2 ml/min
- Wired remote control (optional): Wired remote control (optional)
- Heating element 300 W
Scope of delivery
- Device
- User manual
- Network cable/power cable
- Containers
- Hose
