Eurolite NH-50 DMX Smoke machine
EAN:
Part number:
Item no:
Technical specifications
- Product type
Smoke machine
- DMX-enabled
Yes
- Ejection distance
2 m
- Preheating time
1.5 min
- Width
30 cm
- Height
29.5 cm
- Dim
(W x H) 30 cm x 29.5 cm
- Weight
3.53 kg
- Cable length
1.2 m
IP20
- Case colour
Black (matt)
- Material
Metal (painted)
- Protection class
I
- Operating voltage
230 V/AC, 50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642537 Eurolite NH-50 DMX Smoke machine
Description

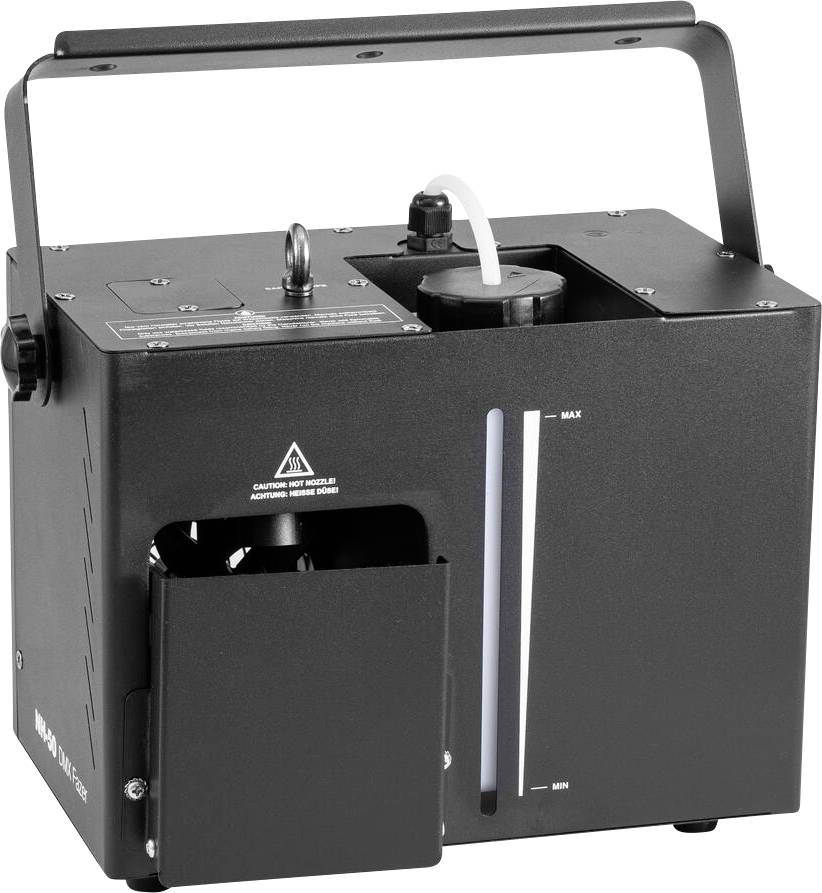

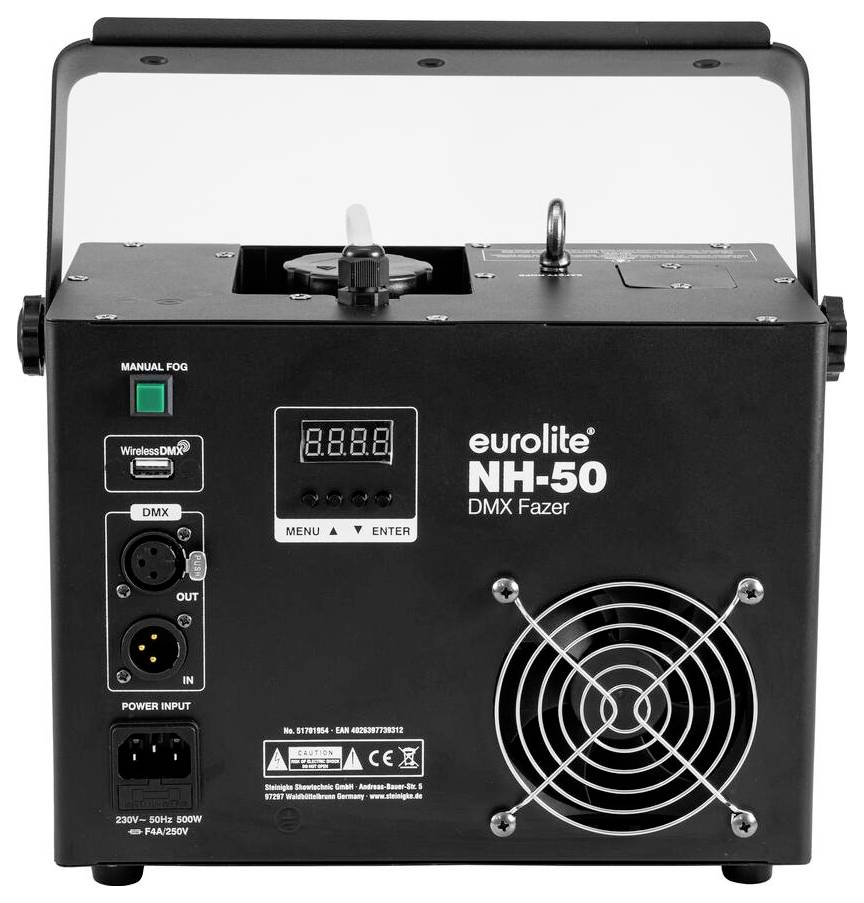

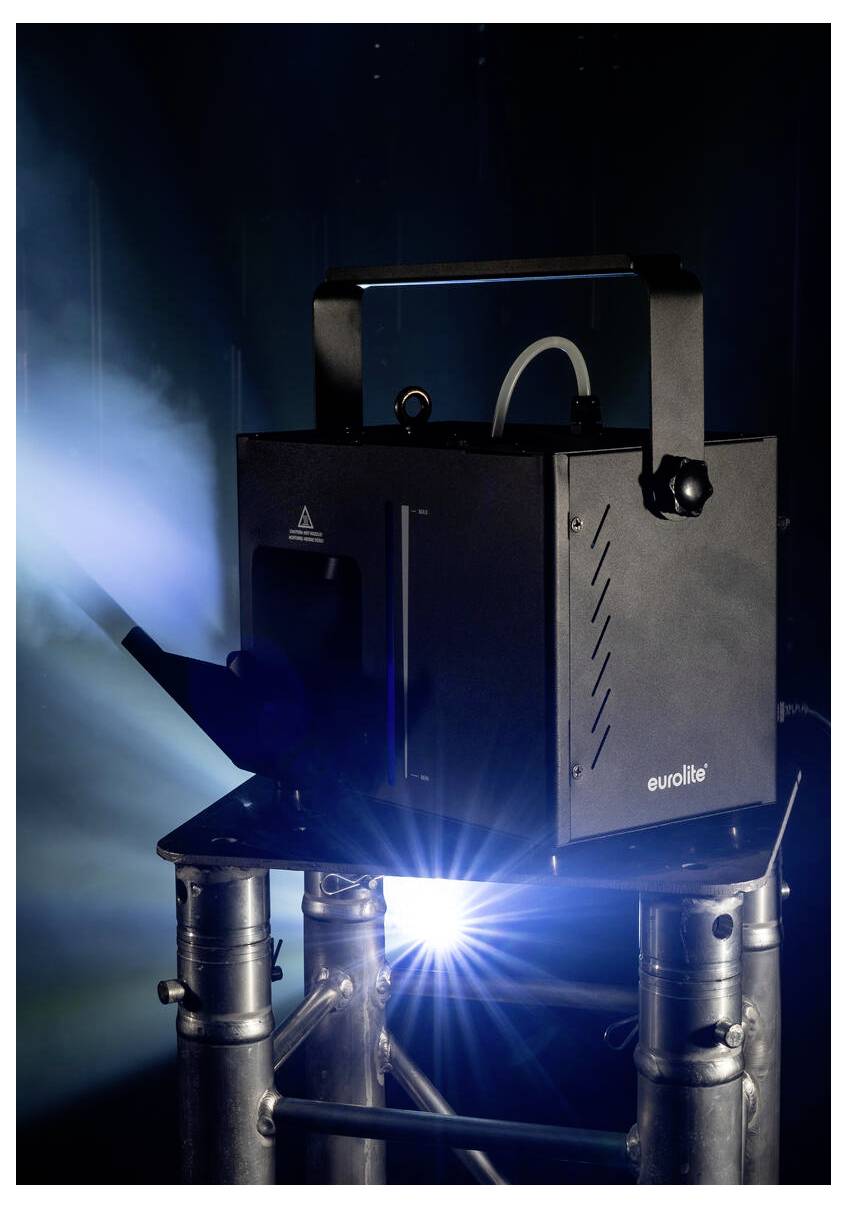

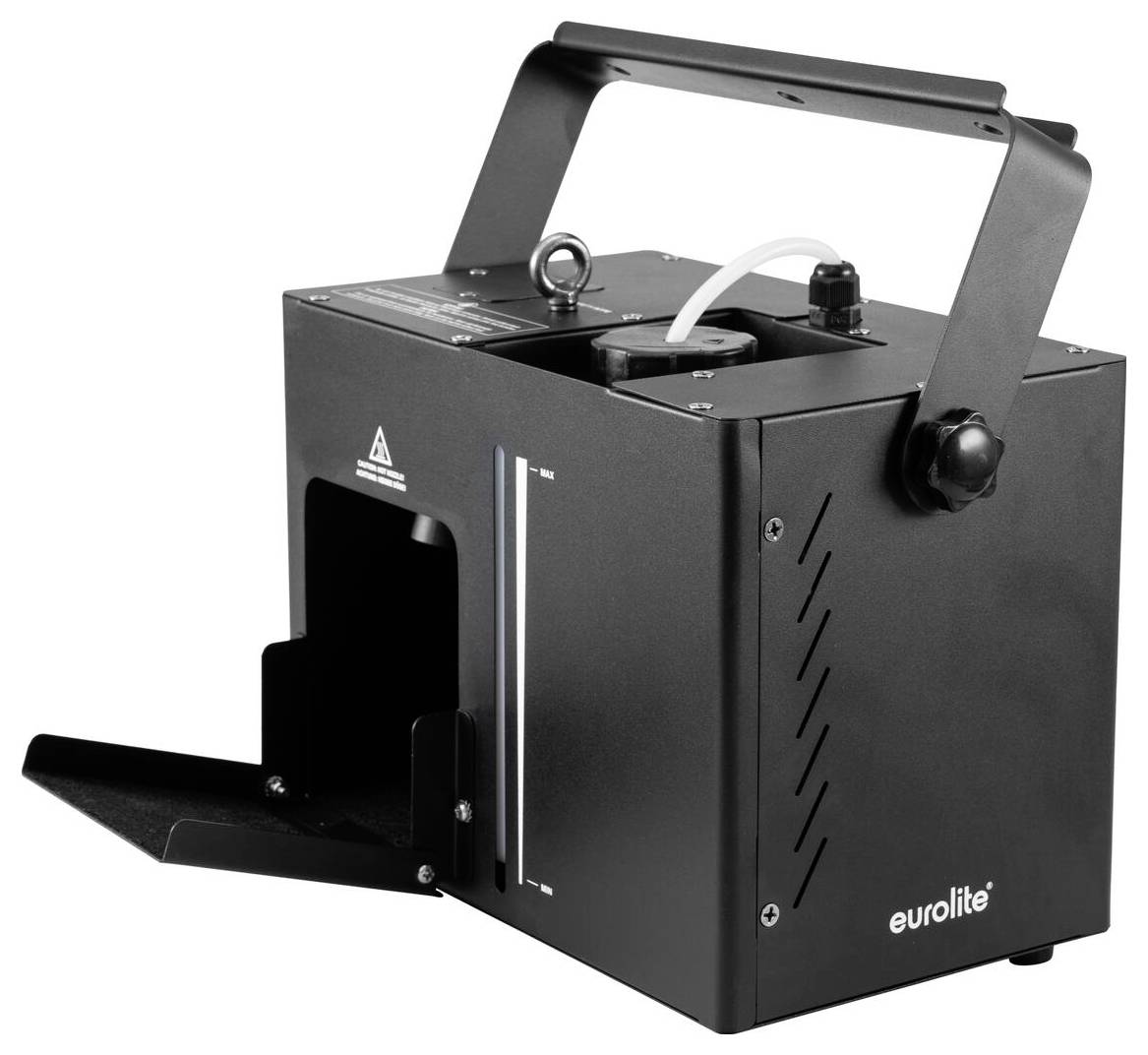

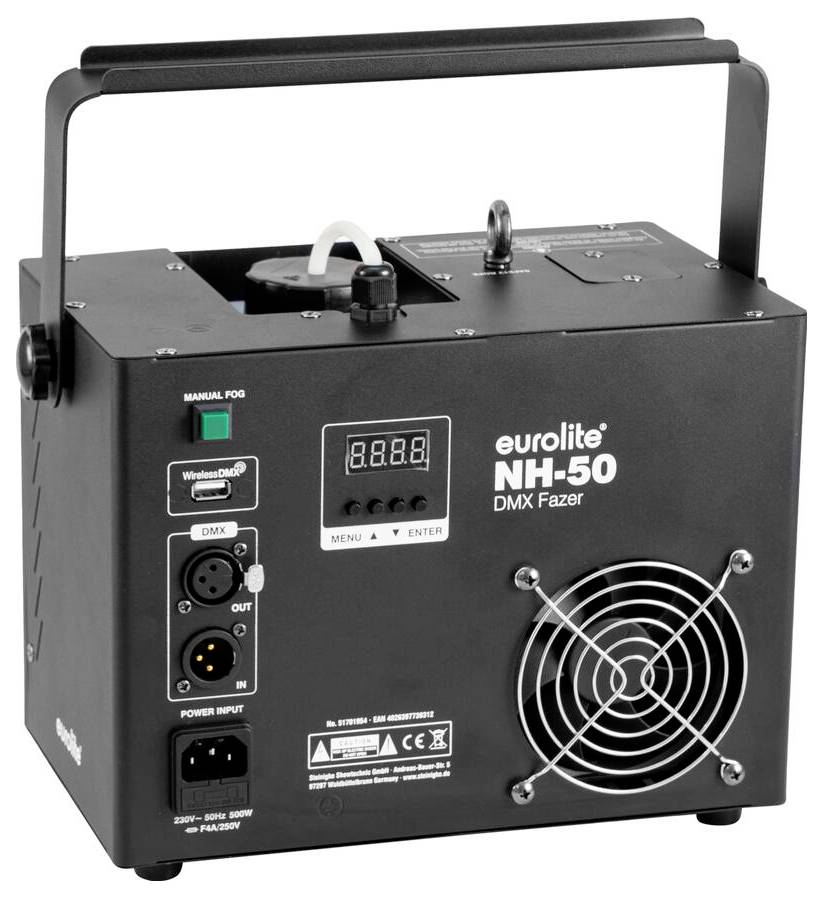

Compact DMX fog machine with WirelessDMX port & variable emission angle. Produces fine, transparent mist without nebulising the room at the same time. Ideal for the production of light and laser beams. Vertically adjustable output angle for optimum fog distribution. Auto temperature control. Rapid warm-up time. Output: Approx. 2.0 m. With fill level indicator. Operation with water-based fog liquid. Removable, backlit tank. Can be controlled via DMX; stand-alone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional). With mounting bracket. Single-color 4-digit 7-segment LED display. For applications such as: Clubs/dance schools; wedding/gala/events; mobile use; mobile DJ's / solo entertainer. Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features
- Power supply: 230 V AC, 50 Hz; total connection value: Approx. 500 W; protection type: IP20; protection class: SK I; power connection: Power supply via cold devices (M) installation version power connection cable with safety plug (included); device fuse: 5 x 170 mm, F 2.0 A fuse replaceable; warm-up time: Approx. 1.5 min; ejection volume: Approx. 20 m³/min; approx. approx. approx. 4 m; discharge length: Tank contents: 1.3 l water-based fog liquid removable, backlit tank; fluid consumption: Faze mode approx. 5.7 ml/min; DMX channels: 1; DMX input: 1 x 3-pin XLR (M) installation version; DMX output: 1 x 3-pin XLR (W) installation version; control: DMX; stand-alone; Master/slave function; QuickDMX via USB (optional); W-by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); Housing color: black matt; Recording system: Mounting bracket; Function principle: Evaporator fog machine with air compressor; Display type: 1 3.53 x single color 4 digit 7-segment LED display; Protection circuit: overheating; Material: metal, painted; Dimensions: length: 30 cm; Height: 18.5 cm; Weight: 29.5 cm; Power cable/Power cable; Cable length: Approx. 1.2 m; mounting bracket; diameter mounting holes: 3 x Ø10mm; material: metal, painted
Scope of delivery
- 1 x device
- 1x user manual
- 1 x containers
- 1 x filters
- 1 x Power cable/power cable
- 1 x mounting bracket
- 2 x Knurled screw
- 2 x washers.
