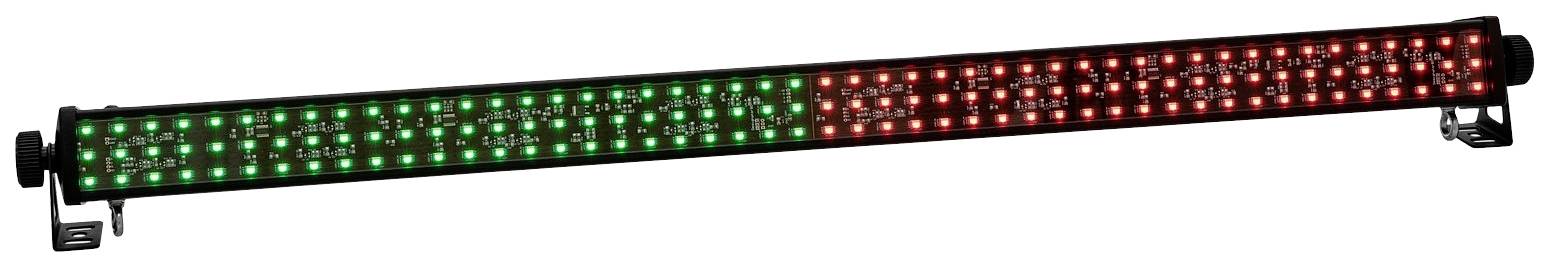

LED light bar with alternating red and green lights, suitable for decorative or event-related lighting.

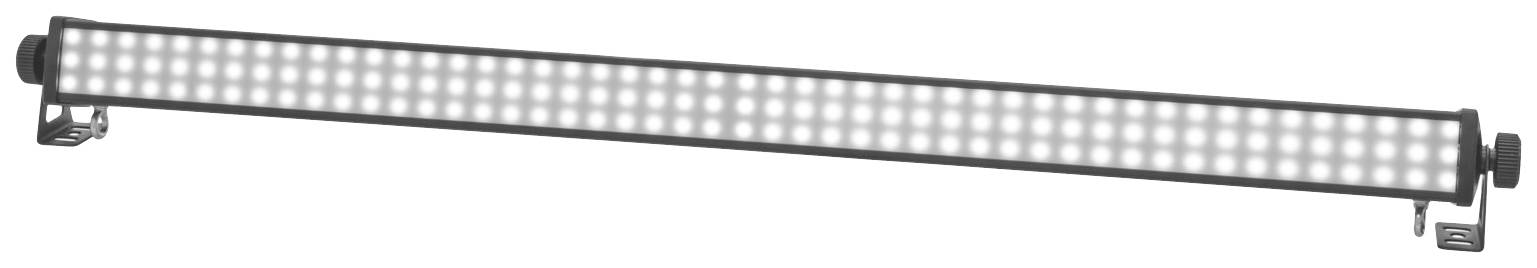

A rectangular LED light bar with multiple small, illuminated LED diodes, mounted at both ends for attachment.

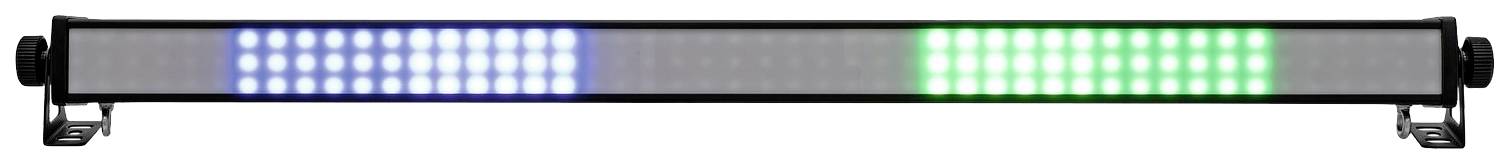

LED strip with blue and green lights, evenly arranged. Lighting for decorative or signalling purposes.

Black LED light effect with buttons and connections on the front, model PIX-MIX.

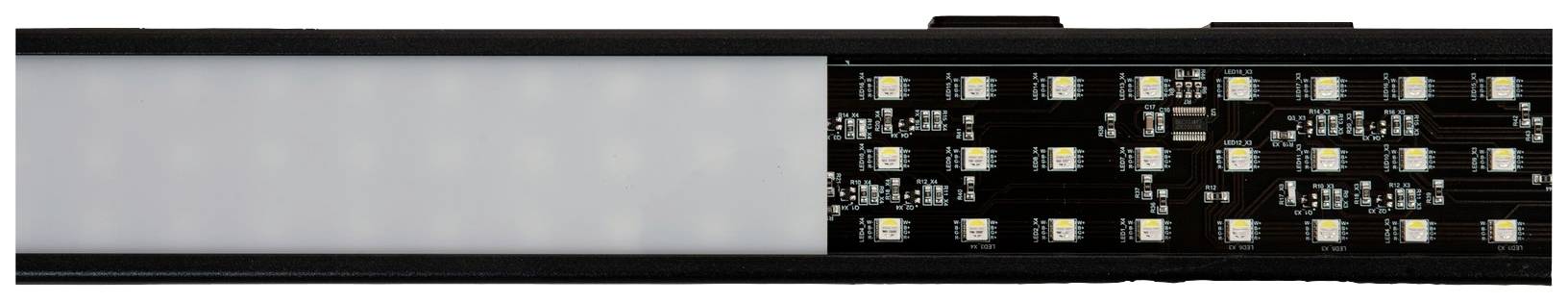

Light strip with partially covered and partially visible LED lights in a black housing.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PIX-144 RGBW strip

LED strip light with 144 broad radiating SMD-LEDs in RGBW and pixel control
Additional frost filter for a broad, homogeneous and soft light
144 powerful LEDs SMD 5050 4in1 QCL RGBW (homogeneous color mixing)
8 segments can be controlled individually

Technical specifications

Operating voltage: 100 - 240 V

Product type: LED bar

: 50 W

LEDs: 144

Colour: RGBW

Dim: (L x W x H) 1085 x 65 x 90 mm

Weight: 1.63 kg

: n.rel.

DMX control: Yes

Width: 65 mm

Height: 90 mm

Length: 1085 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131238 Eurolite PIX-144 LED bar No. of LEDs (details): 144

Description

Electronic dimmer; color mixing variable; color change adjustable, colors preset
Stroboscope-effect
16 integrated show programs
The device is cooled by passive convection cooling
Can be controlled via stand alone; master/slave function; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 120°
With mounting bracket
4 digit 7-segment LED display
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; restaurants, bars and hotels; advertising / shop windows
Noiseless operation
Possible application: Flying; wall mounting

This text is machine translated.

Features

Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 50 W
Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
Display type: 4 digit 7-segment LED display
Protection class SK I
Cooling: Passive convection cooling
Housing colour black.
Protection class: IP20
Support system: 2x mounting bracket
Material: Metallic
Control: Stand-alone
LED lamp type
144 x SMD 5050 4in1 QCL RGBW (homogeneous color mixing)
DMX channels: 6
DMX input 3-pin XLR (M), built in version
Master/slave function: Master/slave function
Pre-programmed with: Light Captain
Beam angle: 120°
Beam angle (1/2 peak) 120°
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
5 x 20 mm, T 1 A fuse can be replaced
DMX output 3-pin XLR (W) built-in version
Current output: Cold-device (W) in built-in version
Flash rate 0 - 20 Hz
Music control via microphone
CRMX by Lumen Radio via USB (optional)
W-DMX by Wireless Solution via USB (optional)
QuickDMX via USB (optional)

Scope of delivery

Lighting effect
User manual
Network cable/power cable
2 x mounting bracket
2 x Knurled screw
2 x washers
Diffuser disk
