Buy Eurolite PIX-16 QCL LED bar No. of LEDs (details): 16

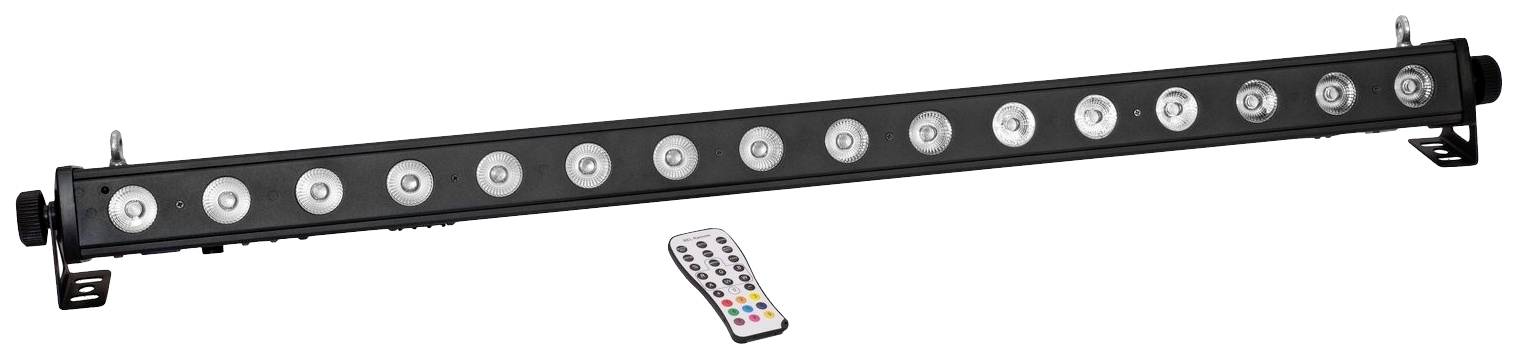

LED light bar with 14 LED lights and included remote control for operation, suitable for stage or decorative lighting.

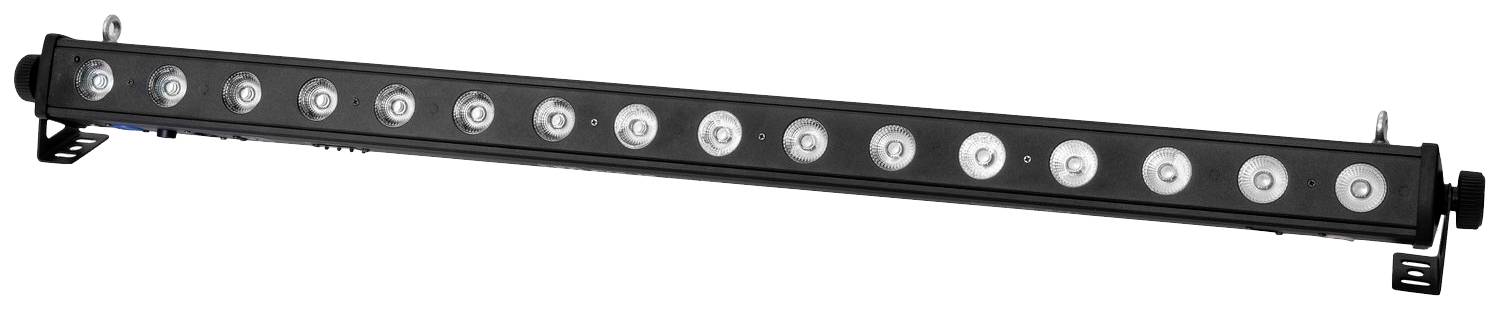

A long, black LED light bar with 16 circular lamps, suitable for stage lighting or room illumination.

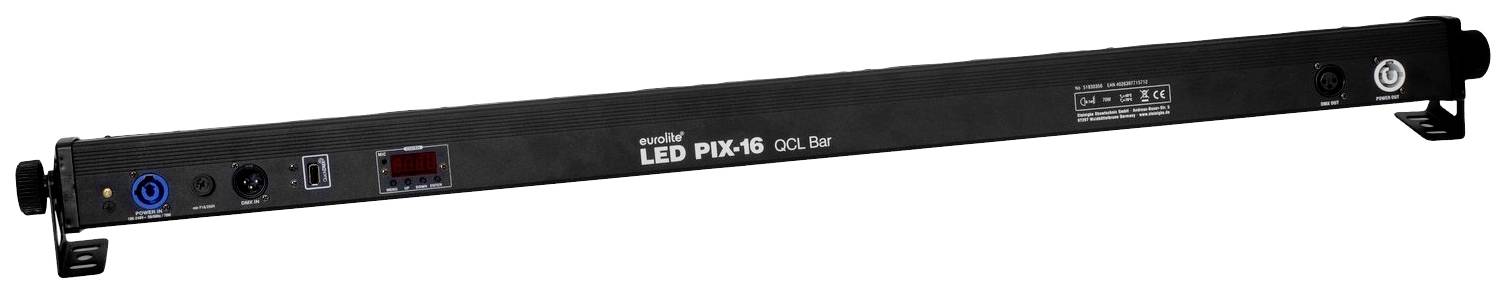

Black Eurolite PIX-16 LED light bar with various connection options and a digital display.

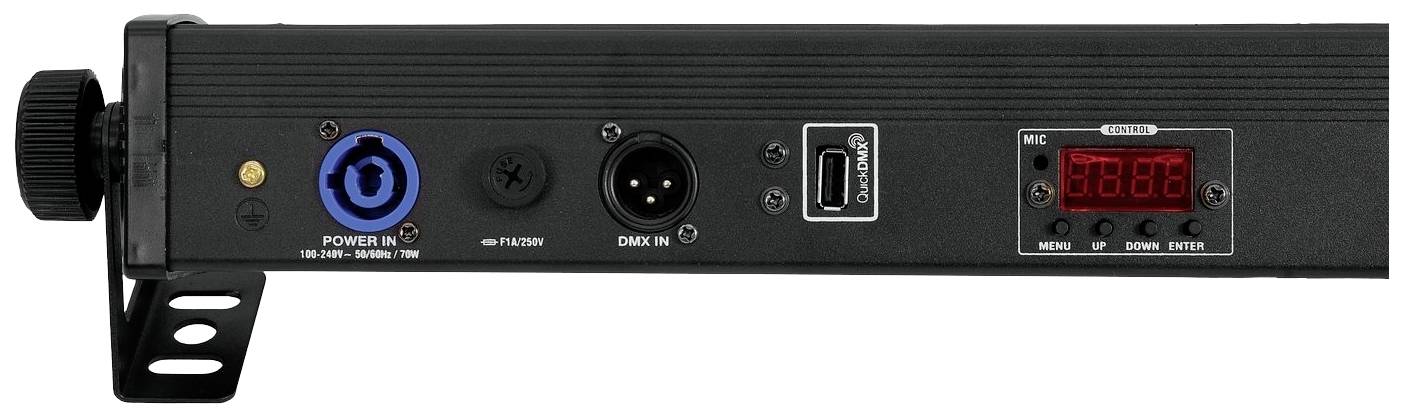

'Back of an electronic device with a Power-Con socket, XLR connection, DMX in/out connection, and digital display.'

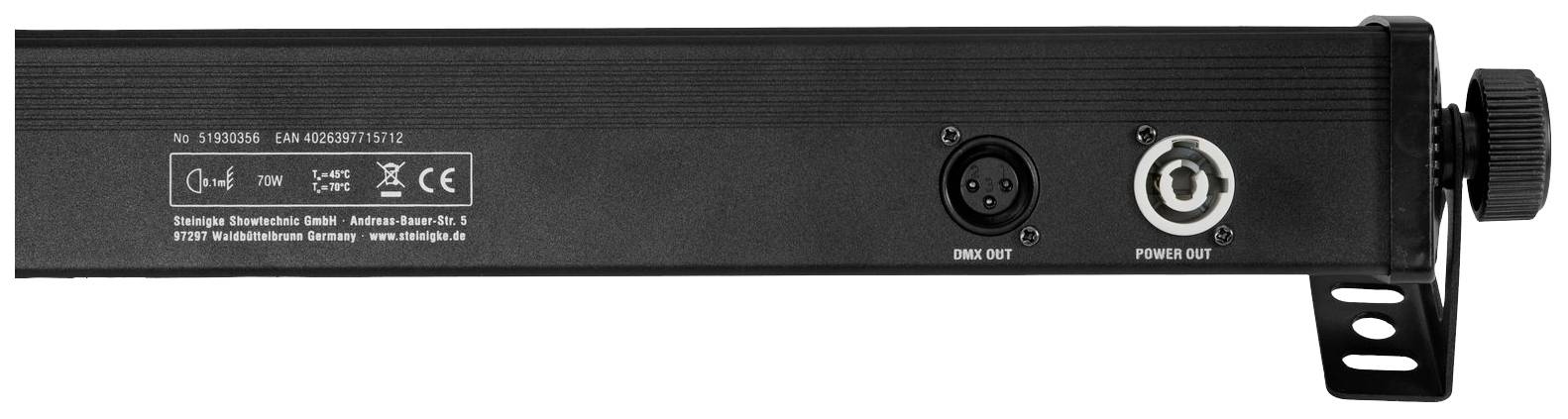

Rear view of an electronic device with audio connections and labels. XLR and power connections are visible.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PIX-16 QCL strip

LED light effect with 16 x 4 W RGBW LED (4-in-1), including IR remote control
16 powerful LEDs 4 W COB (Chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)
Stroboscope-effect
21 integrated show programs

Technical specifications

Operating voltage: 100 - 240 V

Product type: LED bar

: 70 W

LEDs: 16

Colour: RGBW

Dim: (L x W x H) 1080 x 65 x 85 mm

Weight: 2.39 kg

: n.rel.

DMX control: Yes

Width: 65 mm

Height: 85 mm

Length: 1080 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131236 Eurolite PIX-16 QCL LED bar No. of LEDs (details): 16

Description

Direct color selection for 15 colors
The device is cooled by passive convection cooling
Can be controlled via stand alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); music control via microphone; IR remote control
Already pre-programmed at Light´J; Light Captain
Flicker-free
With an angle of radiation of 15°
With mounting bracket
4 digit 7-segment LED display
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; installation; restaurants, bars and hotels
Noiseless operation
Possible application: Flying; wall mounting

This text is machine translated.

Features

Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 70 W
Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
Display type: 4 digit 7-segment LED display
Protection class SK I
Cooling: Passive convection cooling
Housing colour black.
Protection class: IP20
Support system: 2x mounting bracket
Control: Stand-alone
Width 6.5 cm
LED lamp type
16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogeneous color mixing)
DMX channels: 3
DMX input 3-pin XLR (M), built in version
Master/slave function: Master/slave function
Pre-programmed at: Light´J
Light captain: Light captain
Beam angle: 15°
Beam angle (1/2 peak) 15°
Beam angle (1/10 peak) 30°
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
Fuse F 1 A fuse can be replaced
DMX output 3-pin XLR (W) built-in version
P-Con (gray), installation version
Music control via microphone
CRMX by Lumen Radio via USB (optional)
W-DMX by Wireless Solution via USB (optional)
QuickDMX via USB (optional)

Scope of delivery

Strip
User manual
Network cable/power cable
Remote control
Battery
2 x mounting bracket
- 2 x screws
2 x washers
