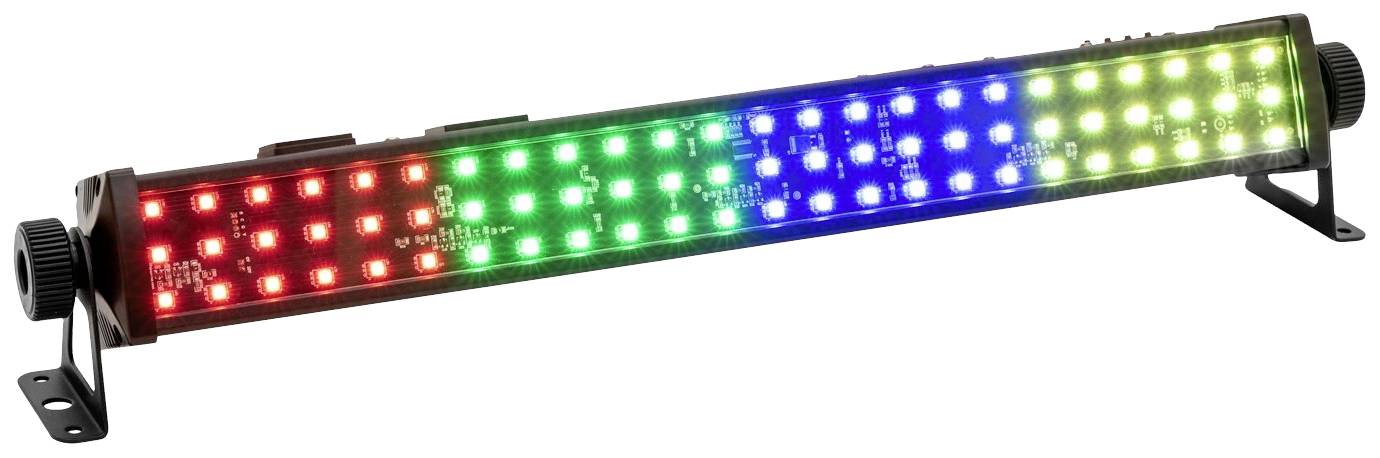

LED strip light with red, green, blue, and yellow illuminating diodes, mounted on a metal bracket.

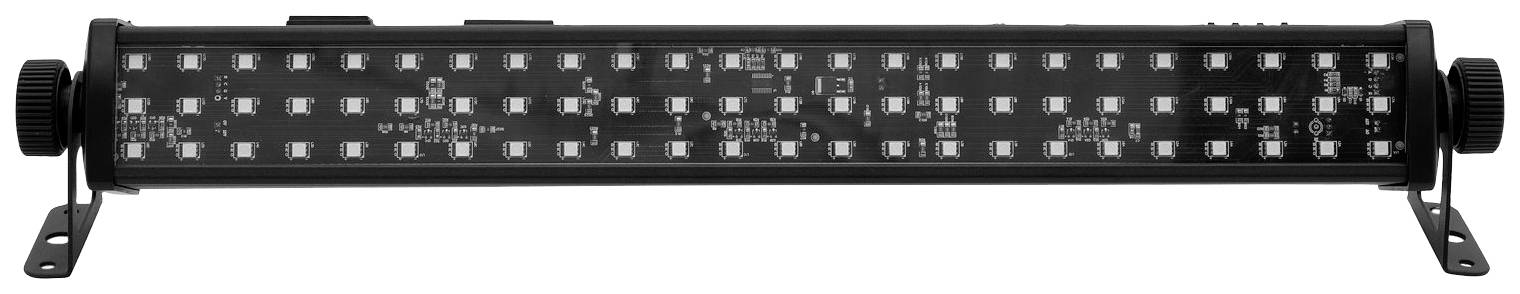

A LED light bar with multiple LEDs mounted in a straight line, suitable for stage lighting or special effects.

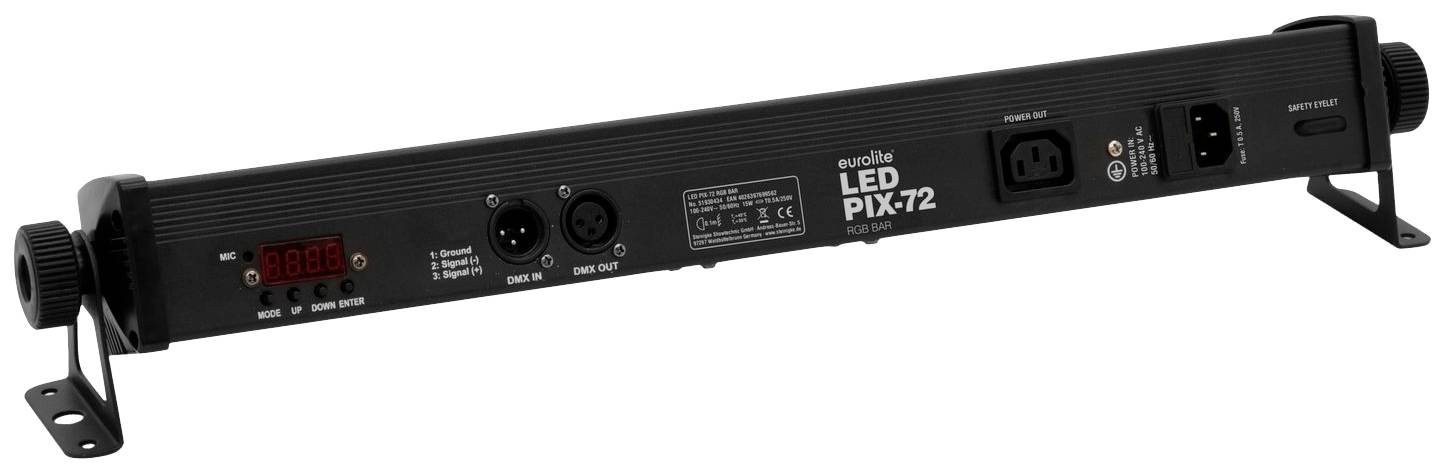

A LED light device with a digital display, multiple ports and a switch, mounted on a metal casing.

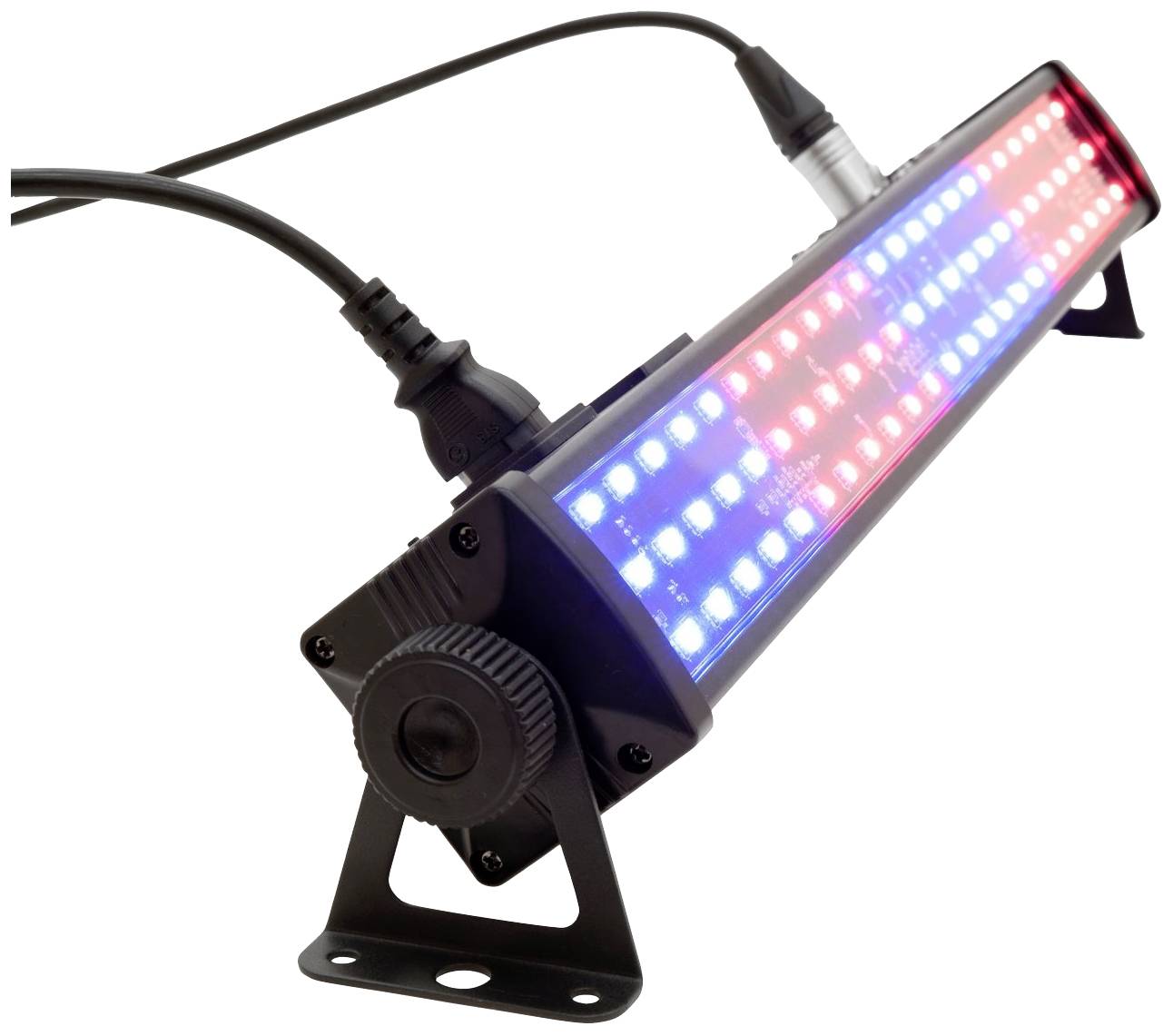

LED light with blue-red light spectrum and adjustable mounting bracket, connected with two cables. Suitable for stage lighting.

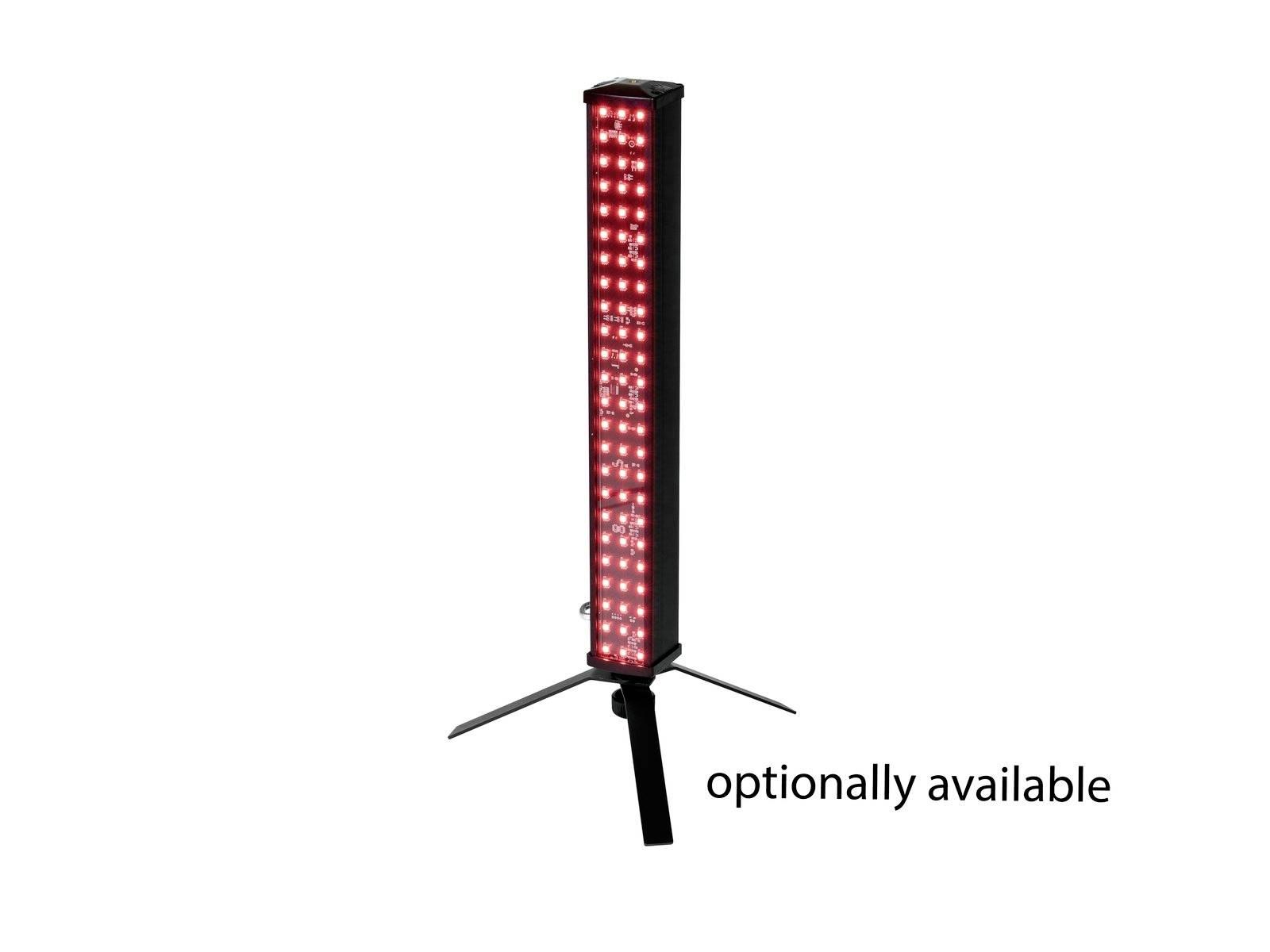

Red LED light bar on a tripod stand with a note indicating it is available as an optional accessory.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PIX-72 RGB strip

Bar (50 cm) with 72 wide radiating RGB-LEDs, 4 segments
72 powerful LEDs SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
4 segments can be controlled individually

Technical specifications

Operating voltage: 100 - 240 V

Product type: LED bar

: 15 W

LEDs: 72

Colour: RGB

Dim: (L x W x H) 565 x 70 x 90 mm

Weight: 1.03 kg

: n.rel.

DMX control: Yes

Width: 70 mm

Height: 90 mm

Length: 565 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131175 Eurolite PIX-72 LED bar No. of LEDs (details): 72

Description

Electronic dimmer; color mixing variable; color change adjustable, colors preset
Stroboscope-effect
The device is cooled by passive convection cooling
Can be controlled via stand-alone; DMX; master/slave function; music control via microphone
Flicker-free
With an angle of radiation of 120°
With mounting bracket
4 digit 7-segment LED display
Pre-programmed by Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; restaurants, bars and hotels; mobile DJ's/solo entertainer
Noiseless operation
Possible application: Flying; wall mounting

This text is machine translated.

Features

Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 15 W
Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
Display type: 4 digit 7-segment LED display
Protection class SK I
Cooling: Passive convection cooling
Housing colour black.
Protection class: IP20
Support system: 2x mounting bracket
Control: Stand-alone
LED lamp type
72 x SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
DMX input 3-pin XLR (M), built in version
Master/slave function: Master/slave function
DMX
Pre-programmed with: Light Captain
Beam angle: 120°
Beam angle (1/2 peak) 120°
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
Fuse: T 0.5 A fuse can be replaced
DMX output 3-pin XLR (W) built-in version
Current output: Cold-device (W) in built-in version
Flash rate 0 - 20 Hz
Music control via microphone
EASY SHOW 1
EASY SHOW 2
EASY SHOW 3

Scope of delivery

Lighting effect
User manual
Network cable/power cable
2 x mounting bracket
2 x Knurled screw
2 x washers
