Eurolite PLL-384 LED flasher
EAN:
Part number:
Item no:
Technical specifications
- LED:192 x 0.5 W SMD 5730 cold-white (CW), 192 x 0.5 W SMD 5730 warm-white (WW)
- Adjustable color temperature 2700K - 5700K
- Flash rate 1 - 20 Hz.
- DMX channels 2-1; 2-2; 3-1; 3-2; 4
- DMX input 1 x 3-pin XLR (M) installation version
- DMX output 1 x 3-pin XLR (W) built-in version
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 94 Ra
- Wide cold white (CW) 1m: 2324 lx, 3M: 276 lx, 6m: 83 lx
- Wide Warm White (WW) 1m: 2277 lx, 3M: 249 lx, 6m: 76 lx
- Wide every 1m: 3530 lx, 3M: 407 lx, 6m: 124 lx
- Narrow cold white (CW) 1m: 2789 lx, 3M: 327 lx, 6m: 98 lx
- Narrow Warm White (WW) 1m: 2542 lx, 3M: 297 lx, 6m: 94 lx
- Narrow every 1m: 4167 lx, 3M: 508 lx, 6m: 150 lx
- Cable configuration 3 x 1.0 mm² H05VV-F
- Cable length approx. 1.2 m
- Product type
LED flasher
- Colour
Cool white
Warm white
- Dim
(L x W x H) 347 x 138 x 211 mm
- Weight
3520 g
n.rel.
- LEDs
384
- Bulb type
LED (monochrome)
- Width
138 mm
- Height
211 mm
- Length
347 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898776 Eurolite PLL-384 LED flasher
Description

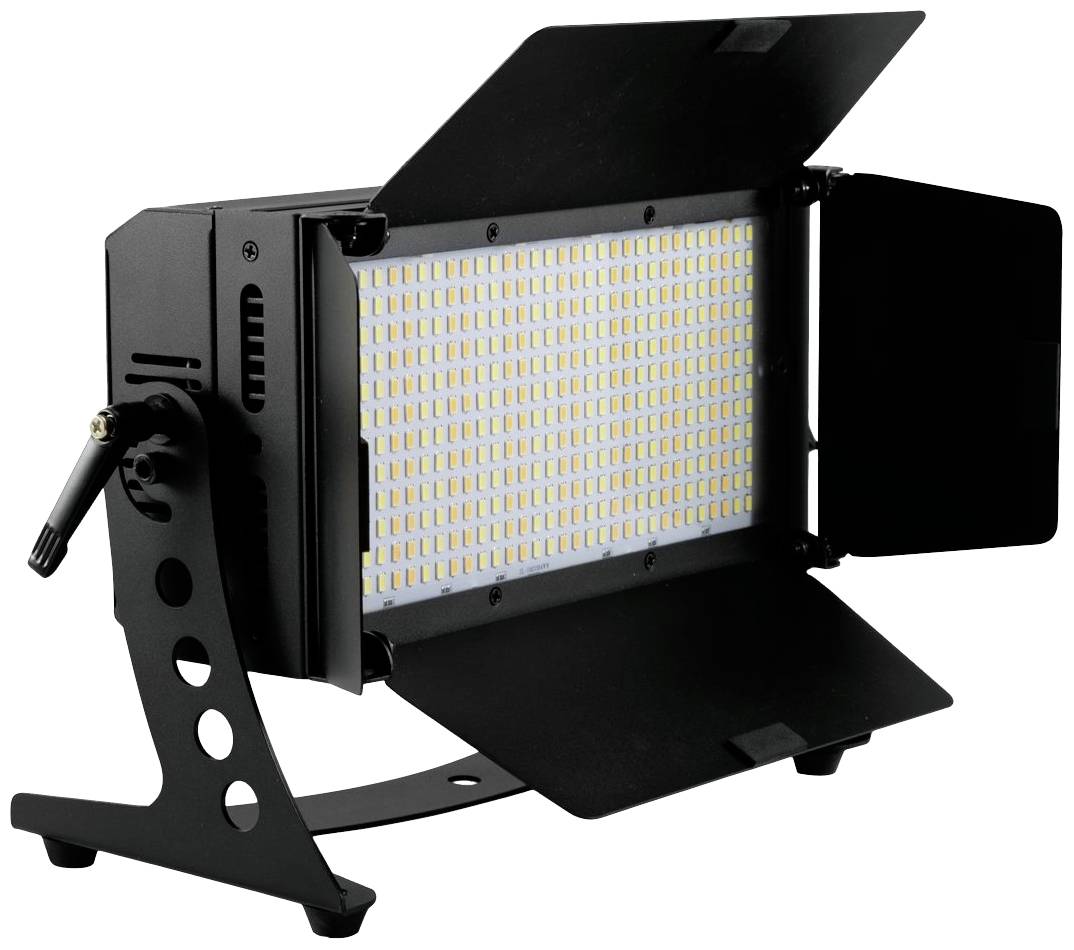

DMX-controlled surface light with 384 dual white LEDs, QuickDMX socket, diffuser and blade limiter Energy saving, durable and environmentally friendly.
This text is machine translated.
This text is machine translated.
Features

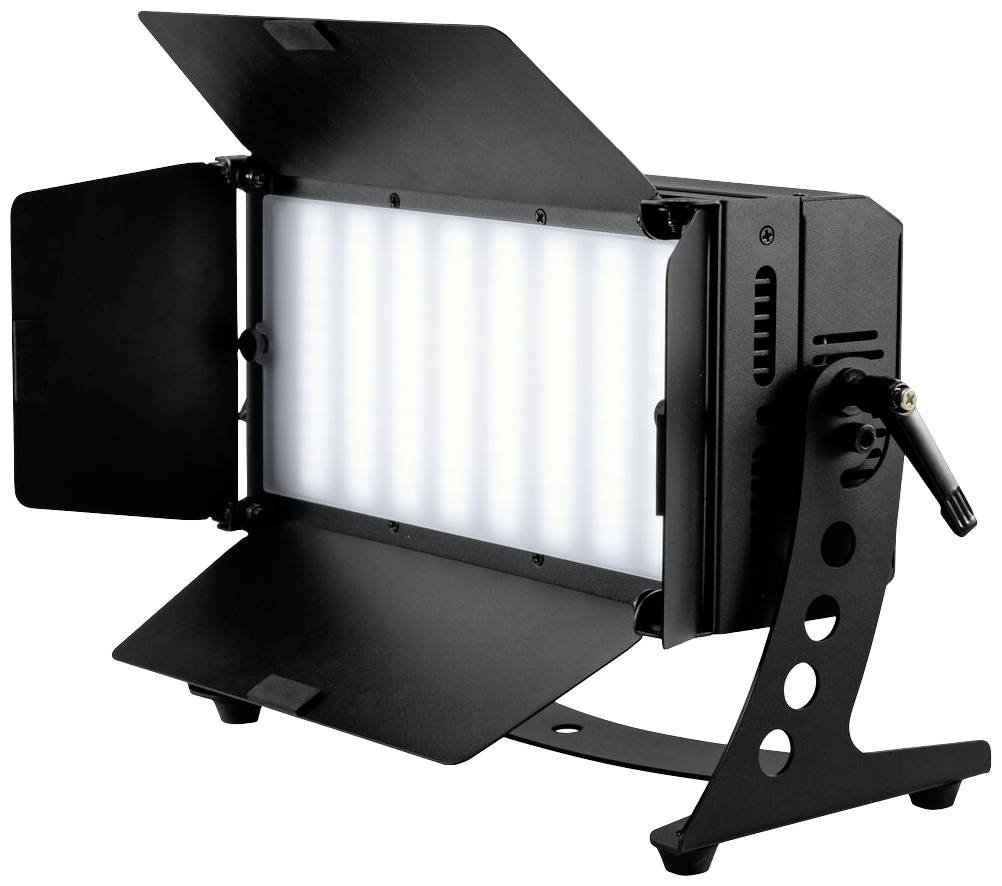

- Additional frost filter for a broad, homogeneous and soft light

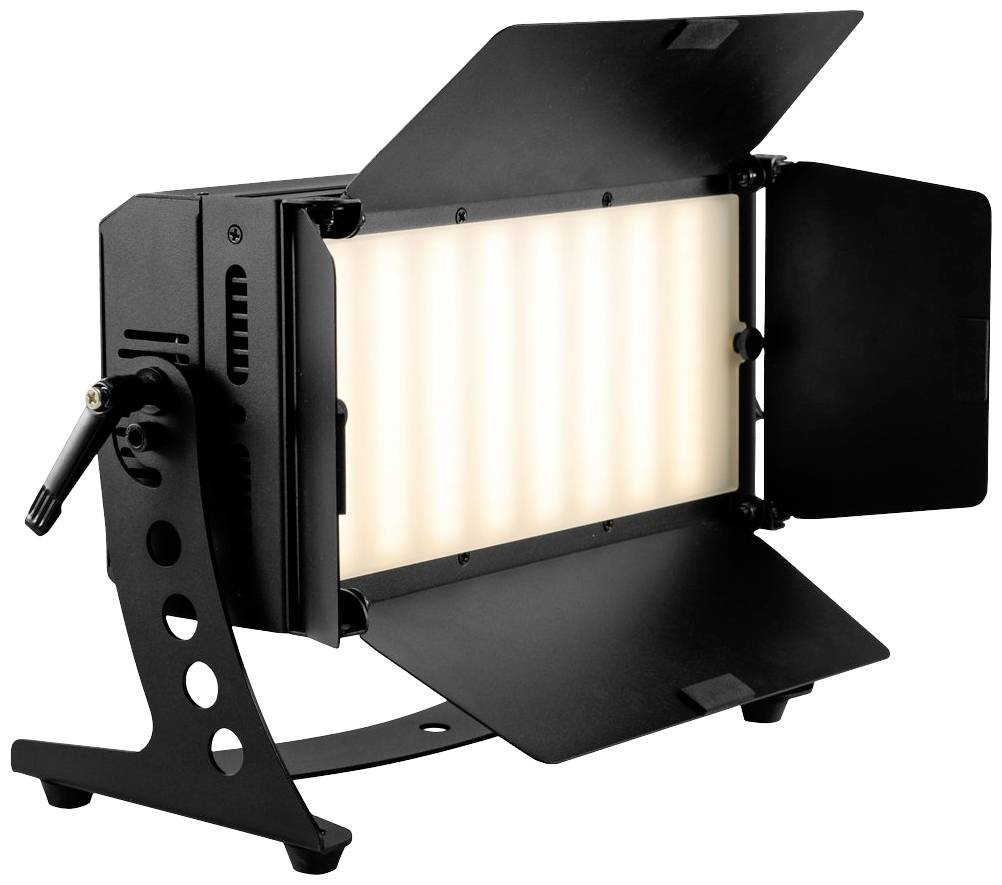

- Perfect glare and transport protection through 4 door panels
- Electronic dimmer
- Power input and power output for simple connection of up to 8 devices
- 192 powerful LEDs 0.5 W SMD 5730 cold-white (CW)
- 192 powerful LEDs 0.5 W SMD 5730 warm-white (WW)
- Variable color temperature 2700 K - 5700 K
- Direct color temperature selection for 69 preset values
- In 2-1; 2-2; 3-1; 3-2; 4 CH DMX mode can be used
- The device is cooled by a temperature controlled fan

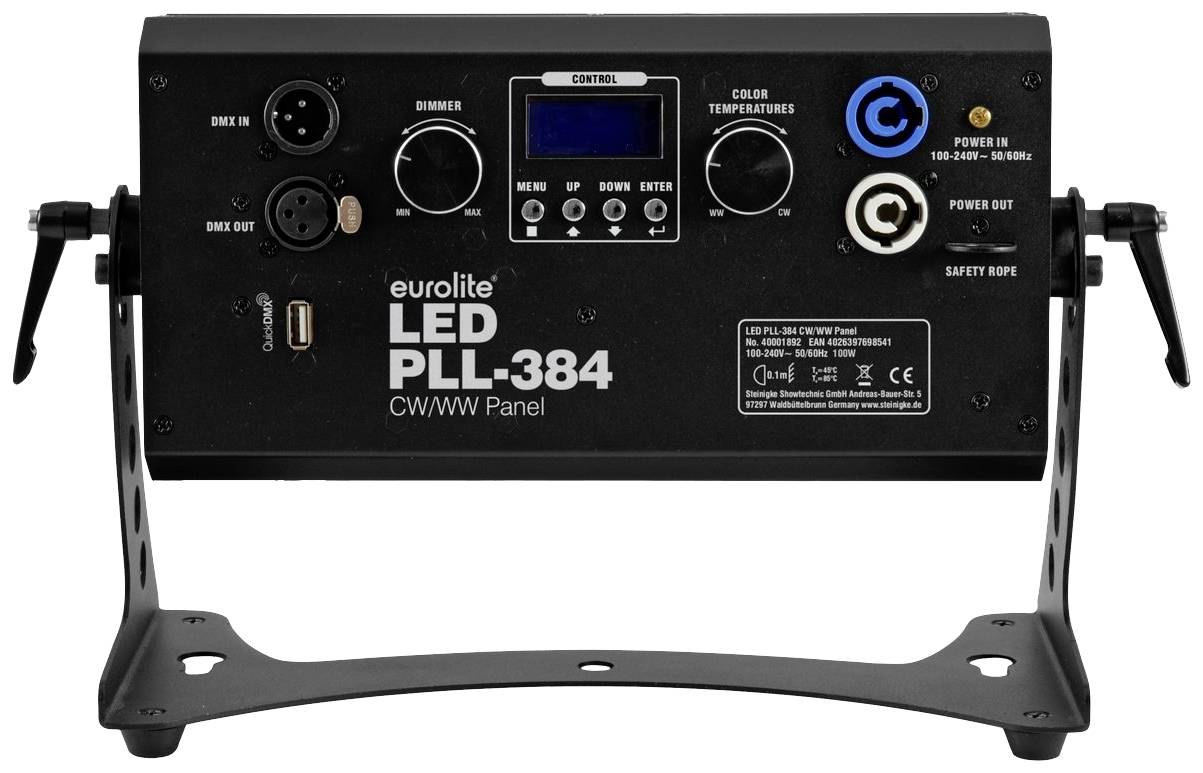

- Can be controlled via quick-selection potentiometer for brightness and color temperature; DMX; Master/Slave function; Stand-alone; CRMX by Lumen Radio via USB (optional); QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional)
- Already pre-programmed at Light´J
- Flicker-free
- With an angle of radiation of 120°
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- Very quiet operation
- Can be used for applications such as video and photography; stage
Scope of delivery
- Headlamps
- Power cable;
- Diffuser disk
- Knurl head screws
- User manual
