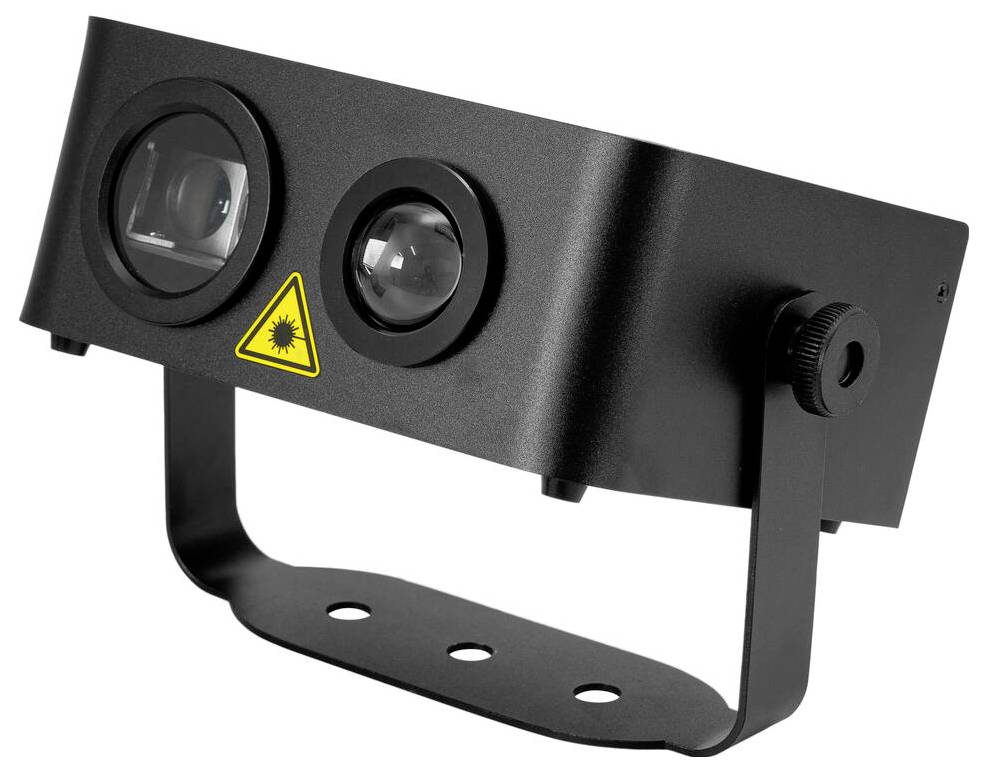

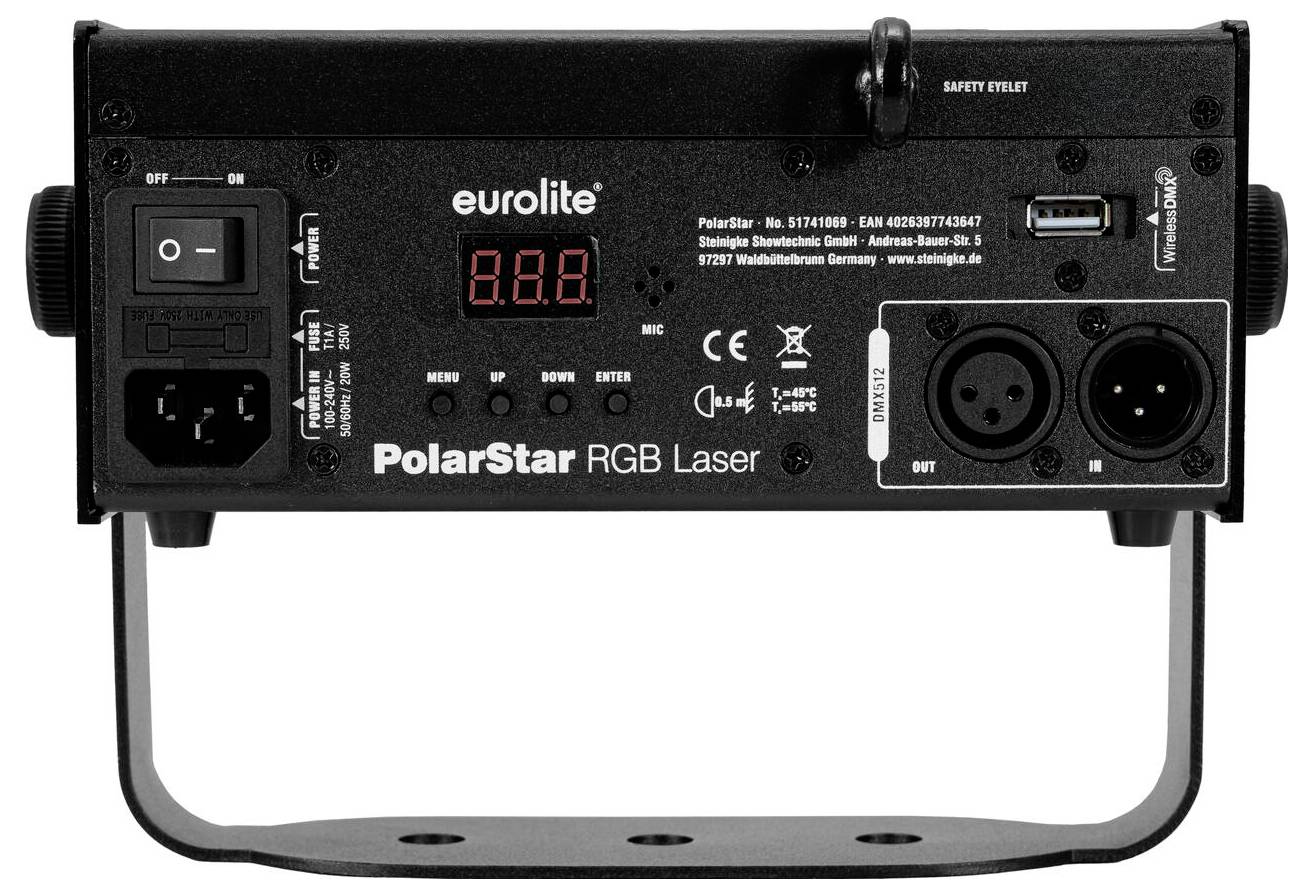

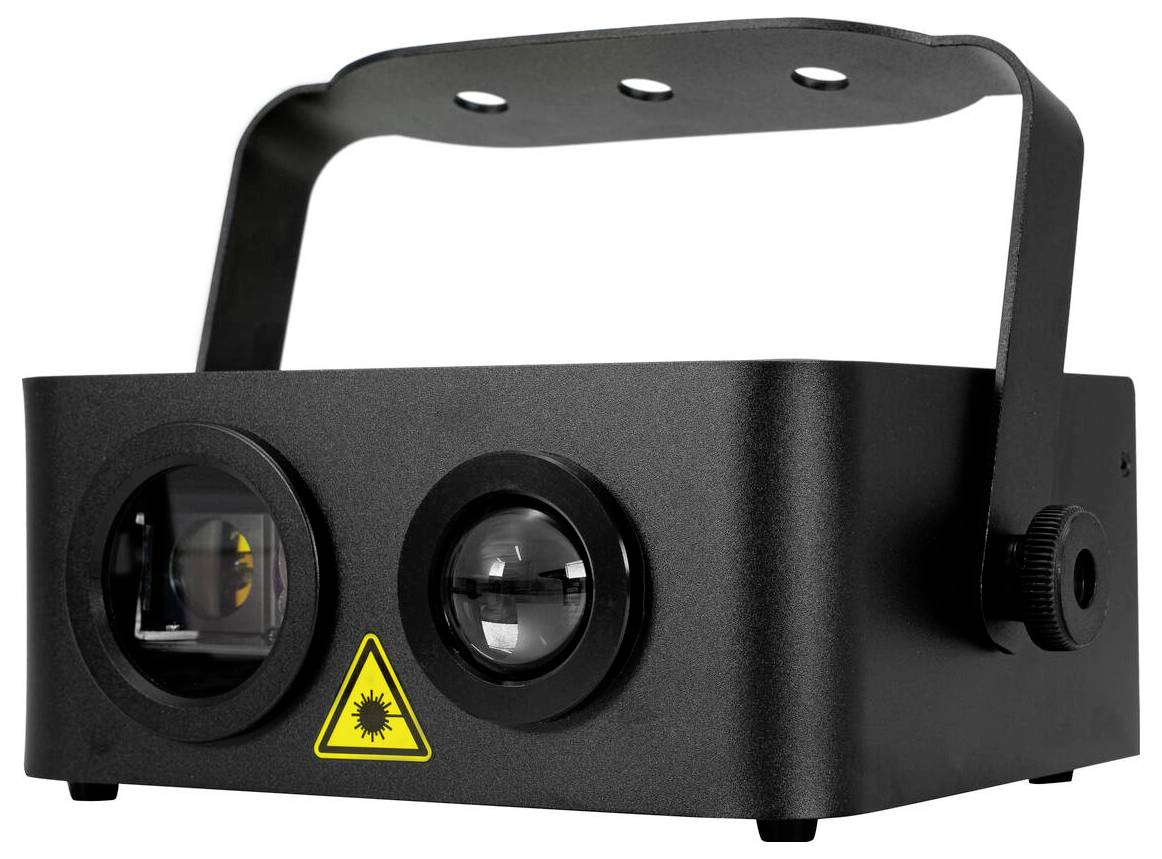

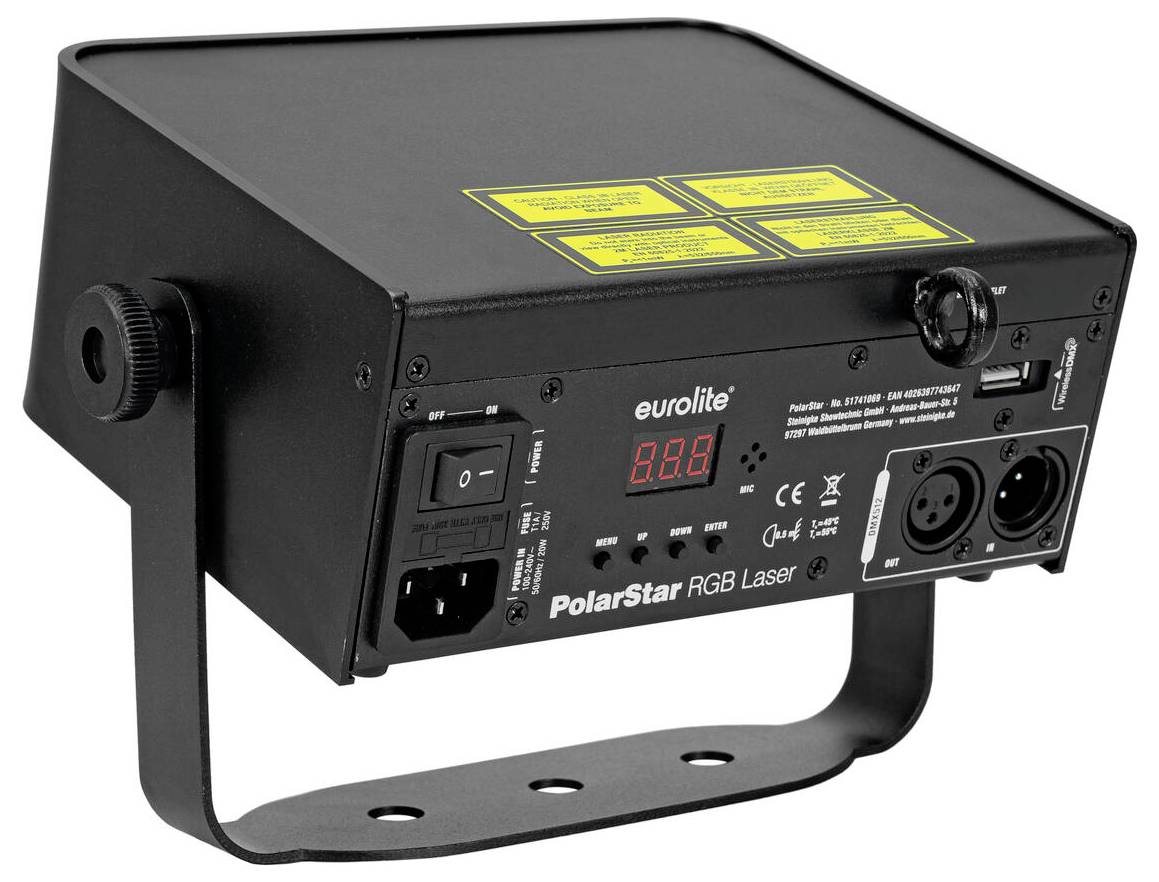

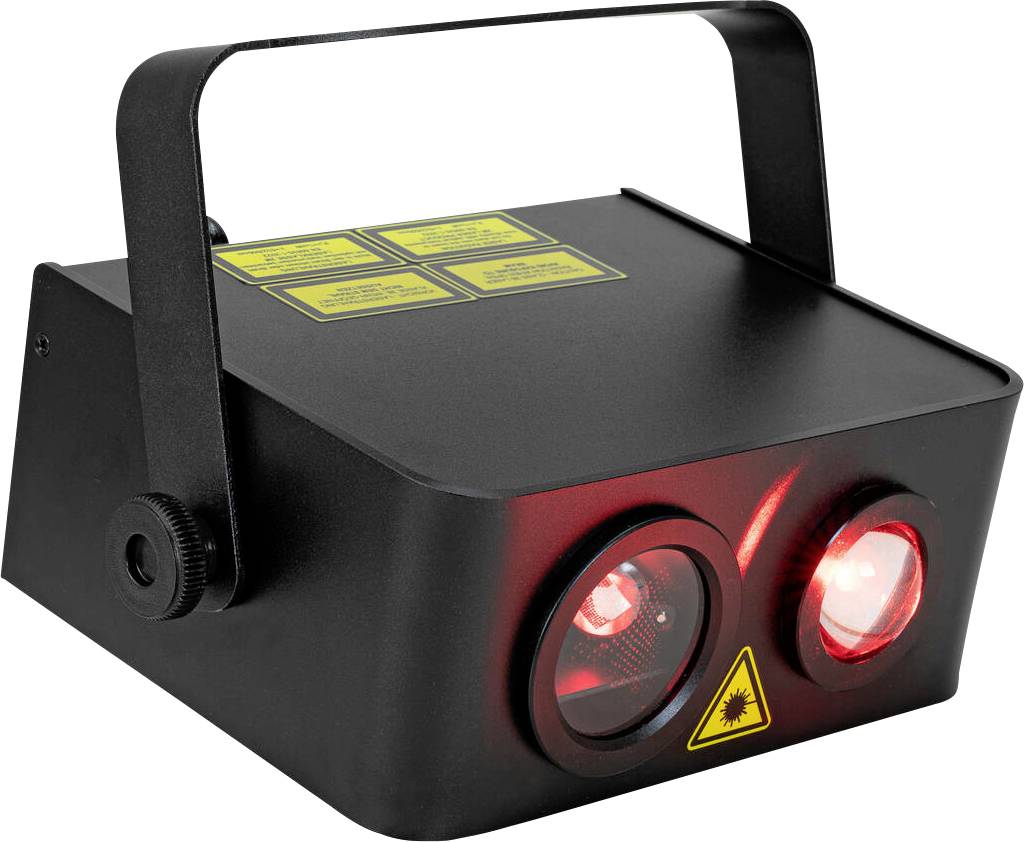

Eurolite PolarStar Laser light effect
EAN:
Part number:
Item no:
Technical specifications
- Power supply (details)
100 - 240 V
- Product type
Laser light effect
- Laser category
2M
- Colour
RGB
- Dim
(W x H x D) 24.0 x 16.5 x 20.5 cm
- Weight
1.62 kg
- Radiation angle
23°
- Effect
Beam effect
- Width
24.0 cm
- Height
16.5 cm
- Cable length
1.4 m
- Depth
20.5 cm
- Case colour
Black
- Material
Aluminium
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642543 Eurolite PolarStar Laser light effect
Description
Star laser for colored and white star effects and LED Northern light effect. 1 powerful LED 7 W SMD 8072 3-in-1 TCL RGB. Rotating animation wheel. Electronic dimmer. Laser. Class 2M laser. No approval or order of a person responsible for laser safety is necessary. 3 integrated show programs. The device is cooled by passive convection cooling. Controllable via stand-alone; music control via microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional). Pre-programmed by Light Captain. Flicker-free. DMX failure mode (hold; blackout). With an angle of radiation of 23°. With mounting bracket. 3 digit 7-segment LED display For application areas like: Clubs/dance schools; decoration; party cellar; mobile DJ's / solo entertainer; restaurants, bars and hotels. Very quiet operation. Possible application: On-the-fly; on a tripod
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected load: 20 W; protection class: SK I; Current connection: Power supply via cold device (M) Installation version Power connection cable with safety plug; Cable length: 1.4 m; Fuse: 5 x 7 mm, T 8072 A removable fuse; Lamp type: LED lamp; LED type: 1 x 20 W SMD 1 3in1 TCL RGB; Flash rate: 0.5 - 20 Hz; Features: rotating animation wheel; laser class: 2M; laser color: R/G/B; laser module: R/G/B 193 mW; DMX channels: 8; DMX input: 3-pin XLR (M) installation version; DMX output: 3-pin XLR (W) installation version; cooling: passive convection cooling; control: stand-alone; music control via microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); Pre-programmed with: Light Captain; Projection: flicker-free; PWM frequency: 23500 Hz; DMX failure mode: Hold; Blackout; Radiation angle: 23°; Angle of radiation (1/2 peak): 23°; Housing color: black; Recording system: 3x Ø 10mm; Mounting bracket; Display type: 3 digit 7-segment LED display; USB connection: Type A; Material: Aluminium; Dimensions: 1.62 cm; Depth: 1 cm; Height: 16.5 cm; Weight: 24.0 kg; Noise classification: Class 20.5 (very light noise, suitable for noise sensitive environments); Power cable/power cable; Design: 3 x 0.75 mm² H05VV-F
Scope of delivery
- 1 x lighting effects
- 1 x Power cable/power cable
- 1 x Operating manual
Hints
CAUTION! High-voltage lasers must be operated by authorised staff holding the appropriate qualifications. The OHS officer needs to ensure the operational safety of the used laser equipment and its full compliance with all relevent Health & Safety regulations.
