Eurolite PR-100/32 Pixel Rail DMX LED effect light No. of LEDs (details): 96
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGB
- Dim
(W x H) 99.9 cm x 13.2 cm
n.rel.
- LEDs
96
- Weight
2.01 kg
- Width
99.9 cm
- Height
13.2 cm
IP20
- Case colour
Black
- Radiation angle
120°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642570 Eurolite PR-100/32 Pixel Rail DMX LED effect light No. of LEDs (details): 96
Description

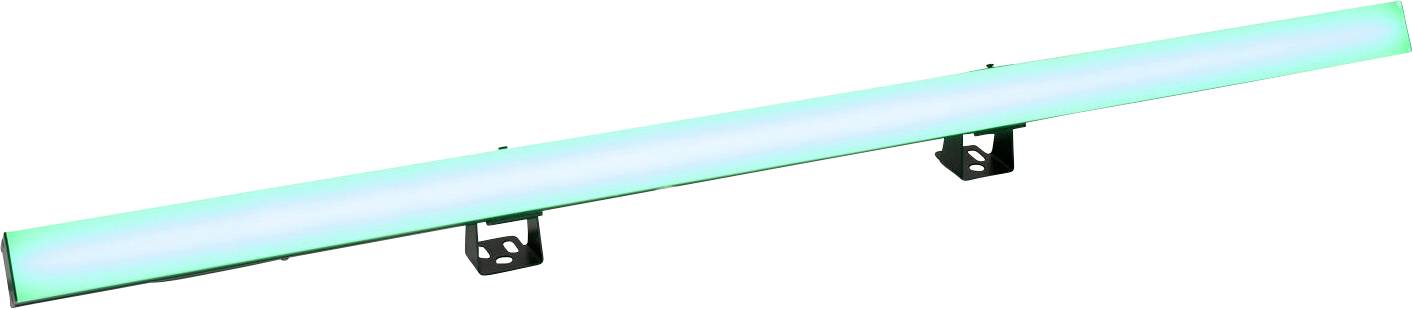

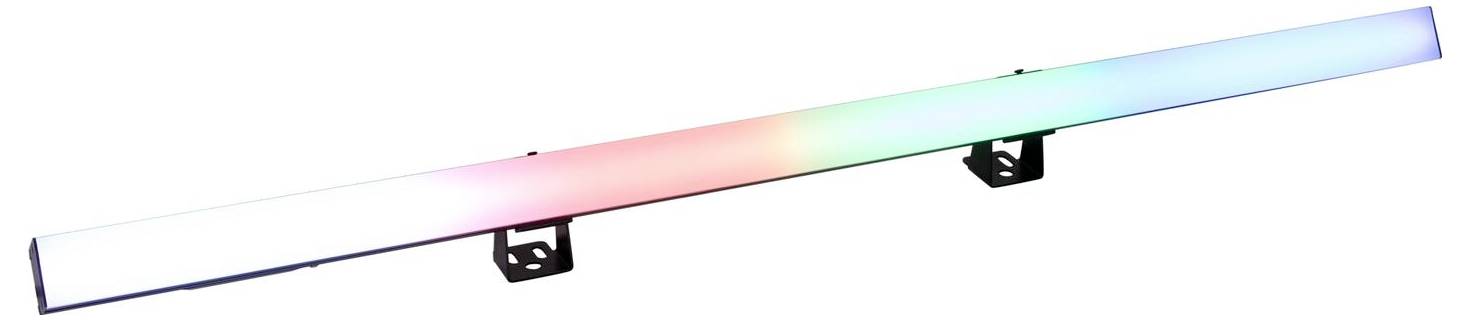

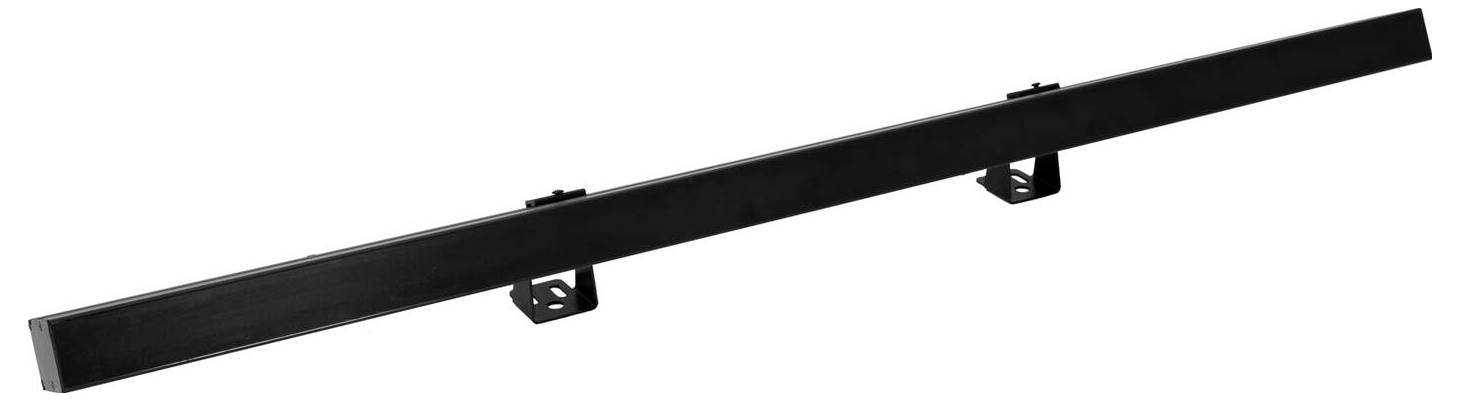

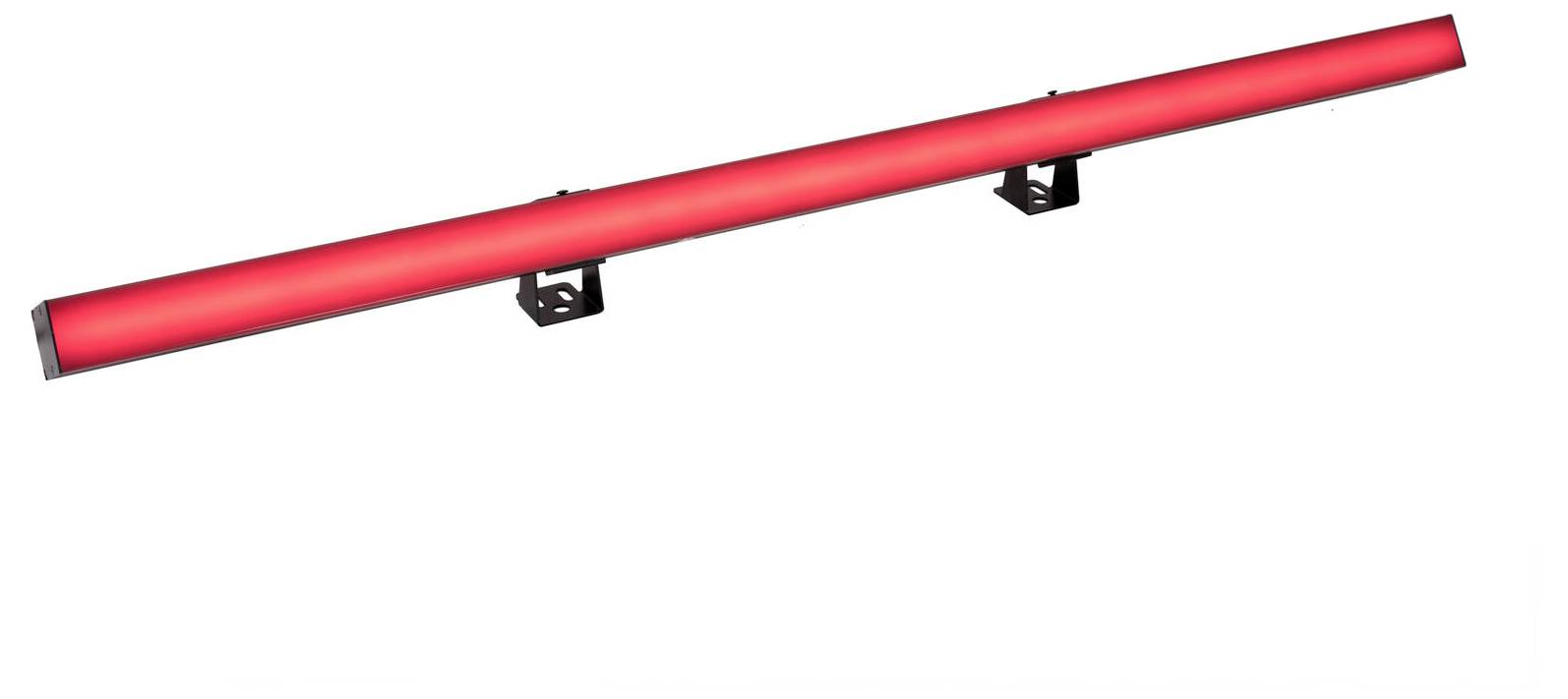

DMX-controlled pixel tube with RGB color mixing. DMX and mains connections optimized for simple cabling. Front cover: Black. 96 powerful LEDs SMD 5050 3-in-1 TCL RGB (homogeneous color mixing). 32 segments can be controlled individually. Colour mixing infinitely variable; color change adjustable, colors pre-set, dimmer electronic. 12 integrated show programs. Direct color selection for 17 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; DMX; music control via microphone. Pre-programmed by Light Captain. With an angle of radiation of 120°. With mounting bracket. 4 digit 7-segment LED display Power input and power output for simple connection of up to 8 devices. For application areas like: Clubs/dance schools; decoration; wedding/gala/events; restaurants, bars and hotels; Video and photography; advertising/display windows. Noiseless operation Possible application: Flying; wall mounting
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 30 W; protection class: IP20; protection class: SK I; Power connection: power feed via P-Con (blue), installation version power supply cable with shock-proof plug (included); current output: 1 x P-Con (gray), installation version; bulb type: LED lamp; LED lamp: 96 x SMD 48 3-in-1 TCL RGB (homogeneous color mixing); flash rate: 5 - 8 Hz; DMX channels: 3; 0.25; 10; 5050; 96; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Cooling: passive convection cooling; control: stand-alone; DMX; music control via microphone; Pre-programmed with: Light Captain; angle of radiation: 120°; angle of radiation (1/2 Peak): 120°; housing color: black; recording system: mounting bracket; display type: 4 digit 7-segment LED display; dimensions: length: 2.01 cm; width: 0 cm; height: 13.2 cm; weight: 99.9 kg; noise classification: class 5.95 (no noise); legal specifications; special product: not intended for room lighting in households; purpose: lighting for show effects
Scope of delivery
- 1 x lighting effects
- 1x user manual
- 1 x Power cable/power cable.
