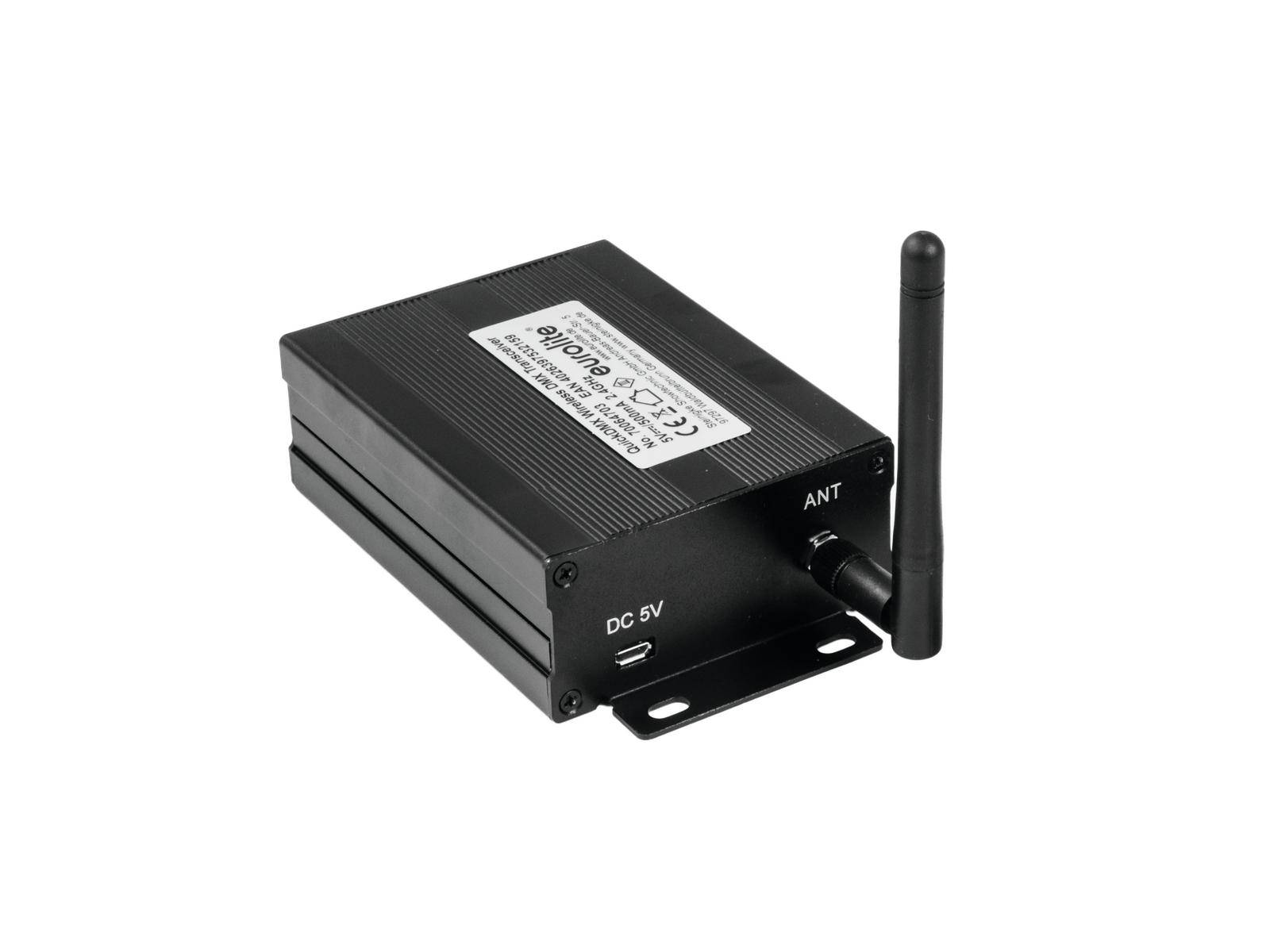

Eurolite QuickDMX DMX Wi-Fi adapter
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 100-240 V AC 50/60 Hz ~
- Via the mains unit included in the delivery
- Wireless transmission: in the 2.4 ghz band (ISM), 78 channels
- Modulation: GFSK
- Range: 400 m (direct visual contact)
- DMX connection: 3-pin. XLR socket,
- 3-pin. XLR connector
- DMX channels: 1 universe (512 channels)
- Mass with antenna (L x W x H): 212 x 75 x 100 mm
- Weight: 220 g
- Shipping weight: 0.355 kg
- Product type
DMX Wi-Fi adapter
- Width
75 mm
- Height
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375959 Eurolite QuickDMX DMX Wi-Fi adapter
Description
DMX radio system 2.4 GHz.
This text is machine translated.
This text is machine translated.
Features
- Compact DMX-radio transmitter/receiver for wireless transmission of up to 512 DMX channels
- DMX input and output, 3-pin XLR
- Automatic switching between the transmitter and the receiver operation
- With wireless DMX eliminate costly cabling between the DMX controller and the DMX-controlled devices in lighting systems
- By type GFSK modulation with 78 channels, a trouble-free operation even along with other QuickDMX-stations and other wireless devices in the 2.4 ghz band (such as W-LAN and Bluetooth)
- Range up to 400 m (direct visual contact)
- Simultaneous operation of up to 6 stations, thus controlling 3072 DMX channels (6 DMX universes) is possible.
- Per Station, 1 to 512 QuickDMX-receiver can be operated
- Plug & Play: Simple and quick start-up with a button to connect/disconnect from QuickDMX-devices
- LED function display
- Micro-USB connection; suitable power supply included in delivery
- 2.4 GHz ISM band - world-wide registration-free and toll-free
