Eurolite Quickdmx Funkset DMX Wi-Fi adapter
EAN:
Part number:
Item no:
Highlights & Details

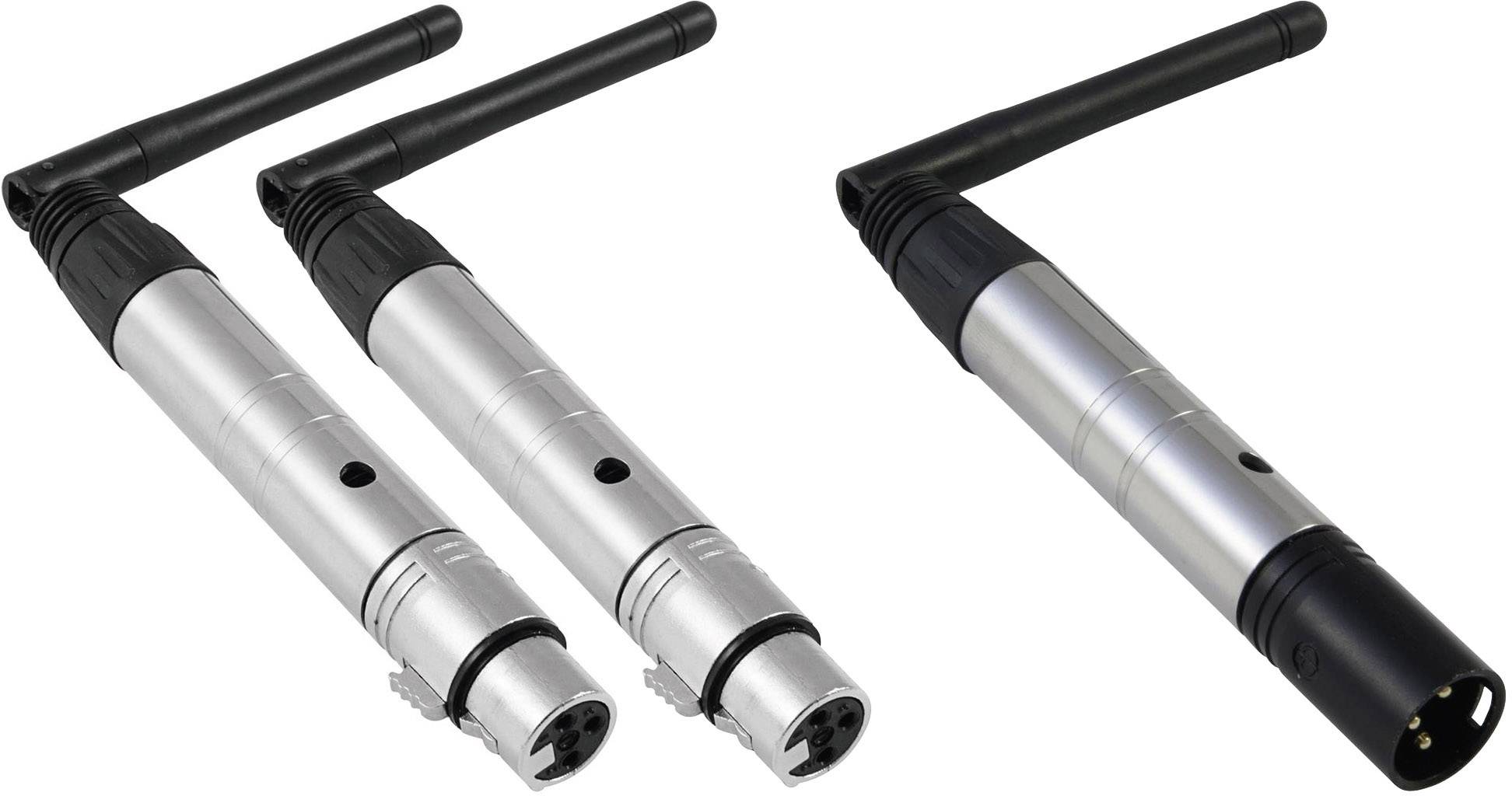

Eurolite Quickdmx radio transmitter + 2 x radio receivers
- Ideal DMX radio set at top price
Technical specifications
- Product type
DMX Wi-Fi adapter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1368667 Eurolite Quickdmx Funkset DMX Wi-Fi adapter
User & Safety Instructions 1368667 Eurolite Quickdmx Funkset DMX Wi-Fi adapter
Description
DMX radio transmitter + 2 x receivers in miniature format for wireless transmission of up to 512 DMX channels.
This text is machine translated.
This text is machine translated.
Features
- User-friendly 3-pin XLR connector (male) with swiveling antenna
- Thanks to GFSK modulation with 78 channels, interference-free operation also includes other QuickDMX transmitters and other wireless devices in the 2.4 GHz band (such as W-LAN and Bluethooth®)
- Range up to 400 m (with visual contact)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) is possible
- 1 to 512 QuickDMX receivers can be operated per transmitter
- Plug & Play: Simple and quick start-up with a button for connecting/disconnecting QuickDMX receivers
- LED function display
- Transceiver, can be used as transmitter and receiver
- 2.4 GHz ISM band - worldwide registration and toll free.
Scope of delivery
- Mains adapter.
