Eurolite SBM-32B Power distributor 3 U
EAN:
Part number:
Item no:
Technical specifications
- Product type
Power distributor
- Rack unit
3 U
- No. of CEE 32 A connectors
1
- No. of PG sockets
6
- Width
48.3 cm
- Height
13.3 cm
- Weight
6.75 kg
- Cable length
1.2 m
- Depth
28.0 cm
IP20
- Protection class
I
- Operating voltage
380-400 V/AC, 50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642513 Eurolite SBM-32B Power distributor 3 U
Description

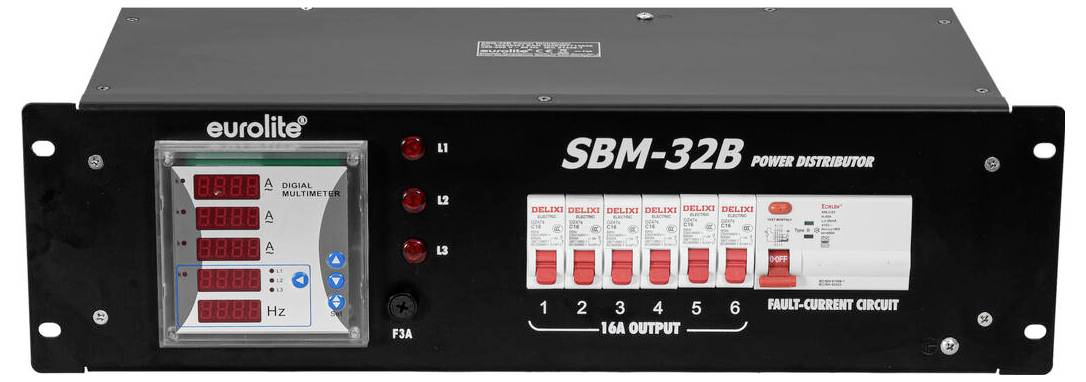

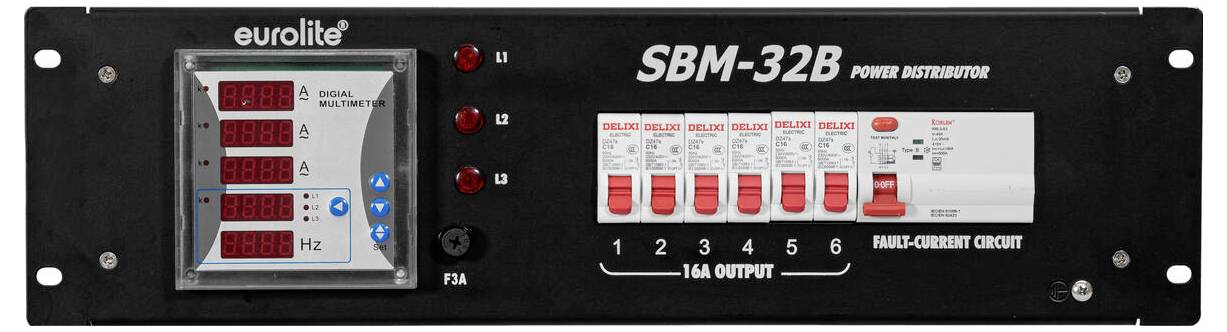

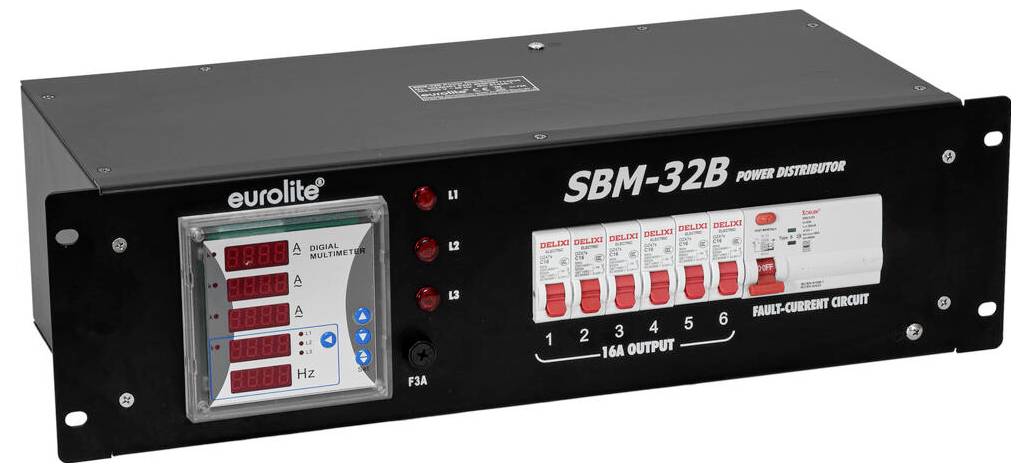

32 A power distributor with multimeter in 19" housing. 3-phase measurement for voltages of 100-380 V/AC. AC and frequency display. 48.3 cm rack installation 3 HE. 4 digit 7-segment LED display
This text is machine translated.
This text is machine translated.
Features

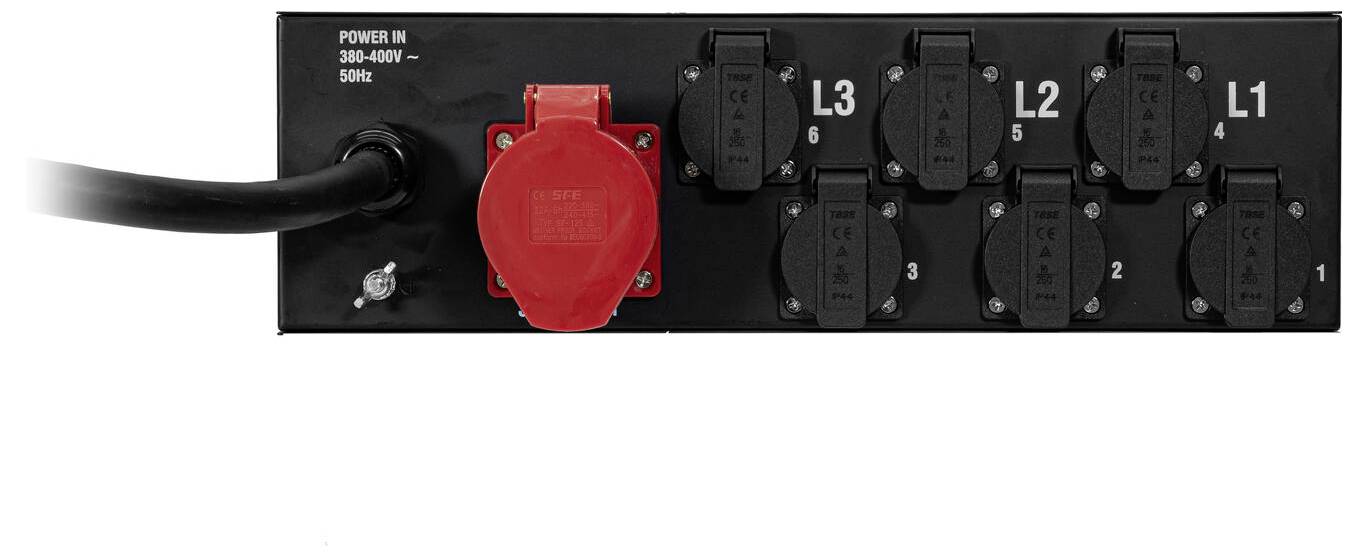

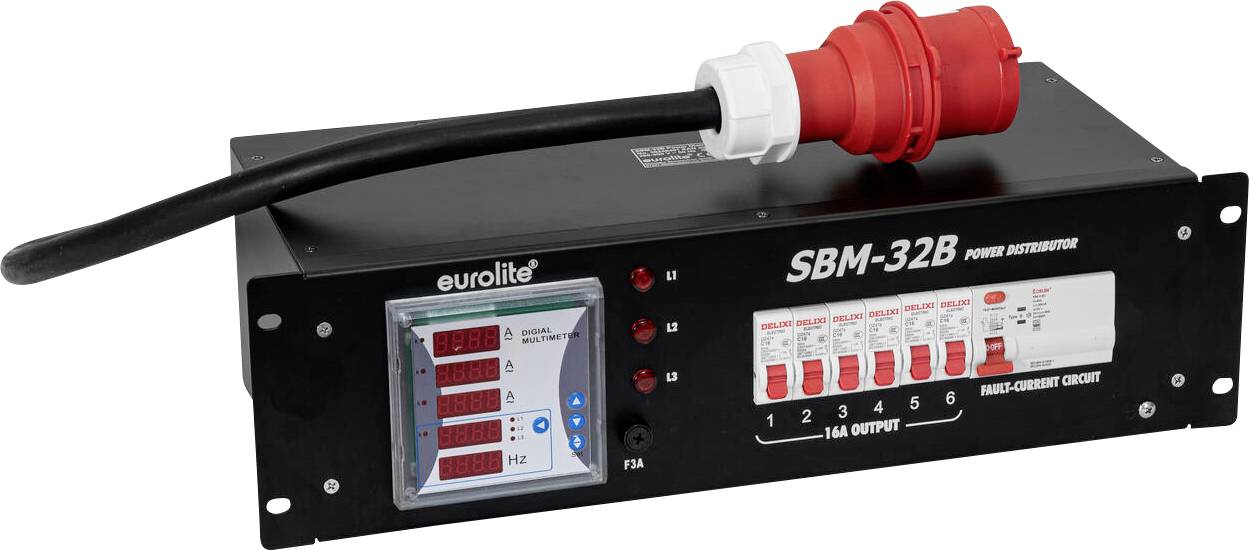

- Power supply: 380-400V AC, 50Hz; Protection type: IP20; Protection class: SK I; Power connection: Fixed power connection cable with CEE 32A 5-pin; cable length: 1.2 m; current output: 6 x protection contact (W), hinged cover version secured; 1 x CEE 32A 3-pin (W) installation version; device fuse: 5 x 20 mm, F 5 A fuse replaceable; fuse: 1 x residual current circuit breaker (FI) type B 63A/0.03A; 6 x circuit breaker C 16A 1-pin; Display type: 4 digit 7-segment LED Display; Display: Volt, Ampere, Frequency; Housing design: (19") 48.3 cm Rack installation 3 HE; Dimensions: Width: 6.75 cm; Depth: 28.0 cm; Height: 13.3 cm; Weight: 48.3 kg
Scope of delivery
- 1 x device
- 1 x Operating manual
