Buy Eurolite SBM-63B Power distributor

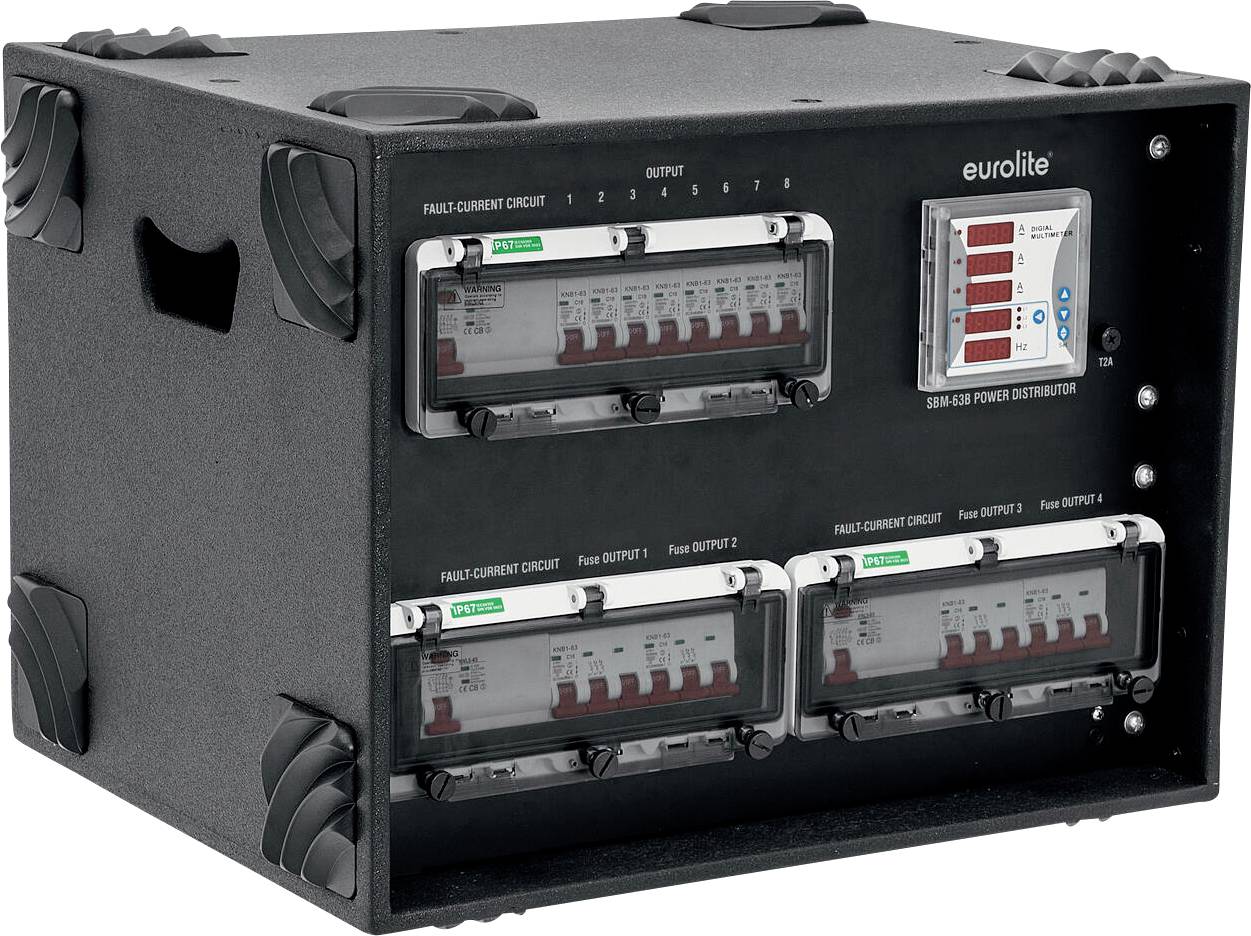

'Eurolite' branded black power distribution box with four circuit breakers, each labeled 'OUTPUT,' and a digital display on the side.

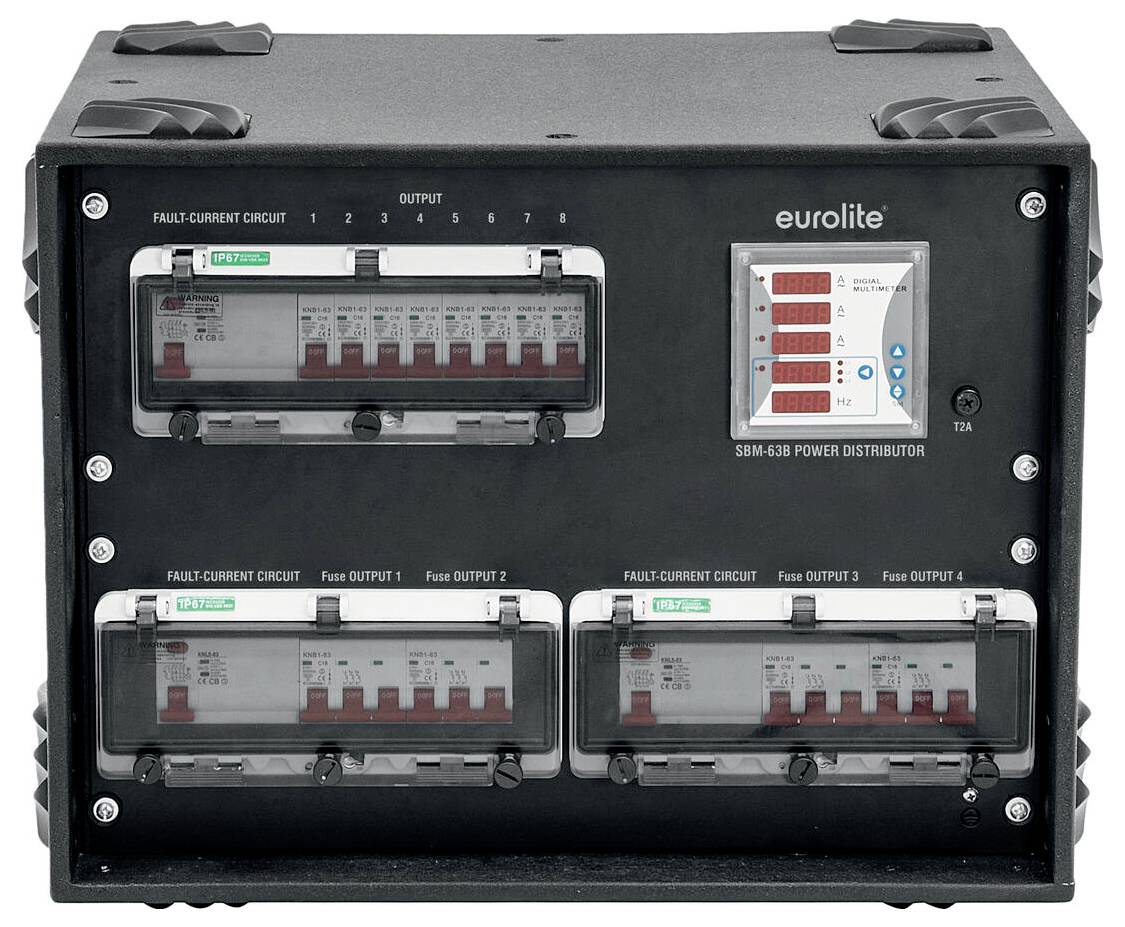

Power distributor with 'eurolite' branding, displaying fault-current circuits and outputs. Control panel on the right shows settings.

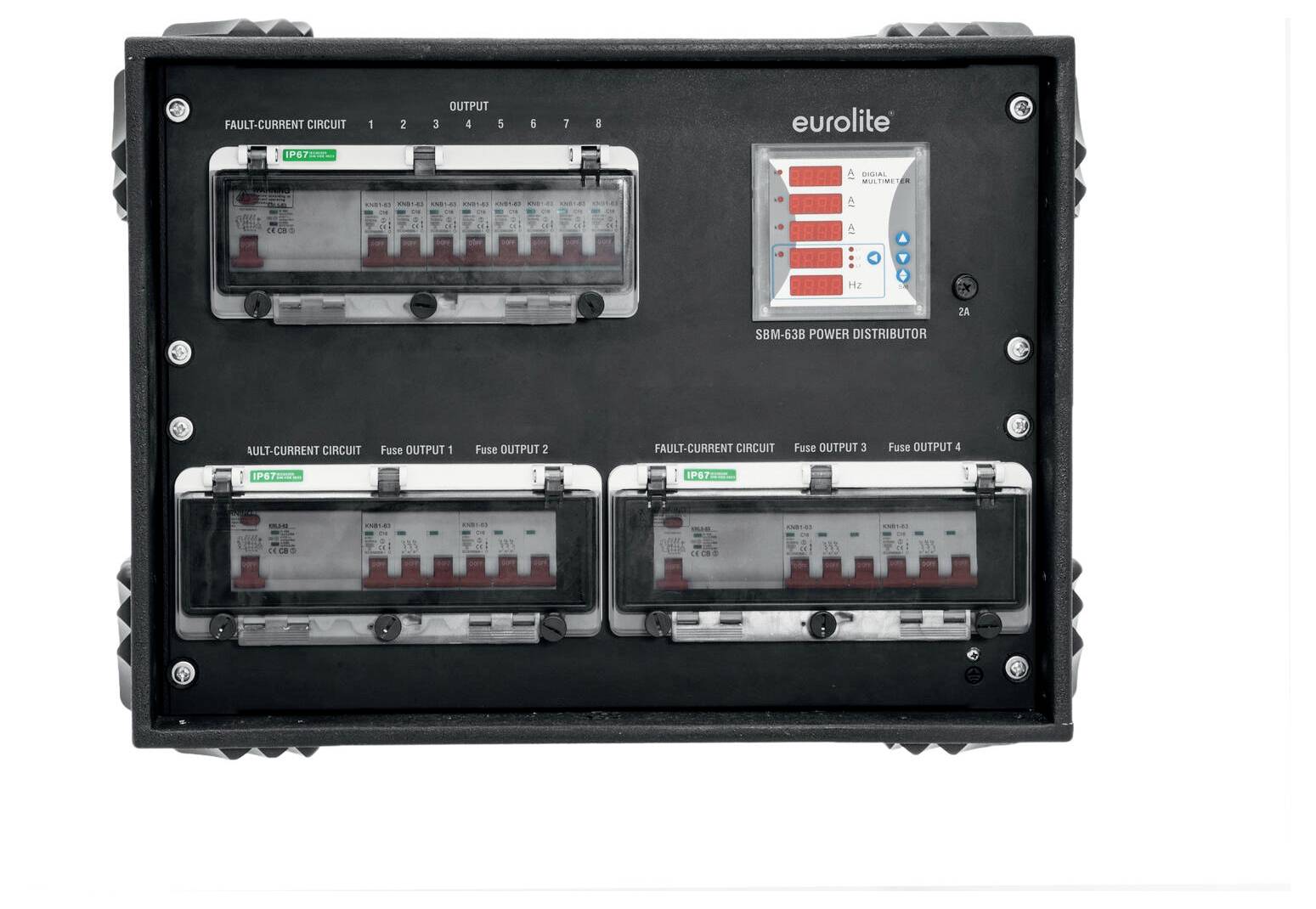

'Eurolite SB-02 Power Distributor' with multiple labeled switches for output control, fault current circuits, and indicators.

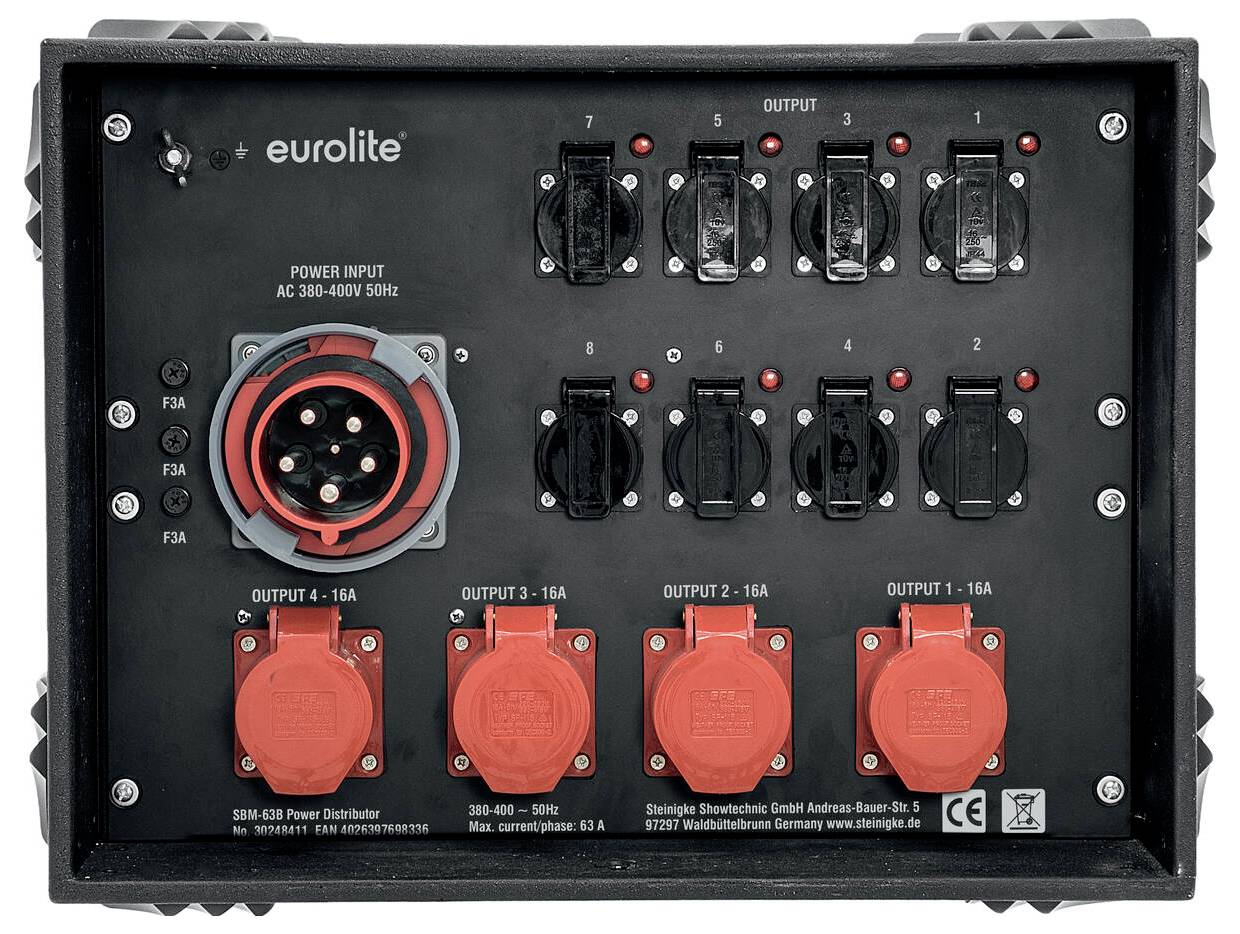

A power distribution unit with multiple labeled outlets, including 'Output 1-6' and a large power input connector. Display shows 'AC 380-400V 50Hz'.

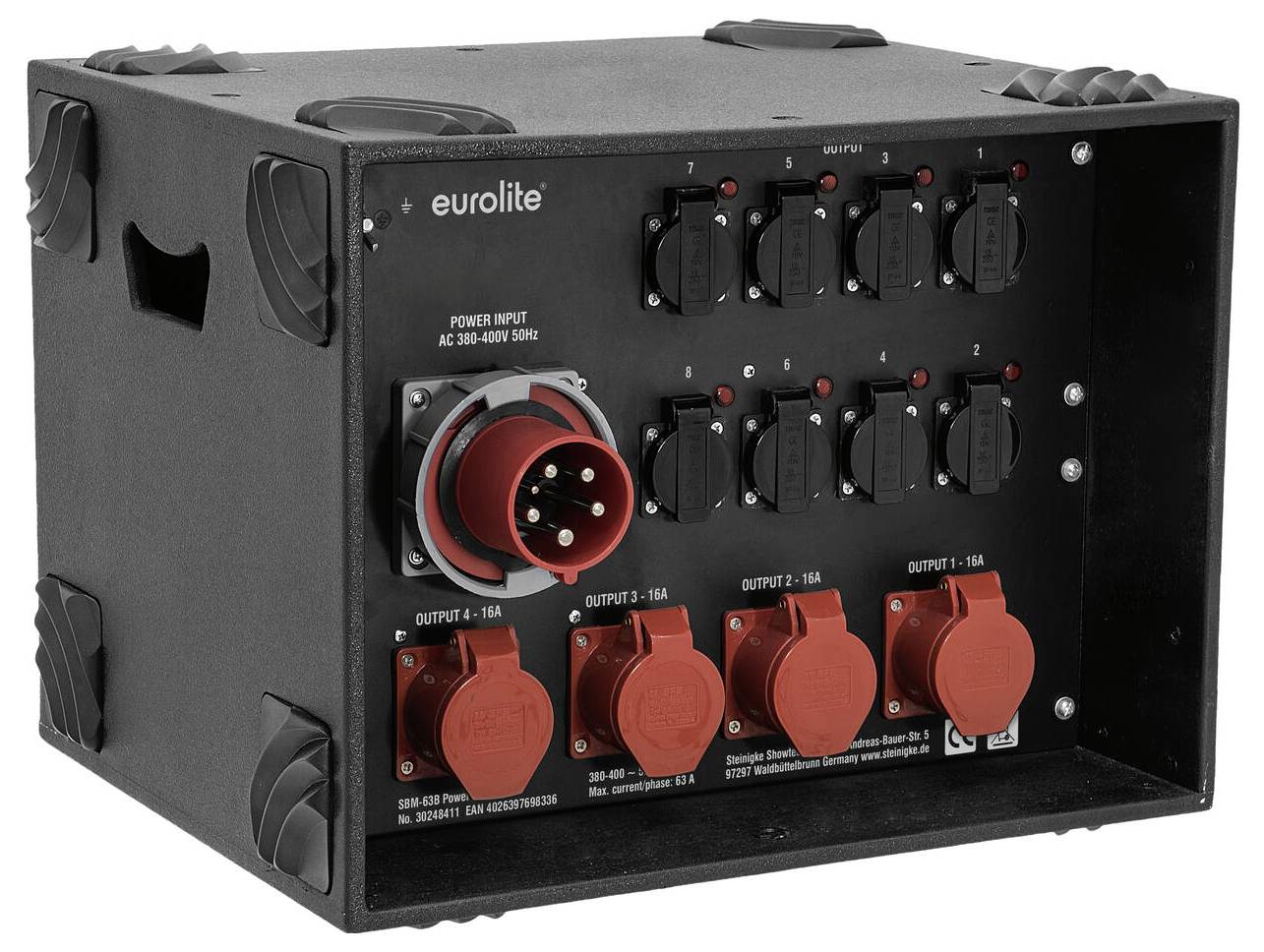

A black power distribution box with multiple red and black sockets, labeled for different outputs and inputs, designed for 380-480V, 50Hz.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Power distributor

No. of CEE 16 A connectors: 4

No. of PG sockets: 8

Width: 53.5 cm

Height: 40.5 cm

Weight: 18.90 kg

Depth: 42 cm

Operating voltage: 380-400 V/AC, 50 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3642514 Eurolite SBM-63B Power distributor

Description

63 A current distributor with multimeter. 3-phase measurement for voltages of 100-380 V/AC. AC and frequency display. Robust, stackable housing

This text is machine translated.

Features

Power supply: 380-400V AC, 50Hz, Power supply: Power supply via CEE 63A 5-pin (M), Current output: 8 x protection contact (W), flip cover version secured; 4 x CEE 16A 5-pin (W) Installation version secured; Protection: 8 x circuit breaker C 16A 3-pole; 4 x circuit breaker C 16A 3-pole; 1 x residual current circuit breaker (FI) type B 63A/0.03A 4-pole; Display: Volt , Amperes , Frequency; Dimensions: width: 53.5 cm; depth: 42 cm; height: 40.5 cm; weight: 18.90 kg

Scope of delivery

1 x device
1 x Operating manual
