Eurolite Super Strobe ABL LED strobe No. of LEDs (details): 380
EAN:
Part number:
Item no:
Highlights & Details

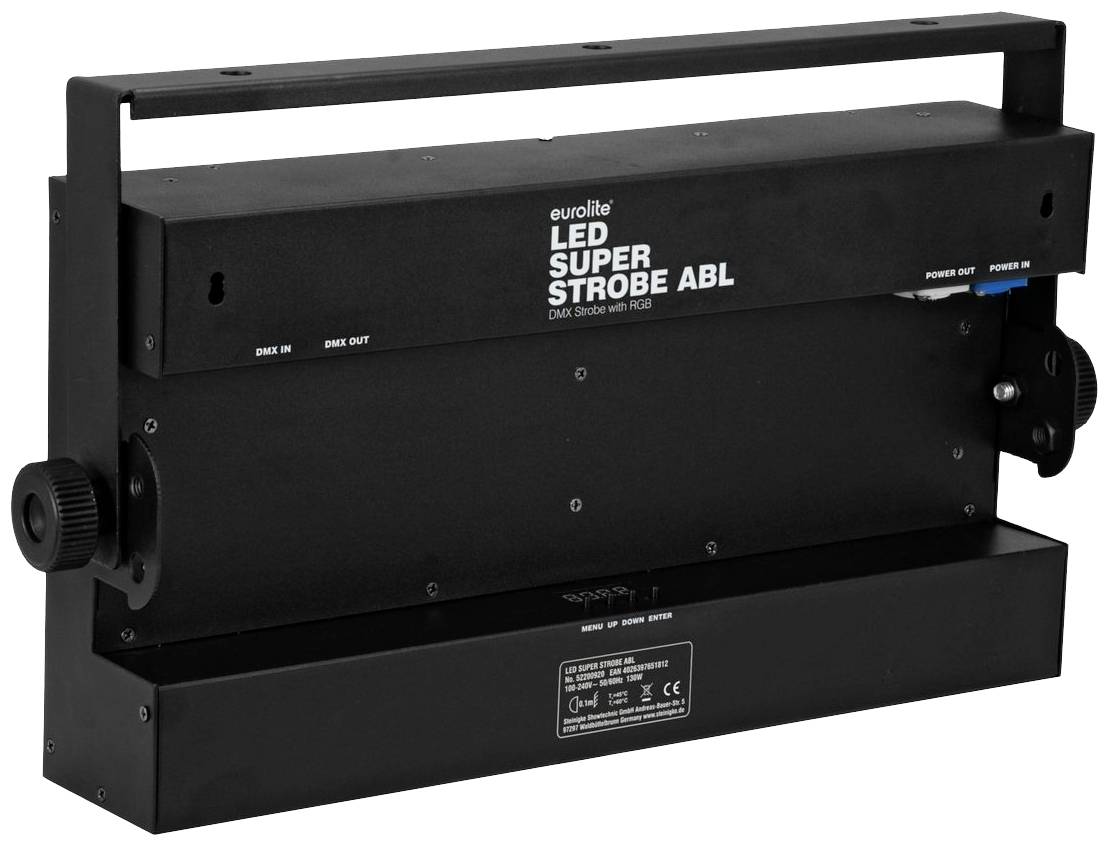

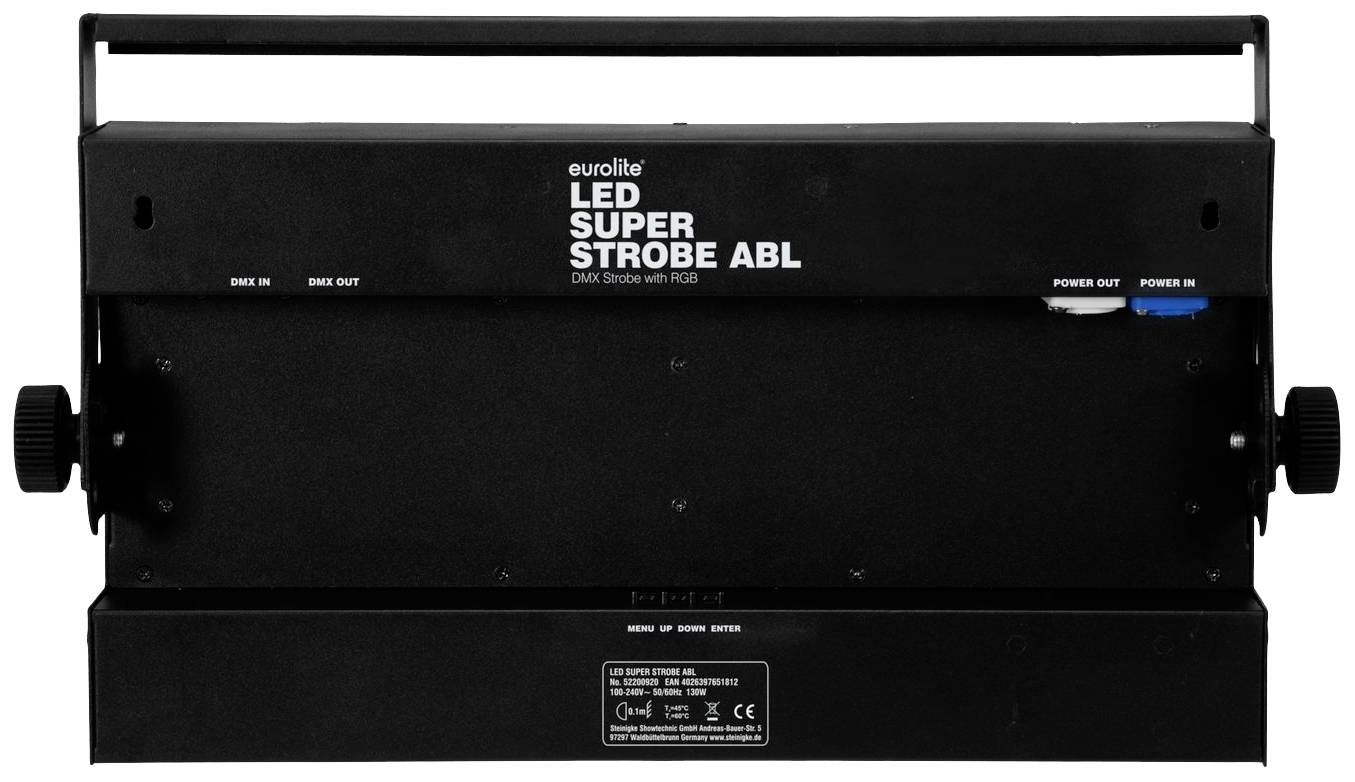

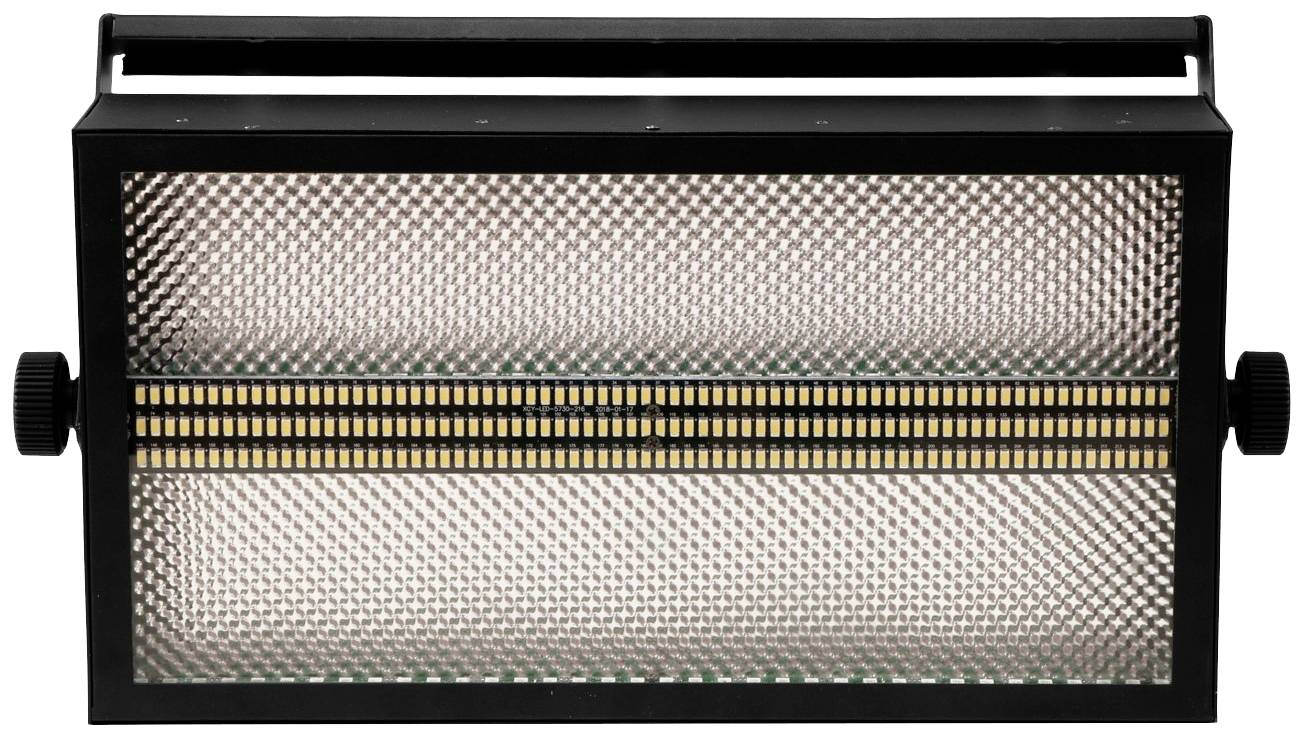

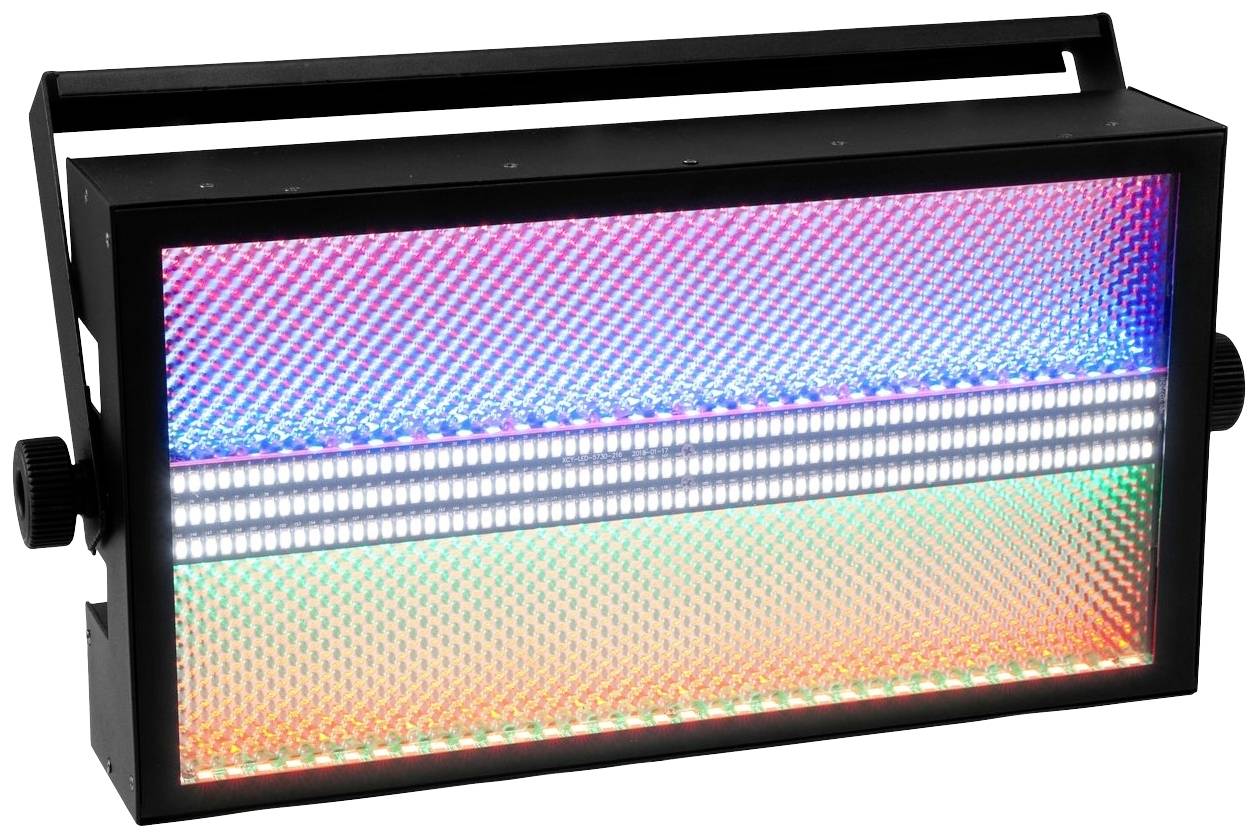

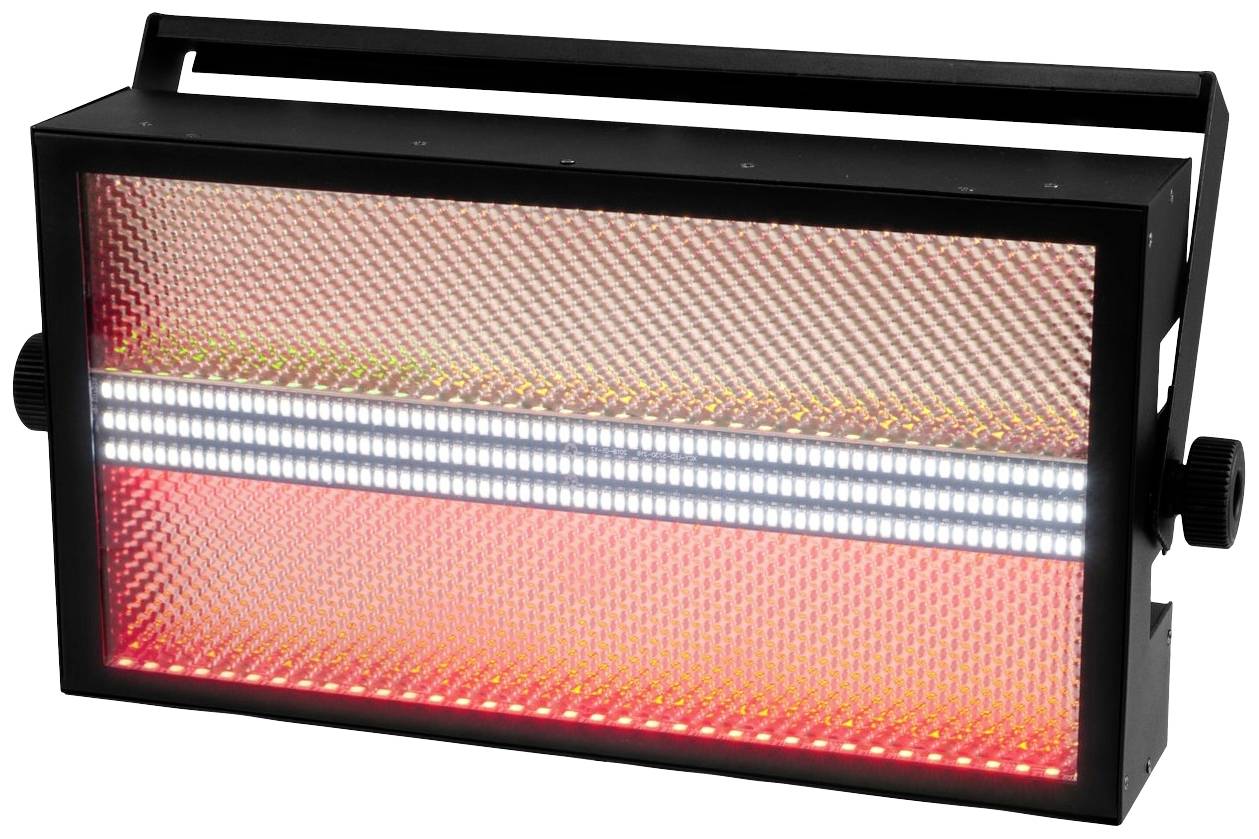

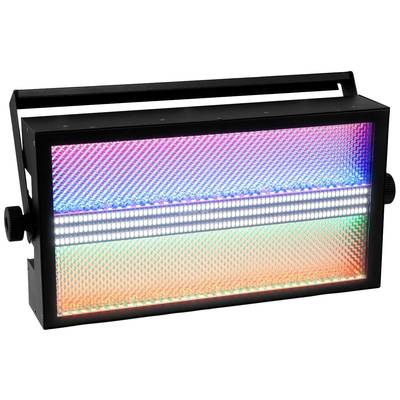

Eurolite LED Super Strobe ABL
- LED light effect device with 3-fold effects
- Flat metal casing with integrated wall bracket
- 216 powerful LEDs 0.5 W SMD 5730 cold-white (CW)
- 144 powerful LEDs SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED strobe
95 W
- LEDs
380
- Colour
RGB
Cool white
- Dim
(L x W x H) 455 x 85 x 255 mm
- Weight
4.3 kg
n.rel.
- DMX control
Yes
- Width
85 mm
- Height
255 mm
- Length
455 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131233 Eurolite Super Strobe ABL LED strobe No. of LEDs (details): 380
Description
LEDs can be controlled individually
Stroboscope-effect; wash-effect; blinker-effect
17 integrated show programs
Can be controlled via master/slave function; DMX; Stand-alone; music control
Flicker-free
With mounting bracket
4 digit 7-segment LED display
Electronic dimmer; continuously variable color mixing
Power input and power output for simple connection of up to 8 devices
Already pre-programmed with LED PC-Control 512; EASY SHOW 1; Light Captain
For applications such as: Clubs/dance schools; stage; restaurants, bars and hotels; mobile DJ's/solo entertainer
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Stroboscope-effect; wash-effect; blinker-effect
17 integrated show programs
Can be controlled via master/slave function; DMX; Stand-alone; music control
Flicker-free
With mounting bracket
4 digit 7-segment LED display
Electronic dimmer; continuously variable color mixing
Power input and power output for simple connection of up to 8 devices
Already pre-programmed with LED PC-Control 512; EASY SHOW 1; Light Captain
For applications such as: Clubs/dance schools; stage; restaurants, bars and hotels; mobile DJ's/solo entertainer
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 95 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: 4 digit 7-segment LED display
- Protection class SK I
- Supporting system: Mounting bracket
- Control: Master/slave function
- Cable layout: 3 x 1.0 mm² H05RN-F
- LED:216 x 0.5 W SMD 5730 cold-white (CW)
- DMX channels 7
- DMX input 1 x 3-pin XLR (M) installation version
- DMX
- Pre-programmed for: LED PC-Control 512
- Light captain: Light captain
- Beam angle (1/2 peak) 120°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, F 2 A fuse can be replaced
- DMX output 1 x 3-pin XLR (W) built-in version
- Diameter of mounting holes 3 x Ø11mm
- P-Con (gray), installation version
- 2 x Ø8mm
- Stand-alone
- EASY SHOW 1
- Music synchronisation
- 144 x SMD 5050 3in1 TCL RGB (homogeneous color mixing)
Scope of delivery
- Lighting effect
- Mounting bracket
- Network cable/power cable
- 2 x Knurled screw
- 2 x washers
- User manual
