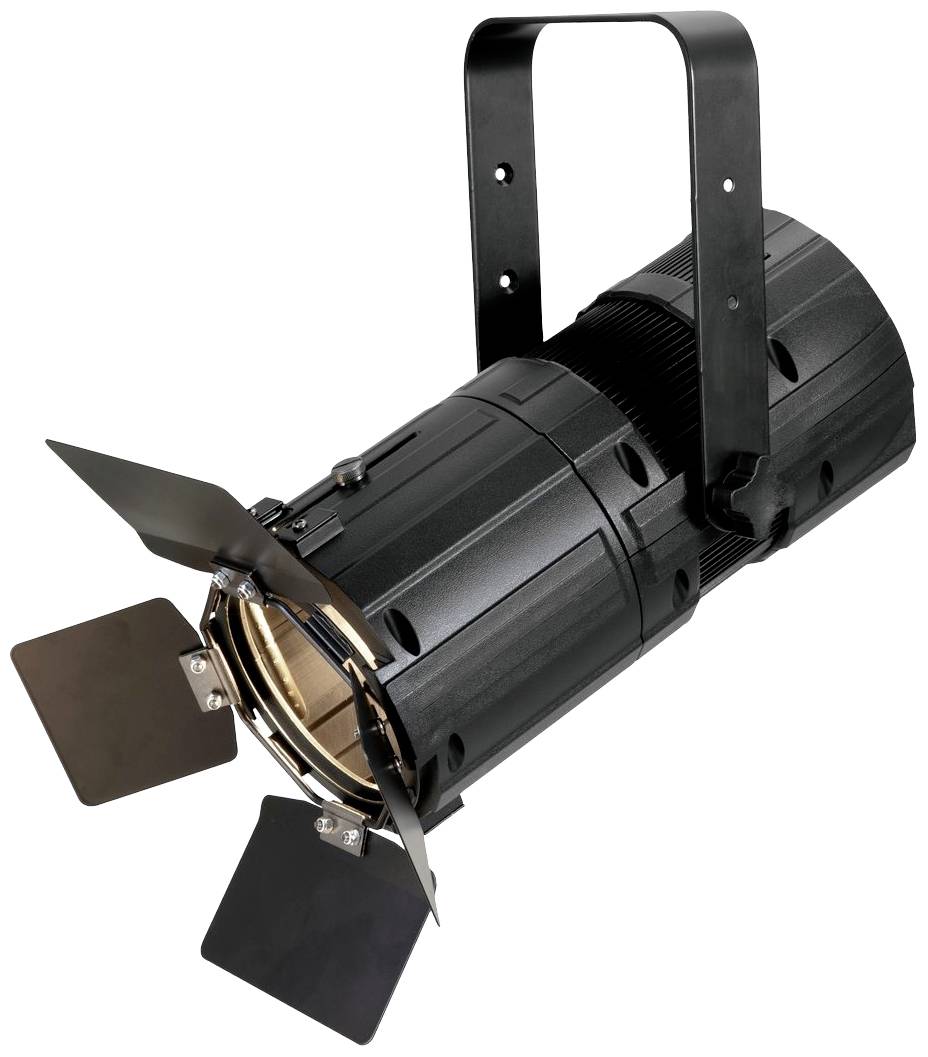

A black stage spotlight with adjustable shutters, mounted on a mounting bracket, for professional lighting.

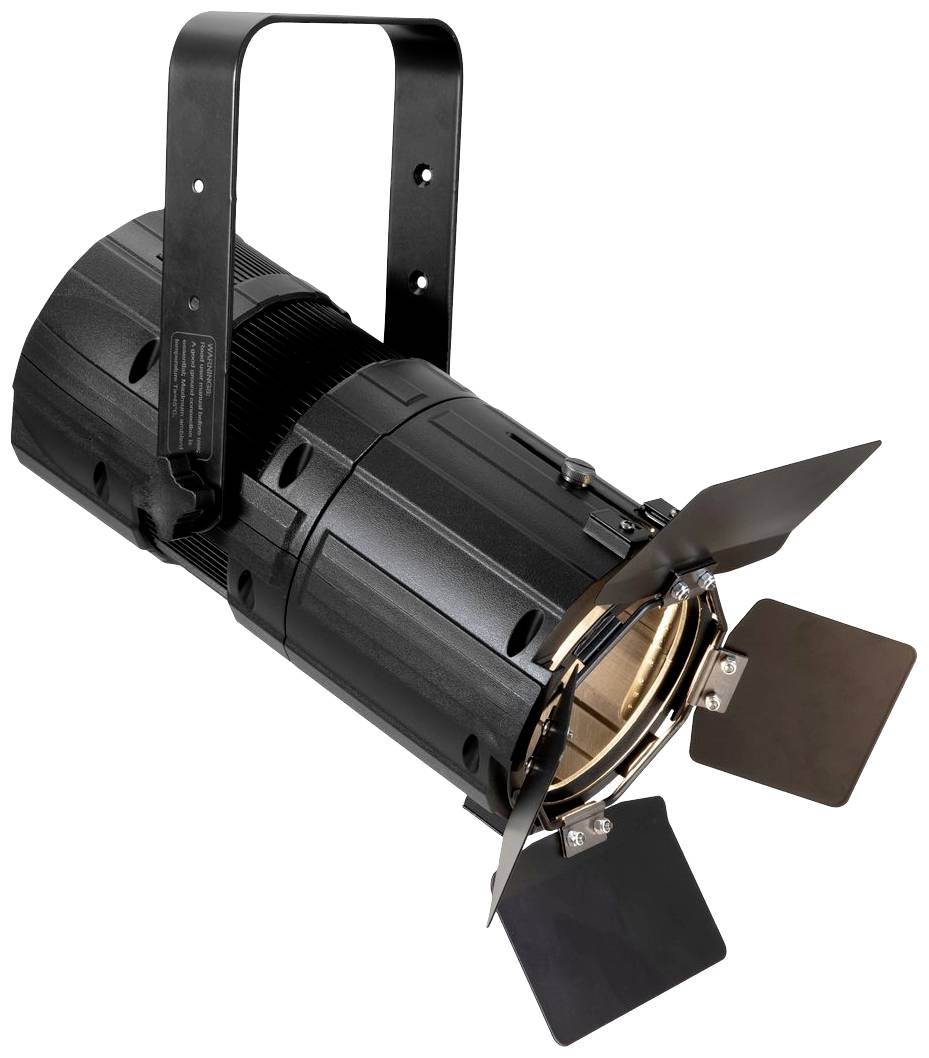

Black stage spotlight with adjustable flaps to control light spread, mountable on a handle.

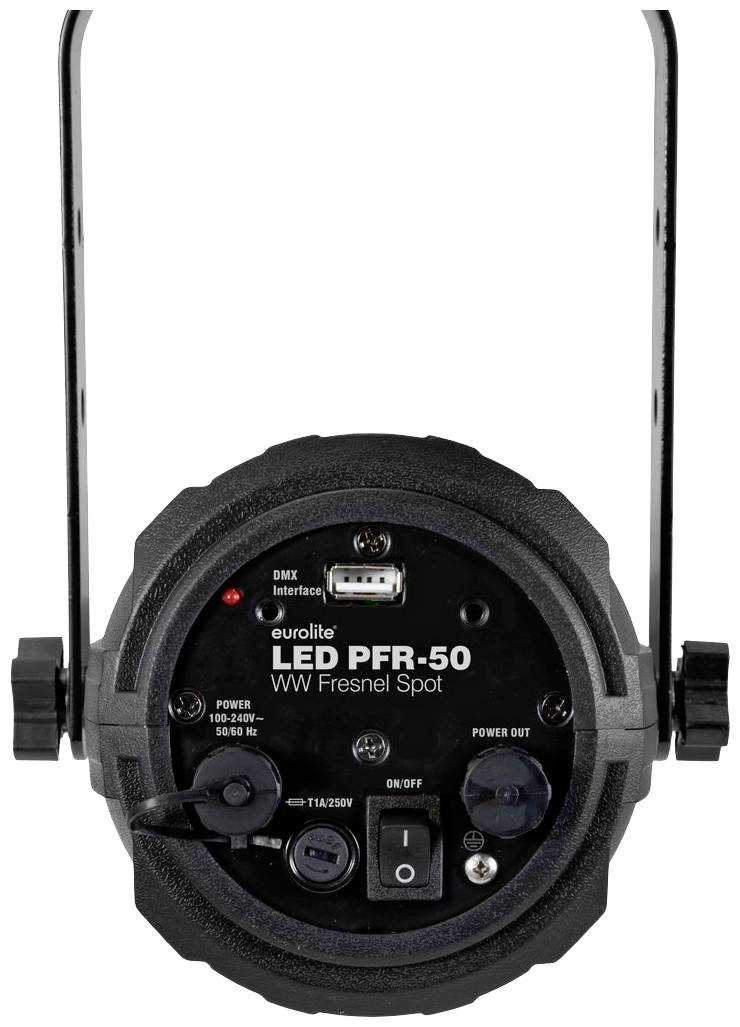

Black LED Fresnel spotlight by Eurolite with control panel and connections for power and DMX interface, model 'LED PFR-50'.

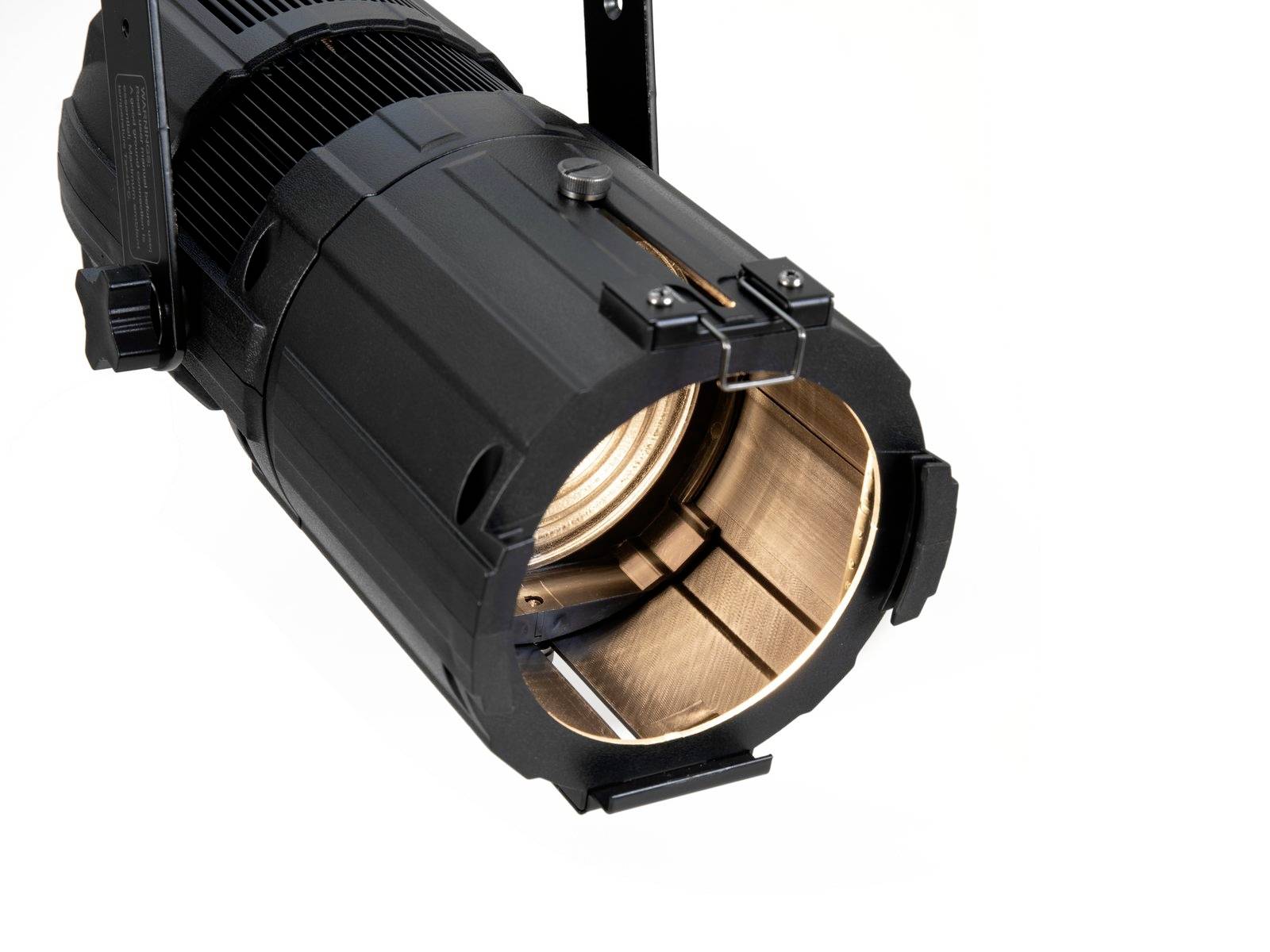

A black theatre spotlight with a metal lens, ready for use in stage lighting or theatre productions.

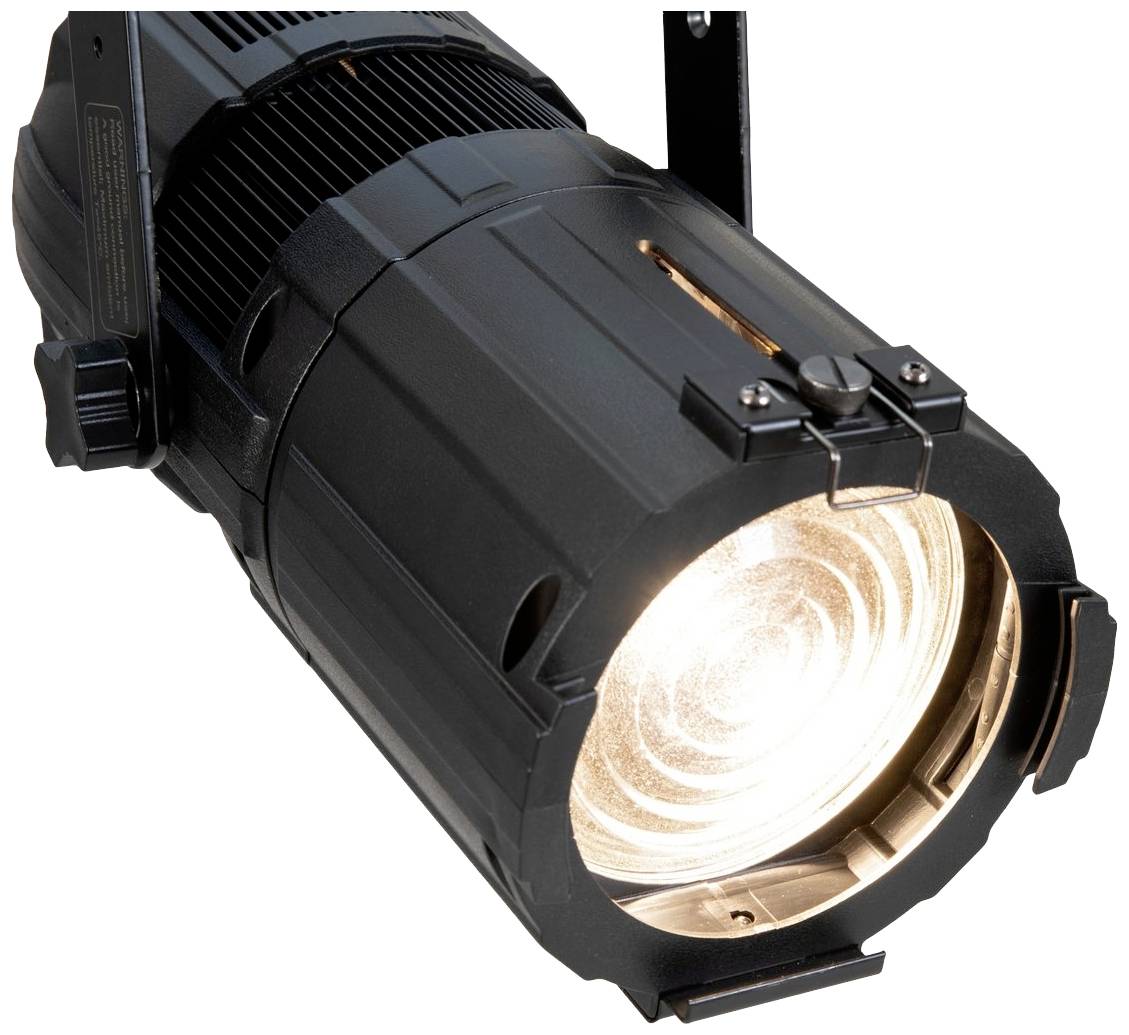

A black theatre spotlight casts a bright light.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PFR-50 WW Fresnel Spot

1 powerful LED 20 W COB (chip-on-board) warm white (WW)
With Fresnel lens
With a beam angle of 11° - 40°

Technical specifications

Product type: Theatre spotlight

Case colour: Black

: 48 W

Dim: (L x W x H) 305 x 160 x 220 mm

Weight: 194 g

: n.rel.

Colour: Warm white

: 3100 K

Width: 160 mm

Height: 220 mm

Length: 305 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131223 Eurolite Theatre spotlight LED PFR-50 WW Warm white 48 W

Description

Compact spotlight with 20 W COB LED, manual Zoom, color reproduction (CRI) 95
Flicker-free
The device is cooled by a fan
Very high color rendering index (CRI)
Can be controlled via stand-alone; DMX (optional); master/slave function (optional)
For application areas like: Trade fair construction and shop building; installation; theater; distributors
Very quiet operation
Possible application: On-the-fly; on a tripod

This text is machine translated.

Features

Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 48 W
Power connection: Power feed via 3-pin screw connector (M) Installation version Power connection cable with safety plug (supplied)
Protection class SK I
Cooling: Fans
Housing colour black.
Protection class: IP20
Material: Metal, 1 mm
Control: Stand-alone
Width: 16.0 cm
Cable configuration 3 x 0.75 mm² H05VV-F
LED lamp type
LED:1 x 20 W COB (chip-on-board) warm white (WW)
Colour temperature: 3100K
Angle of radiation 11° - 40°
Max. Beam angle: 1/2 peak, 11 - 30°
Max. Beam angle: 1/10 peak, 21 - 40°
Colour rendering index (CRI): 96 Ra
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
5 x 20 mm, T 1 A fuse can be replaced
Diameter of mounting holes 1 x Ø11mm
Illuminance (lx): 667 lx
Wide warm white (WW) 1m: 207 lx
Power output: 3-pin screw connector (W) in built version
DMX (optional): DMX (optional)
Master/slave function (optional): Master/slave function (optional)
Aluminium: Aluminium
Mounting in spotlight: Ø 11 cm
2 x Ø8mm 2 x Ø8mm
4 x Ø4mm 4 x Ø4mm
Ring diameter 99 mm

Scope of delivery

Headlamps
Network cable/power cable
Barn Doors
Connector
User manual
