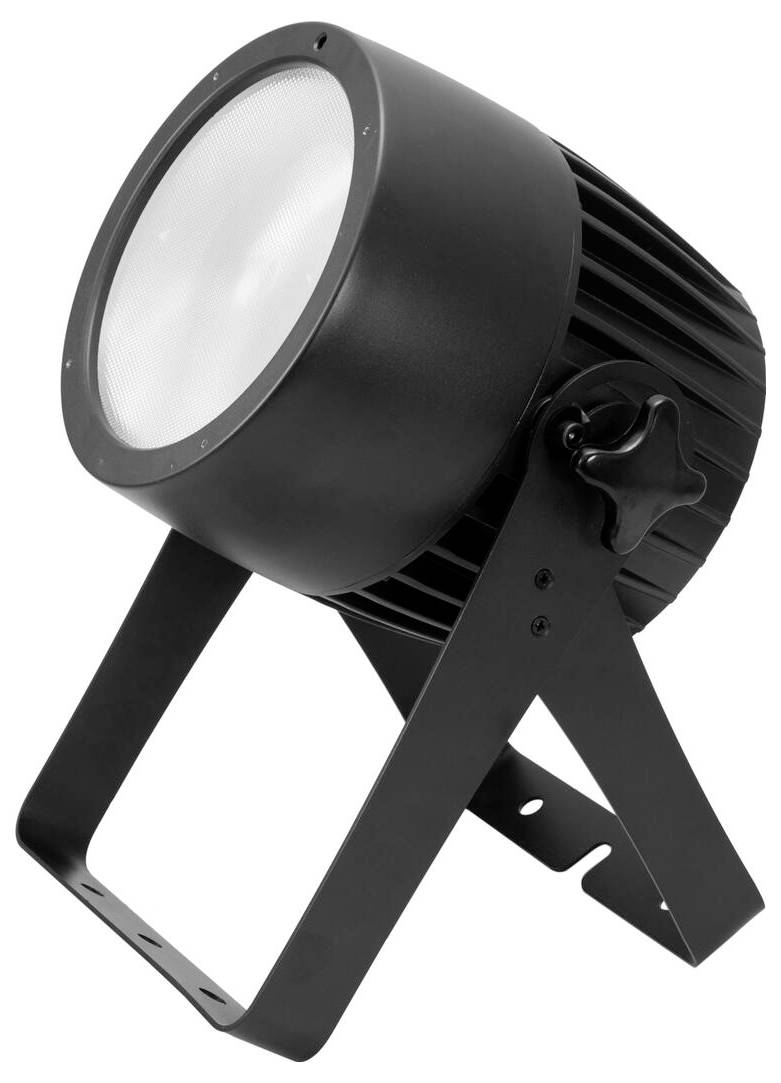

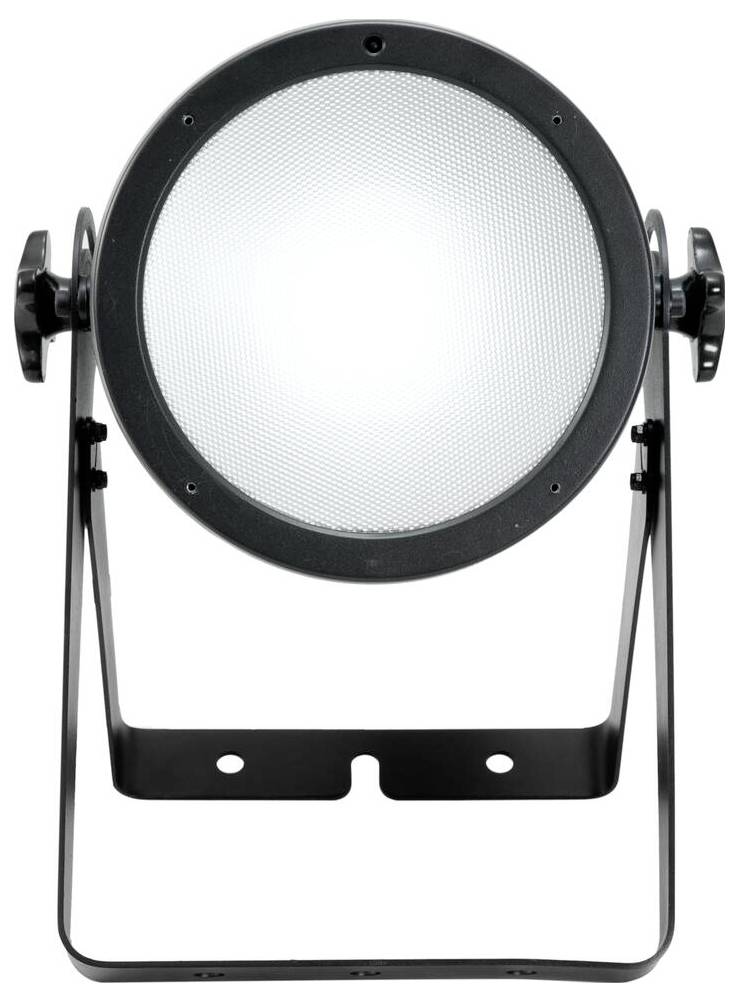

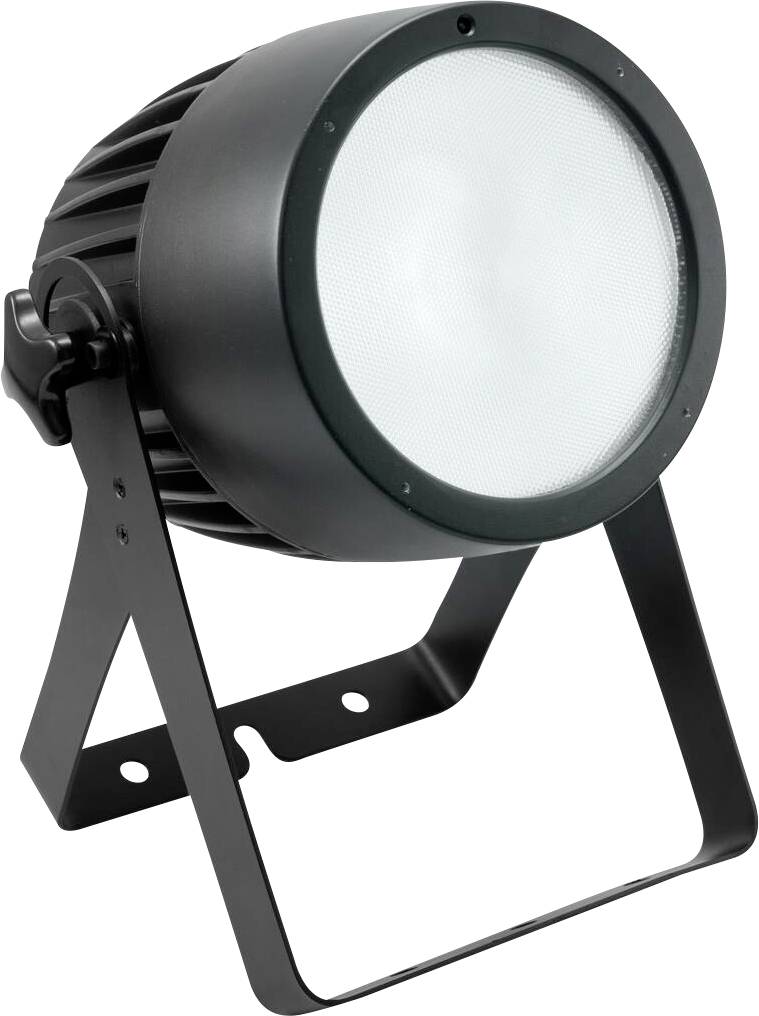

Eurolite Theatre spotlight Theatre COB 200 Cool white, Warm white
EAN:
Part number:
Item no:
Technical specifications
- Product type
Theatre spotlight
- Dim
(W x H x D) 25.95 x 37.65 x 20.00 cm
- Weight
4.11 kg
n.rel.
- Colour
Cool white
Warm white
- Width
25.95 cm
- Height
37.65 cm
- Depth
20.00 cm
- Cable length
1.2 m
IP20
- Case colour
Black (matt)
- Material
Metal
- Radiation angle
17°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642582 Eurolite Theatre spotlight Theatre COB 200 Cool white, Warm white
Description
LED Theatre spotlight with 2 in 1 BCL CW/WW -W-COB (chip-on-board) LED. 1 powerful LED COB (Chip-on-board) 2 in 1 BCL CW/WW (homogeneous color mixing). Electronic dimmer. Stroboscope-effect Integrated show programs. The device is cooled by a fan. Can be controlled via stand-alone; IR remote control; DMX; Master/slave function; music control via microphone QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional). Already pre-programmed at Light´J; Light Captain; Colorchief. Flicker-free. With an angle of radiation of 17°. Variable color temperature 2500 K - 5700 K. Very high color reproduction index (CRI). With double bow. LCD display Power input and power output for simple connection of up to 8 devices. For application areas like: Stage; wedding/gala/events; trade fair and shop building; theater; distributor; Video and photography. Very quiet operation. Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

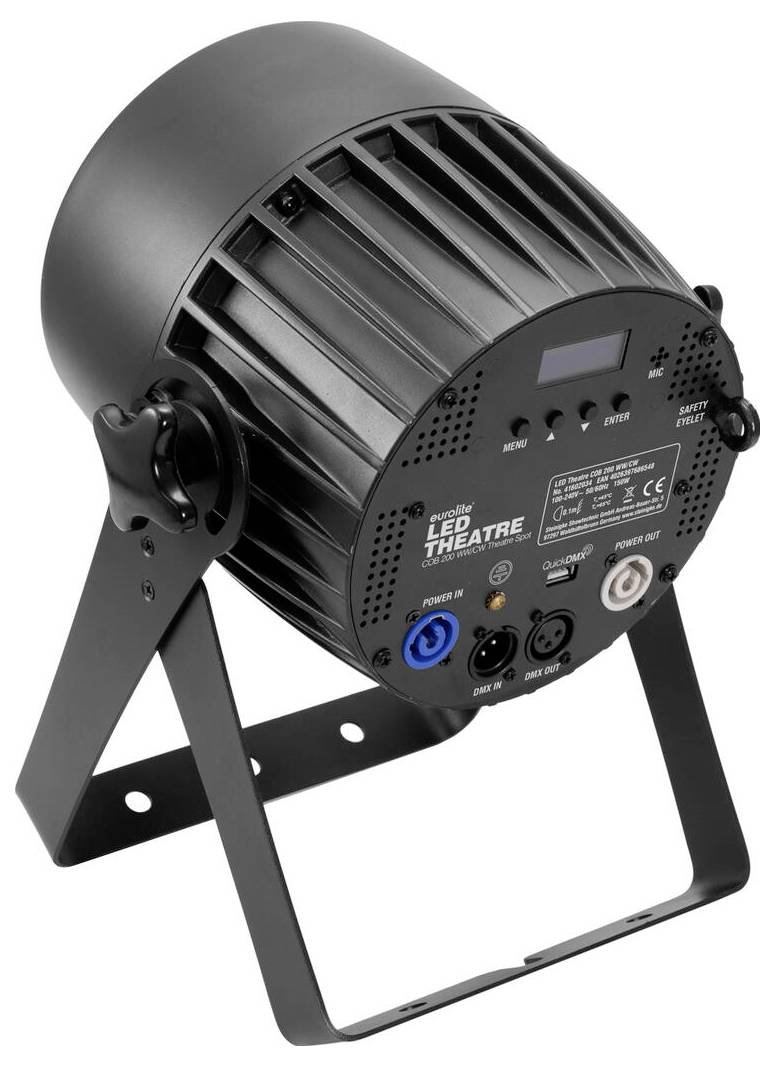

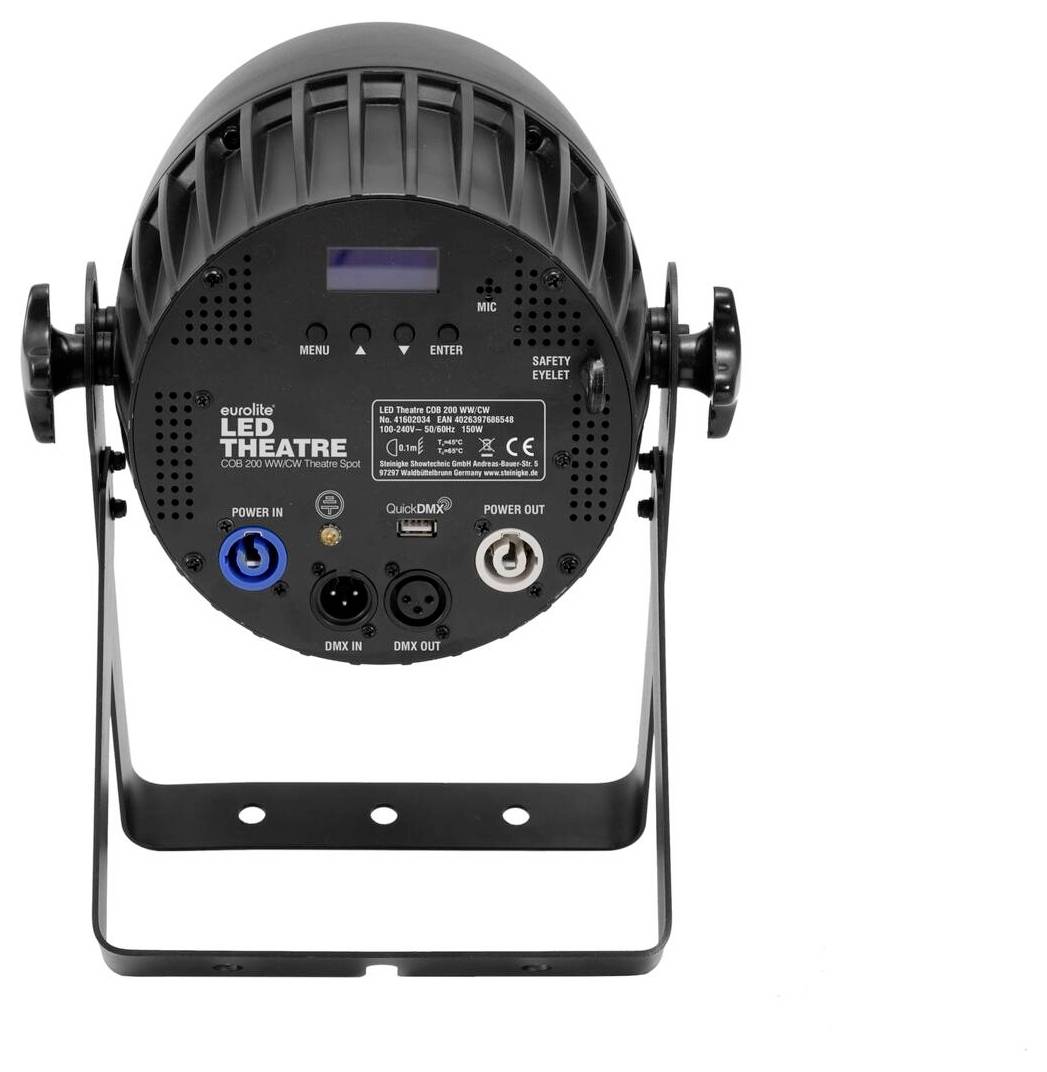

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 150 W; protection class: IP20; protection class: SK I; Power supply: power feed via P-Con (blue), installation version power supply cable with shock-proof plug (included); current output: P-Con (gray), installation version; Lamp type: LED lamp; LED lamp: 7 x COB (chip on board) 2 in 1 BCL CW/WW (homogeneous color mixing); flash rate: 4 - 5 Hz; DMX channels: 2; 0; 20; 1; DMX input: 3-pin XLR (M) mounting version; DMX output: 3-pin XLR (W) mounting version; Cooling: fans; control: stand-alone; IR remote control; DMX; Master/slave function; music control via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional); pre-programmed by: Light´J; Light Captain; Colorchiefs; Projection: flicker-free; Angle of radiation: 17°; angle of radiation (1/2 peak): 17°; angle of radiation (1/10 peak): 35°; color temperature: 2500K - 5700K adjustable; color reproduction index (CRI): 98 Ra; housing color: matt black; recording system: double bracket; display type: LCD display, material: aluminum casting; Dimensions: Width: 25.95 cm; Depth: 20.00 cm; Height: 37.65 cm; Weight: 4.11 kg; Noise classification: Class 1 (very light noise, suitable for noise sensitive environments); Photobiological safety: Risk group 0; Mounting brackets; Diameter Mounting holes: 3 x Ø11mm; Material: Metal, 2.5 mm; Power cable/Power cable; Assembly cable: 3 x 1.0 mm² H05VV-F; Cable length: Approx. 1.2 m; Cable length Remote control; battery: 1 x button cell 3.0 V CR2025 lithium-manganese installed; legal specifications; special product: Not intended for use in interior lighting in households; intended purpose: lighting for show effects
Scope of delivery
- 1 x device
- 1 x Power cable/power cable
- 1x remote control
- 1 x Operating manual
