Eurolite TMH-B90 LED moving head spot No. of LEDs (details): 1
EAN:
Part number:
Item no:
Highlights & Details

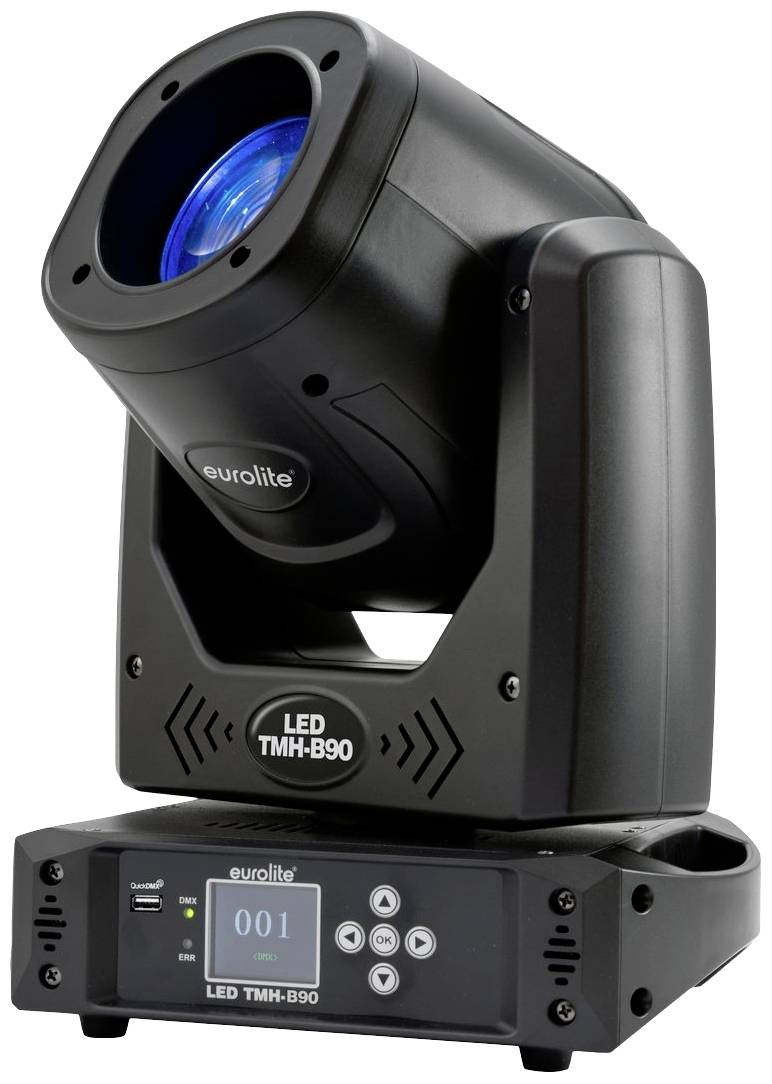

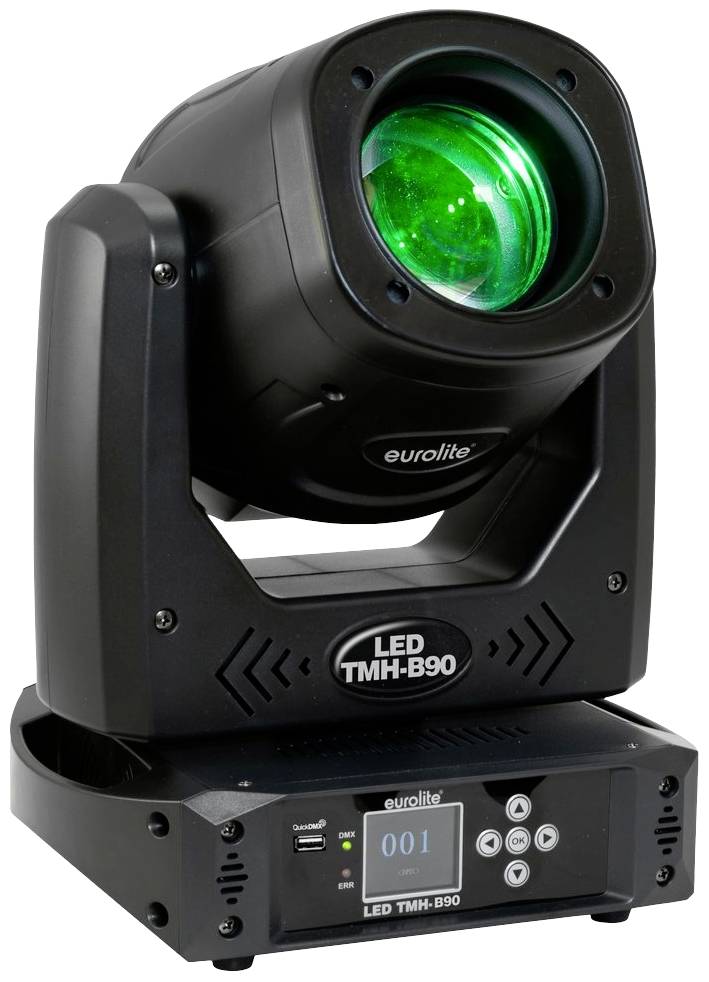

Eurolite LED TMH-B90 moving head beam
- LED moving head beam with color wheel, static gobo wheel, prism and focus
- 1 powerful LED 90 W COB (chip-on-board) cold-white (CW)
- Positioning within 540° pan and 200° tilt
- Auto position correction (feedback)
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED moving head spot
125 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 255 x 205 x 330 mm
- Weight
6.55 kg
n.rel.
- DMX control
Yes
- Width
205 mm
- Height
330 mm
- Length
255 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131239 Eurolite TMH-B90 LED moving head spot No. of LEDs (details): 1
Description
Exact positioning (16-bit resolution)
Colour wheel; gobo wheel with static gobos; motorized focus; prism 8-way rotating; frost filter
Beam effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 13 gobos and open
Shake Effect
Integrated show programs
The device is cooled by a fan
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 3°
Good color rendering index (CRI)
LCD display
Electronic dimmer
Pre-programmed at Light Captain; EASY SHOW 3; Light´J
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Colour wheel; gobo wheel with static gobos; motorized focus; prism 8-way rotating; frost filter
Beam effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 13 gobos and open
Shake Effect
Integrated show programs
The device is cooled by a fan
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 3°
Good color rendering index (CRI)
LCD display
Electronic dimmer
Pre-programmed at Light Captain; EASY SHOW 3; Light´J
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 125 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- LCD display type
- Protection class SK I
- Device fuse 5 x 20 mm, T 2 A fuse can be replaced
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- LED lamp type
- LED:1 x 90 W COB (chip-on-board) cold-white (CW)
- Equipment: Colour wheel
- DMX channels: 14
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Radiation angle: 3°
- Beam angle (1/2 peak) 3°
- Colour rendering index (CRI): 80 Ra
- Gobos: Gobo wheel with static gobos, 13 gobos and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 10454 lx
- P-Con (gray), installation version
- Flash rate 2 - 20 Hz
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- Light J
- EASY SHOW 3
- Max. Tilt movement TILT: 200° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Max. Swivel movement PAN: 540° accurate positioning (16-bit resolution) Auto position correction (feedback)
- Colour generation: Colour wheel with 7 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions: Semi-colors can be selected, Rainbow effect with variable speed in both the directions
- Shake Effect
- Gobo wheel with static gobos
- Motor-driven focus
- Prism 8-way rotating
- Frost filter
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- Omega clip
- Safety cable solution
