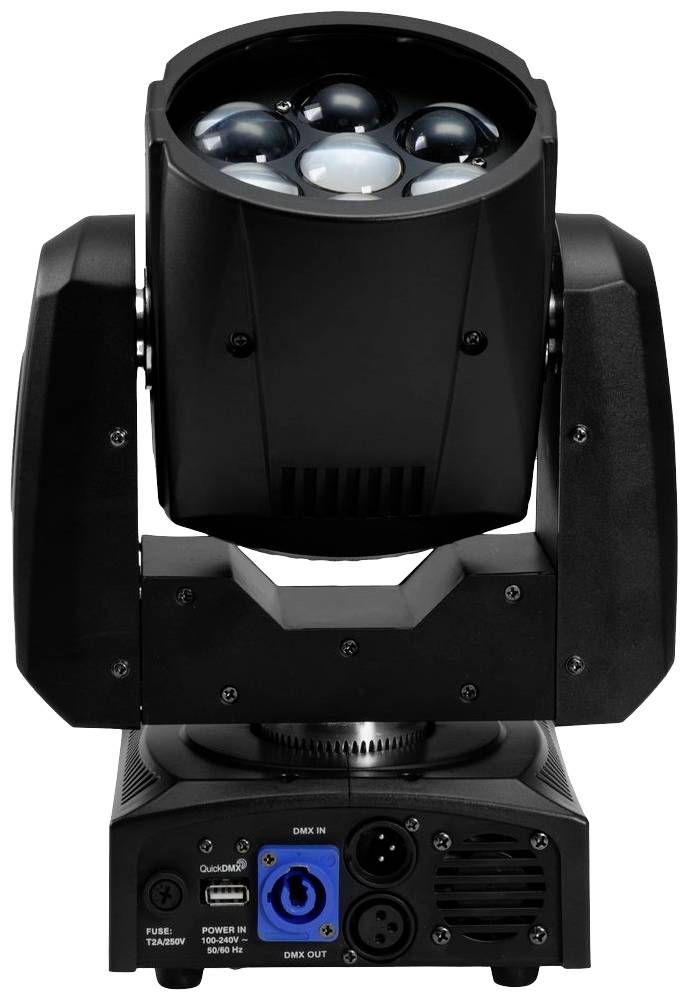

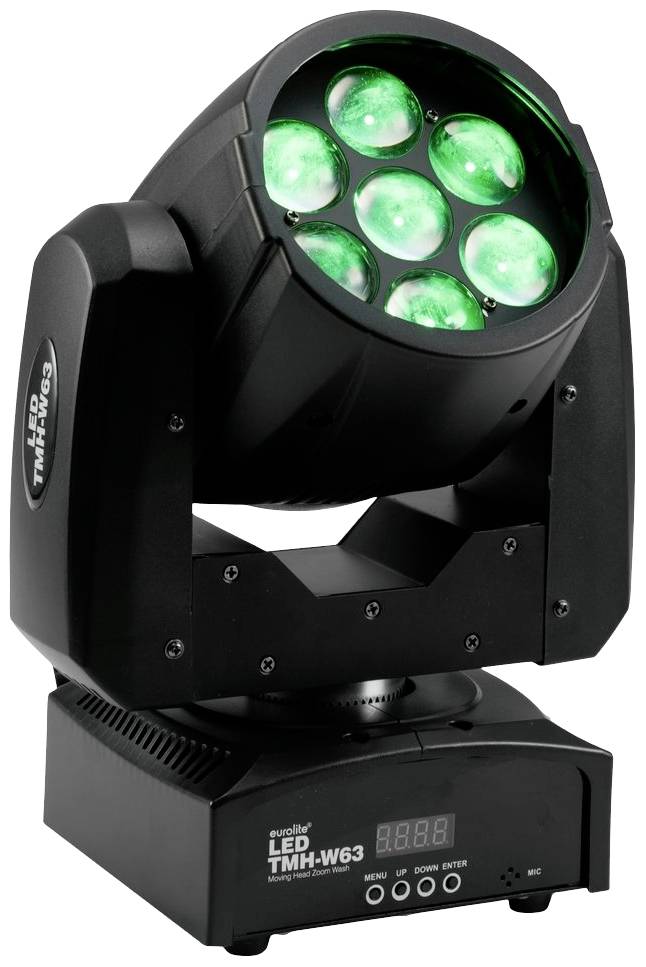

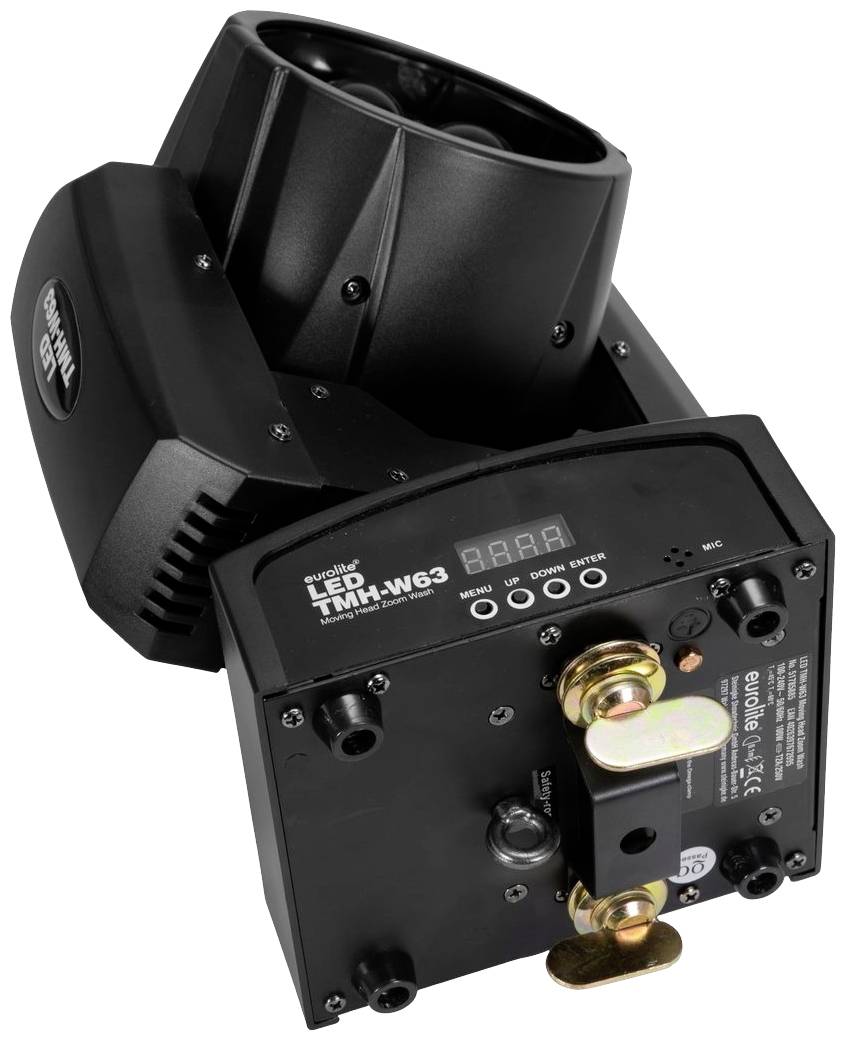

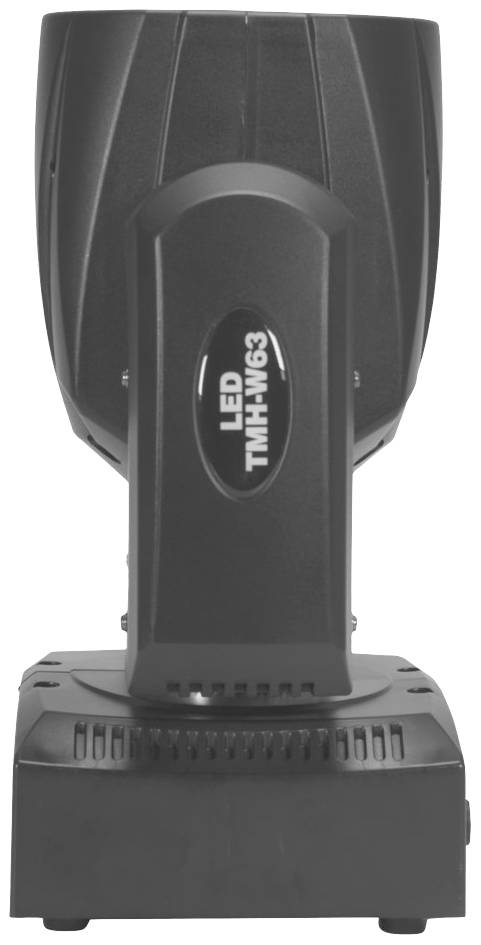

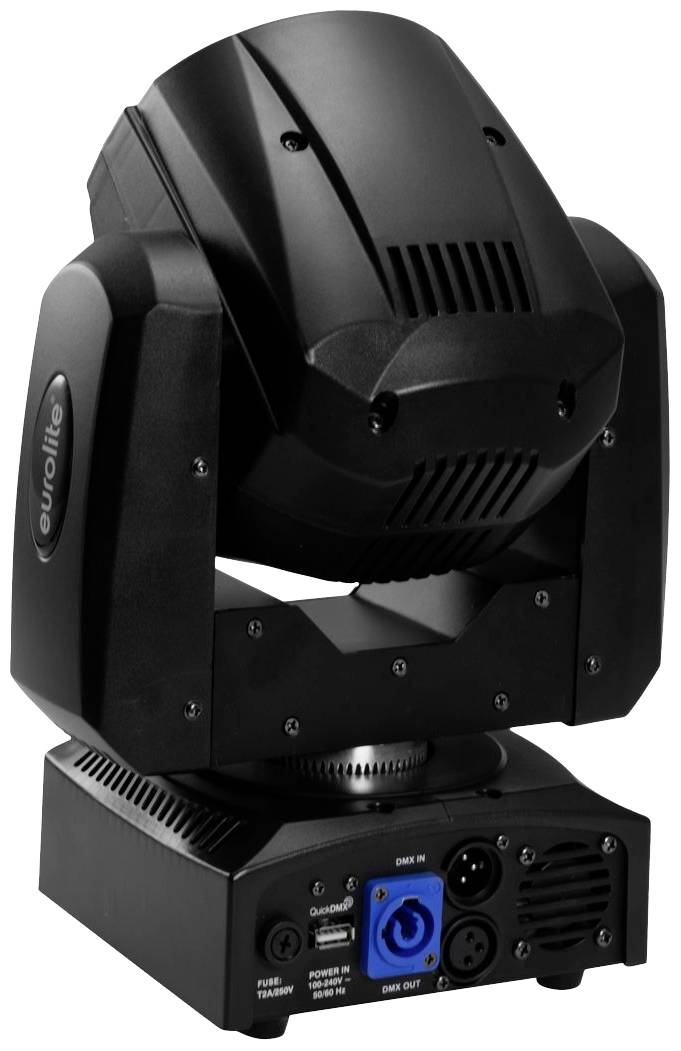

Eurolite TMH-W63 LED moving head spot No. of LEDs (details): 7
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED TMH-W63 moving-head Zoom wash
- Wash light with 7 x 9 Watt LEDs, 4-in-1 QCL RGBW color mixture and motor-operated Zoom
- 7 powerful LEDs 9 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- Positioning within 540° pan and 220° tilt
- Exact positioning (16-bit resolution)
- Zoom motor-driven
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED moving head spot
100 W
- LEDs
7
- Colour
RGBW
- Dim
(L x W x H) 210 x 160 x 295 mm
- Weight
4.15 kg
n.rel.
- DMX control
Yes
- Width
160 mm
- Height
295 mm
- Length
210 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131301 Eurolite TMH-W63 LED moving head spot No. of LEDs (details): 7
Description
Motion macros adjustable, dimmer electronic, color mixing variable
Stroboscope-effect
Integrated show programs
The device is cooled by a fan
Controllable via stand-alone; DMX; Master/Slave function; Music control via microphone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 6° - 29°
4 digit 7-segment LED display
Pre-programmed at Light´J; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Possible application: Flying; standing
Rubber feet
For applications such as: Clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; small rental
This text is machine translated.
Stroboscope-effect
Integrated show programs
The device is cooled by a fan
Controllable via stand-alone; DMX; Master/Slave function; Music control via microphone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 6° - 29°
4 digit 7-segment LED display
Pre-programmed at Light´J; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Possible application: Flying; standing
Rubber feet
For applications such as: Clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; small rental
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 100 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: 4 digit 7-segment LED display
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- Transport aid: Rubber feet
- LED lamp type
- LED:7 x 9 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- Features: Zoom motorized
- DMX channels: 15
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed at: Light´J
- Light captain: Light captain
- Angle of radiation 6° - 29°
- Max. Beam angle: 1/2 peak, 6 - 18°
- Max. Beam angle: 1/10 peak, 11 - 29°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 2 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 269 lx
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Eng green (G) 1m: 549 lx
- Narrow, blue (B) 1m: 103 lx
- Narrow every 1m: 1432 lx
- Wide red (R) 1m: 49 lx
- Wide green (G) 1 m: 101 lx
- Wide blue (B) 1m: 20 lx
- Wide every 1m: 257 lx
- EASY SHOW 1
- EASY SHOW 2
- EASY SHOW 3
- Max. Tilt movement TILT: 220° Exact positioning (16-bit resolution)
- Max. Pan motion: 540° Exact positioning (16-bit resolution)
- Narrow cold white (CW) 605 lx, 1m
- Wide cold white (CW) 106 lx, 1m
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- Omega clip
- Safety cable solution
