Eurolite Transmitter
EAN:
Part number:
Item no:
Highlights & Details

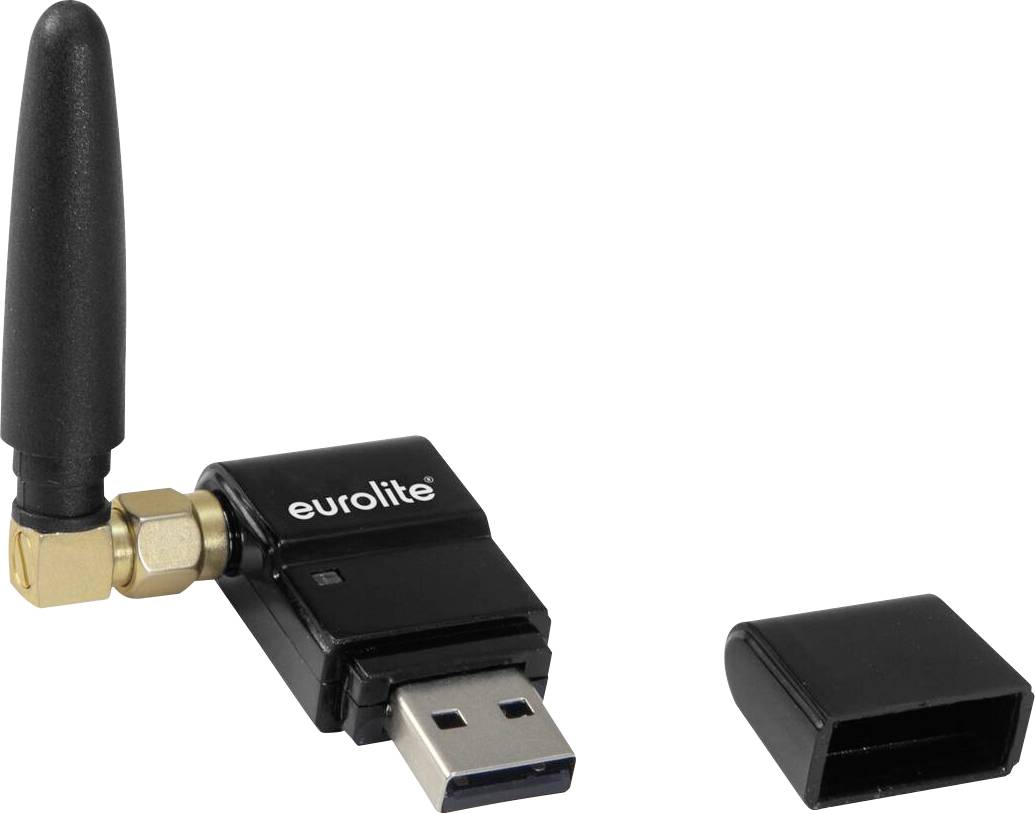

QuickDMX USB transmitter / receiver
- User-friendly USB plug with swiveling antenna
- With Wireless DMX there is no need for complex cabling between DMX controller and DMX-controlled devices in lighting systems
- By GFSK-modulation with 78 channels interference-free operation also along with other QuickDMX-receivers and other wireless devices in the 2.4-GHz band (e.g. W-LAN and Bluetooth)
- Range up to 400 m (direct visual contact)
- Simultaneous operation of up to 6 transmitters, thus controlling 6 DMX512 universes (3072 DMX channels) possible
- Plug & Play: Simple and quick start-up with a button for connecting/disconnecting the QuickDMX receivers
- LED function display
- Transceiver, can be used as transmitter and receiver
- 5 V phantom power required for operation
- 2.4 GHz ISM band - world wide registration and license free
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Can be controlled via DMX; Built-in QuickDMX
Technical specifications
- Voltage supply: 5 V DC
- Protection class: IP20
- DMX channels: Input 512
- Issue 512
- DMX output 1 x USB, type A
- Power connection: Power feed USB A (M), version
- Control: DMX; QuickDMX integrated
- Carrier frequency 2.4 GHz
- Modulation: GFSK
- Parallel operation: Max. 6 transmitter
- Colour, black
- Product type
Transmitter
- Width
8.6 cm
- Height
1.1 cm
- Length
4 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1900321 Eurolite Transmitter
Description
Wireless mini DMX transceiver 2.4 GHz
