Europalms Rotator
EAN:
Part number:
Item no:
Technical specifications
- Product type
Rotator
- Weight
0.033 kg
- Factory colour
Black
- Width
7.5 cm
- Cable length
1.8 m
IP20
- Protection class
III
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642536 Europalms Rotator
Description

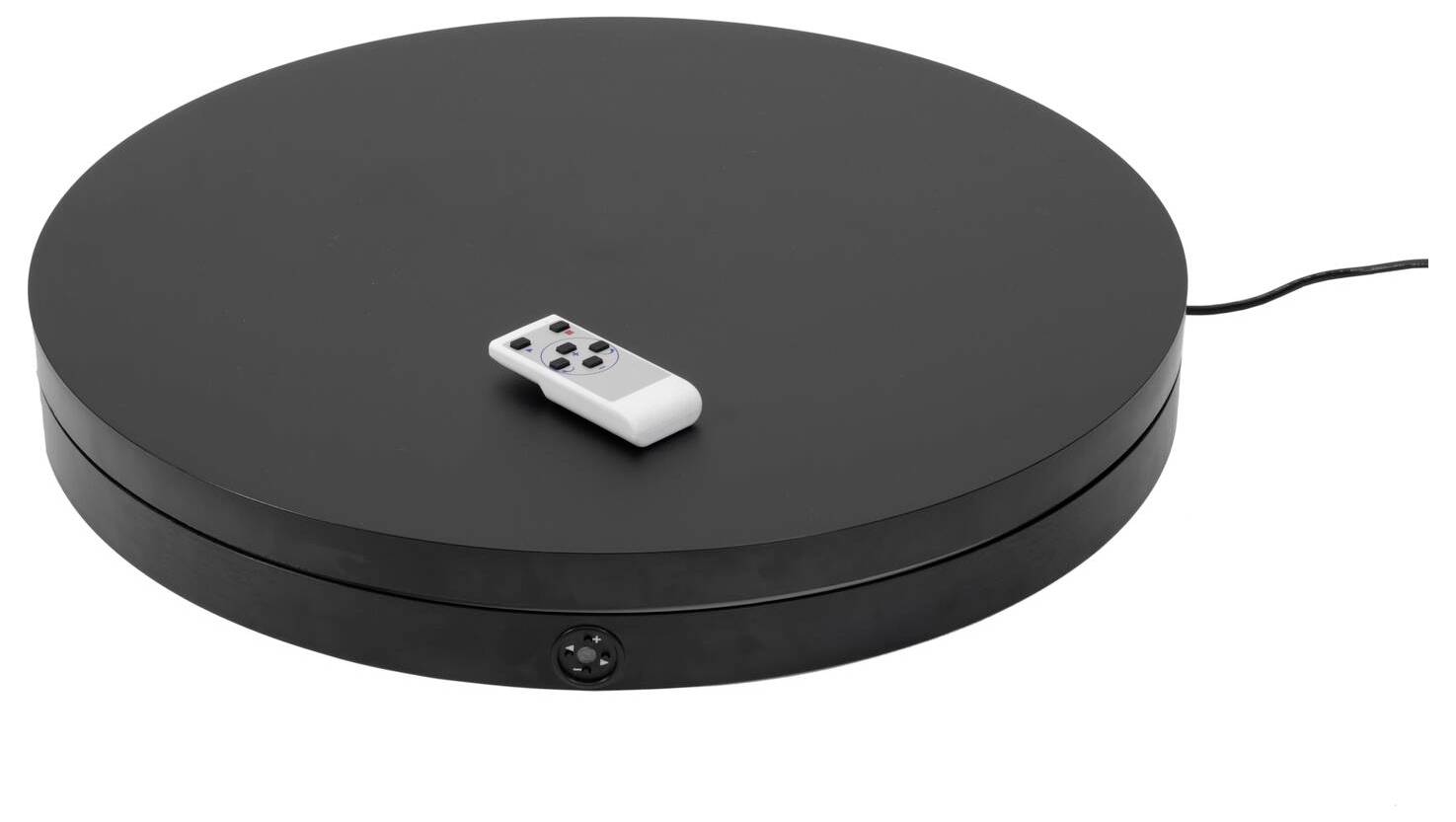

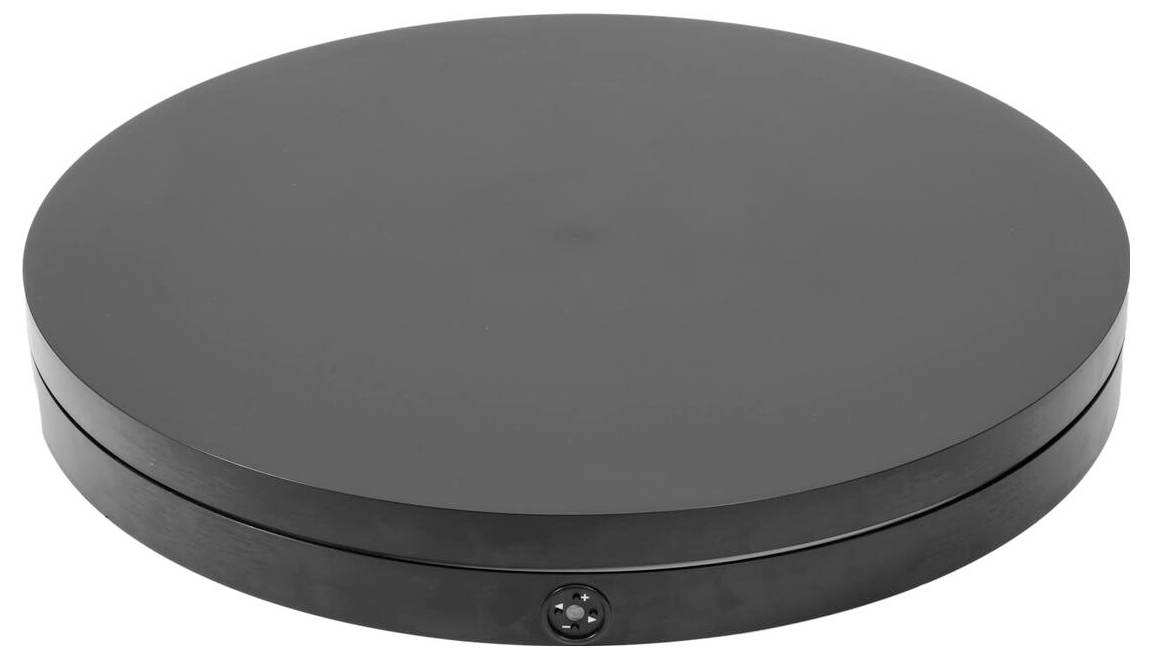

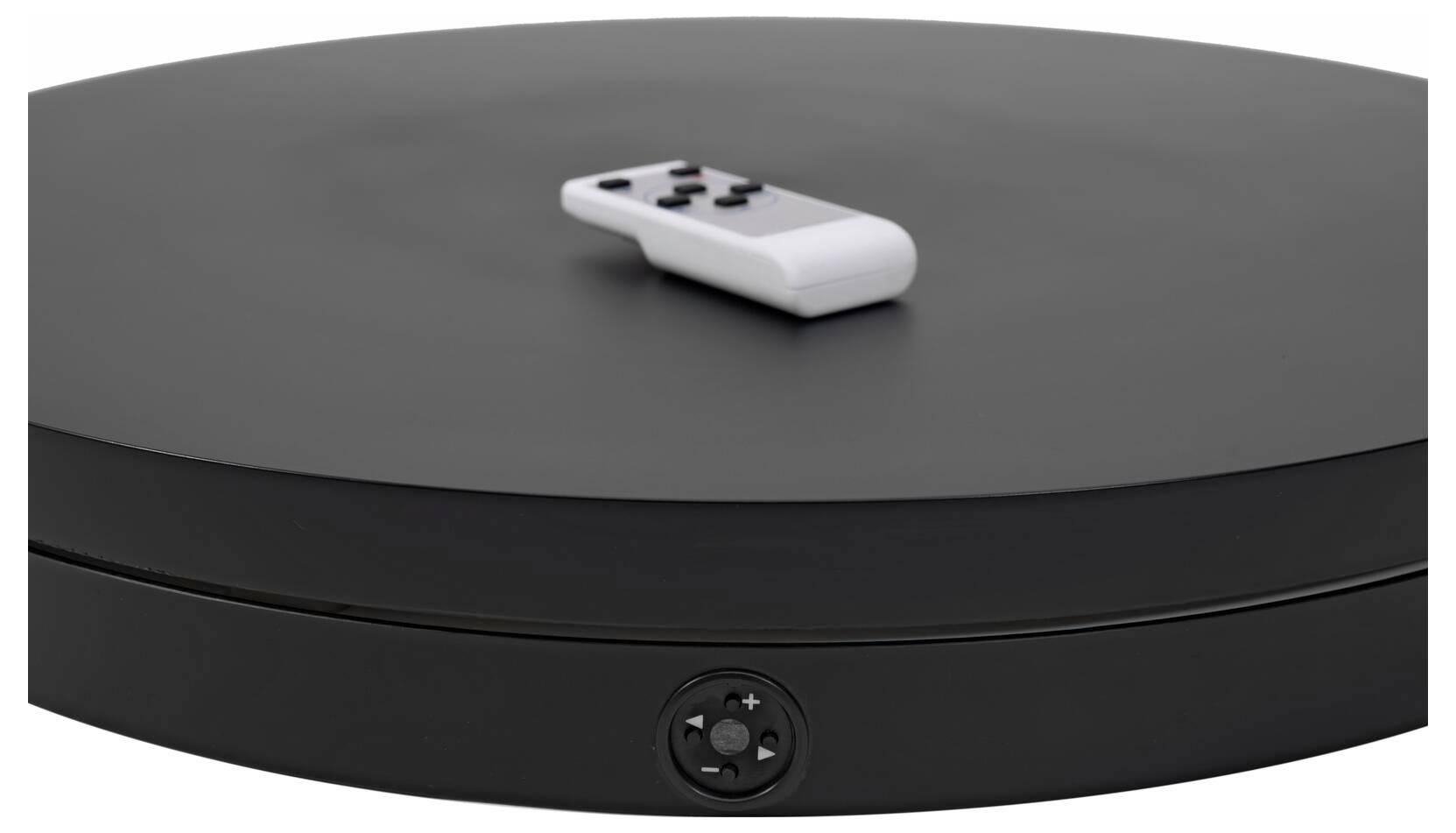

Rotating support for product presentation in sales rooms. Can be controlled via on/off switch on the device; stand-alone; IR remote control. Available in different sizes and colors. Elegant design. For application areas like: Wedding/gala/events; trade fair construction
This text is machine translated.
This text is machine translated.
Features

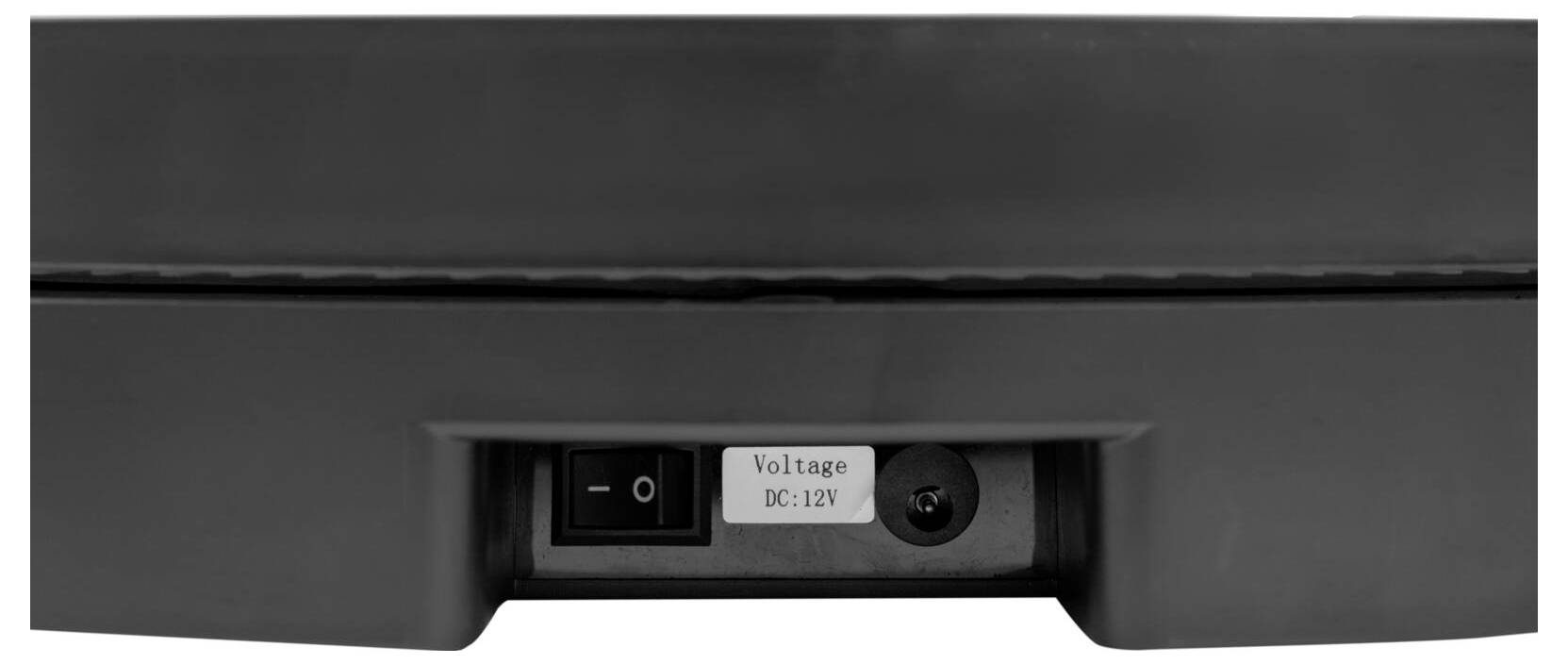

- Power supply: 12V DC; total connected wattage: Max. 3 W; Protection type: IP20; Protection class: SK III; Power connection: Via hollow plug (M) Installation version; Fuse: 5 x 20 mm, F 0.2 A Fuse replaceable; Speed: 0.5 rpm - 2 rpm, 360 ° forward / reverse; Activation: On / off switch on the device; stand-alone; IR remote control; Maximum load: 150 kg; Colour: Black, matte; Dimensions: 7.5 cm; Diameter: Ø 60 cm; Weight: 8.35 kg; external power supply; power supply: 100-240 V AC, 50/60 Hz; power connection: via small devices C8 (M) "shaver plug" installation version; cable length: approx. 1.5 m; connection A: 1 x hollow plug (M); connection B: X; output: 0.2 V DC; 2.5 A; 30 W; color: black; weight: 12 kg; Remote control; Battery: 2 x Micro (AAA) (not included in delivery); Colour: White; Weight: 0.033 kg; Power cable/Power cable; Assembly cable: 2 x 0.75 mm² H03VVH2-F; Cable length: Approx. 1.8 m; Colour: black

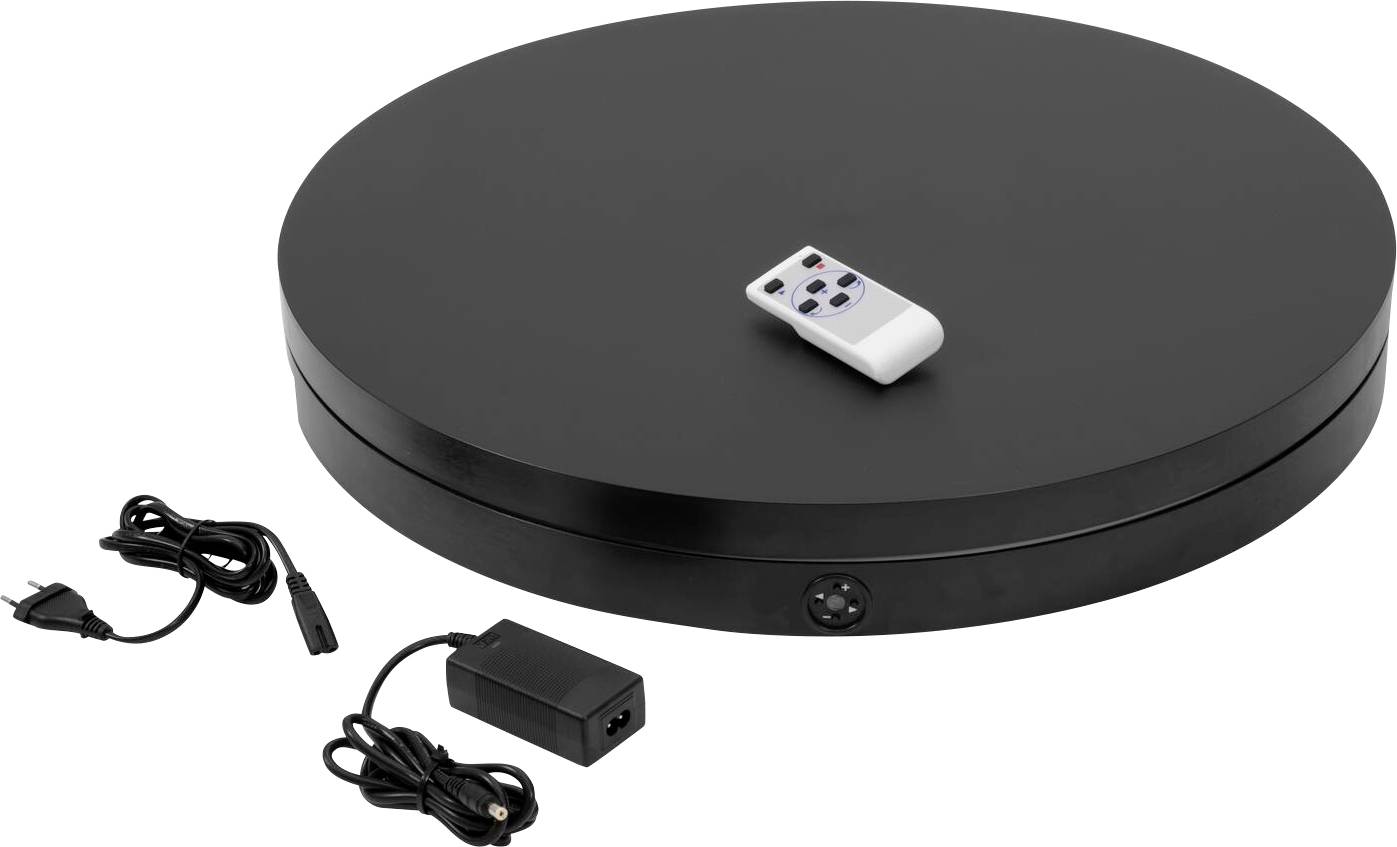

Scope of delivery
- 1 x device
- 1 x external power supply
- 1x remote control
- 1 x Power cable/power cable
- 1 x Operating manual
