Two small rectangular electronic components with metal caps and golden contacts on a black housing, presumably surface-mount crystals.

Collection

Two small rectangular electronic components with metal caps and golden contacts on a black housing, presumably surface-mount crystals.

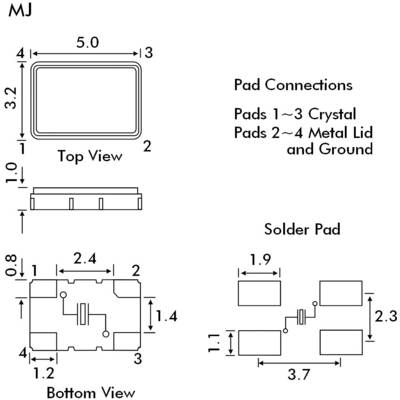

'Diagram of a Crystal Housing.' Top: Top view with dimensions. Bottom: Solder pad layout. Label: 'Pad Connections', instructions for connections.

1/2

Collection

EuroQuartz

Datasheet (PDF)

English

Fast track dispatch on Wed, 8 Jul

688 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 2

Total (€ 1.25 / piece)

€ 2.50

plus VAT.

Report legal concerns

Technical specifications

Load Cap.: 12 pF

Packaging type: Tape cut

Type: QUARZ SMD 3X5

Enclosure: SMD 4

Manufacturer: EuroQuartz

Nominal frequency: 18.432 MHz

Frequency stability: +30 ppm
-30 ppm

Width: 3.2 mm

Height: 1 mm

Length: 5 mm

Capacitance: 12 pF

Series: MJ

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Dim: (L x W x H) 5 x 3.2 x 1 mm

Tolerance: ± 30 ppm

Frequency: 18.432000 MHz

Temperature range: -40 - +85 °C

Product type: Crystal oscillator

Documents & Downloads

Datasheet

English

Datasheet 155591 EuroQuartz Crystal oscillator QUARZ SMD 3X5 SMD 4 18.432 MHz 12 pF 5 mm 3.2 mm 1 mm 1 pc(s) Tape cut
