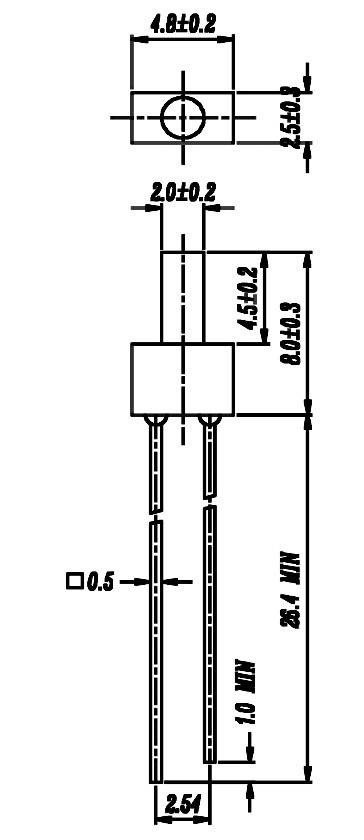

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Everlight Opto 103SDRD/S530-A3 LED wired Red Cylindrical 2 mm 25 mcd 130 ° 20 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
20 mA
Casing
2 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.08
90
-
€ 0.08
150
12% = € 0.01
€ 0.07
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.08 / piece)
€ 2.40
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED wired
- Type
103SDRD/S530-A3
- Factory colour
Red
- Forward voltage U(F)
2 V
- Forward current I(F)
20 mA
- Casing
2 mm
- Type
Radial lead
- Light intensity I(V)
25 mcd
- Wavelength
639 nm
- Radiation angle
130°
- Type (LEDs)
Diffused
- Lens type
Cylindrical
- Content
1 pc(s)
- Type
diffuse
Documents & Downloads
Datasheet
Datasheet 156219 Everlight Opto 103SDRD/S530-A3 LED wired Red Cylindrical 2 mm 25 mcd 130 ° 20 mA 2 V
User & Safety Instructions
User & Safety Instructions 156219 Everlight Opto 103SDRD/S530-A3 LED wired Red Cylindrical 2 mm 25 mcd 130 ° 20 mA 2 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
