Buy Everlight Opto Seven-segment display Red 10 mm 2 V No. of digits: 1 S431SURWA/S530-A3

A LED seven-segment display showing a digital '8' pattern, on a white background, with several metal pins at the bottom.

Image similar

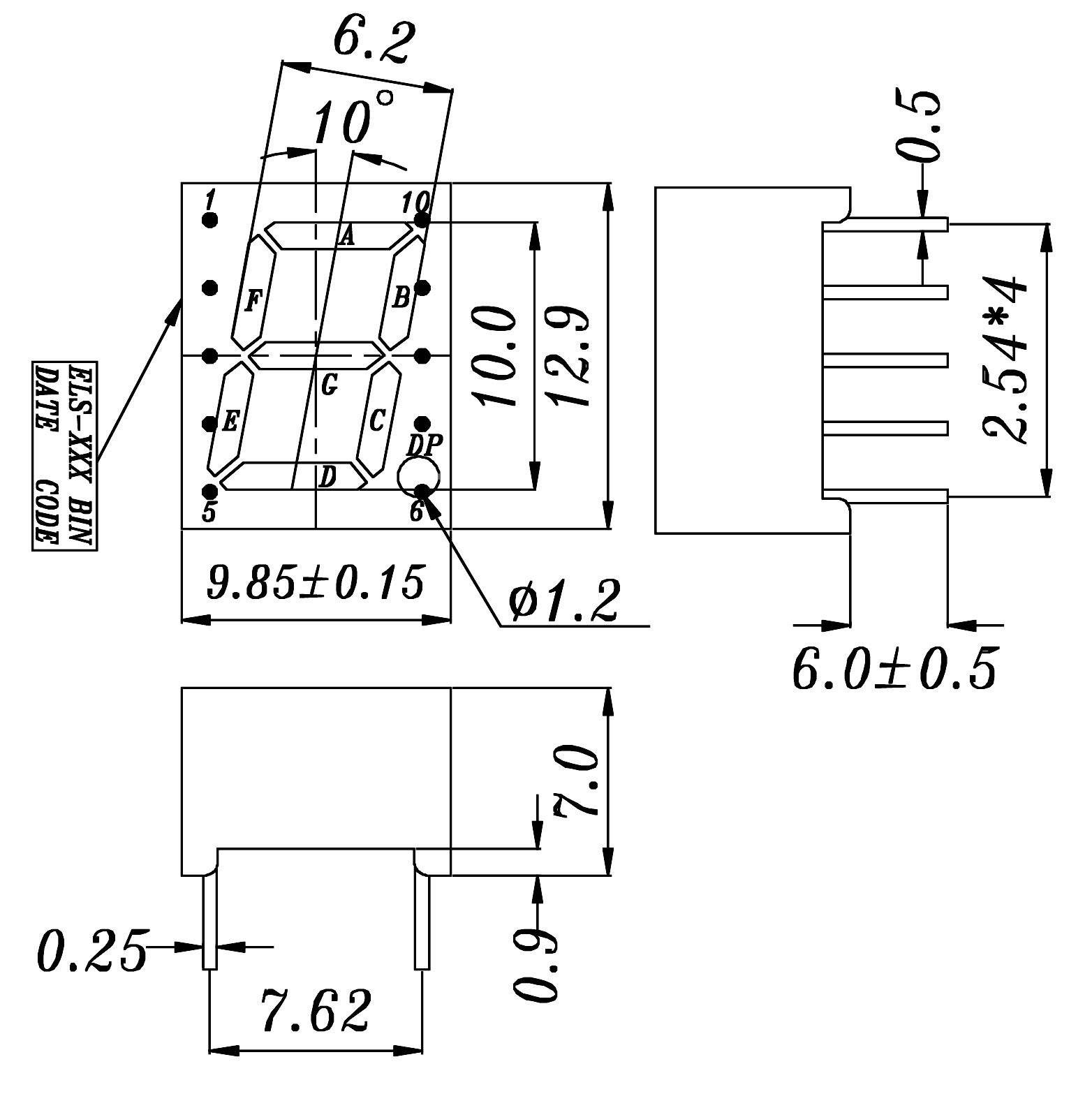

Technical drawing of an electronic component with housing dimensions, pin spacing, and drilling hole size for PCB mounting.

1/2

Image similar

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

19 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.48 / piece)

€ 3.36

plus VAT.

Report legal concerns

Technical specifications

Type: S431SURWA/S530-A3

Forward voltage U(F): 2 V

Forward current I(F): 2 mA

Shared connection: Cathode

Factory colour: Red

Wavelength: 624 nm

Light intensity I(V): 2.9 mcd

Digit height: 10 mm

No. of digits: 1

Dim: (W x H x D) 9.85 x 12.9 x 7 mm

Depth: 7 mm

Height: 12.9 mm

Width: 9.85 mm

Product type: Seven-segment display

Documents & Downloads

Datasheet

Datasheet 156387 Everlight Opto Seven-segment display Red 10 mm 2 V No. of digits: 1 S431SURWA/S530-A3

Description

Because of the very low height of the SMD 7 segment display it is an increasingly popular choice in many applications. The option of automatic equipping allows high cost reduction.

Hints

Wave length: 570 nm = green, 624 nm = red.
