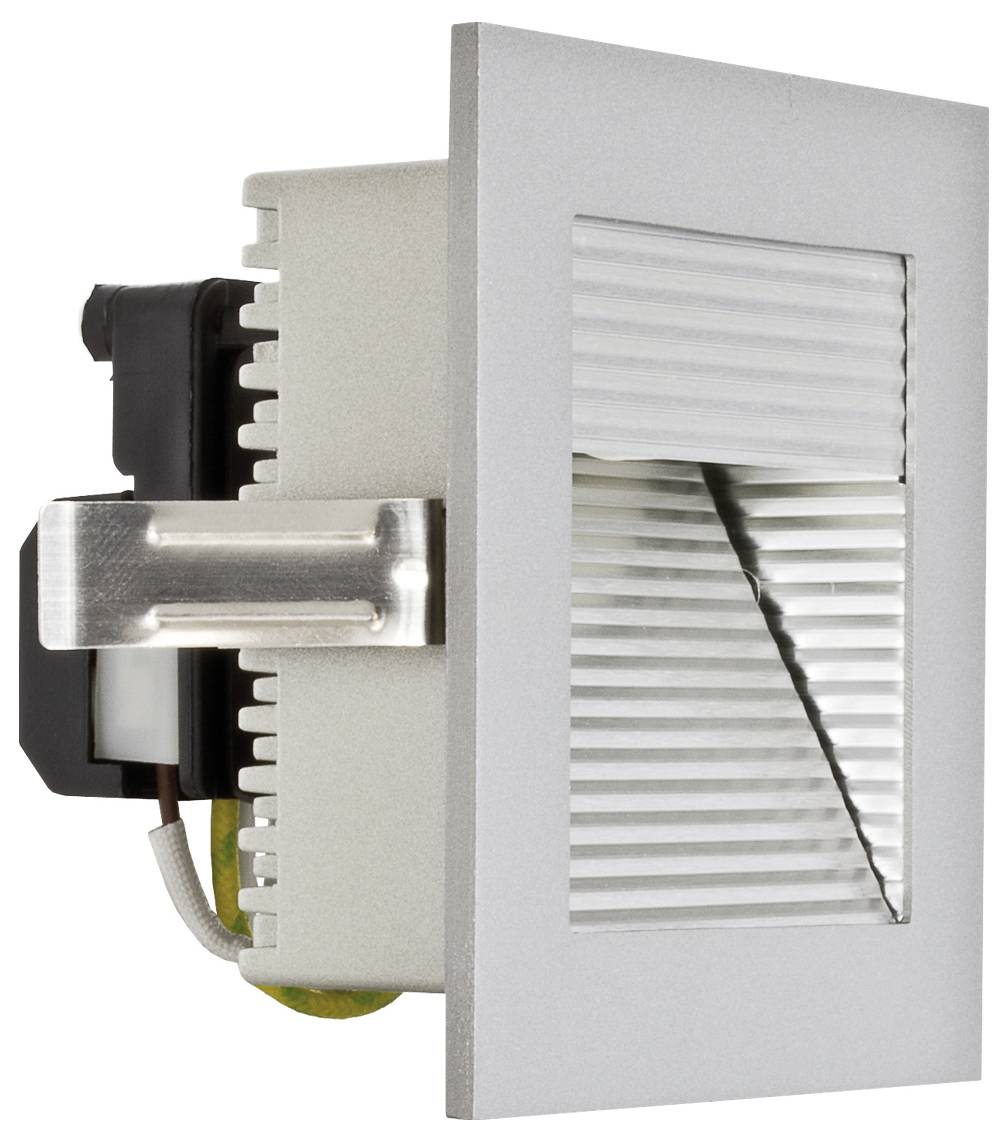

EVN 239414 239414 Flush mount light HV halogen G9 Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Flush mount light
G9
- Bulb type
HV halogen
- Rating per bulb
25 W
- Protection screen
Textured
- Light features
Incl. cover

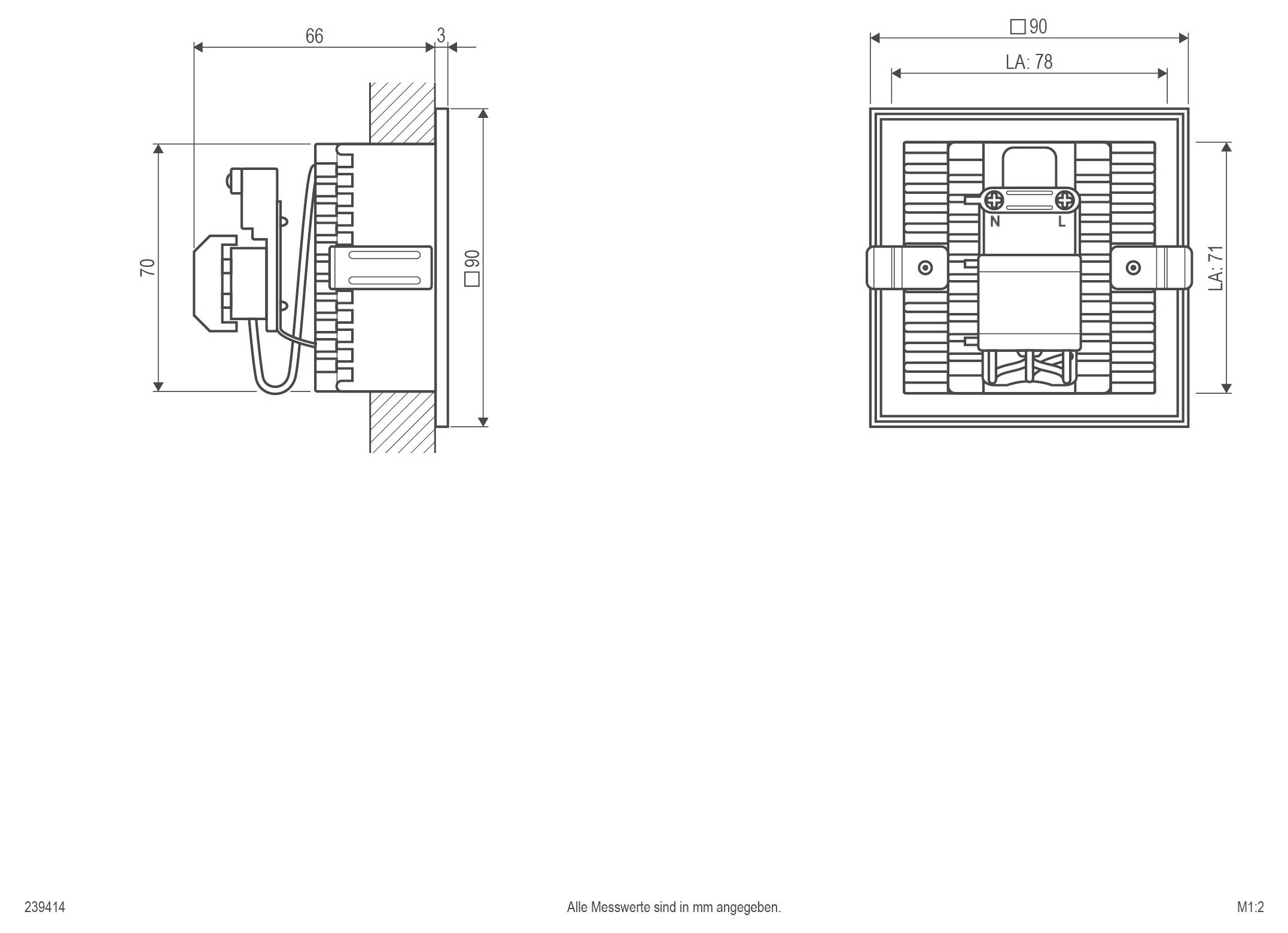

- Recess length
78 mm
- Recess width
71 mm
- Recess depth
65 mm
IP20
- Protection class
I
- Factory colour
Silver
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 90 x 90 x 68 mm
- Light bulb included
No
- Width
90 mm
- Height
68 mm
- Length
90 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483471 EVN 239414 239414 Flush mount light HV halogen G9 Silver
User & Safety Instructions
User & Safety Instructions 2483471 EVN 239414 239414 Flush mount light HV halogen G9 Silver
Description

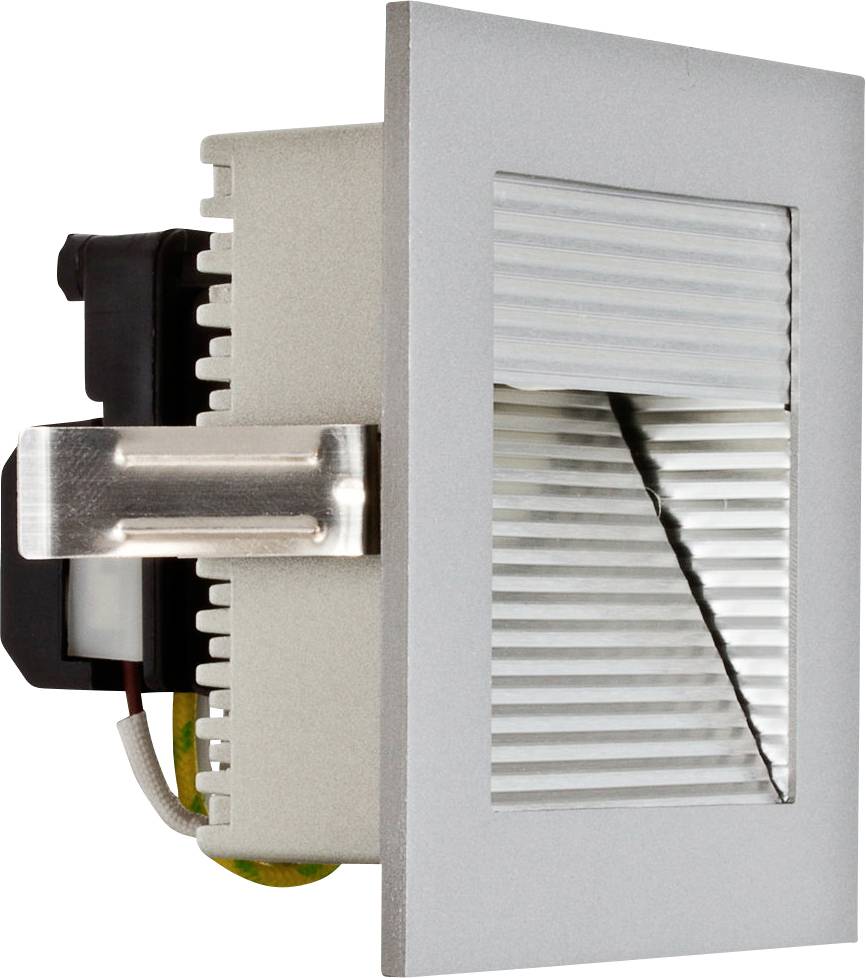

Wall mounted light fixture for various applications in the interior. To avoid a blinding effect, the lamp is provided with a structured reflector as well as a structured cover. In addition to the tension springs, the lamp can also be fixed with two screws, whereby the screw heads are covered by the cover. Illuminants up to max. 25W may be operated in the lamp. When using the optional recessed head, the rear strain relief must be offset, ensuring that the earth remains connected to the lamp body.
This text is machine translated.
This text is machine translated.
Hints
Please order lamp separately.
