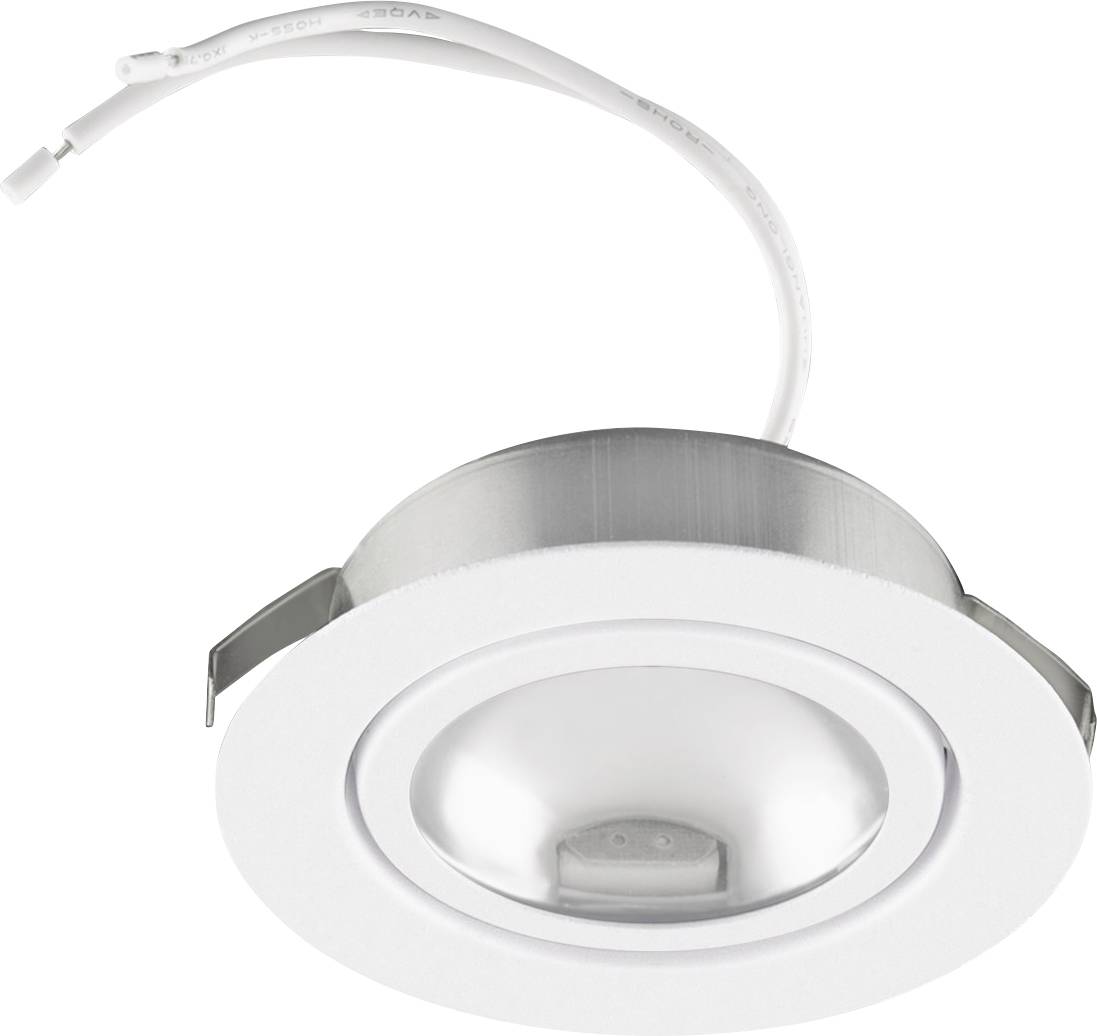

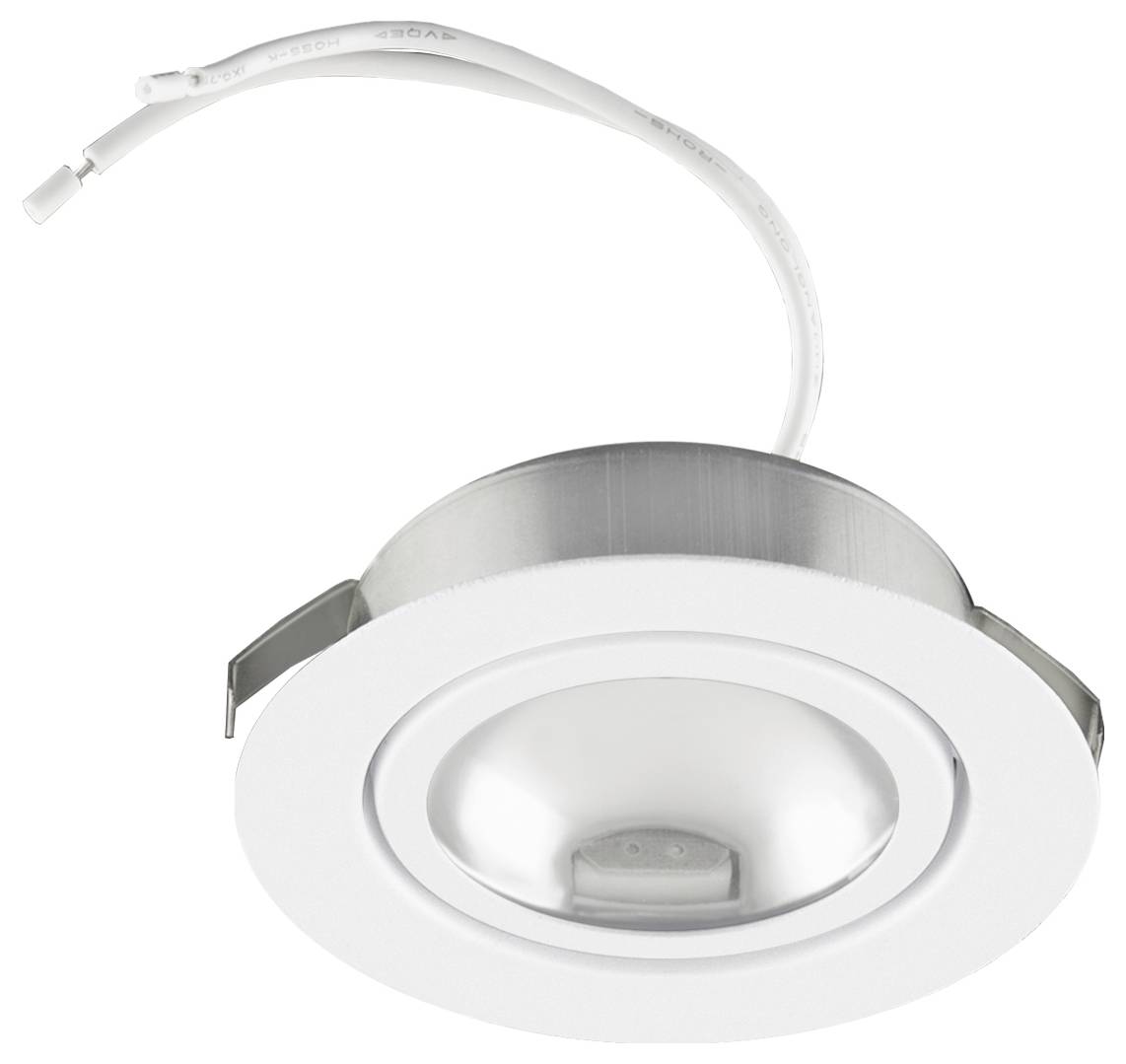

EVN 425001 425001 Flush mount light HV halogen G4 20 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 20 W Total luminous flux= 0 lm
Technical specifications
- Product type
Flush mount light
- Operating voltage
12 V
- No. of bulbs
1
G4
- Bulb type
HV halogen
- Rating per bulb
20 W
20 W
- Total luminous flux
0 lm
- Type
Circular
- Protection screen
Clear
- Light features
Recess mount option

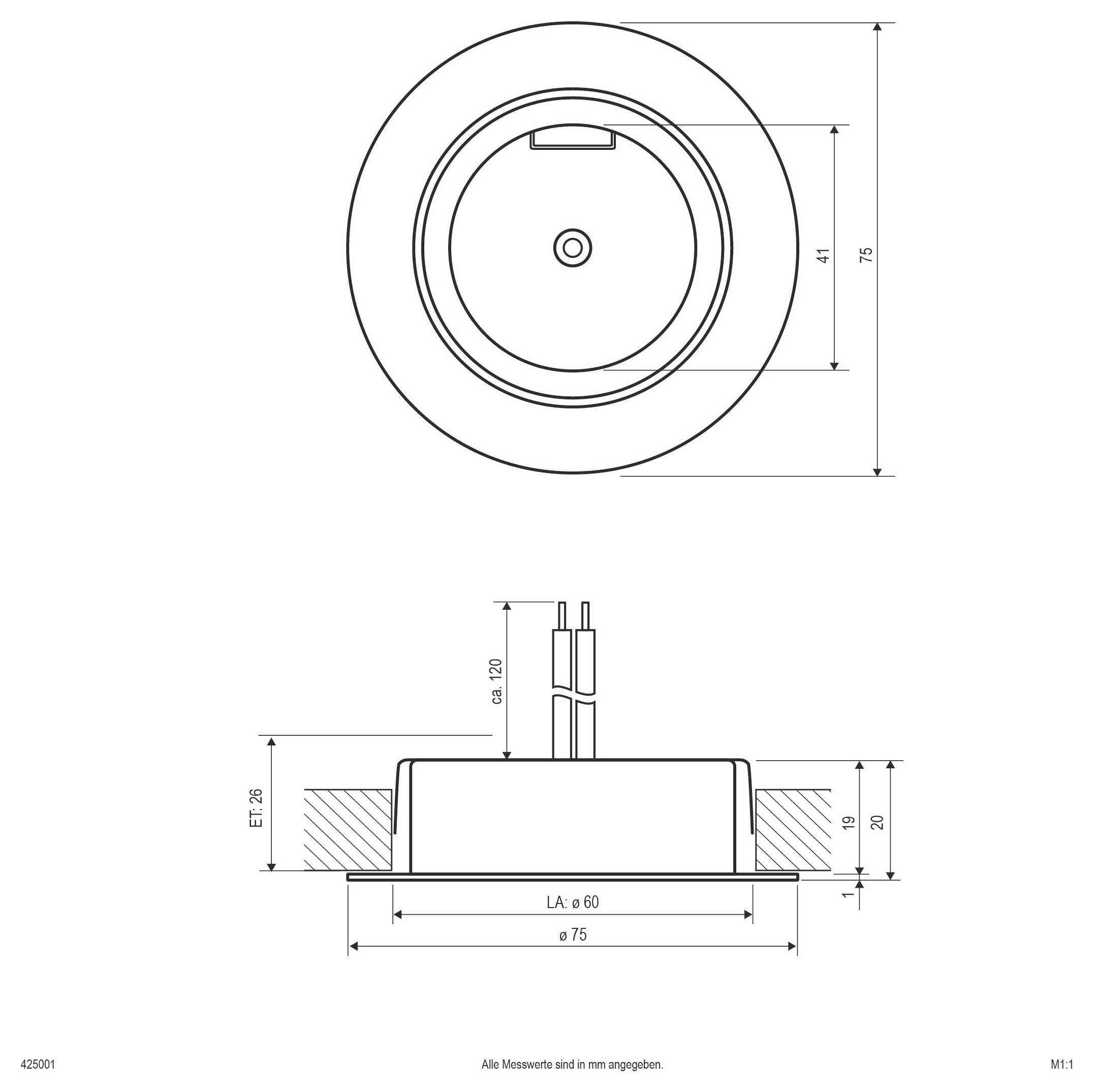

- Recess diameter
60 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
26 mm
- Outside Ø
72 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Plastic
n.rel.
- Dim
(Ø x H) 72 mm x 24.00 mm
Yes
- Light bulb included
No
- Width
0.00 mm
- Height
24.00 mm
- Length
0.00 mm
- Depth
24 mm
- (Ø)
72 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3152056 EVN 425001 425001 Flush mount light HV halogen G4 20 W White
User & Safety Instructions
User & Safety Instructions 3152056 EVN 425001 425001 Flush mount light HV halogen G4 20 W White
