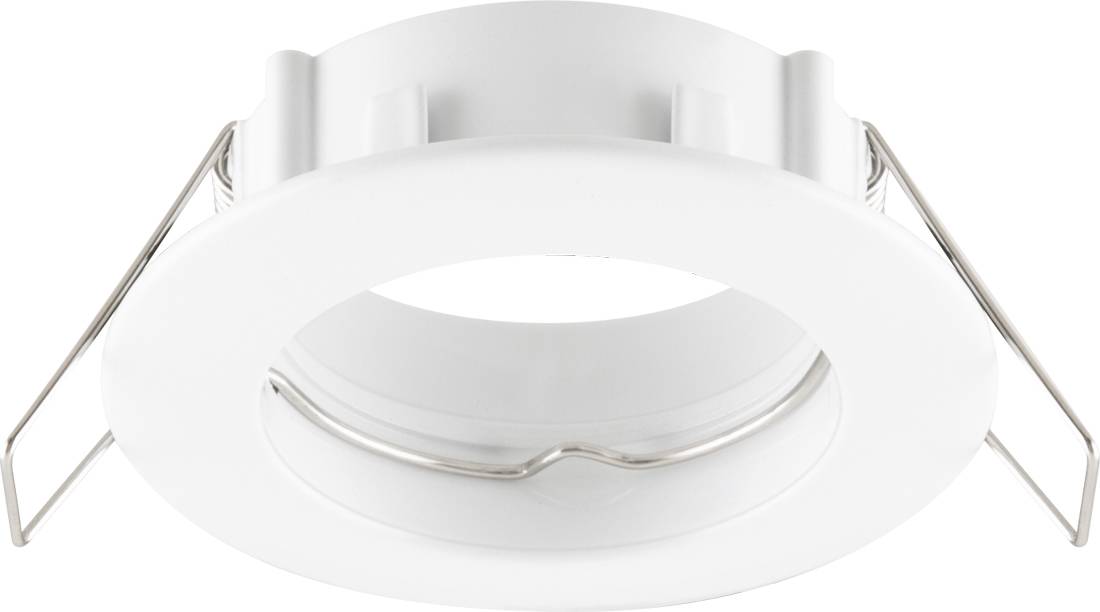

EVN 514001 514001 Recess-mount bracket HV halogen w/o 50 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 50 W
Technical specifications
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
50 W

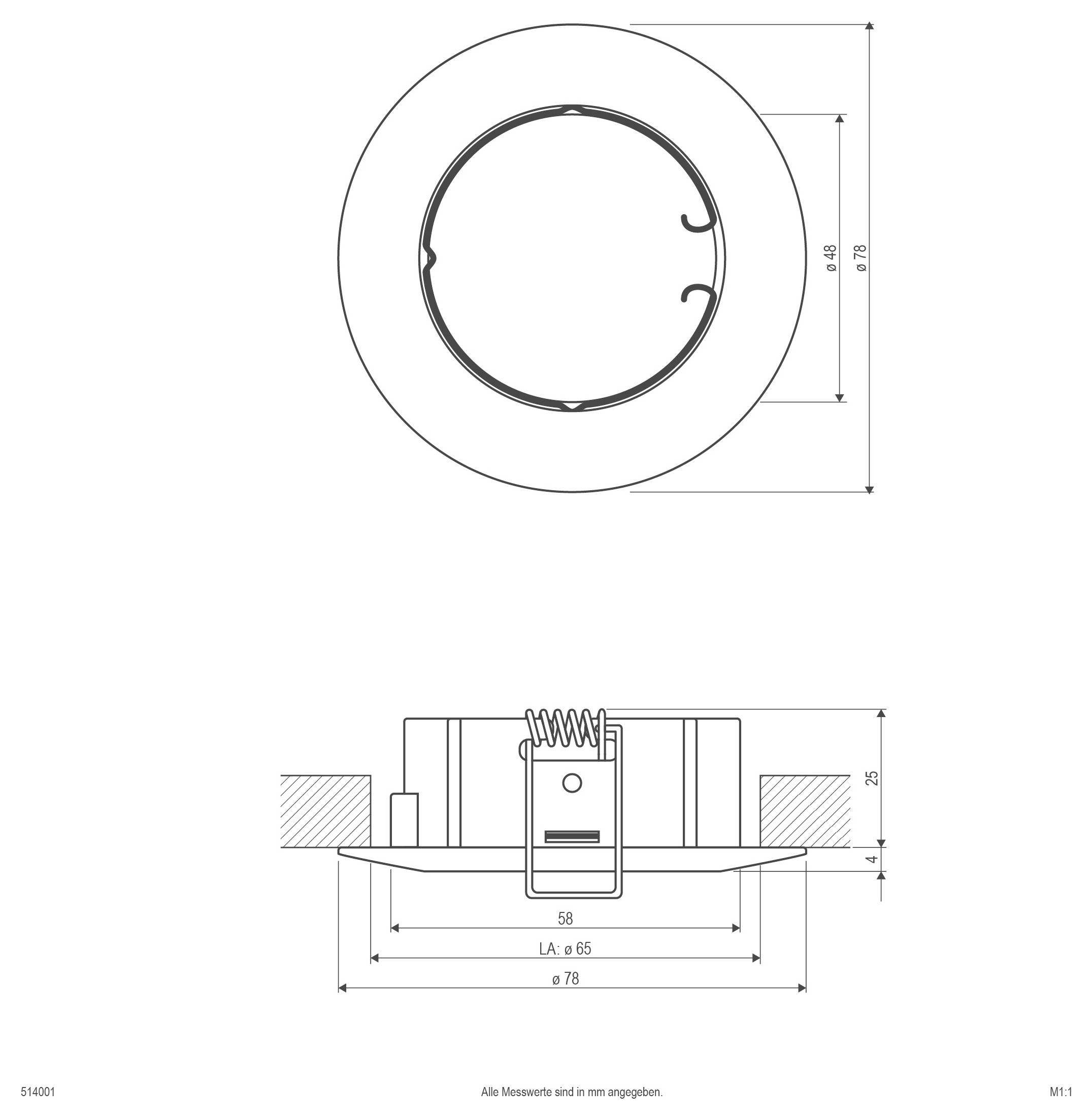

- Recess diameter
65 mm
- Recess depth
55 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Zamak
n.rel.
- Dim
(Ø x H) 78 mm x 29.00 mm
- Light bulb included
No
- Height
29.00 mm
- (Ø)
78 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3152057 EVN 514001 514001 Recess-mount bracket HV halogen w/o 50 W White
User & Safety Instructions
User & Safety Instructions 3152057 EVN 514001 514001 Recess-mount bracket HV halogen w/o 50 W White
