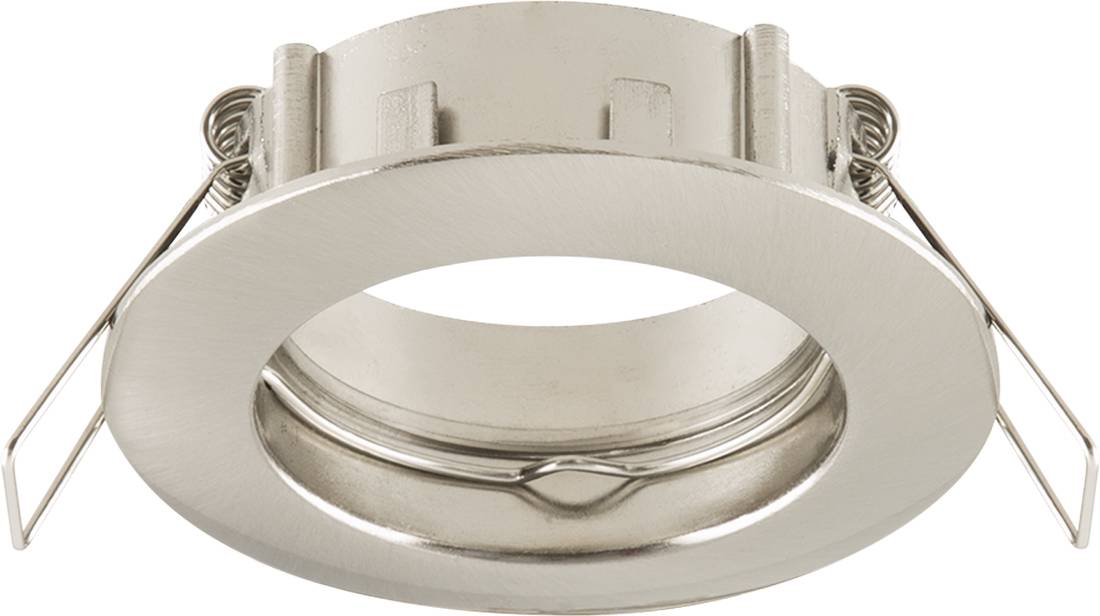

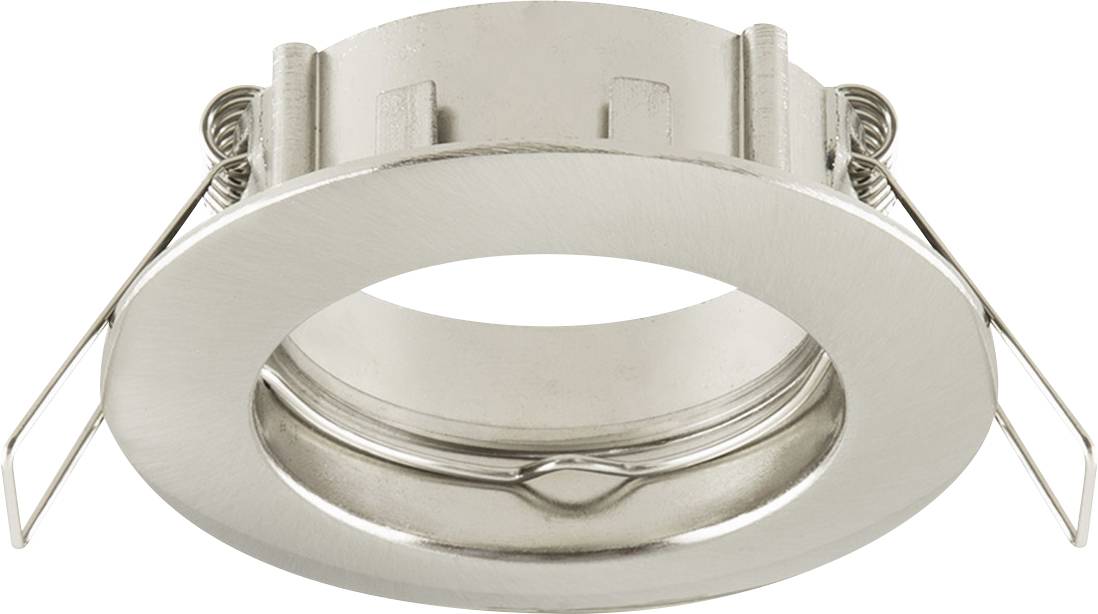

EVN 514013 514013 Recess-mount bracket HV halogen w/o 50 W Chrome
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 50 W
Technical specifications
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Type
Ring
- Light features
Direct light emission

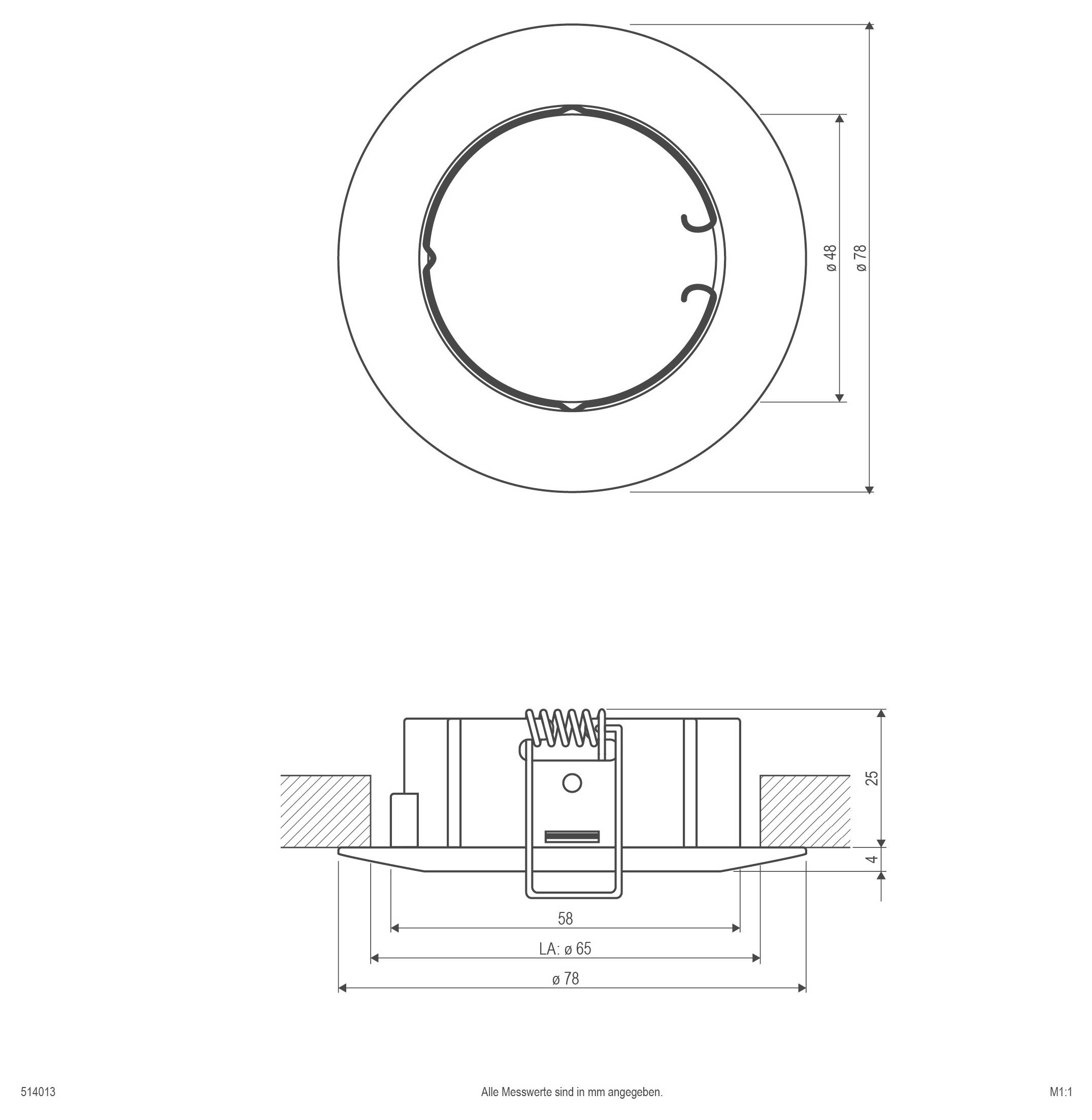

- Recess diameter
65 mm
- Recess depth
55 mm
- Outside Ø
78 mm
IP20
- Protection class
III
- Factory colour
Chrome
- Material
Zamak
n.rel.
- Dim
(Ø x H) 78 mm x 29.00 mm
Yes
- Light bulb included
No
- Height
29.00 mm
- Depth
29 mm
- (Ø)
78 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3152064 EVN 514013 514013 Recess-mount bracket HV halogen w/o 50 W Chrome
User & Safety Instructions
User & Safety Instructions 3152064 EVN 514013 514013 Recess-mount bracket HV halogen w/o 50 W Chrome
