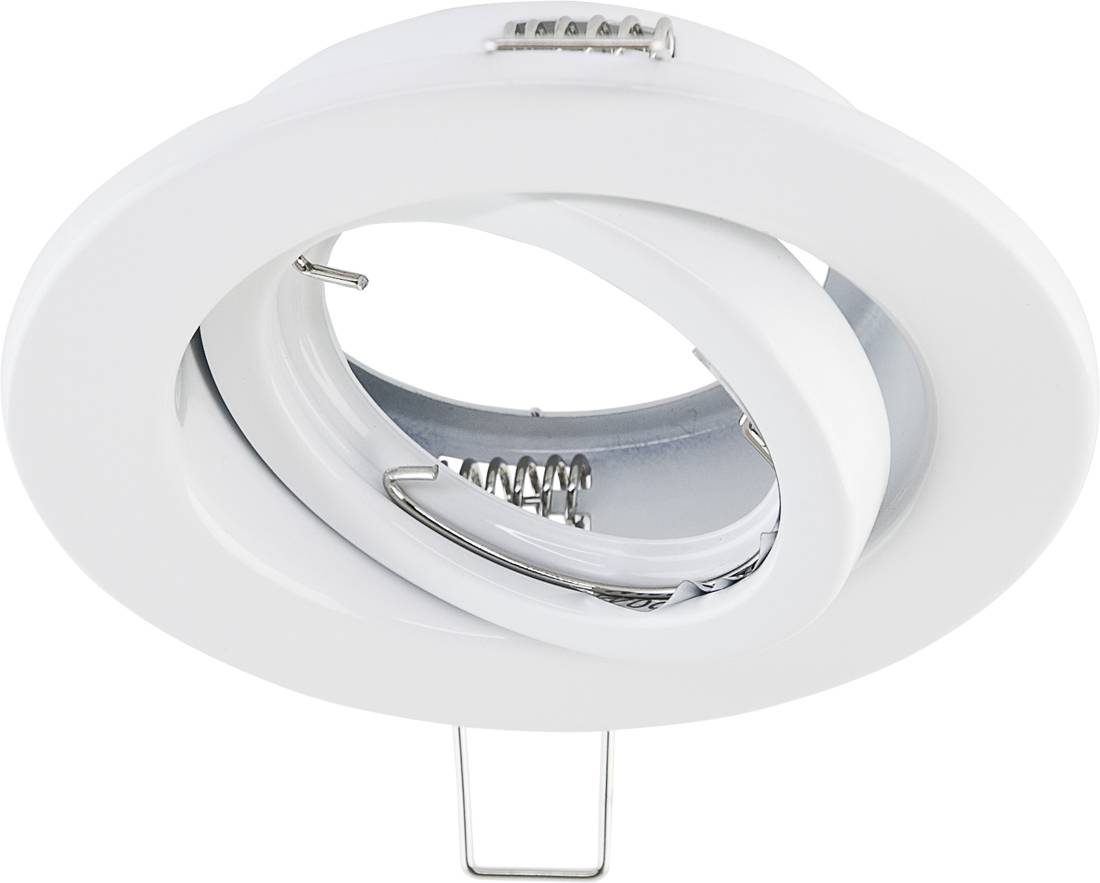

EVN 517001 517001 Recess-mount bracket HV halogen w/o 50 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 50 W White
Technical specifications
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Colour
White
- Type
Ring
- Light features
Swivelling
- Swivel range (max.)
25°

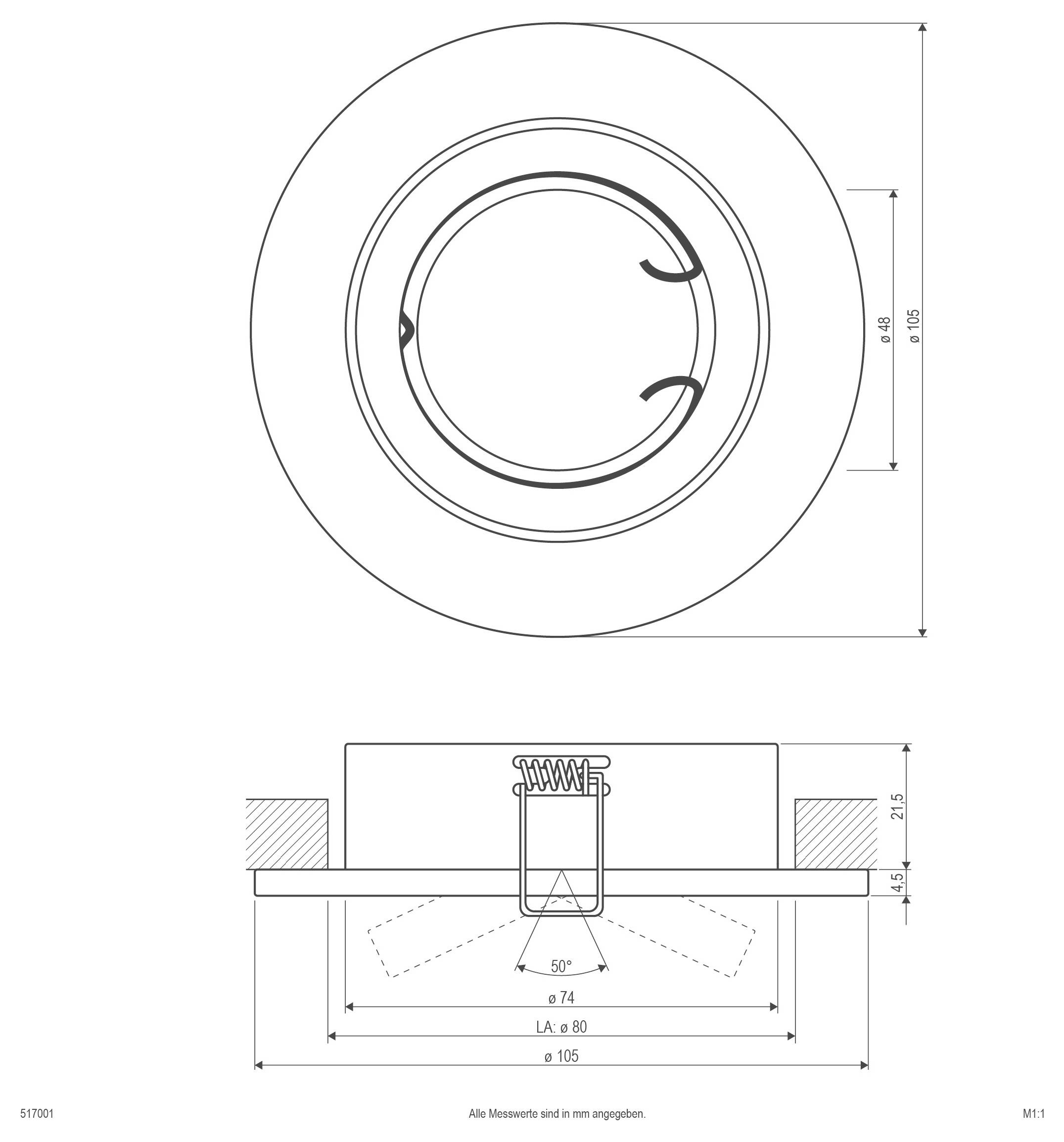

- Recess diameter
80 mm
- Recess width
80 mm
- Recess depth
50 mm
- Outside Ø
105 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Steel
n.rel.
- Dim
(Ø x H) 105 mm x 26.00 mm
Yes
- Light bulb included
No
- Height
26.00 mm
- Depth
26 mm
- (Ø)
105 mm
- Nominal voltage
12 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152054 EVN 517001 517001 Recess-mount bracket HV halogen w/o 50 W White
User & Safety Instructions
User & Safety Instructions 3152054 EVN 517001 517001 Recess-mount bracket HV halogen w/o 50 W White
