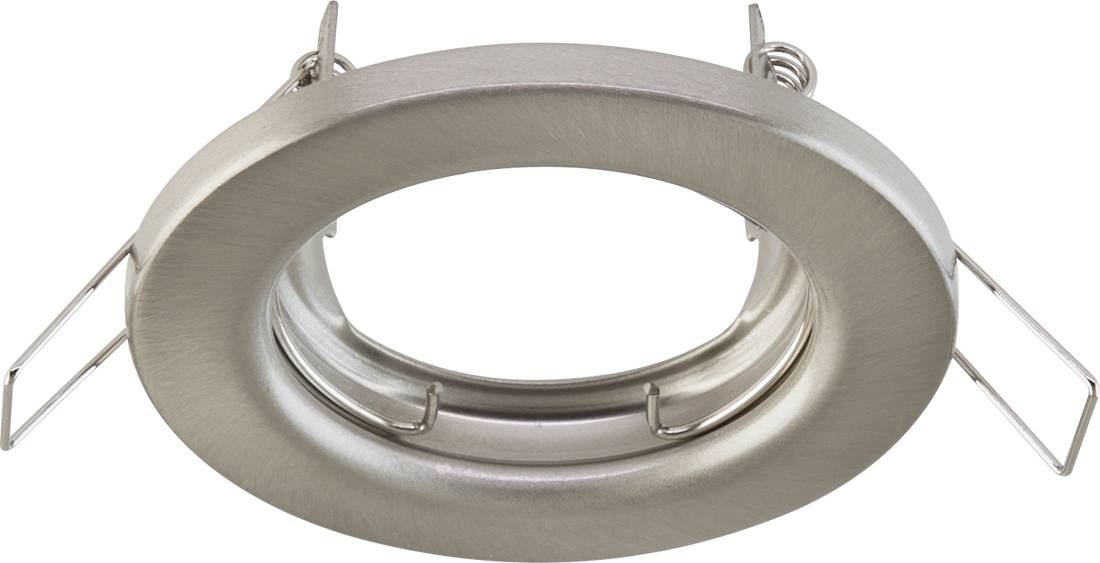

EVN 523013 523013 Recess-mount bracket High-voltage halogen lamp GU10 50 W Chrome
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 50 W Total luminous flux= 0 lm Colour temperature= 0 K
Technical specifications
- Product type
Recess-mount bracket
- Operating voltage
230 V
- No. of bulbs
1
GU10
- Bulb type
High-voltage halogen lamp
- Rating per bulb
50 W
50 W
0 lm
- Total luminous flux
0 lm
0 K
- Type
Ring
- Light features
Dimmable
- Recess diameter
55 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
110 mm
- Outside Ø
80 mm
- External length
0 mm
- External width
0 mm
IP20
- Protection class
II
- Factory colour
Chrome
- Material
Steel
n.rel.

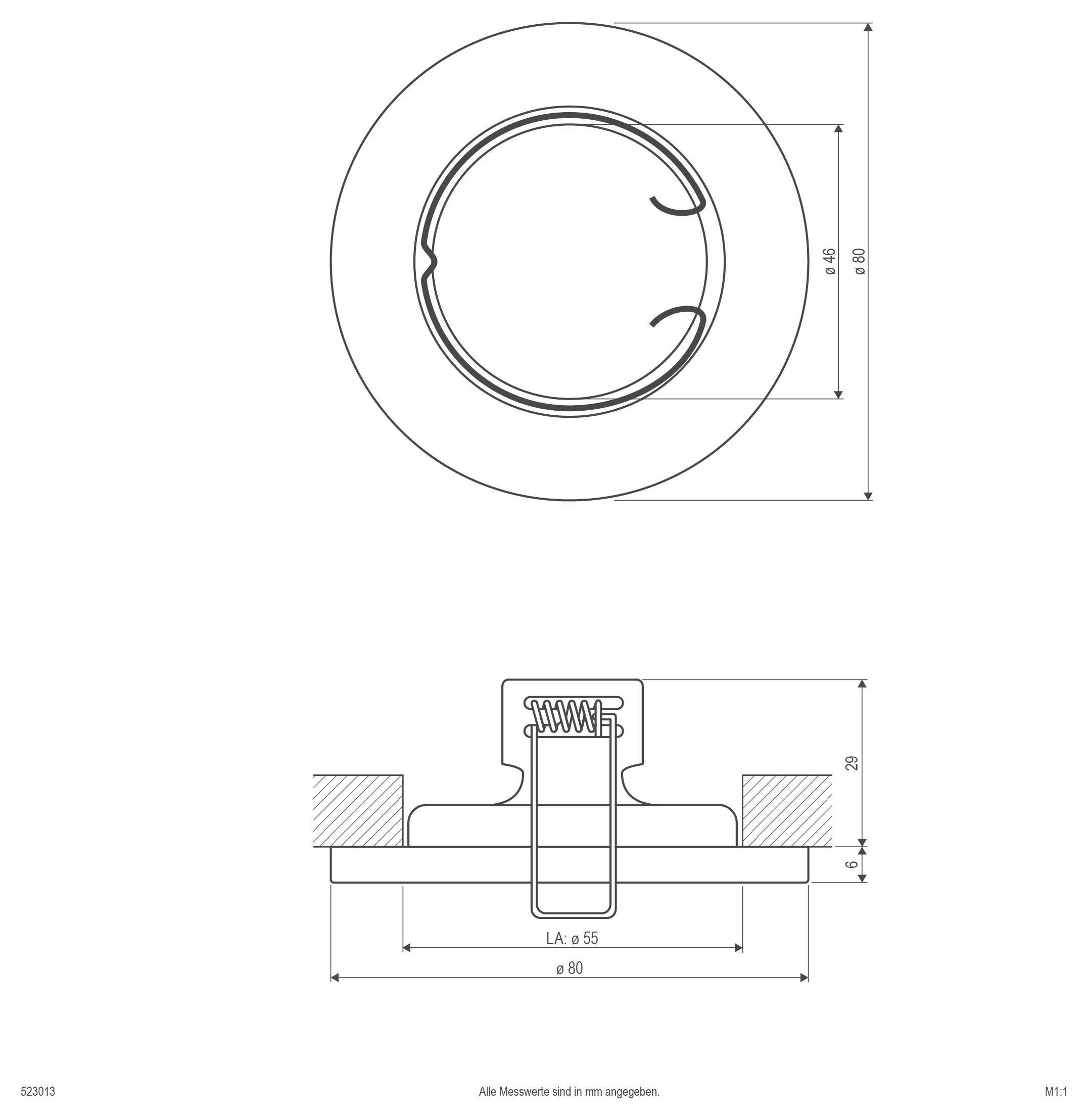

- Dim
(Ø x H) 80 mm x 35.00 mm
Yes
- Light bulb included
No
- Width
0.00 mm
- Height
35.00 mm
- Length
0.00 mm
- Depth
35 mm
- (Ø)
80 mm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151906 EVN 523013 523013 Recess-mount bracket High-voltage halogen lamp GU10 50 W Chrome
User & Safety Instructions
User & Safety Instructions 3151906 EVN 523013 523013 Recess-mount bracket High-voltage halogen lamp GU10 50 W Chrome
