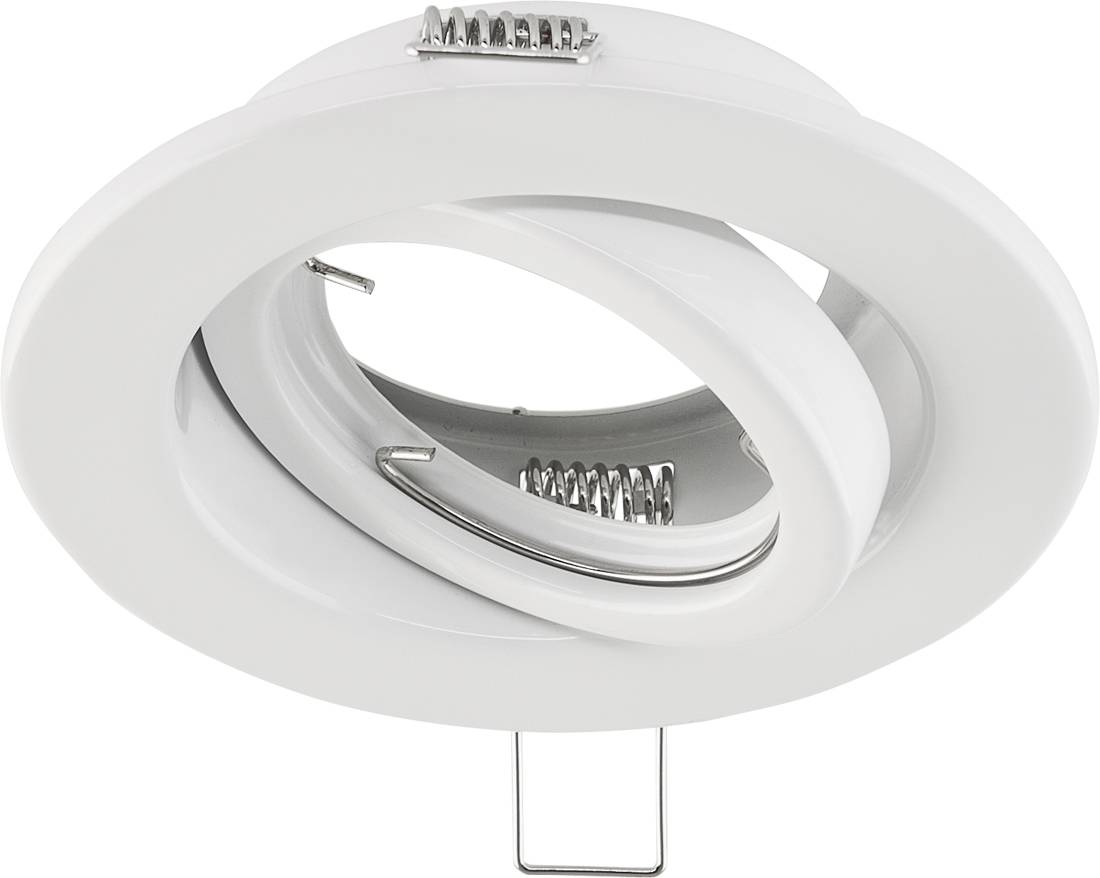

EVN 527001 527001 Recess-mount bracket GU10 50 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN Lighting technology EB-Light 50W 230V IP20 527 001 BW
- Power= 50 W
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Illuminant: Other
- With bulb: No.
- Suitable for the number of bulbs: 1
- Socket: GU10
- Material of housing: Steel
- Surface protection: Powder-coated
- Housing color: White
- Cover material: Without
- Surface brushed: No.
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: Not required
- With operating device: No.
- Removable operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class: I
- Suitable for lamp power 0.1..50 W
- Max. System power 50 W
- Height/depth 26 mm
- Outer diameter: 105 mm
- Installation height/depth 110 mm
- Installation diameter 80 mm
- Number of poles: 2
- Connection type: Other
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
Recess-mount bracket
- Operating voltage
230 V
- No. of bulbs
1
GU10
- Rating per bulb
50 W
50 W
- Type
Ring
- Light features
Swivelling
- Swivel range (max.)
25°
- Recess diameter
80 mm
- Recess depth
110 mm
- Outside Ø
105 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Steel
n.rel.
- Dim

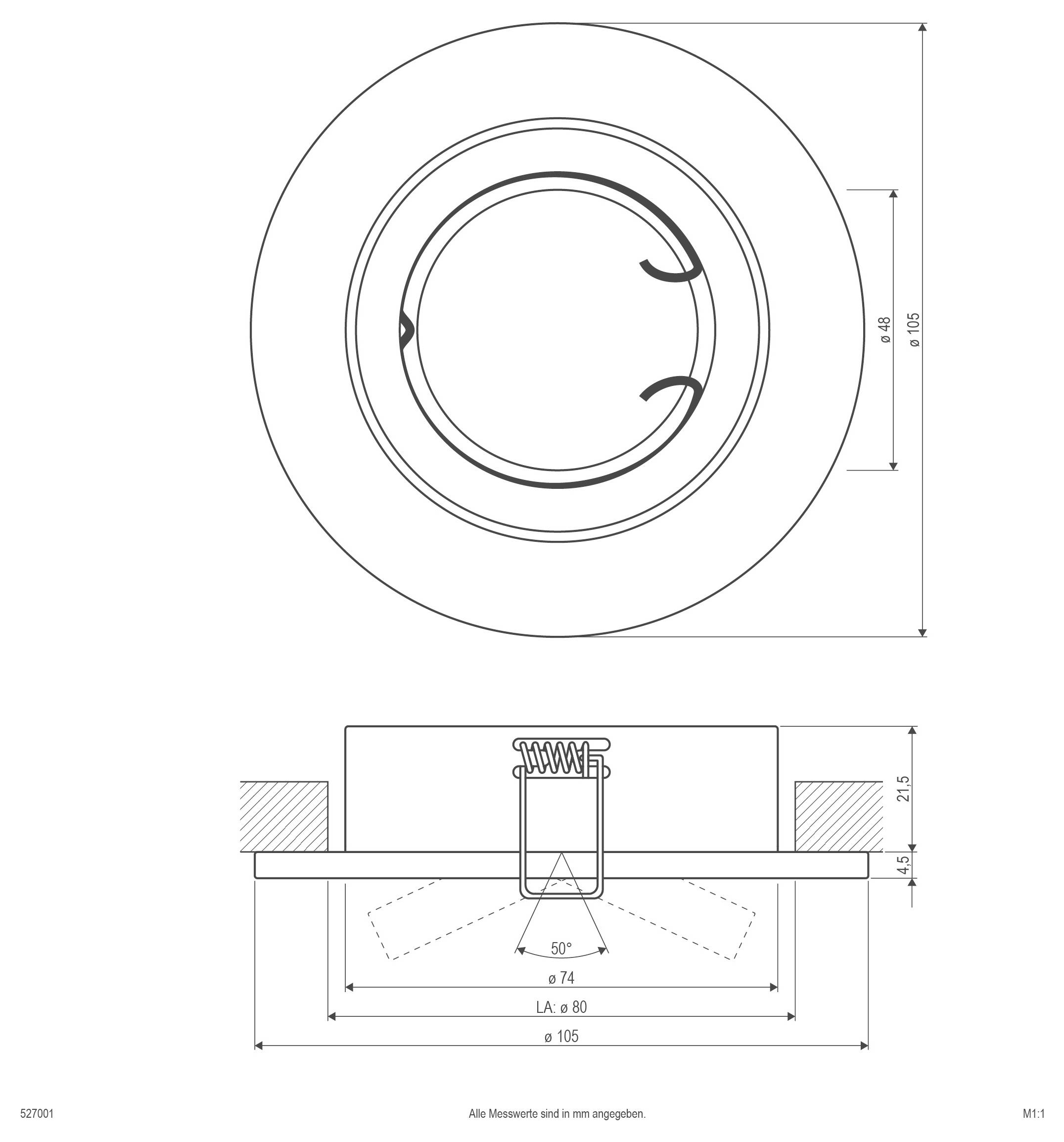

(Ø x H) 105 mm x 26.00 mm
Yes
- Light bulb included
No
- Height
26.00 mm
- Depth
26 mm
- (Ø)
105 mm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151914 EVN 527001 527001 Recess-mount bracket GU10 50 W White
User & Safety Instructions
User & Safety Instructions 3151914 EVN 527001 527001 Recess-mount bracket GU10 50 W White
Description
Swivelling ceiling installation light for diverse applications in indoors. This lamp provides effect lighting, room lighting, accent lighting and much more. The high-voltage socket means that different light bulbs can be used in the lamp for a wide range of lighting requirements, giving you almost no limits to the design options. As the lamp can be connected directly to the 230V supply line there is no additional cost for operating devices. Supplied with spacer bracket. The swivel range of the light is 25°.
