1/3

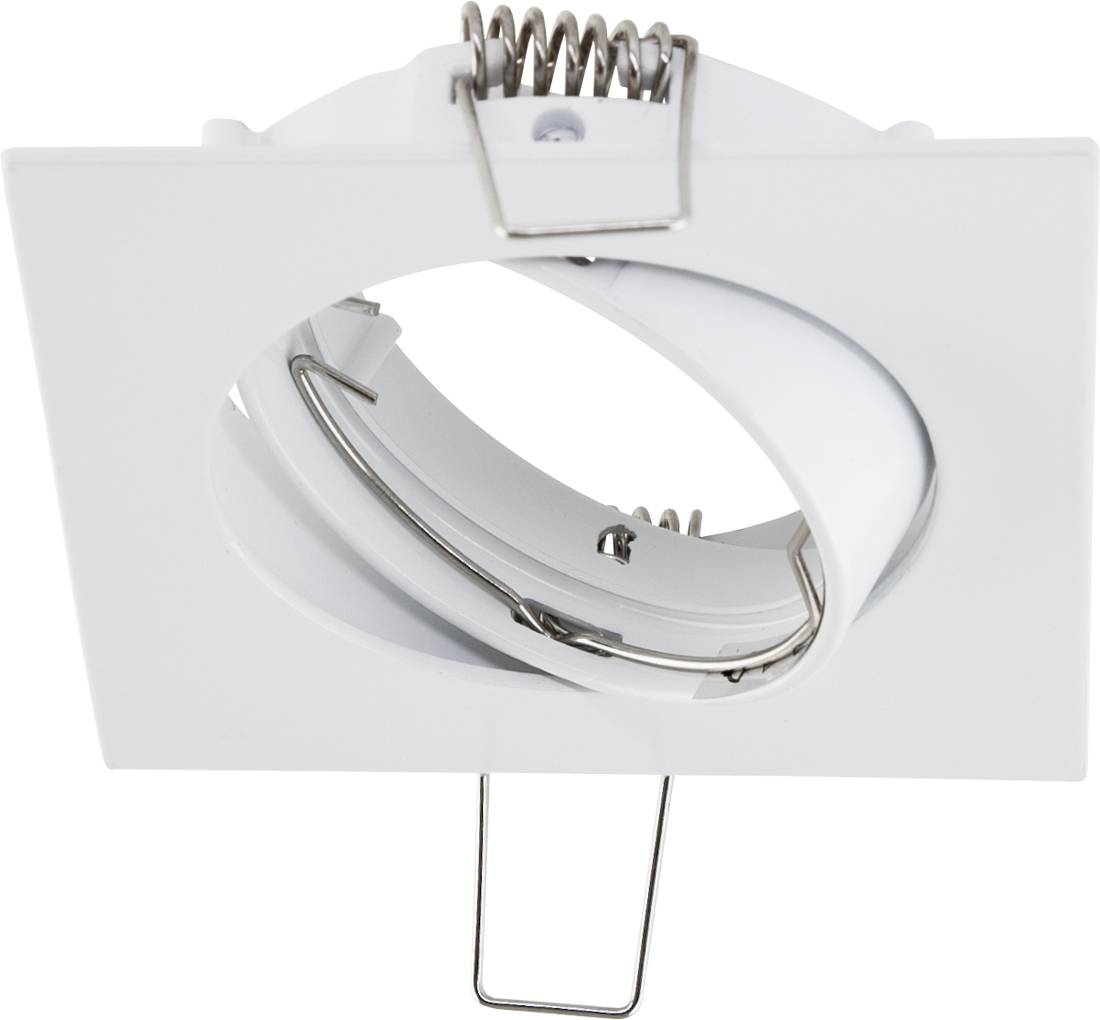

EVN 646001 646001 Recess-mount bracket HV halogen w/o 50 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN Lighting technology NV EB-Light 12V 50W GX5.3 646 001 W.
- Power= 50 W White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulbs:NV-Halogen lamp
- With bulb: No.
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Surface protection: Powder-coated
- Housing color: White
- Cover material: Without
- Surface brushed: No.
- Voltage type AC/DC
- Nominal voltage: 12 V
- With operating device: No.
- Removable operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class III
- Suitable for lamp power 0.1..50 W
- Max. System power 50 W
- Width 82 mm
- Height/depth 21 mm
- Length: 82 mm
- Installation height/depth 55 mm
- Installation diameter 71 mm
- Number of poles: 2
- Connection type: Other
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Colour
White
- Light features
Swivelling
- Swivel range (max.)
35°

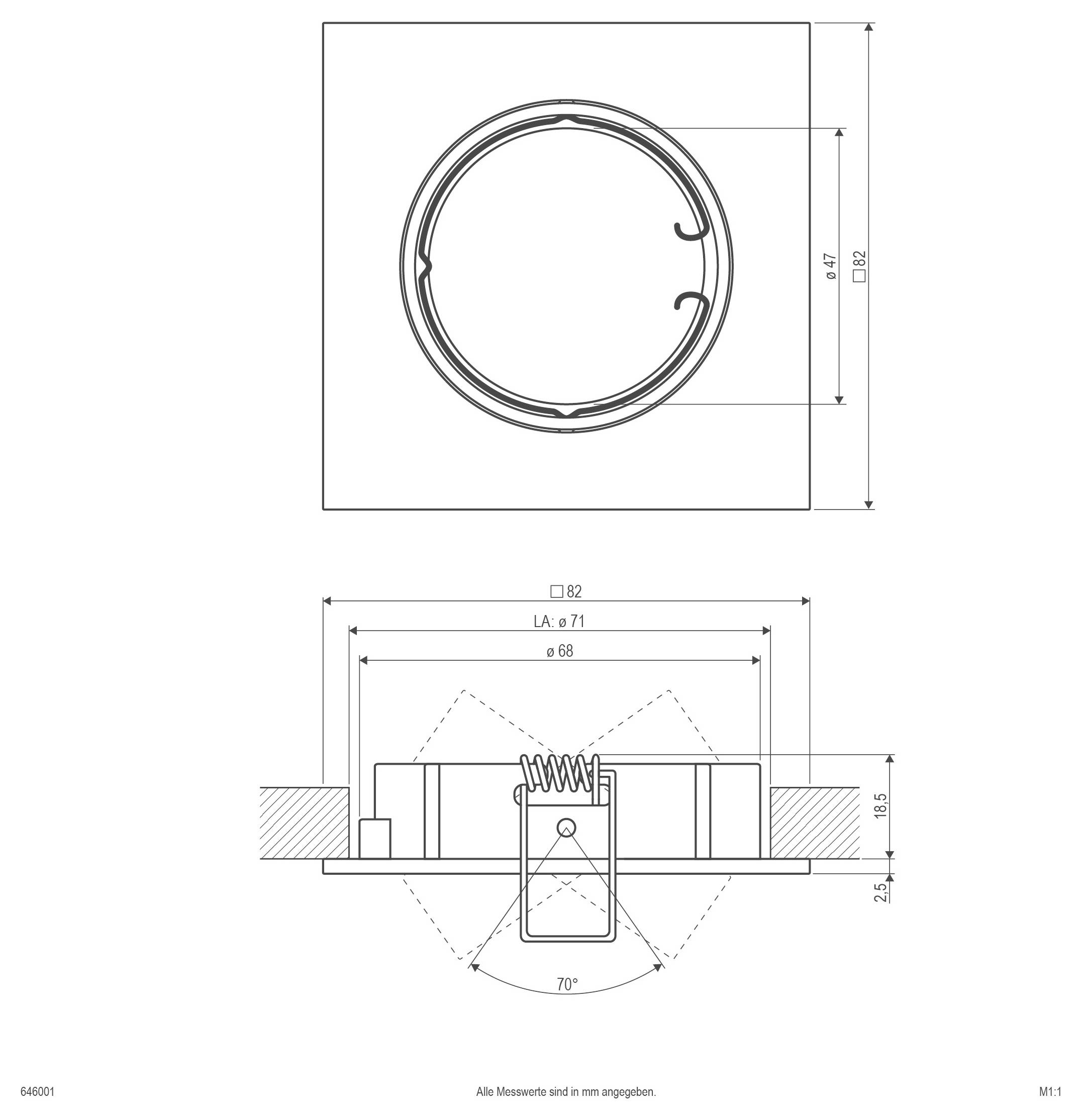

- Recess diameter
71 mm
- Recess depth
55 mm
- Outside Ø
82 mm
- External length
82 mm
- External width
82 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 82 mm x 21.00 mm
Yes
- Light bulb included
No
- Width
82.00 mm
- Height
21.00 mm
- Length
82.00 mm
- Depth
21 mm
- (Ø)
82 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151920 EVN 646001 646001 Recess-mount bracket HV halogen w/o 50 W White
User & Safety Instructions
User & Safety Instructions 3151920 EVN 646001 646001 Recess-mount bracket HV halogen w/o 50 W White
Description
Swivelling ceiling installation light for diverse applications in indoors. Depending on the socket used, various light bulbs can be used in the light to meet various lighting requirements, whether halogen or LED, giving you almost unlimited lighting options. The slewing angle of the light is 35°.
