EVN 673210 673210 Recessed floor light GZ10 LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN floor plan round Alu IP66 GU10 max. 35W 230V
Technical specifications
- Product type
Recessed floor light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
GZ10
- Rating per bulb
35 W

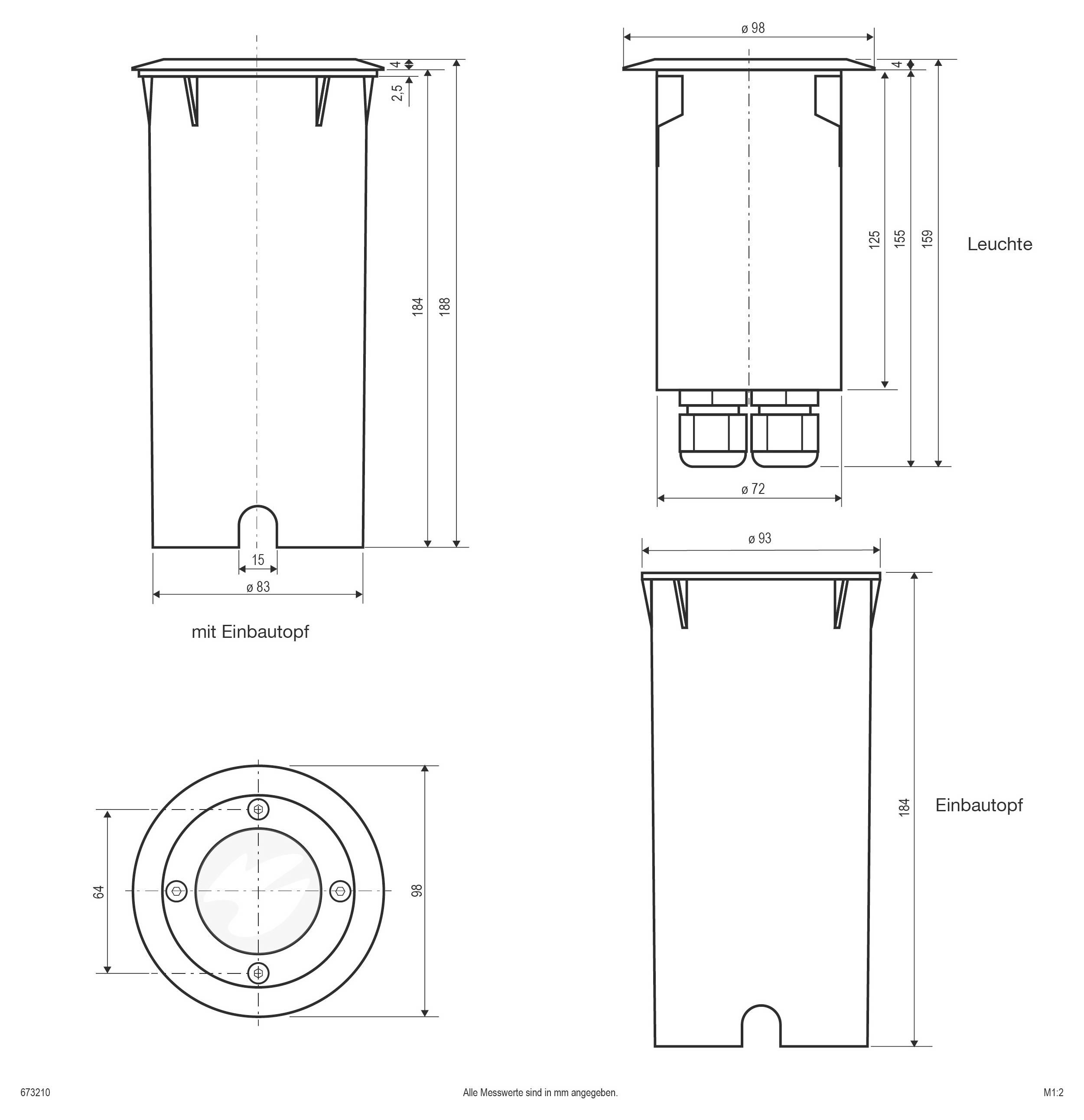

- Recess diameter
75 mm
- Recess depth
160 mm
- Light features
Hardwearing
- Material
Stainless steel V4A
n.rel.
- Light bulb included
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3035695 EVN 673210 673210 Recessed floor light GZ10 LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3035695 EVN 673210 673210 Recessed floor light GZ10 LED (monochrome)
Description

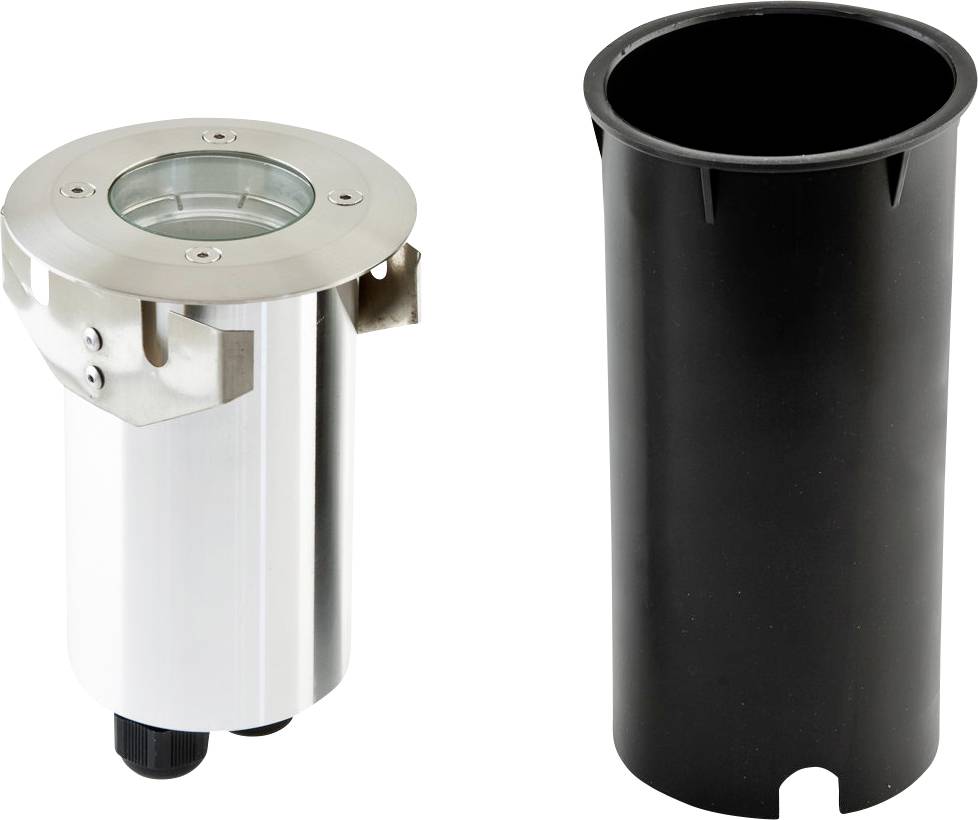

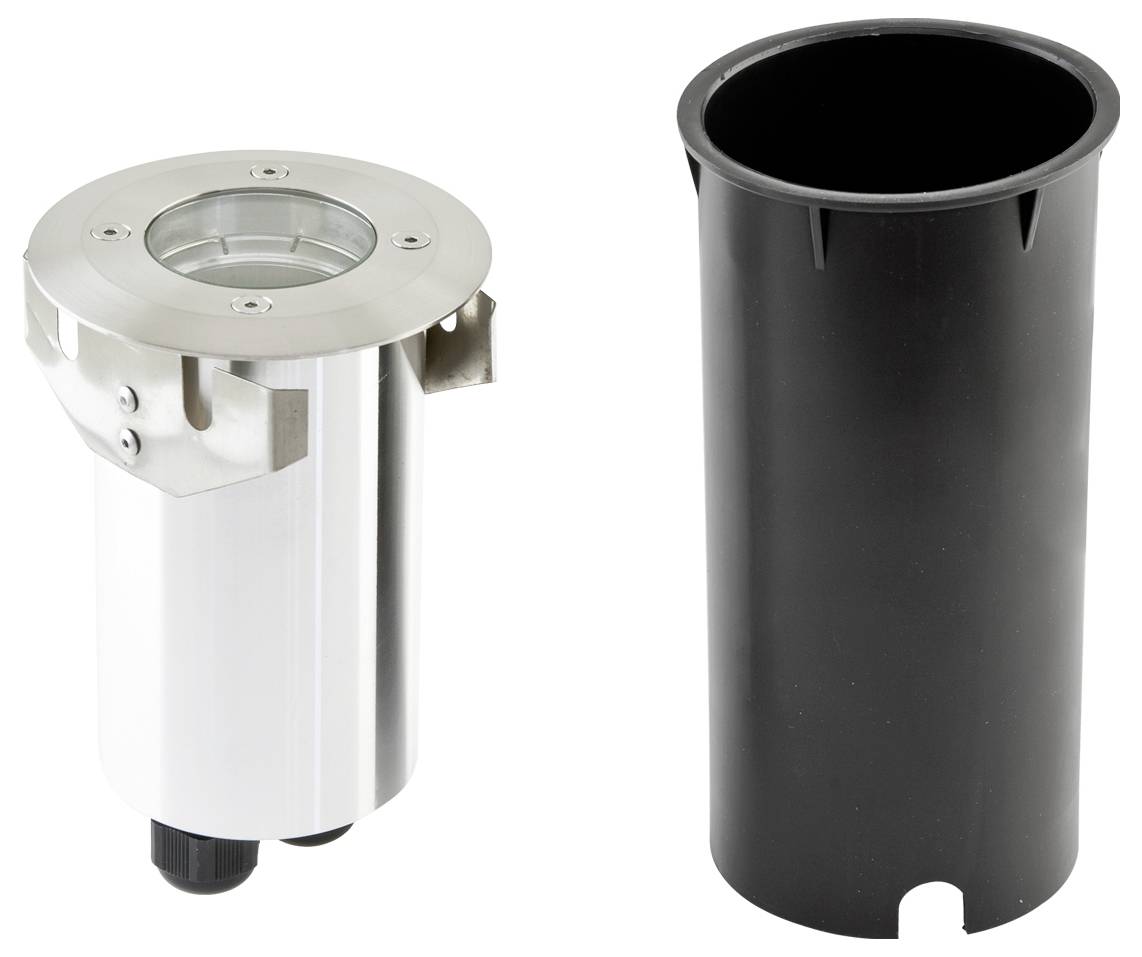

The lamp body is made of solid aluminum, while the cover plate is made of V4A stainless steel. The 2 screwed cable glands at the ground, suitable for cables up to 12mm diameter, make it possible to wire several lights through, significantly simplifying the installation for longer cable runs. The lamp can be mounted without the plastic mounting pot included in the delivery. In this case, the installation depth is 160mm and the hole size required 75mm. Due to the high-voltage socket different illuminant up to max. 35W can be operated in the lamp. The maximum crossing speed is 20km/h.
