Buy EVN 674210527 674210527 Recessed floor light LED LED (monochrome)

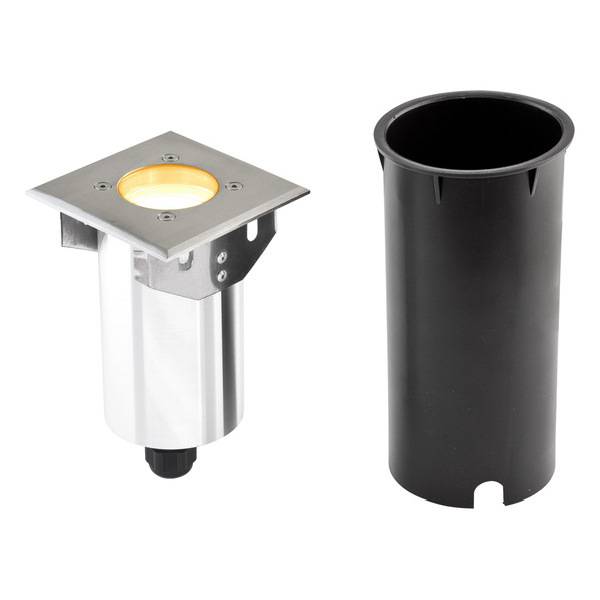

Recessed spotlight (left) with square plate, LEDs visible. On the right, a matching black recessed housing.

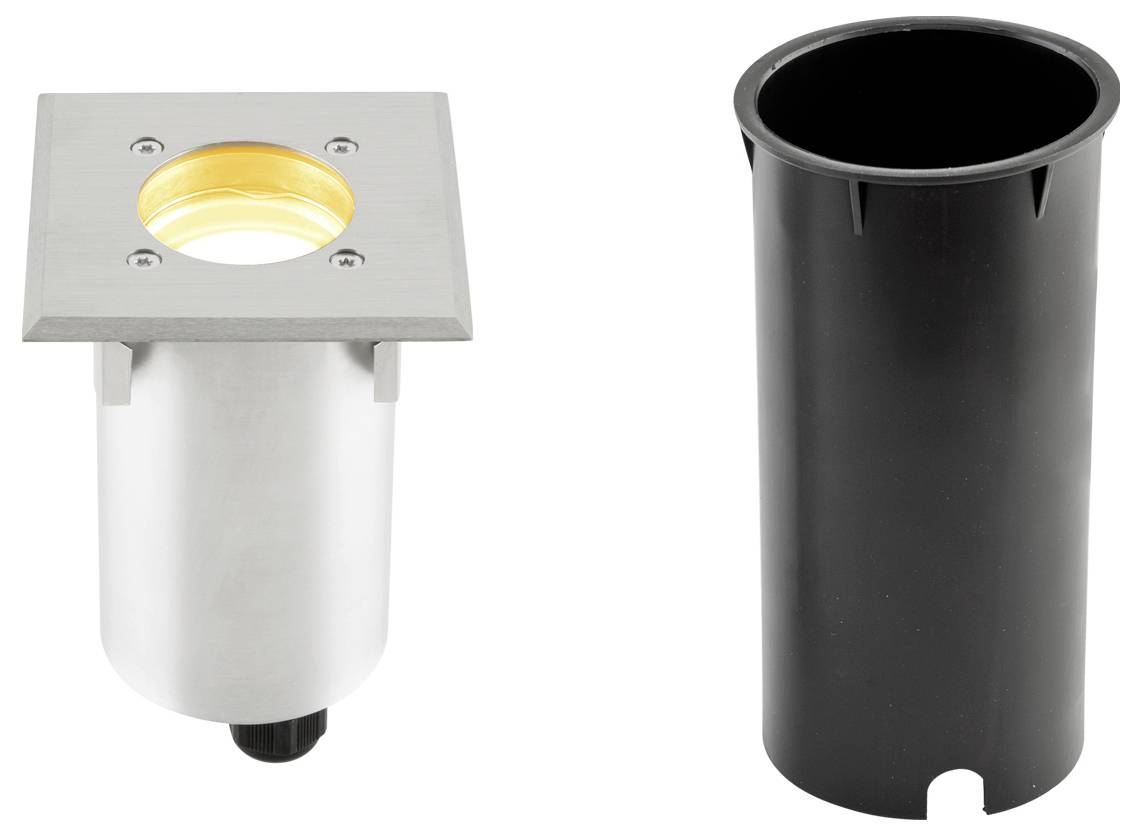

Two lighting fixture components on white: a square stainless steel recessed light with a glowing bulb and a separate black cylindrical sleeve.<br>

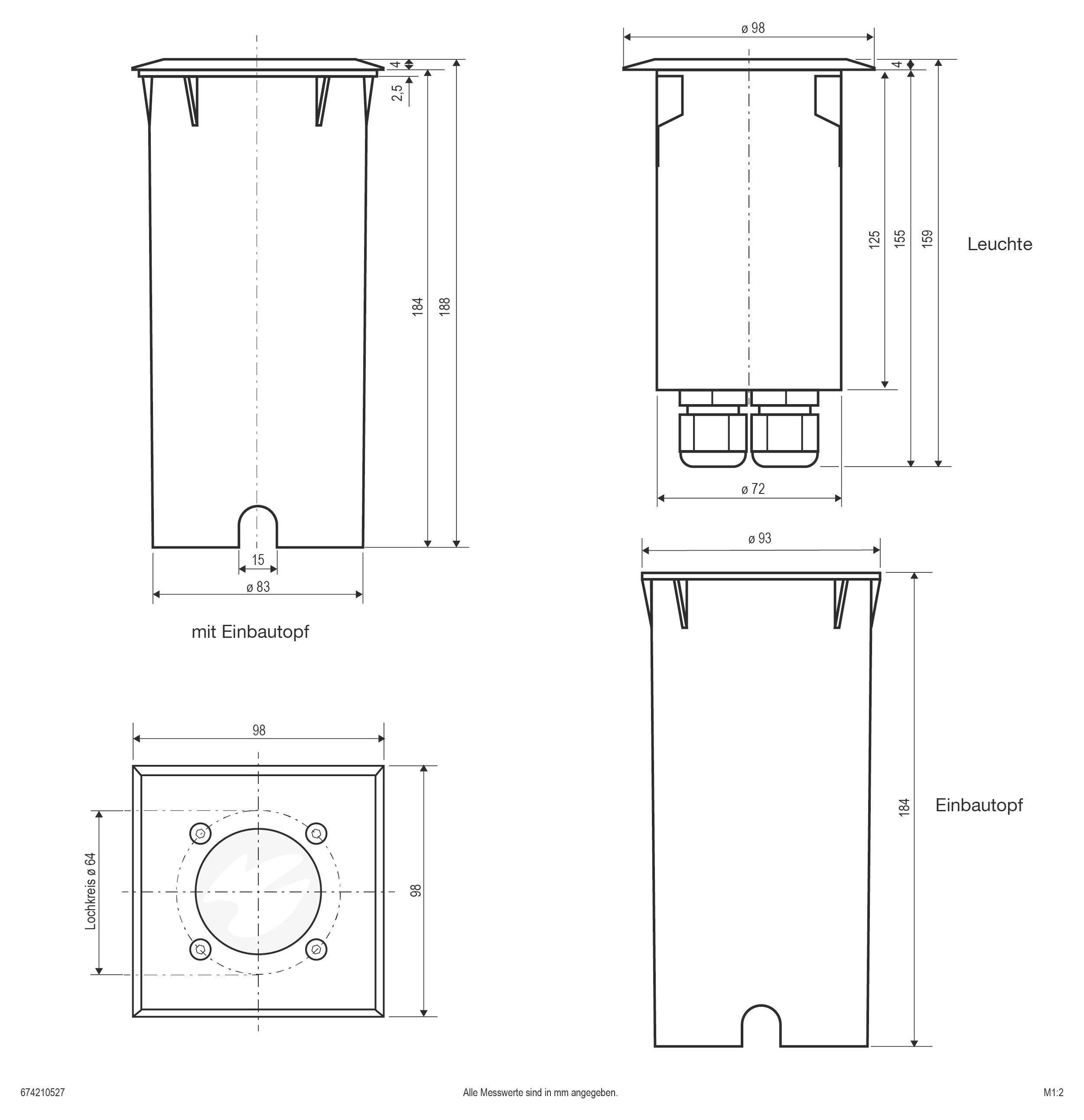

Technical dimension drawings of a recessed light fixture and installation pot, showing front, side, top views with measurements in millimeters and labels 'Leuchte' and 'Einbaupotf'.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EVN LED floor build-in INSTRUCTURE HV GU10 5.5W IP66 2700K

Technical specifications

Product type: Recessed floor light

Bulb type: LED (monochrome)

: LED

Recess diameter: 75 mm

Recess depth: 160 mm

Light features: Hardwearing

Material: Plastic
Aluminium
Stainless steel V4A

: n.rel.

Light bulb included: Yes

Documents & Downloads

Datasheet

Datasheet 3035549 EVN 674210527 674210527 Recessed floor light LED LED (monochrome)

User & Safety Instructions

User & Safety Instructions 3035549 EVN 674210527 674210527 Recessed floor light LED LED (monochrome)

Description

The lamp body is made of solid aluminum, while the cover plate is made of V4A stainless steel. The 2 screwed cable glands at the ground, suitable for cables up to 12mm diameter, make it possible to wire several lights through, significantly simplifying the installation for longer cable runs. The lamp can be mounted without the plastic mounting pot included in the delivery. In this case, the installation depth is 160mm and the hole size required 75mm. The LED light supplied can be replaced at any time, if required. The maximum crossing speed is 20km/h.

This text is machine translated.
