Buy EVN 679235EVA53D 679235EVA53D Recessed floor light LED (monochrome)

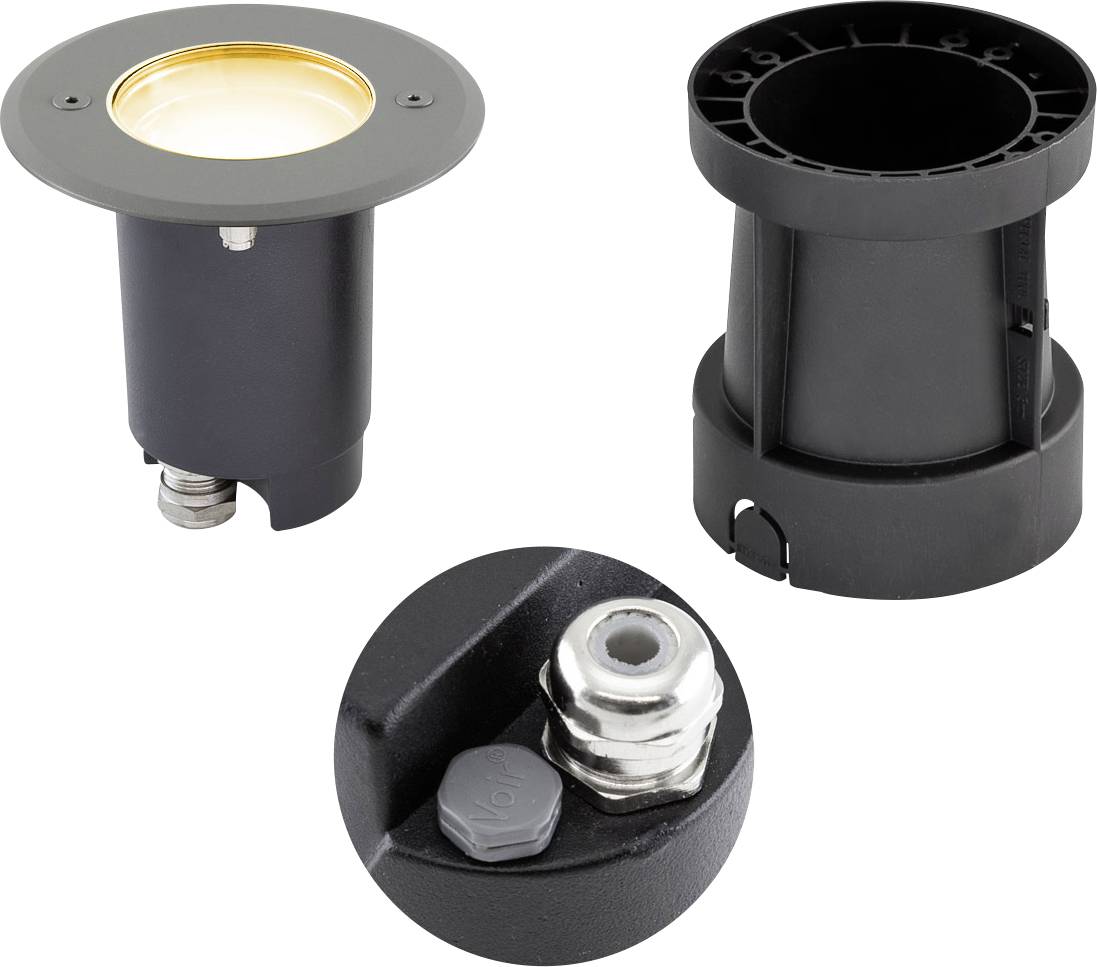

Black outdoor ground light fixture shown from front, side, and close-up views, with metal housing and wiring terminal detail.

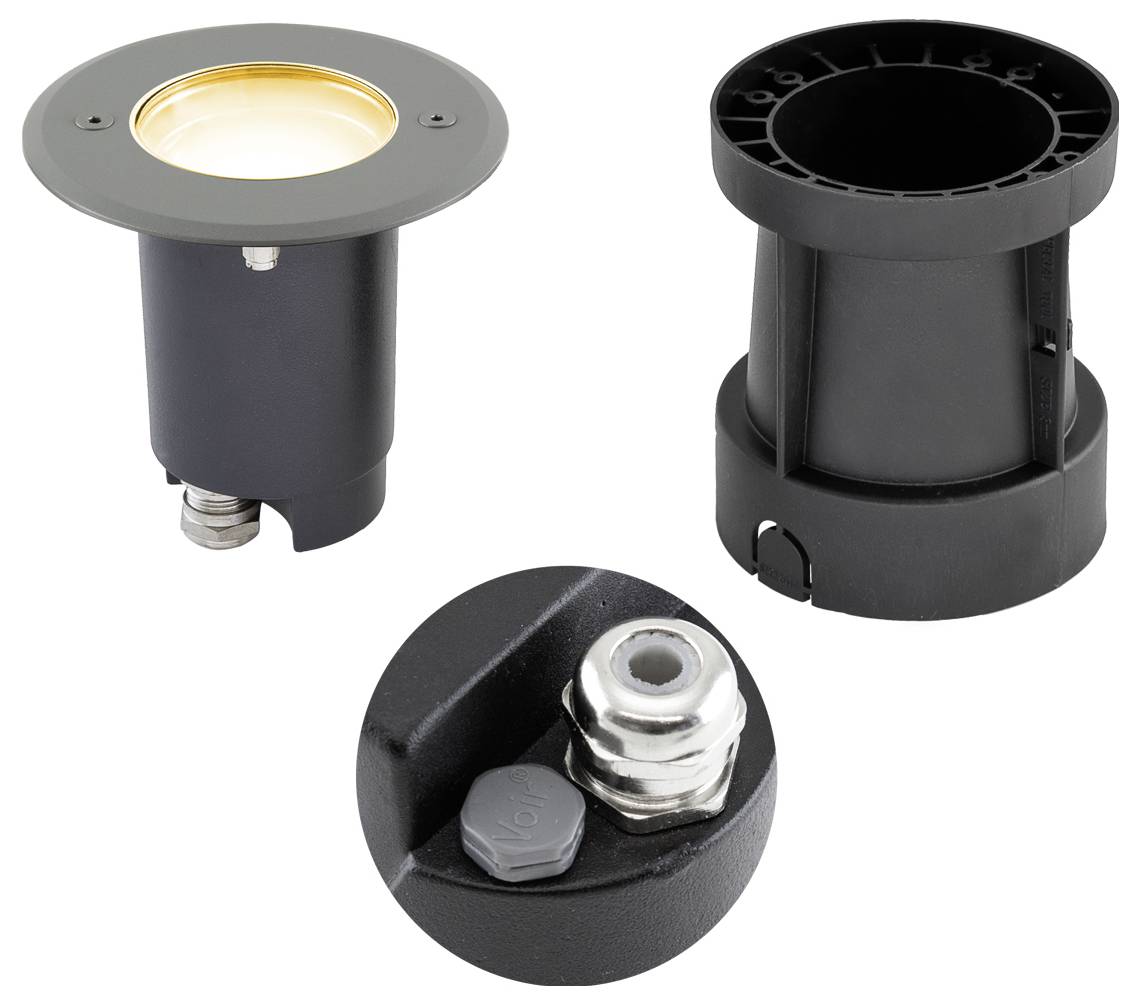

Three views of a black in-ground outdoor light fixture, showing the top lens, side housing, and close-up of the base connection.

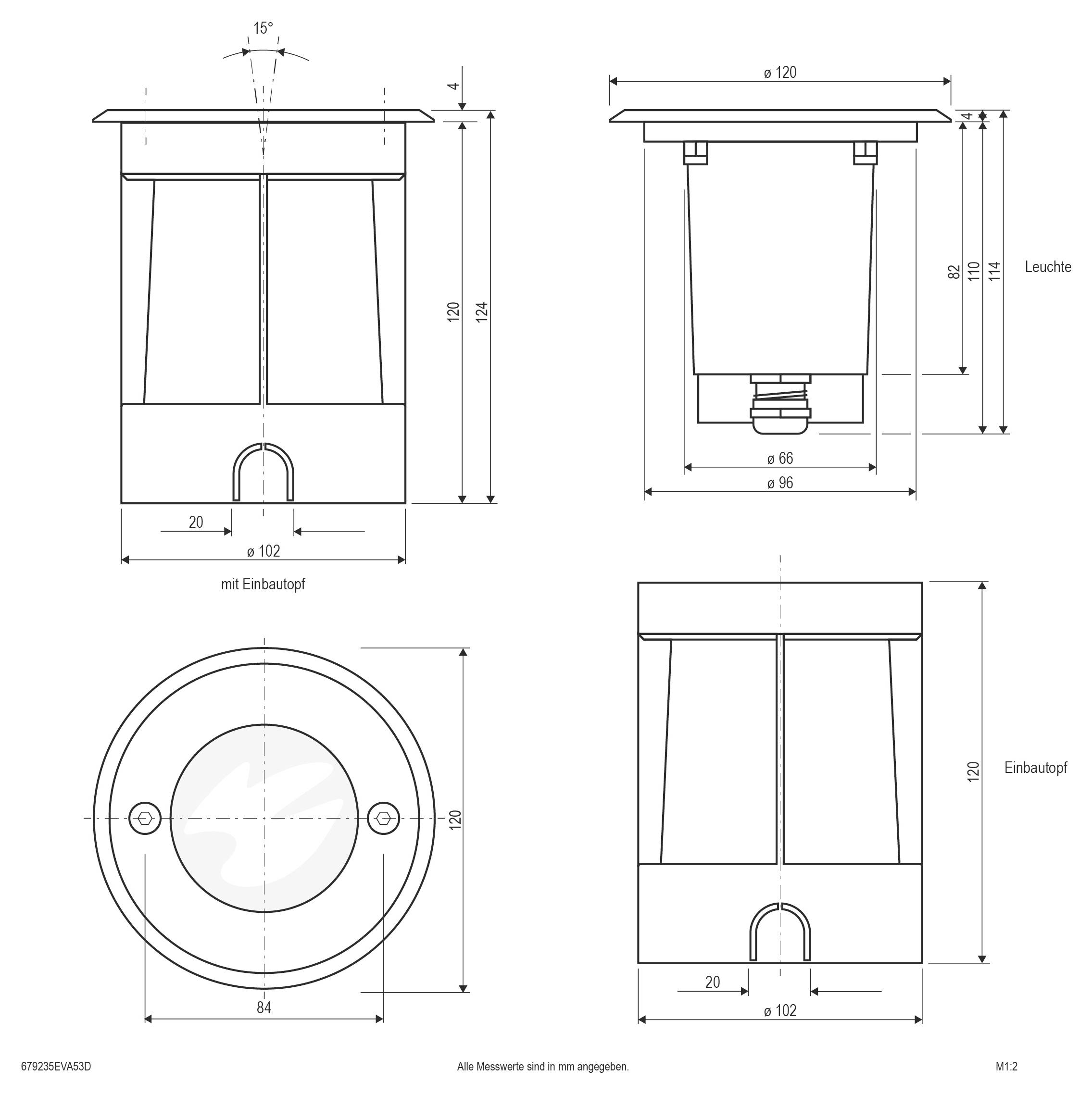

Technical drawing of a recessed light fixture with front, side, and top views, showing dimensions in millimeters and labels for 'Leuchte' and 'Einbautopf'.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

EVN LED floor-mounted emitter 230V 5W 3000K 450lm dimmable anthracite

Technical specifications

Product type: Recessed floor light

Bulb type: LED (monochrome)

: n.rel.

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3035632 EVN 679235EVA53D 679235EVA53D Recessed floor light LED (monochrome)

User & Safety Instructions

User & Safety Instructions 3035632 EVN 679235EVA53D 679235EVA53D Recessed floor light LED (monochrome)

Description

The lamp body is made of aluminum, while the cover plate is made of V2A stainless steel. Cable entry is made via the cable gland on the ground, which is suitable for cables up to 9mm diameter. To avoid condensation, there is a self-venting bleed valve on the underside of the lamp. There is the option of mounting the lamp without the plastic mounting pot included in the scope of supply, in this case the hole cut-out is 96mm while the installation depth remains unchanged. The supplied GU10 LED bulb can be replaced at any time, if required. The slewing angle is 10°. Additionally, a matt safety glass is included in the delivery.

This text is machine translated.
