EVN 759413 759413 Recess-mount bracket HV halogen w/o 50 W Chrome
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN Light technology NV EB-lamp Chr-sat 50W 759 413
- Power= 50 W
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Rotation and swivel
- With motion detector: No.
- With light sensor: No.
- Bulbs:NV-Halogen lamp
- With bulb: No.
- Suitable for the number of bulbs: 1
- Socket: Without
- Housing material: Other
- Surface protection: Other
- Housing color: Chrome
- Cover material: Without
- Brushed surface: Yes
- Voltage type AC/DC
- Nominal voltage: 12 V
- With operating device: No.
- Removable operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class III
- Suitable for lamp power 0.1..50 W
- Max. System power 50 W

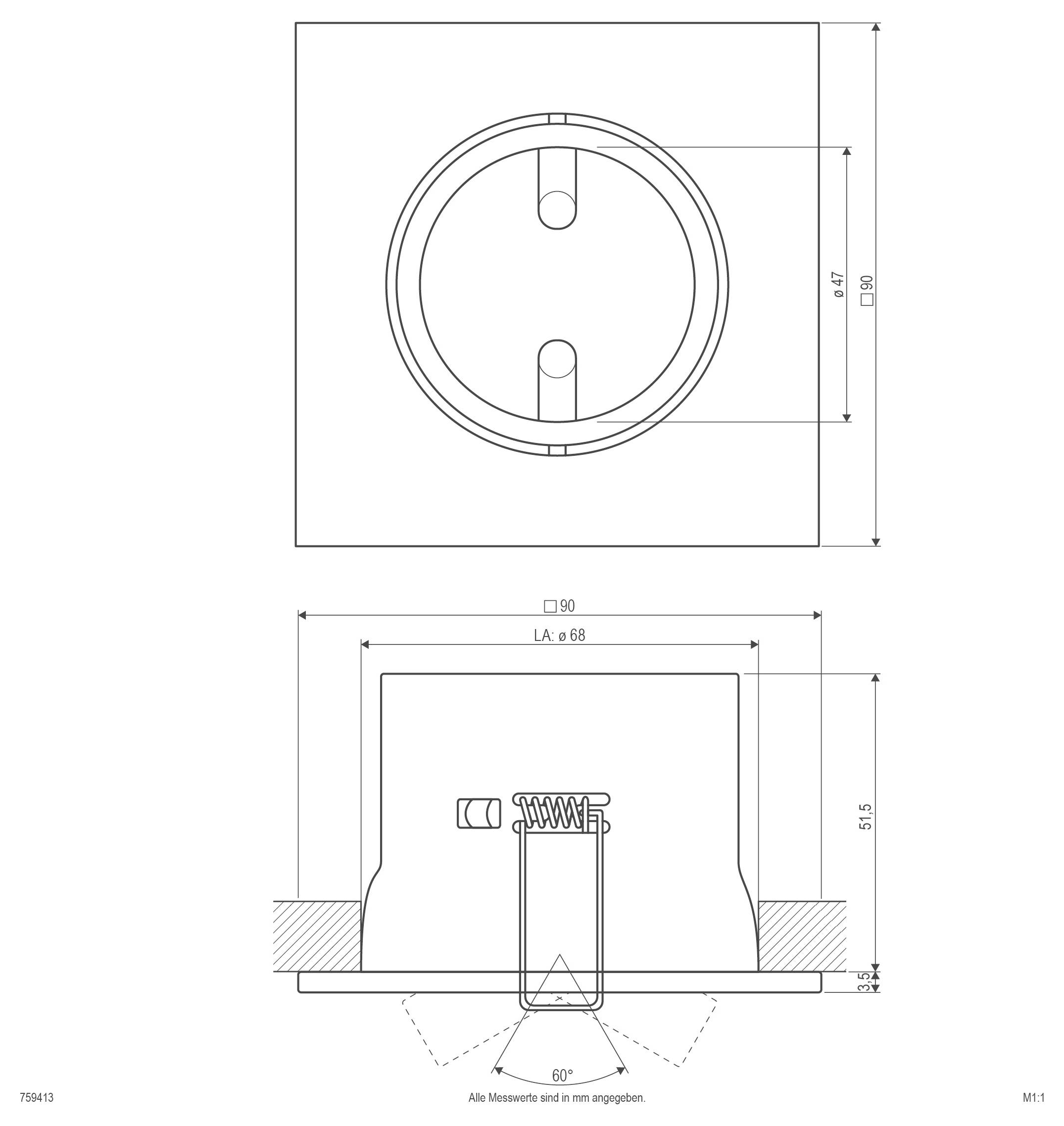

- Width 90 mm
- Height/depth 55 mm
- Length: 90 mm
- Installation height/depth 55 mm
- Installation diameter 68 mm
- Number of poles: 2
- Connection type: Other
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
Recess-mount bracket
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Light features
Pivoted
Swivelling
- Rotation range (max.)
355°
- Swivel range (max.)
30°
- Recess diameter
68 mm
- Recess depth
55 mm
IP20
- Protection class
III
- Factory colour
Chrome
- Material
Brass
n.rel.
- Dim
(Ø x H) 68 mm x 55.00 mm
- Light bulb included
No
- Width
90.00 mm
- Height
55.00 mm
- Length
90.00 mm
- Depth
55 mm
- (Ø)
68 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151943 EVN 759413 759413 Recess-mount bracket HV halogen w/o 50 W Chrome
User & Safety Instructions
User & Safety Instructions 3151943 EVN 759413 759413 Recess-mount bracket HV halogen w/o 50 W Chrome
Description

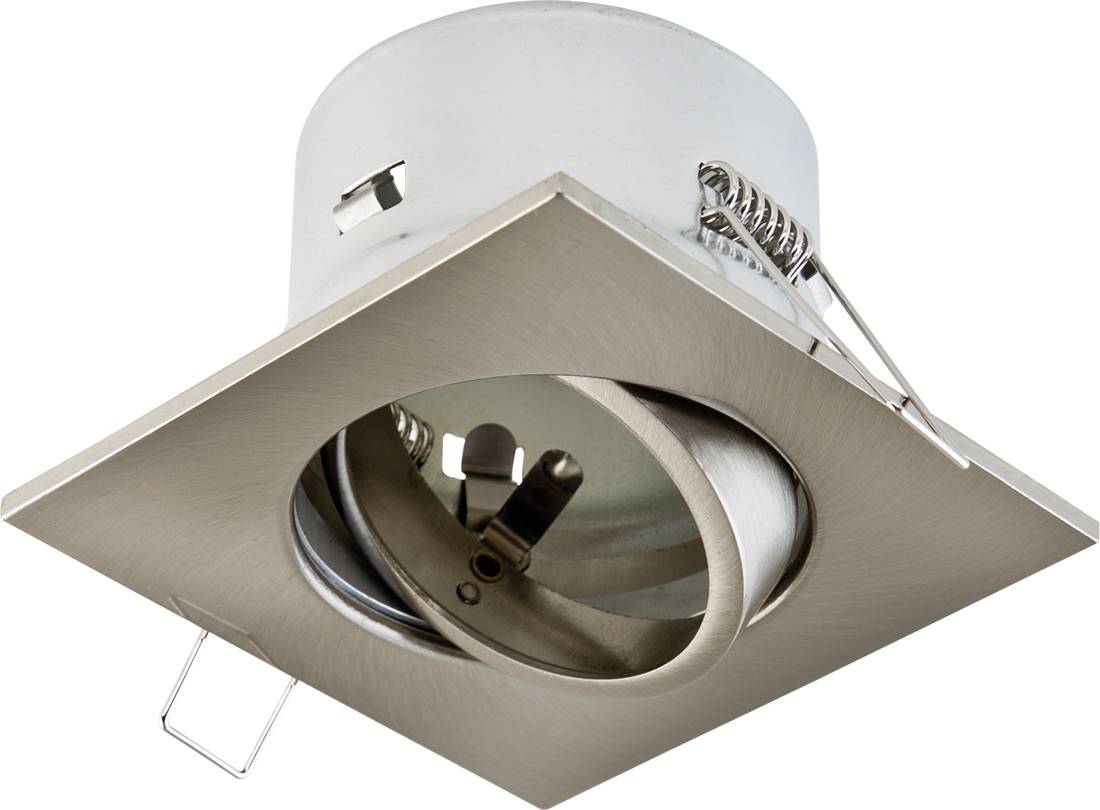

Swivelling ceiling installation light for diverse applications in indoors. Depending on the socket used, various light bulbs can be used in the light to meet various lighting requirements, whether halogen or LED, giving you almost unlimited lighting options. The slewing angle of the lamp is 30°, the rotation range is 355°. The light, made of brass, is supplied with a steel base. The color of the lamp corresponds to chrome satin.
