1/3

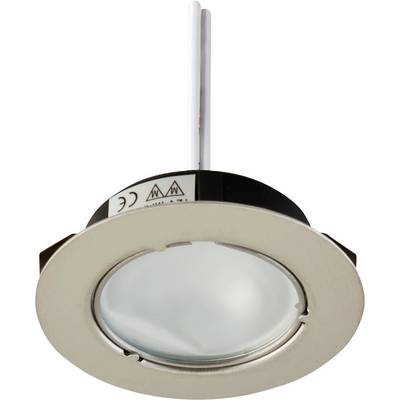

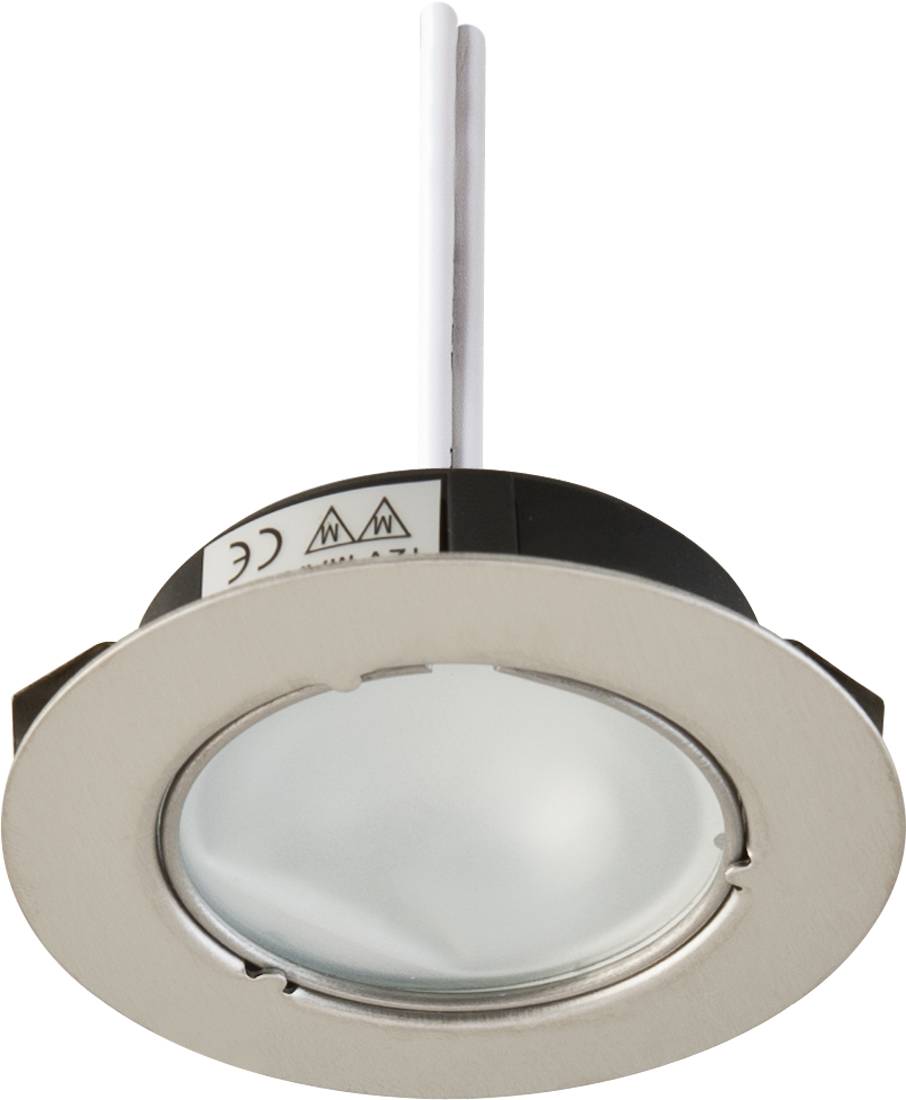

EVN 80010 080010 Flush mount light HV halogen G4 20 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 20 W Total luminous flux= 0 lm Colour temperature= 0 K
Technical specifications
- Product type
Flush mount light
- Operating voltage
12 V
- No. of bulbs
1
G4
- Bulb type
HV halogen
- Rating per bulb
20 W
20 W
0 lm
- Total luminous flux
0 lm
0 K
- Light features
Direct light emission

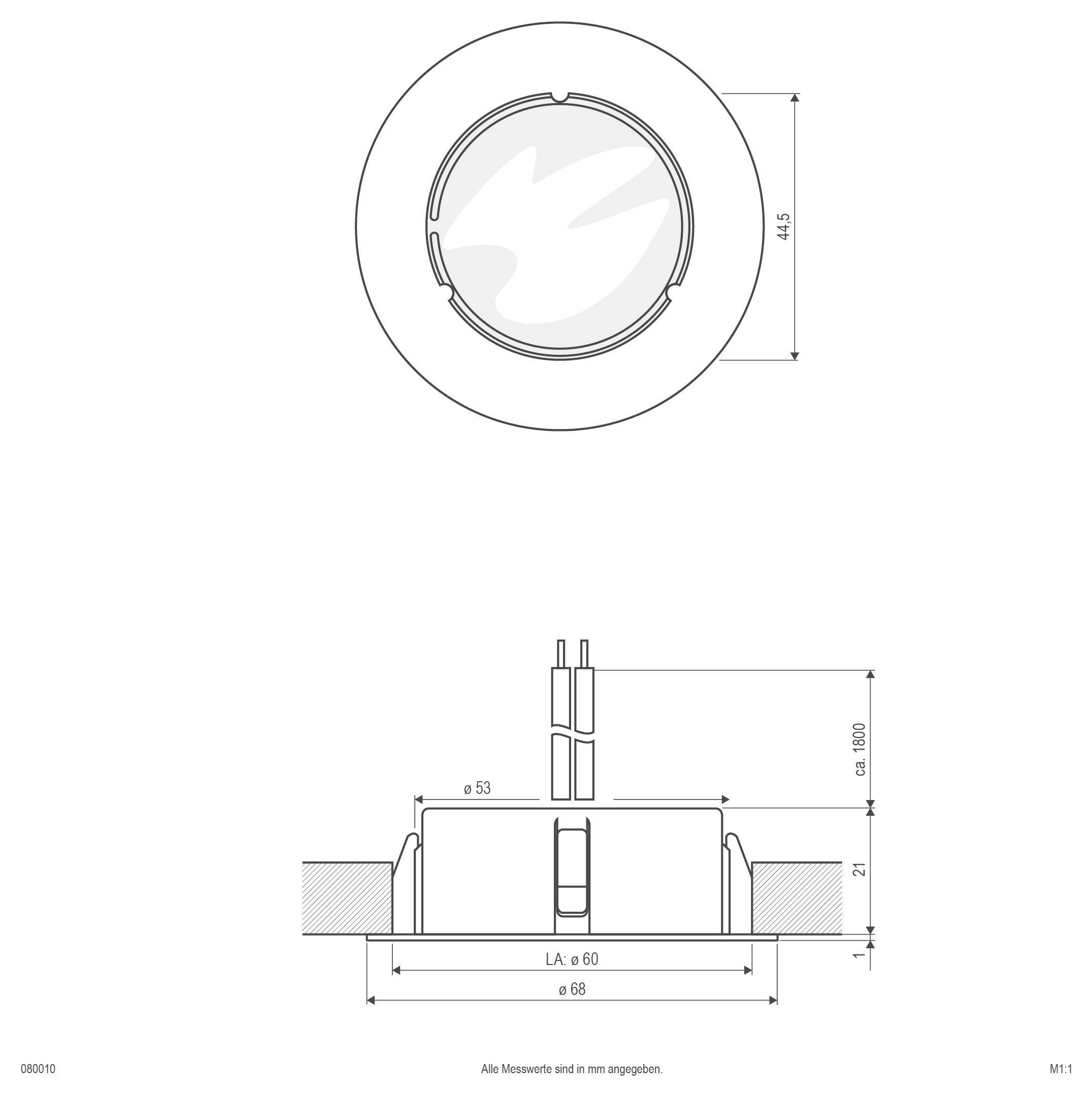

- Recess diameter
60 mm
- Recess length
0 mm
- Recess width
0 mm
- Recess depth
22 mm
- Outside Ø
68 mm
- External length
0 mm
- External width
0 mm
IP20
- Protection class
III
- Factory colour
Stainless steel
- Material
Plastic
n.rel.
- Dim
(Ø x H) 68 mm x 22.00 mm
No
- Light bulb included
No
- Width
0.00 mm
- Height
22.00 mm
- Length
0.00 mm
- Depth
22 mm
- (Ø)
68 mm
- Nominal voltage
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3151901 EVN 80010 080010 Flush mount light HV halogen G4 20 W Stainless steel
User & Safety Instructions
User & Safety Instructions 3151901 EVN 80010 080010 Flush mount light HV halogen G4 20 W Stainless steel
