Technical drawing of a curved component with specific dimensions: length 380 mm, radius 270 mm, height 52 mm. Dimensions in mm.

Technical drawing of a curved component with specific dimensions: length 380 mm, radius 270 mm, height 52 mm. Dimensions in mm.

EVN AP54FR04 AP54FR04 1 pc(s)-1

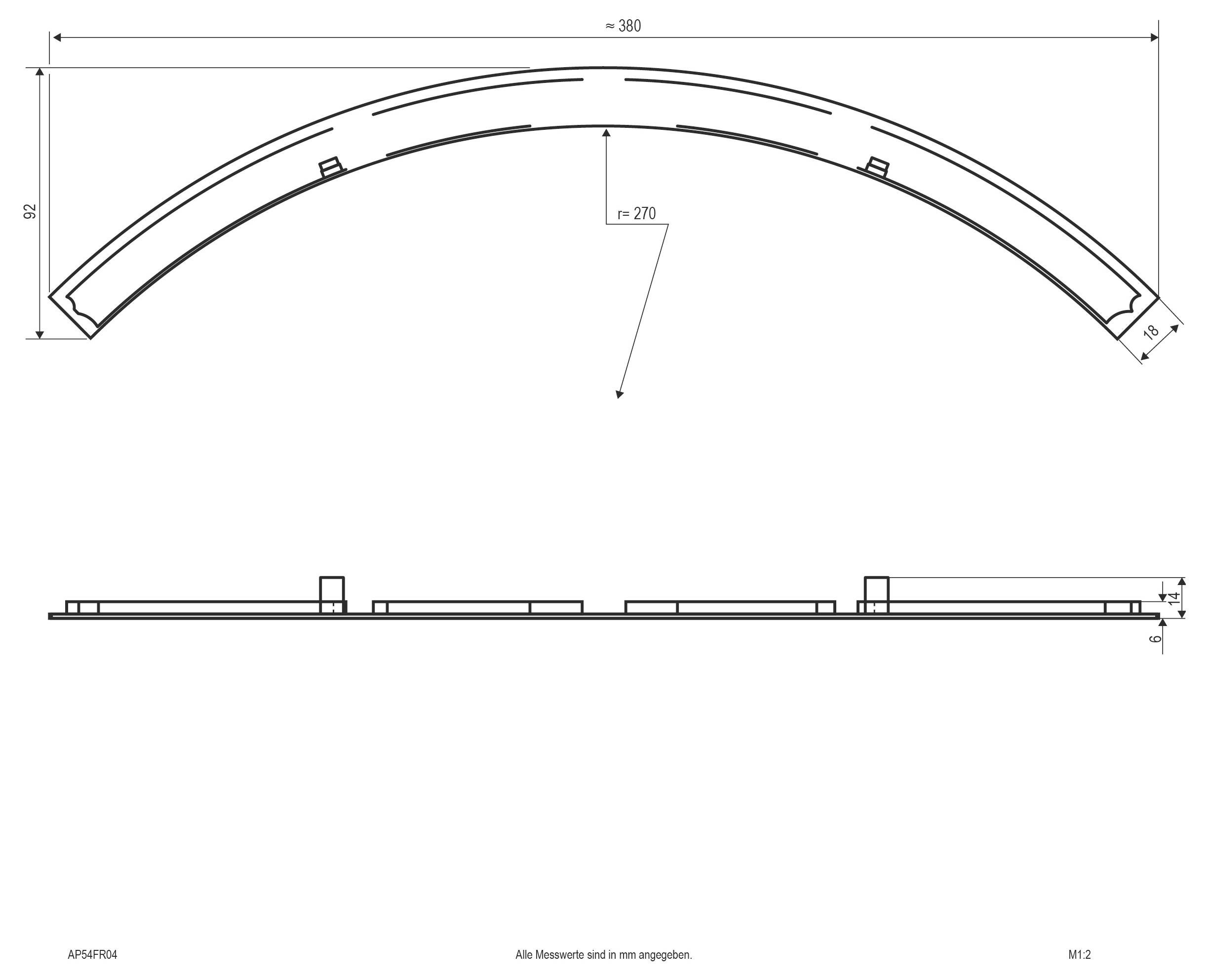

Technical drawing of a curved arc segment, showing front and side views with dimensions labeled 380, 82, and radius r=270.

1/3

EVN

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type of accessories/spare parts: Decorative element
Reflector punched: No.
Grid punched: No.
Material: Plastic
Colour: Red

Factory colour: Red

Material (details): Plastic

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3152328 EVN AP54FR04 AP54FR04 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3152328 EVN AP54FR04 AP54FR04 1 pc(s)

Description

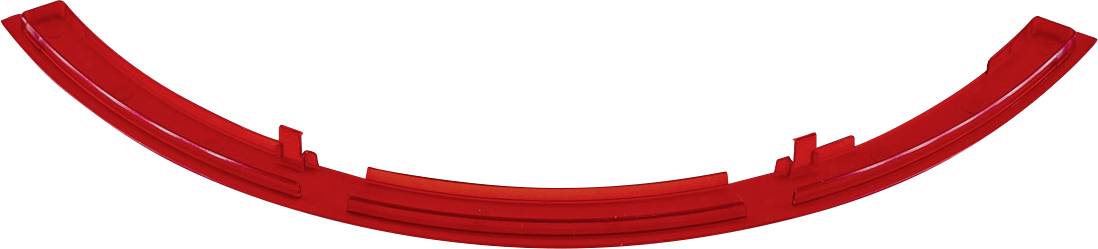

Red color ring for indirect light output of the light AP54500125. The clear light cover of the lamp can be replaced with this colored cover for more design options.

This text is machine translated.
