EVN APFL3AM200 EVN Lichttechnik U-section rail 15 W (max) Aluminium (L x W) 2000 mm x 43.00 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
U-section rail
Material
Aluminium
Length
2000 mm
Energy efficiency rating
n.rel.
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
U-section rail
- Faceplate type
Opal
- Max. power
15 W
- Factory colour
Aluminium
- Material
Aluminium
- Material properties
anodised
- Width
43.00 mm
- Length
2000 mm
- Dim

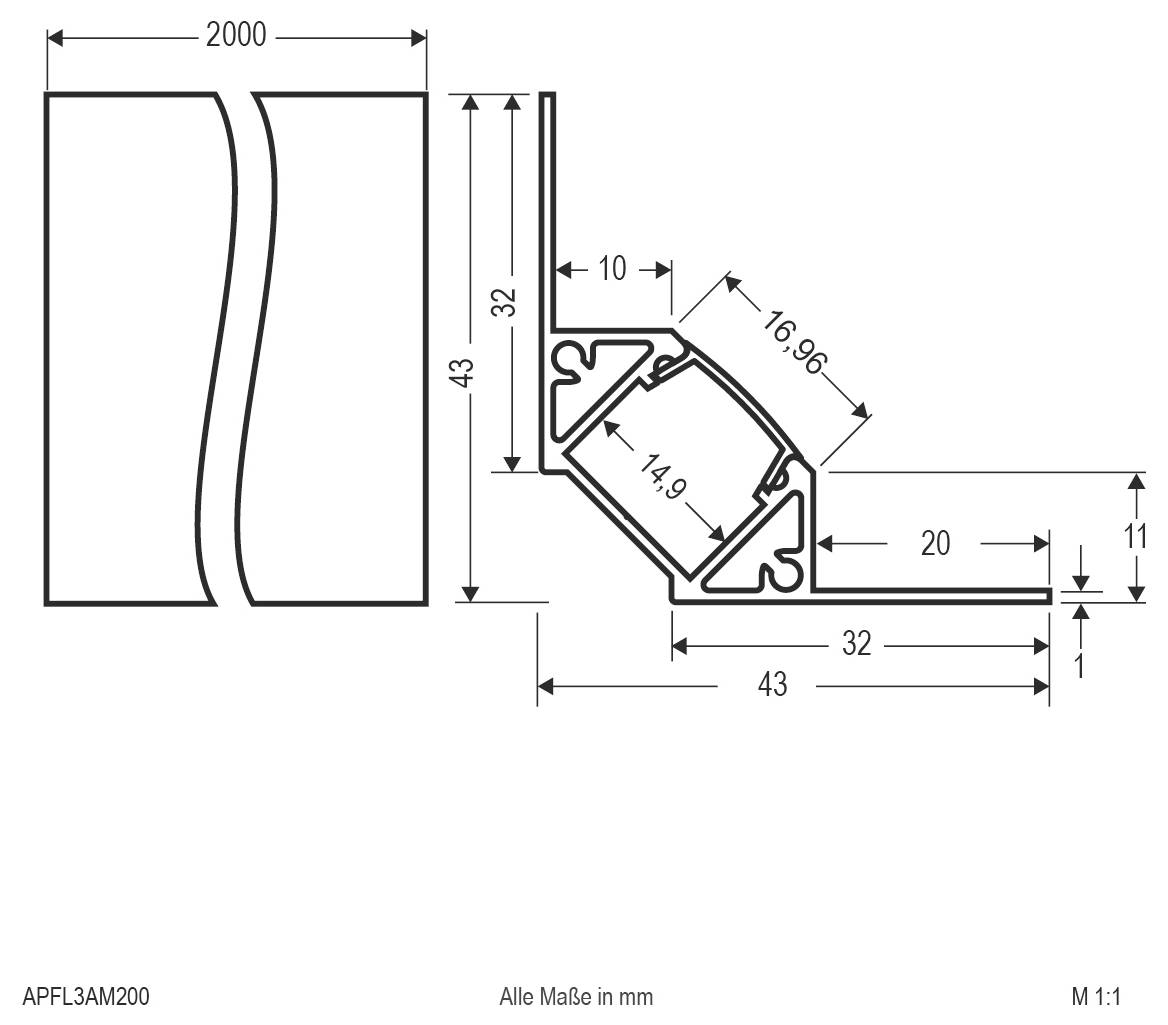

(L x W) 2000 mm x 43.00 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483584 EVN APFL3AM200 EVN Lichttechnik U-section rail 15 W (max) Aluminium (L x W) 2000 mm x 43.00 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483584 EVN APFL3AM200 EVN Lichttechnik U-section rail 15 W (max) Aluminium (L x W) 2000 mm x 43.00 mm Piece 1 pc(s)
Description

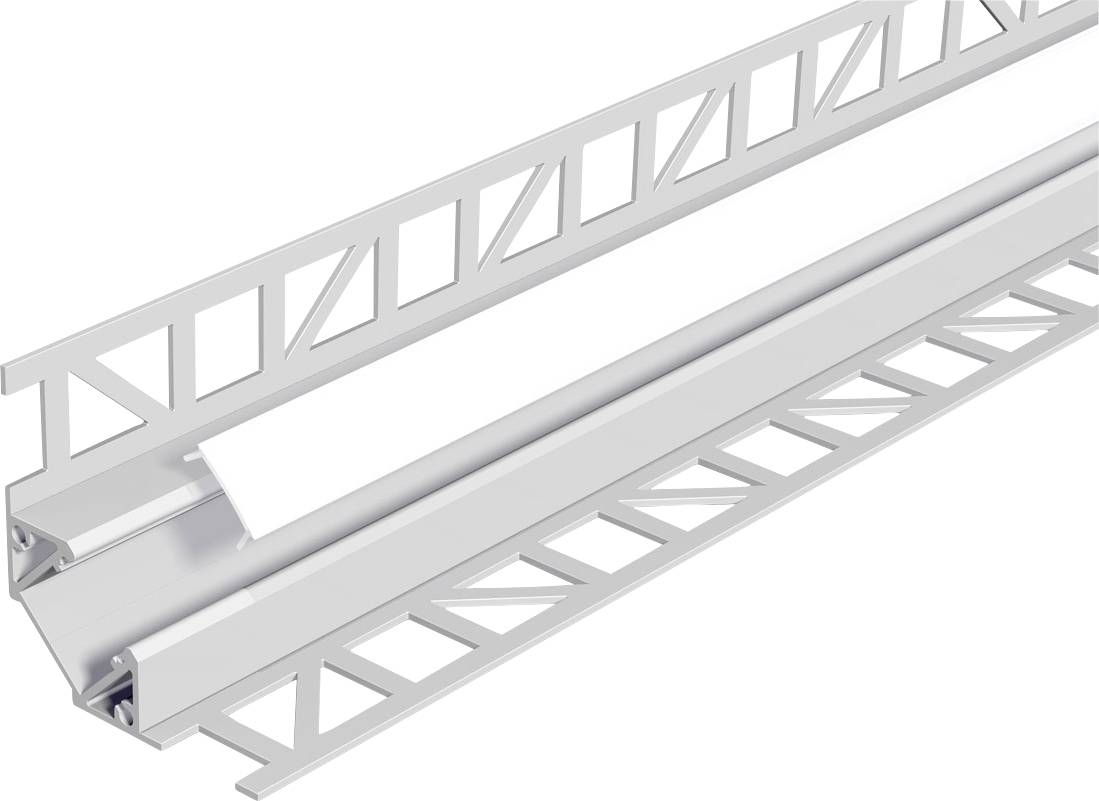

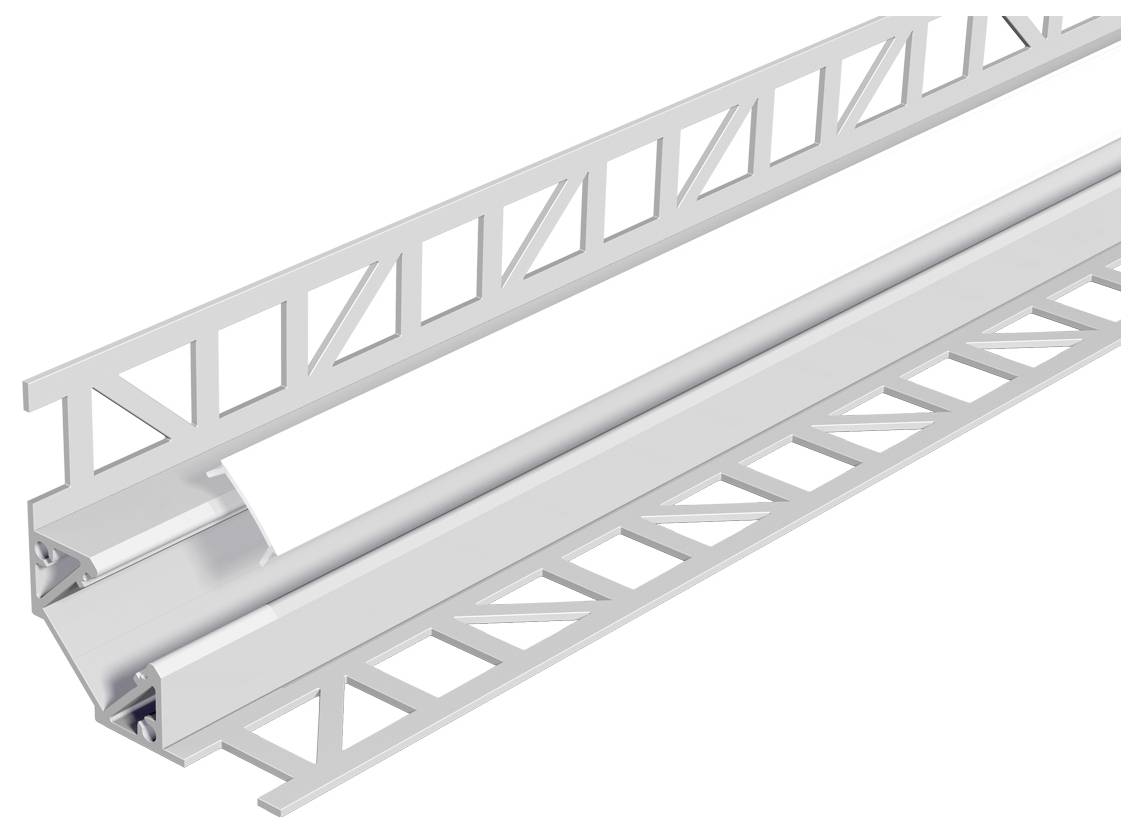

The tile profile made of aluminum is suitable for tiles up to a thickness of 8mm. The punched wings of the profile together with the tile adhesive provide for a secure hold. Supplied with opal cover. Suitable for LED strips up to 14mm wide and a power of max. 15W per meter. For best results, the optional protective hose should be used when installing. Technical data: Profile: Anodized aluminum, cover: Polycarbonate, transmission level: Approx. 65%
