EVN APTB4AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 50.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
U-section rail
Material
Aluminium
Length
2000 mm
Energy efficiency rating
n.rel.
Faceplate type
Opal
Datasheet (PDF)
Technical specifications
- Product type
U-section rail
- Faceplate type
Opal
15 W/m
- Factory colour
Aluminium
- Material
Aluminium
- Material properties
anodised
- LED features
for plasterboard (12.5 mm max)
- Width
50.00 mm
- Length
2000 mm
- Dim

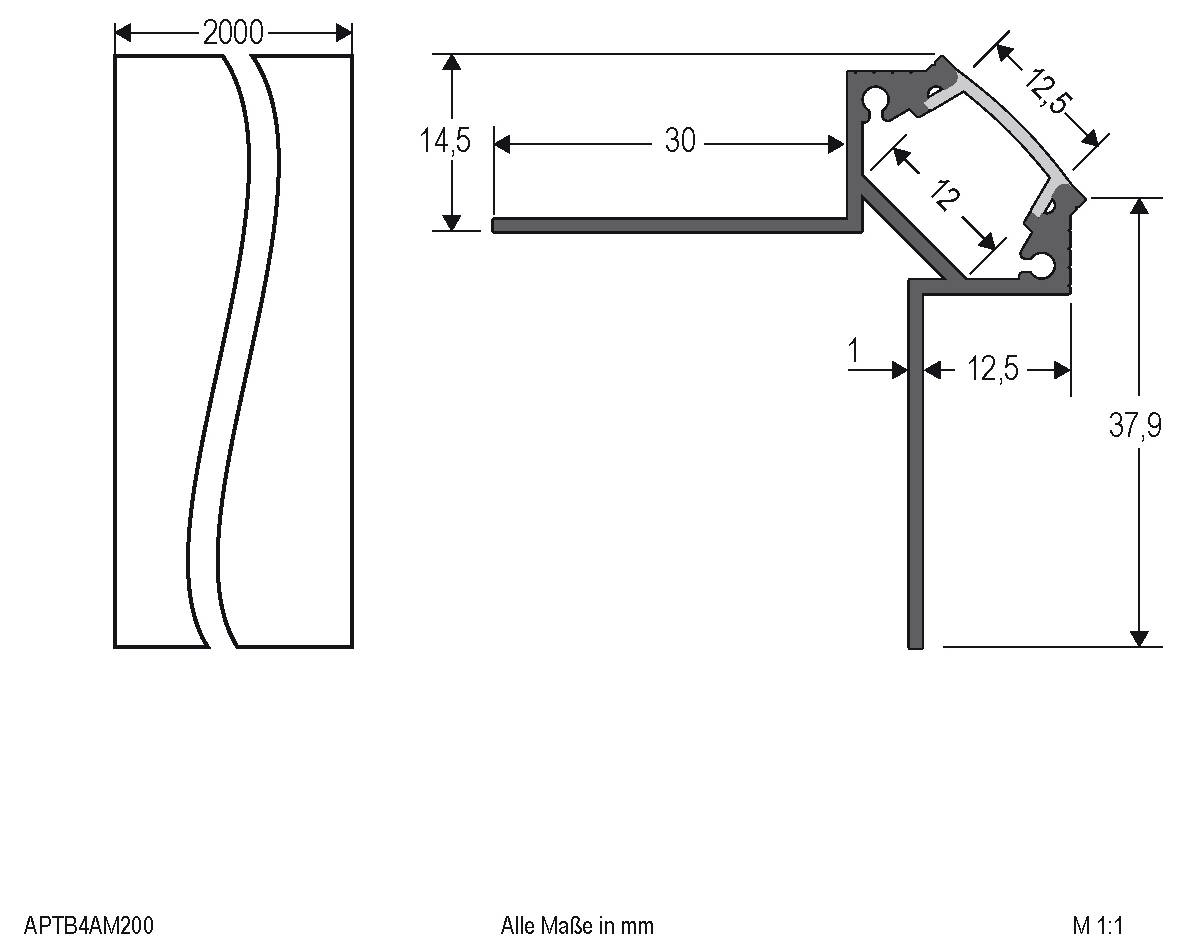

(L x W) 2000 mm x 50.00 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483615 EVN APTB4AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 50.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483615 EVN APTB4AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 50.00 mm 1 pc(s)
Description

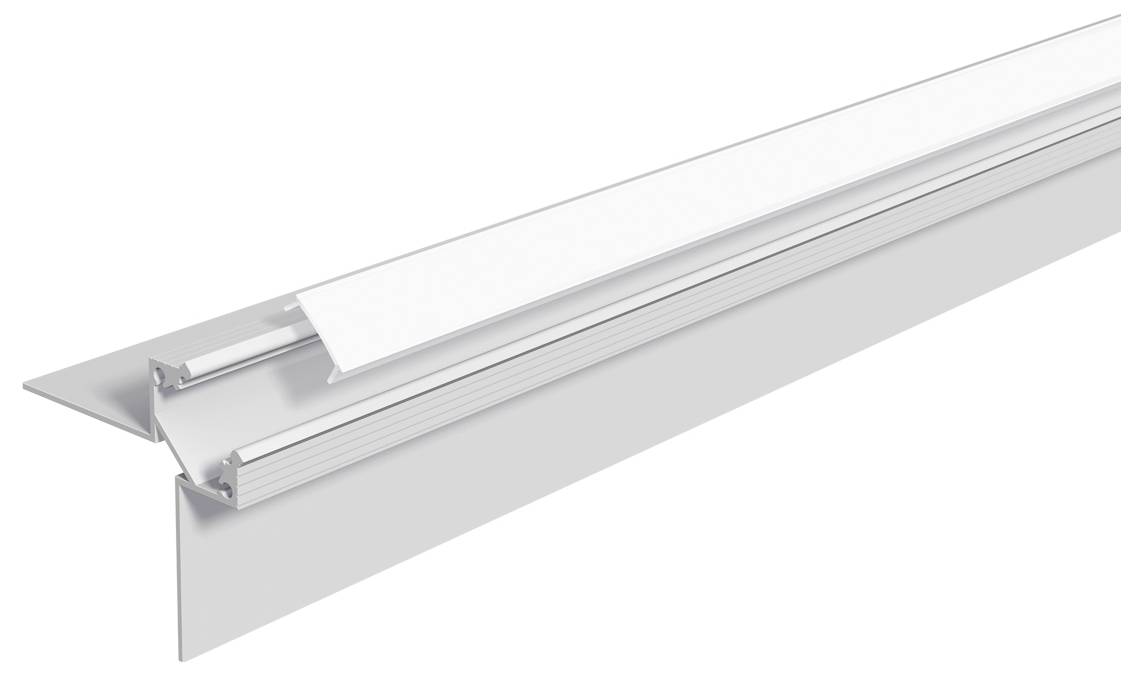

The aluminum drywall profile is suitable for plasterboard with a thickness of 12.5mm. Supplied with opal cover. Suitable for LED strips up to 12mm wide and a power of max. 15W per meter. For best results, the optional protective hose should be used when installing. Technical data: Profile: Anodized aluminum, cover: Polycarbonate, transmission level: Approx. 65%
