EVN APTB6AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 89.20 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
U-section rail
Material
Aluminium
Length
2000 mm
Energy efficiency rating
n.rel.
Factory colour
Aluminium
Datasheet (PDF)
Technical specifications
- Product type
U-section rail
- Factory colour
Aluminium
- Material
Aluminium
- Width
89.20 mm
- Length
2000 mm
- Dim

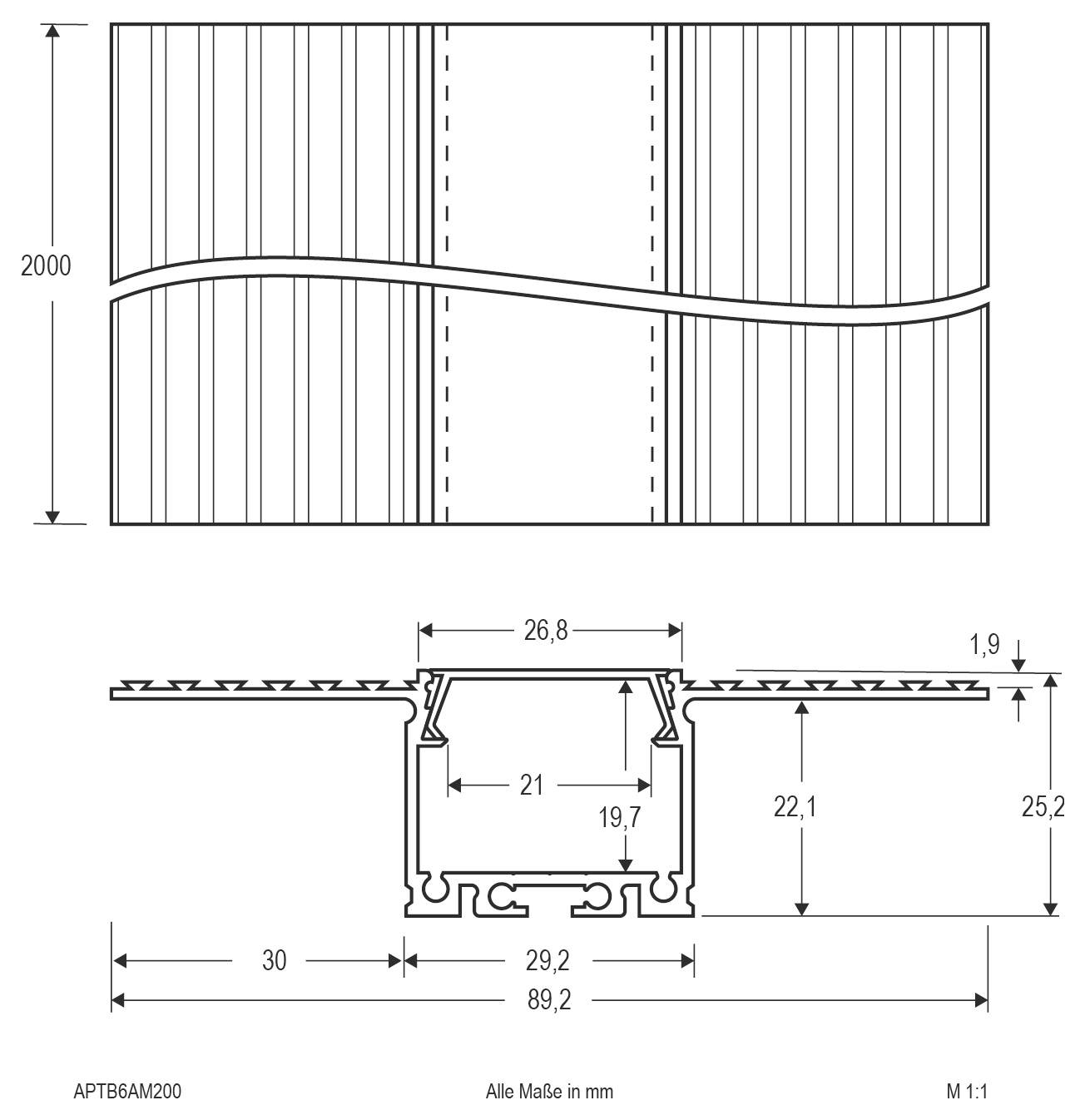

(L x W) 2000 mm x 89.20 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483617 EVN APTB6AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 89.20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483617 EVN APTB6AM200 EVN Lichttechnik U-section rail Aluminium (L x W) 2000 mm x 89.20 mm 1 pc(s)
Description

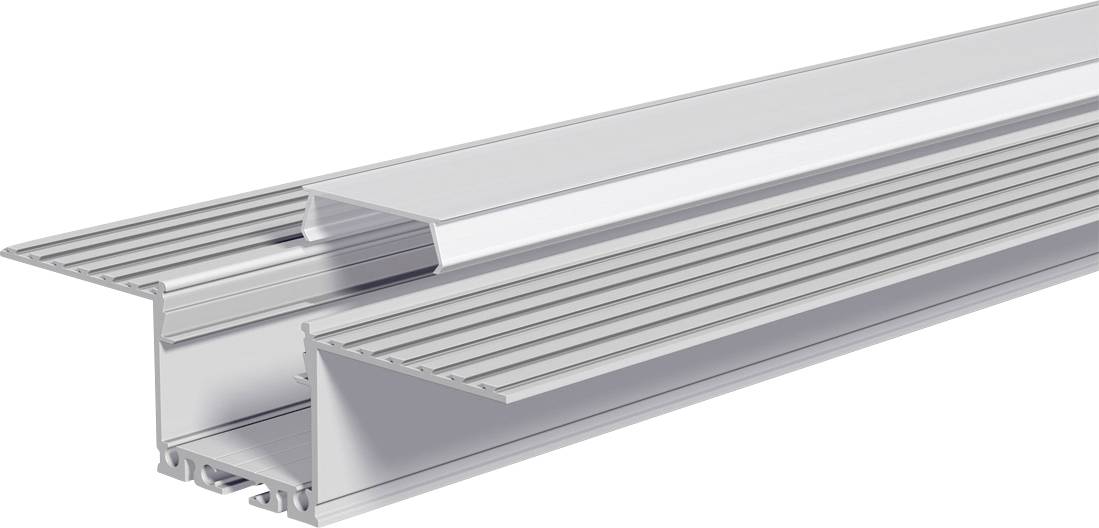

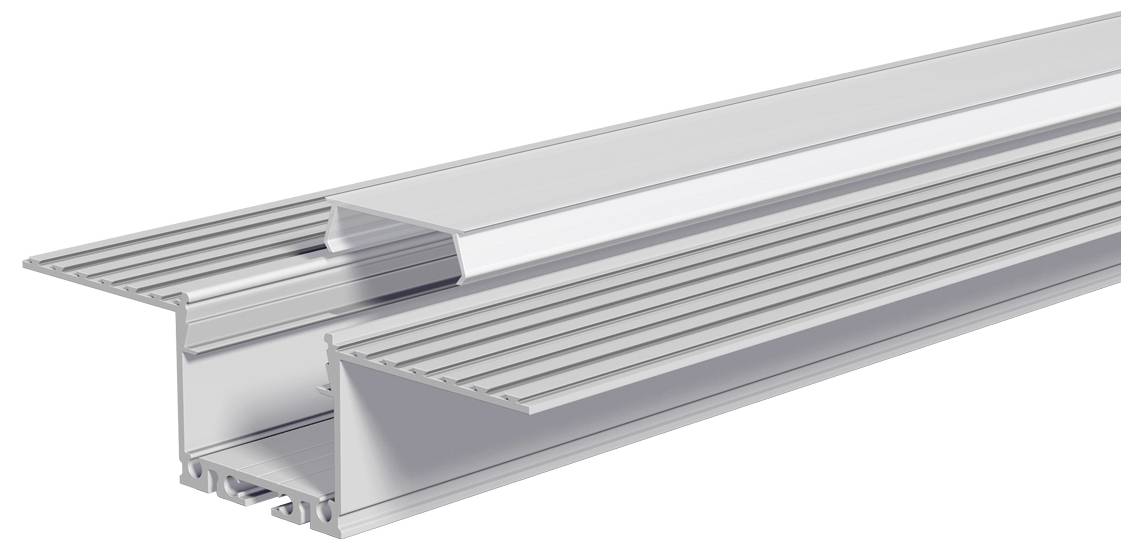

The aluminum drywall profile is suitable for subsequent installation in plasterboard. Supplied with opal cover. Suitable for LED strips up to 21mm width and a power of max. 20W per meter. For best results, the optional protective hose should be used when installing. Technical data: Profile: Anodized aluminum, cover: Polycarbonate, transmission level: Approx. 65%
