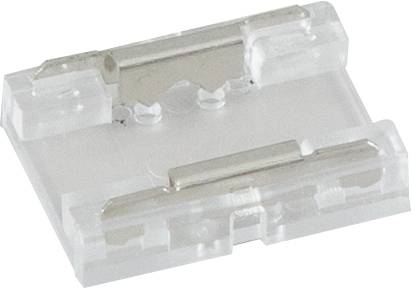

EVN C10UNIDVB C10UNIDVB Connector 5.5 A 24 (max.) 24 V (L x W x H) 15.6 x 11.6 x 3.3 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Operating voltage
24 V
Length
15.6 mm
Energy efficiency rating
n.rel.
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Connection
Jack connector
- Operating voltage
24 V
- Operating current
5.5 A
- Width
11.6 mm
- Height
3.3 mm
- Length
15.6 mm
- Dim
(L x W x H) 15.6 x 11.6 x 3.3 mm
- Output voltage (max.)
24 V
- Max. output current
5.5 A
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3022662 EVN C10UNIDVB C10UNIDVB Connector 5.5 A 24 (max.) 24 V (L x W x H) 15.6 x 11.6 x 3.3 mm Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3022662 EVN C10UNIDVB C10UNIDVB Connector 5.5 A 24 (max.) 24 V (L x W x H) 15.6 x 11.6 x 3.3 mm Piece 1 pc(s)
Description

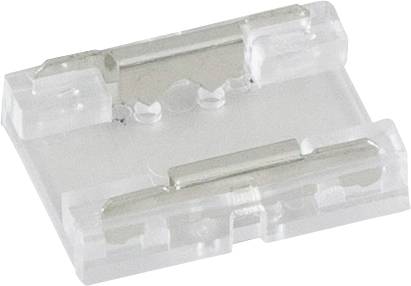

This joint allows the connection of COB LED strips without the need for soldering. Thanks to the flat and narrow design, the connector can also be used in aluminum profiles. The LED strips are simply inserted into the connector. The connector is suitable for unicolor COB LED-strips with a board width of 10mm. The maximum load capacity is 24V and 5.5A. Dimensions: LxWxH: 15.6 x 11.6 x 3,3mm
