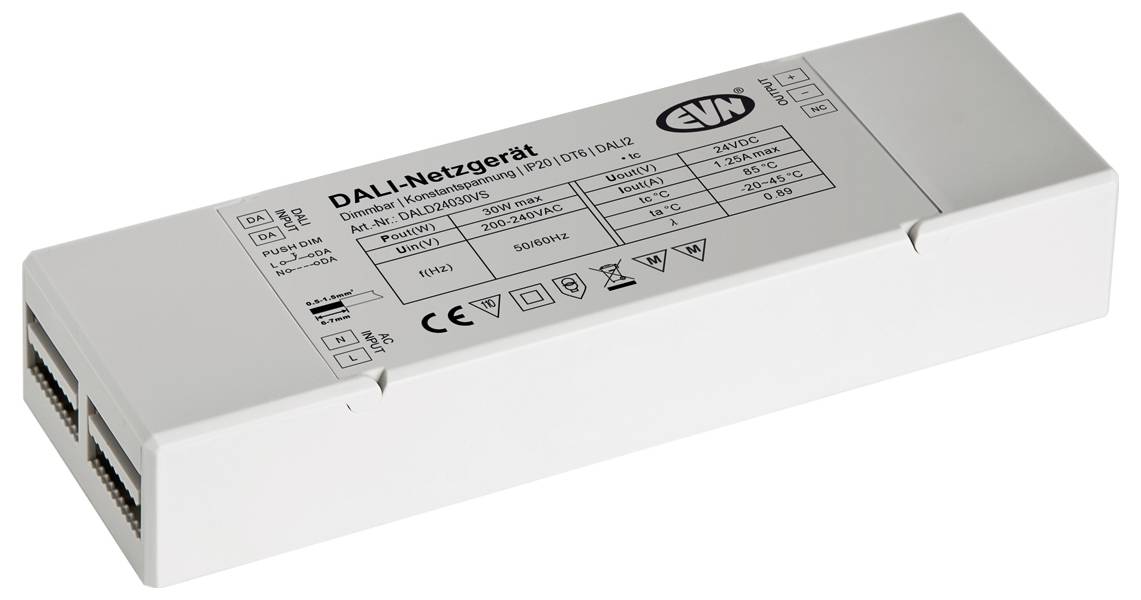

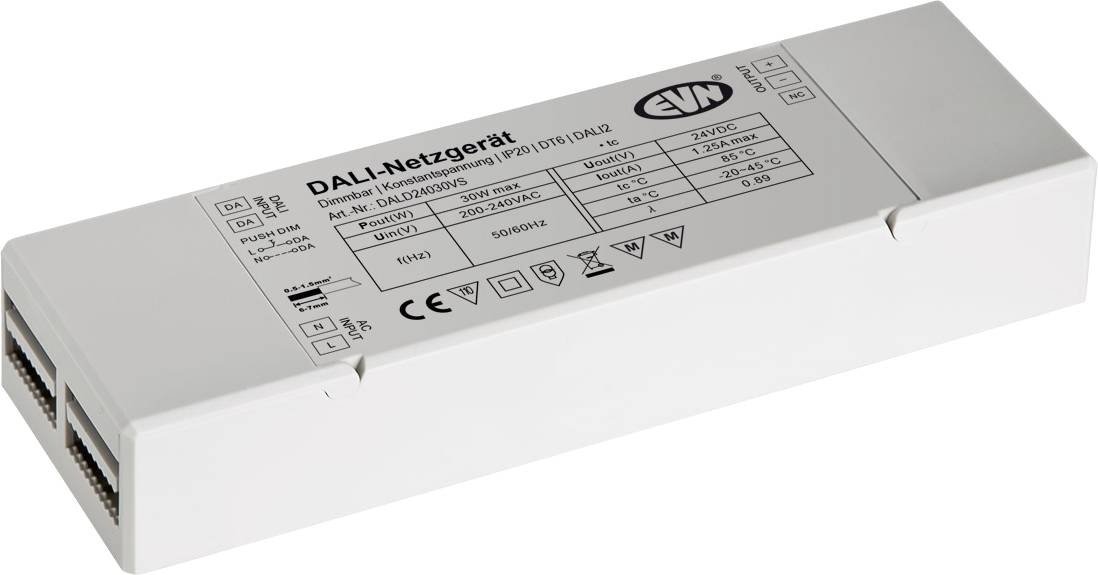

EVN DALD24030VS LED dimmer 168 mm 54 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
200 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD24030VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or Push-L.
- 1x input for 200-240V/AC
- 1x output for 24V/DC
- The plug-in terminals are suitable for cables from 0,5mm² - 1,5mm²
- Technical data: ta: -20°C - 45°C, tc: 85°C.
- Power 0.1-30W
- Power factor 0.90. Complies with standard protocol IEC 60929
- Protocol: dt6, DALI2.
- Type
DALD24030VS
- Product type
LED dimmer
- Min. operating voltage
200 V
- Max. operating voltage
240 V
- Channels
1
- Output signal
Voltage
- Use
Dimmer
- Dim

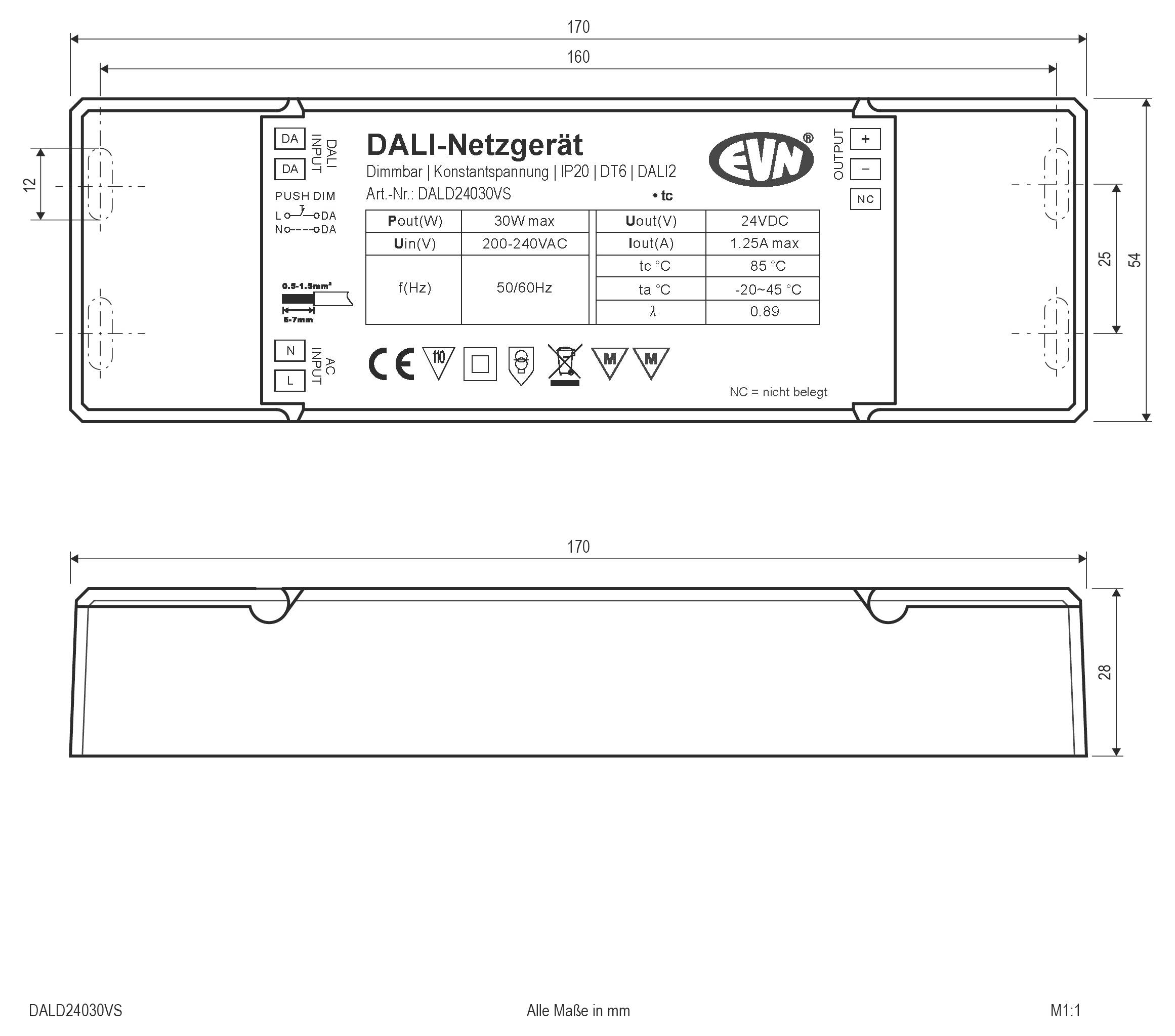

(L x W) 168 mm x 54 mm
- Width
54 mm
- Length
168 mm
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483640 EVN DALD24030VS LED dimmer 168 mm 54 mm
User & Safety Instructions
User & Safety Instructions 2483640 EVN DALD24030VS LED dimmer 168 mm 54 mm
Description
DALI dimmer receiver with integrated power supply unit for unicolor lights with automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. The receiver can also be dimmed via push-L. Connections: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC and 1x output for 24V/DC. The plug-in terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 45°C, tc: 85°C, Power: 0.1-30W, Power factor: 0.90. Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
