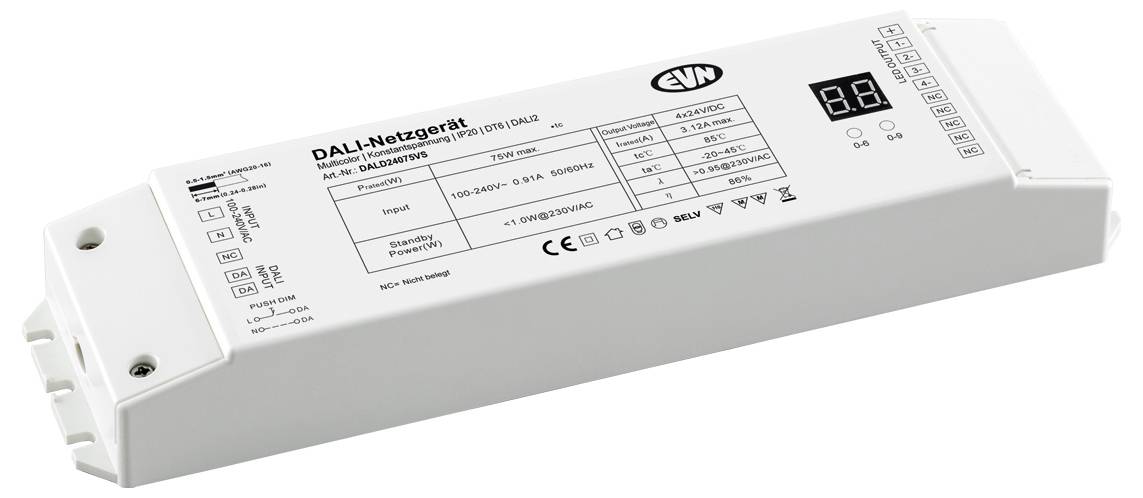

EVN DALD24075VS LED dimmer 244 mm 64 mm
EAN:
Part number:
Item no:
Product type
LED dimmer
Min. operating voltage
100 V
Max. operating voltage
240 V
Use
Dimmer
Type
DALD24075VS
Datasheet (PDF)
Technical specifications
- 1x input for DALI bus or push-L, 1x input for 100-240V/AC and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 45°C, tc: 85°C. In unicolor applications, up to 75W can be connected to one channel. Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
- Type
DALD24075VS
- Product type
LED dimmer
- Min. operating voltage
100 V
- Max. operating voltage
240 V
- Channels
4
- Output signal
Voltage
- Use
Dimmer
- Dim

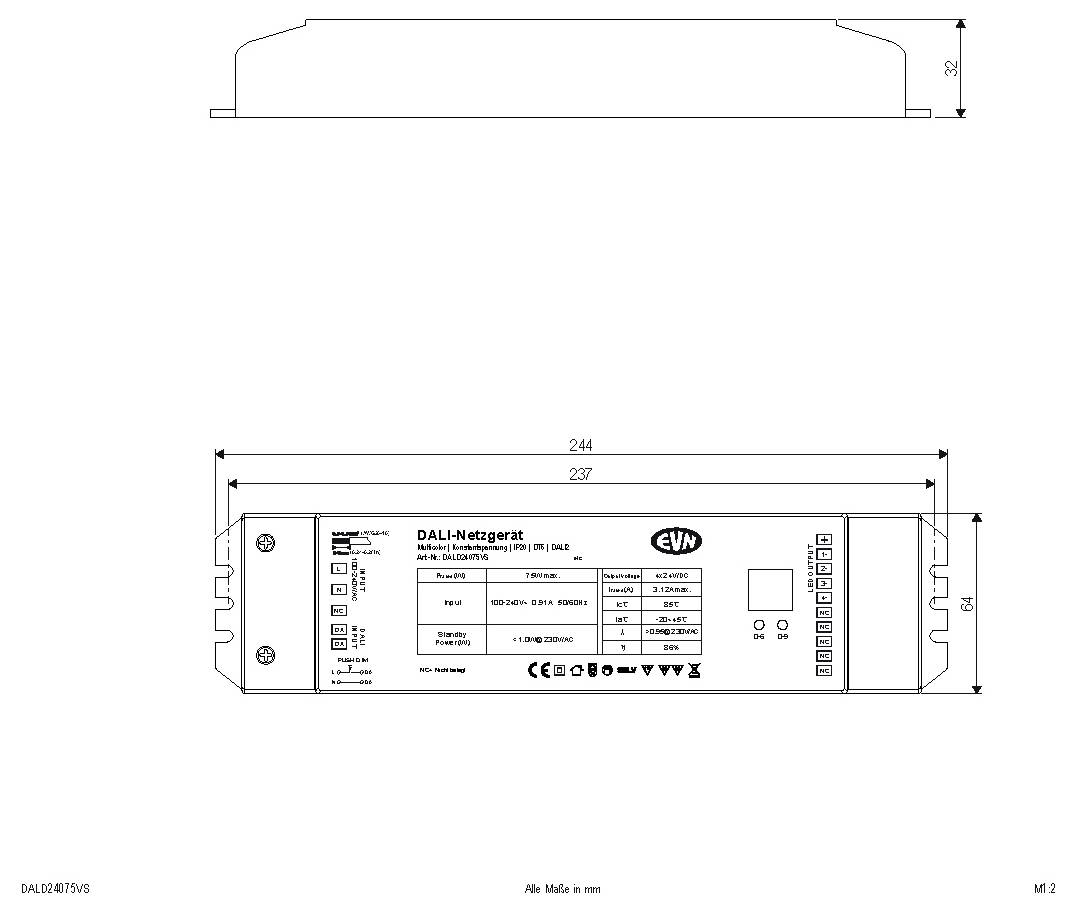

(L x W) 244 mm x 64 mm
- Width
64 mm
- Length
244 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483642 EVN DALD24075VS LED dimmer 244 mm 64 mm
User & Safety Instructions
User & Safety Instructions 2483642 EVN DALD24075VS LED dimmer 244 mm 64 mm
Description
DALI multi-color receiver with integrated power supply unit for unicolor, tunable white, RGB and RGBW lights with manual or automatic DALI address setting. An additional operating device is not required because the receiver functions as such at the same time. The output can be set as 1-4 channels. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or push-L, 1x input for 100-240V/AC and 4x output for 24V/DC (power per output: 0.1-25W). The screw terminals are suitable for cables from 0,5mm² - 1,5mm². Technical data: ta: -20°C - 45°C, tc: 85°C. In unicolor applications, up to 75W can be connected to one channel. Complies with standard protocol IEC 60929. Protocol: dt6, DALI2.
